The Fuel Line
Data Storage
Purpose
Why does storage become the invisible bottleneck that prevents accelerators from reaching their potential?
Accelerators can compute faster than storage can feed them. A high-end accelerator processes data at terabytes per second internally, but individual local drives deliver gigabytes to low tens of gigabytes per second, and distributed storage systems add latency that compounds into idle accelerators waiting for data to arrive. This mismatch is invisible in benchmarks that measure accelerator performance in isolation but dominates real workloads where training data must stream continuously, checkpoints must be saved reliably, and model weights must be loaded at serving time. The gap between what accelerators can consume and what storage can deliver forces careful attention to data formats, caching strategies, and pipeline design that would be unnecessary if storage kept pace with compute. Organizations that optimize accelerator utilization without addressing storage discover that their expensive hardware runs at a fraction of capacity because nobody planned for the data path. In C³ terms, data storage is a compute-communication co-design problem. The fastest compute in the fleet sits idle when the storage hierarchy cannot supply data at the rate the accelerators consume it.
Learning Objectives
- Explain how ML storage workloads invert database assumptions through streaming, checkpoint bursts, and metadata pressure
- Calculate required training bandwidth with the pipeline equation and target accelerator utilization
- Compare memory, flash, parallel file, object, and archive storage tiers by bandwidth, latency, capacity, and cost
- Design prefetching, sharding, caching, and locality strategies that prevent fleet-scale accelerator starvation
- Evaluate accelerator-direct and CPU-bypass storage paths for latency, augmentation, and locality bottlenecks
- Select checkpoint staging and replication strategies that balance pause time, recovery risk, and storage cost
- Assess retrieval indexes and synthetic-data pipelines as storage workloads with distinct latency, consistency, and governance constraints
Dense accelerator nodes can pack eight GPUs delivering petaFLOP/s of aggregate compute, and InfiniBand fabrics can connect thousands of such nodes at hundreds of gigabits per second. Within the fleet stack shown in The Fleet Stack, data storage completes that physical foundation by staging training data, model weights, optimizer state, and intermediate checkpoints at the right distance from the accelerator. An engine without fuel is expensive sculpture. The engineering question is how to deliver that fuel fast enough that 1,000 accelerators never starve.
Storage is the Infrastructure axis of the fleet stack.
Consider the running example for the storage analysis. A 175-billion parameter language model trains on 1.5 trillion tokens of text: roughly 3 TB in compressed source form, or 6 TB once represented as 4-byte token IDs. Each training epoch reads every token once, in a shuffled order determined by the random seed. There is no “hot” subset of data that dominates access; every byte is consumed exactly once per pass. Meanwhile, each accelerator processes its local batch in roughly 200 ms, then waits for the next. If storage cannot deliver data within that 200 ms window, the accelerator sits idle, and the organization pays for silicon that produces heat instead of gradients.
The problem is deceptive because storage technology has improved substantially. Non-Volatile Memory Express (NVMe) drives achieve 7 GB/s of sequential throughput, a figure that would have seemed out of reach a decade ago. An H100 moves data internally through high-bandwidth memory (HBM) at 3.35 TB/s, roughly 478.6× the sequential bandwidth of a single NVMe drive. This ratio contrasts two tiers; it is not the rate at which storage must supply training inputs, because HBM bandwidth also carries repeated weight, activation, and tensor traffic during computation. The storage feed requirement is instead determined by the input-batch bytes each accelerator needs per iteration. Meeting that requirement still calls for a hierarchy of storage tiers, each matched to a phase of the ML lifecycle and connected by pipelines that hide latency through prefetching and pipelining.
The storage problem joins physics with economics. Physics dictates that data closer to the accelerator (in both physical distance and interconnect hops) can be delivered faster but in smaller quantities. Economics dictates that cheaper storage can hold more data but at greater distance. The engineering task is to bridge these constraints, keeping the expensive top tier full by drawing from cheaper lower tiers fast enough that the accelerator never perceives the delay. The resulting design problem is quantitative. It asks how fast each tier must be, how deep the pipeline must run, and which bytes are worth keeping close to the accelerator.
Checkpoint writes dwarf training-data reads by about 1,000 times.
The canonical training-data footprint for this example is roughly 9 TB across the hierarchy, combining the compressed corpus and tokenized shards introduced earlier. Additional shuffled or packed variants can raise the staging footprint, but the per-epoch training read over 4-byte token IDs is 6 TB. The model generates a roughly 1.75 TB checkpoint (1,750 GB total, comprising 350 GB of weights plus 1.4 TB of Adaptive Moment Estimation (Adam) optimizer state) every 10 minutes. Over a 30-day training run on 256 nodes, the storage system must deliver 6 TB of tokenized training data per epoch, absorb 7.6 PB of checkpoint writes, and stage model weights for evaluation runs. The sections that follow use these figures to make the engineering constraints concrete.
Those numbers force the storage path. ML access patterns first invert the assumptions behind conventional storage systems; that inversion forces a hierarchy from HBM to cold archive; the hierarchy then requires pipeline equations, direct data paths, and economics that decide which bytes belong at each tier. Checkpoints, retrieval indexes, and synthetic-data provenance are variations on the same fuel-line problem: the storage system must place the right representation at the right distance before the accelerator asks for it.
How ML Workloads Invert Storage Assumptions
A database administrator moving to an ML infrastructure team would find that ML storage workloads invert many familiar storage design principles. The 175B running example makes the inversion concrete. Each training epoch reads every token, in shuffled order, exactly once. The next epoch shuffles again and reads them all once more. There is no “hot data” in the traditional sense and no 80/20 rule where a small fraction of data accounts for most accesses. The standard storage optimizations fail precisely because they assume the opposite.
Traditional storage systems evolved to serve transactional databases, workloads characterized by small random accesses, strong consistency, and moderate bandwidth. A database server might issue thousands of 4 KB reads per second to serve user queries. The industry optimized for this pattern over decades, developing sophisticated caching algorithms, write-ahead logs, and redundant array of independent disks (RAID)1 configurations tuned for small-block random access. Each optimization assumed that the most recently accessed data would likely be accessed again soon.
1 RAID (Redundant Array of Independent Disks): A 1988 Berkeley taxonomy of drive-combining strategies, each trading redundancy against bandwidth (Patterson et al. 1988). ML training inverts the database-era default: RAID 0 (striping, no parity) maximizes sequential read throughput at the cost of zero fault tolerance, a safe trade-off because training data is immutable and durably backed in object storage. Choosing RAID 5 or 6 instead wastes bandwidth on parity calculations that protect data already protected elsewhere.
Patterson, David A., Garth Gibson, and Randy H. Katz. 1988. “A Case for Redundant Arrays of Inexpensive Disks (RAID).” Proceedings of the 1988 ACM SIGMOD International Conference on Management of Data, 109–16. https://doi.org/10.1145/50202.50214.
ML workloads systematically invert these assumptions. Training data access is predominantly sequential, streaming through datasets that span hundreds of terabytes. Individual accesses are large (megabytes rather than kilobytes) because models consume batches of images or text sequences. Consistency requirements are relaxed, since slightly stale features rarely affect model quality. Bandwidth demands, however, are extreme: hundreds of gigabytes per second, sustained for days or weeks. The mismatch between what storage was optimized for and what ML actually needs creates the I/O Wall (principle 6): when storage throughput cannot deliver training data as fast as accelerators consume it, GPUs idle regardless of their computational power. A storage system that was adequate for 8 GPUs becomes the bottleneck at 64, making the data pipeline, not the model, the limiting factor. The bottleneck diagnostic table classifies this wall as a constraint that lives at the intersection of Communication and Compute in the fleet-scale diagnostic framework, so a storage engineer can confirm that the cure is more bandwidth rather than faster accelerators.
A simple shard-assignment calculation shows how this bottleneck can emerge even when aggregate storage capacity looks ample.
Napkin Math 1.1: The thundering herd: Shard contention
Problem: A dataset is split into 1000 shards on a shared file system. If 32 workers each pick a shard at random to start their next epoch, what is the probability that at least two GPUs “collide” on the same storage server, causing a performance bottleneck?
Math: This is a variant of the “Birthday Problem” in probability.
- Probability of No Collision: \(\approx e^{-n_{\text{workers}}^2/(2K_{\text{shards}})} = e^{-32^2/2000} \approx 0.60\).
- Probability of Contention: \(1 - 0.60 = 40\%\).
Systems insight: Even with a large number of shards, the birthday-problem approximation \(1 - e^{-n^2/(2k)}\) yields a 40.1 percent chance of storage shard contention with \(n = 32\) workers and \(k = 1{,}000\) shards. Such a collision creates a “hot spot” where multiple workers land on the same storage server in the same epoch. In a distributed fleet, the resulting tail latency can leave the cluster waiting for the GPUs that share a disk. Production data loaders reduce this effect through global shuffling and deterministic shard assignment that spread workers across the storage fabric.
Shard collisions are one runtime symptom of the I/O wall; the hardware trend behind that wall is a widening gap between compute throughput and storage bandwidth.
Systems Perspective 1.1: The widening I/O wall
Between 2016 and 2024, advertised accelerator Tensor Core throughput grew sharply, but exact ratios depend on whether the comparison holds precision fixed or follows each generation’s lowest supported training/inference precision. Over the same period, NVMe sequential bandwidth grew far more slowly, from roughly 3.5 GB/s to 14 GB/s per drive. The compute-to-storage bandwidth ratio has therefore worsened substantially. If that pattern continues, the storage hierarchy must add new tiers (persistent memory, Compute Express Link (CXL)-attached storage) or redesign the data pipeline around approaches such as compute-near-storage and in-storage processing. Compute improvements do not automatically carry the storage path with them.

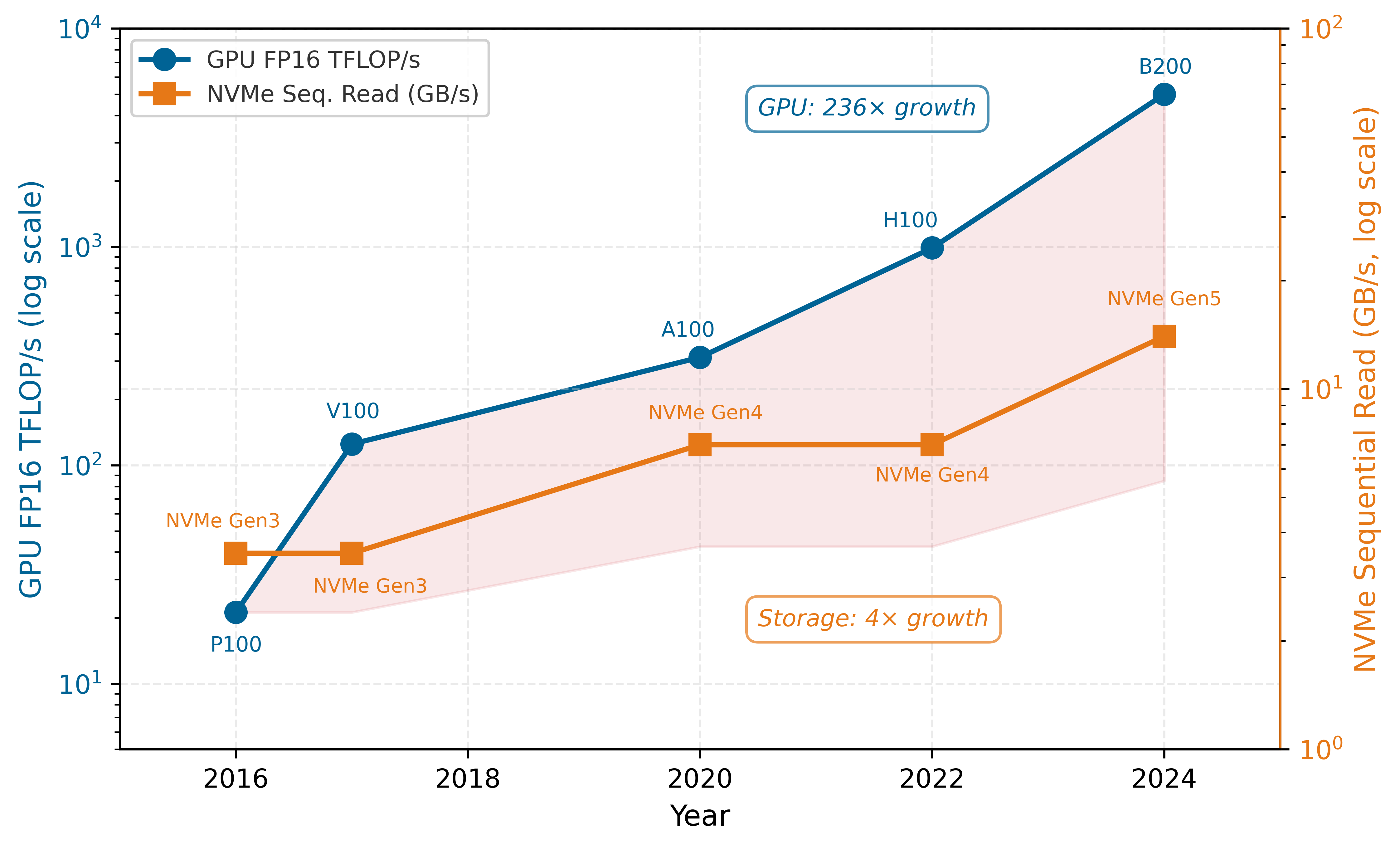

Figure 1 makes this widening gap visually precise by tracking GPU throughput and storage bandwidth side by side on the same timescale.
The nearly 60\(\times\) ratio shown in figure 1 between GPU throughput growth (236\(\times\)) and storage bandwidth growth (4\(\times\)) demonstrates why the I/O wall dominates fleet architecture. This growth divergence, how fast the gap has widened over the years, is distinct from the static tier-to-tier bandwidth cliffs that section 1.2.1 quantifies, which measure how steep the gap is at a single moment. Without a multi-tier storage hierarchy, prefetching, and format optimization, the expensive accelerators at the top of the stack would spend more time waiting for data than computing on it. Each tier of the storage hierarchy addresses a different facet of this chasm.
The first inversion is Access Pattern. Where database workloads exhibit random access patterns that benefit from seek-time optimization, ML training performs massive sequential scans. A training epoch reads every sample once, in whatever order the shuffling algorithm produces. This pattern resembles video streaming more than database queries. Storage systems optimized for random IOPS2 waste their capabilities on ML workloads, while systems optimized for sequential throughput excel. The distinction is quantitatively dramatic: a Gen4/Gen5 NVMe drive delivers roughly 7–14 GB/s for sequential reads, while small 4 KB random reads can fall near 0.5 GB/s, an order-of-magnitude to 30\(\times\) penalty for the wrong access pattern. The penalty is even more severe on hard drives, where mechanical seek times impose a 100\(\times\) throughput reduction for random access compared to sequential.
2 IOPS (Input/Output Operations Per Second): The metric that dominated storage procurement for decades because database workloads issue millions of small random reads. ML training inverts this priority: a pipeline streaming 256 MB shards sequentially needs sustained GB/s throughput, not per-operation speed. Provisioning storage by IOPS rating for an ML workload over-spends on random-access capability the pipeline never exercises.
The shuffling that ML training requires adds a complication rooted in the requirements of stochastic gradient descent. Stochastic gradient descent requires that each mini-batch be drawn approximately uniformly from the training distribution; presenting samples in a correlated order (all samples from the same document, all images from the same class) biases the gradient estimates and slows or destabilizes convergence. True global shuffling would satisfy this requirement perfectly, but it requires random access across the entire dataset, destroying the sequential access pattern that storage hardware demands. For a petabyte-scale corpus, random per-sample seeks are I/O-prohibitive: a dataset of 1 trillion 4-byte tokens stored as individual elements on NVMe, accessed at random, would take thousands of hours to read at the drive’s random-read IOPS rate rather than the few hours achievable with sequential streaming. The practical solution is therefore a compromise: shuffle the order of large data shards, then shuffle samples within each shard’s local buffer. This achieves sufficient randomness for training convergence while preserving the sequential I/O pattern that storage hardware demands. The shard size determines the trade-off: larger shards provide more within-shard shuffle diversity but require more memory for the shuffle buffer.
The second inversion is Working Set Size. Traditional applications exhibit temporal locality: a web server repeatedly accesses popular pages, and a cache holding the top 10 percent of content serves 90 percent of requests. ML training datasets are accessed uniformly. Our 6 TB serialized corpus has no “popular” tokens; each is consumed once per epoch. A cache of any practical size holds only a tiny fraction of the dataset, and most samples are effectively “cold” when accessed. This lack of temporal locality makes traditional caching strategies much less effective. A least recently used (LRU)3 cache can approach a 0 percent hit rate for a cyclic scan larger than the cache. With independently reshuffled epochs, cross-epoch hits are low but nonzero and depend on the cache fraction and sample order.
3 LRU (Least Recently Used): LRU is effective when recently accessed data is likely to be accessed again soon; a cyclic full-dataset scan larger than the cache can evict each sample before its next access and drive the hit rate toward zero. Independent reshuffling changes the boundary behavior because some samples retained from the end of one epoch may be reused before eviction in the next, so the hit rate depends on the cache-to-dataset ratio and ordering rather than being universally zero. Teams should measure this reuse before allocating DRAM that could otherwise serve as prefetch buffers.
The exception to this uniformity is multi-task or curriculum learning, where certain subsets of the dataset are accessed more frequently during specific training phases. In curriculum learning, the trainer begins with “easy” examples and progressively introduces harder ones. This creates a temporary working set that does exhibit locality, and local caching at the NVMe tier can exploit this structure. For the majority of large-scale pretraining workloads, however, the access pattern is effectively uniform, and the storage system must be designed for full-dataset streaming rather than hot-subset caching.
The third inversion is Write Pattern. Transactional systems generate continuous streams of small writes, each immediately durable. ML systems generate occasional massive writes when saving checkpoints. A 175B parameter model checkpoint, including optimizer state, occupies roughly 1,750 GB. Saving it every 10 minutes generates concentrated bursts that saturate bandwidth for seconds, followed by long idle periods. Together, these bursts form a Checkpoint Storm: a synchronized checkpoint-write event that parallel file systems must absorb without disrupting ongoing training reads. The bursty write pattern is particularly challenging because all nodes in the cluster write their checkpoint shards simultaneously. If 128 nodes each write 14 GB, the parallel file system receives 1.8 TB of writes in a single burst, which must complete before the training pipeline can resume. Table 1 consolidates these inversions into the procurement rule: optimize for streaming and bursts, not database-style random IOPS.
| Workload Pattern | Traditional Assumption | ML Reality |
|---|---|---|
| Access pattern | Random access | Sequential streaming |
| Working set | Fits in cache | Exceeds all cache levels |
| Write pattern | Continuous small writes | Bursty large writes |
| Read/write ratio | Balanced | Phase-dependent (100:1 to 1:0) |
| Locality | Strong temporal locality | No locality (uniform sampling) |
These access-pattern inversions introduce a fourth, subtler dimension (table 1): the read/write ratio shifts dramatically by lifecycle phase. During training, reads dominate writes by 100:1 or more, as the system streams through data continuously and saves checkpoints occasionally. During checkpoint-heavy phases in fault-prone clusters, writes can briefly dominate. During data preprocessing, both reads and writes are heavy, and the access pattern more closely resembles a MapReduce job than a training loop: tokenization, deduplication, and shuffling scan the raw corpus once (large sequential reads), write intermediate artifacts (large sequential writes), and then scan those artifacts again for the next stage. A 3 TB compressed text corpus typically expands to 6 TB of tokenized shards before the first training epoch begins, loading each storage tier differently from the read-only training phase that follows. No single storage configuration optimizes for all phases, which is why ML systems require a multi-tier hierarchy rather than a single storage technology.
A fifth inversion emerges when comparing training and inference workloads. Training reads datasets sequentially and writes checkpoints in bursts. Inference, by contrast, reads model weights once at startup (a large sequential read of potentially hundreds of gigabytes), then performs no further storage I/O during normal operation because the model resides entirely in HBM. The storage challenge for inference is cold-start latency: the time required to load a model from storage to HBM when scaling up or recovering from failure. Because the model is read once and then resident, the binding constraint flips from sustained streaming throughput to a single bulk read whose duration depends entirely on which tier supplies the weights, with a parallel file system taking several times longer than local NVMe. Section 1.5.3 derives the concrete load times for a 175B model. For serving workloads with strict availability requirements, this cold-start time drives the design toward keeping warm replicas in host DRAM or using model sharding to parallelize the load across multiple storage devices.
When scaling from a single user to thousands of concurrent inference requests, the storage challenge shifts from a single-stream throughput problem to a massive fan-out distribution problem. A serving cluster with 100 replicas of our 175B parameter model requires 35 TB of model weights distributed across the cluster. When a new model version is deployed (a Model Rollout), all 100 replicas must be updated, triggering a 35 TB data distribution event that must complete within minutes to minimize serving disruption. This is analogous to the checkpoint storm in training but in reverse. Instead of many nodes writing to a central location simultaneously, many nodes are reading the same data simultaneously. The storage system must sustain this burst read bandwidth for model distribution while continuing to serve inference requests from the existing model version without degradation.
These inversions have direct consequences for system procurement and architecture. An organization provisioning storage for ML based on database-era heuristics will over-invest in random IOPS (which ML does not need), under-invest in sequential bandwidth (which ML desperately needs), and fail to account for the bursty write patterns that checkpointing creates.
Checkpoint 1.1: Storage workload analysis
You are designing the storage subsystem for a new ML training cluster with 512 GPUs. The primary workload will train large language models on a 10 TB text dataset.
Understanding which storage tier can keep accelerators fed is essential to system design. Figure 2 plots the required I/O throughput to sustain full GPU utilization against model size, with horizontal ceilings for each storage tier overlaid. Below the NVMe ceiling, local SSDs can sustain the training feed; between NVMe and parallel-filesystem ceilings, only Lustre-class storage suffices; and beyond the parallel-filesystem ceiling, the workload enters the storage-bottleneck regime where no single tier can sustain the accelerators on its own.
The storage-bottleneck region in figure 2 widens with model size: as parameter counts grow, the required throughput rises faster than commodity storage tiers can supply, pushing larger models into regimes where only parallel filesystems or sharded object storage can sustain the training feed. At small request sizes, the gap also widens between sequential and random access: at 4 KB, sequential reads outperform random reads by 10\(\times\). This explains why datasets stored as millions of small files (the “small file problem”) perform catastrophically on ML workloads, even on high-bandwidth storage: the storage service spends its time on metadata rather than payload bytes, the same failure mode that large-scale file systems identify as a metadata bottleneck (Shvachko et al. 2010). The ML-specific response is to aggregate small samples into large sequential shards (Aizman et al. 2019).
Shvachko, Konstantin, Hairong Kuang, Sanjay Radia, and Robert Chansler. 2010. “The Hadoop Distributed File System.” 2010 IEEE 26th Symposium on Mass Storage Systems and Technologies (MSST), 1–10. https://doi.org/10.1109/msst.2010.5496972.
The practical consequence for the running example is stark. The 1.5 trillion tokens of training data produce roughly 6 TB of sequential token-ID reads per epoch, even though the compressed source corpus is only 3 TB. If each token were stored as an individual file (as naive data collection might produce), the metadata overhead alone would throttle throughput to a fraction of what the storage hardware can deliver. Instead, the data must be preprocessed into large sequential shards so that each read operation amortizes the fixed overhead of file open, seek, and close across many tokens. This preprocessing step transforms the access pattern from metadata-heavy one-file-per-sample access to sequential shard reads (Aizman et al. 2019), keeping the workload below the storage ceiling shown in figure 2 and setting up the hierarchy that bridges accelerator appetite and storage capacity.
Self-Check: Question
A storage procurement team is sizing storage hardware for a cluster dedicated to pretraining foundation models on a \(200\text{ TB}\) immutable text corpus. Which purchasing decision represents the most severe misallocation of budget based on ML workload characteristics?
- Paying a premium for enterprise SSDs optimized for high \(4\text{ KB}\) random-read IOPS while under-provisioning sustained sequential read bandwidth (GB/s).
- Aggregating raw text samples into \(256\text{ MB}\) to \(4\text{ GB}\) contiguous binary shards prior to training to amortize file-system metadata operations.
- Provisioning local NVMe drives on compute nodes to serve as a warm read cache for multi-epoch training passes.
- Sizing the parallel file system write tier to absorb synchronized multi-terabyte checkpoint write bursts from hundreds of nodes.
True or False: An in-memory LRU cache sized to \(300\text{ GB}\) placed in front of a \(3\text{ TB}\) uniformly shuffled pretraining dataset will achieve roughly a \(90\%\) hit rate after the first epoch warms the cache because all samples are reused across epochs.
Explain why ML data loaders implement shard-level shuffling combined with within-shard buffer mixing rather than true global per-sample random shuffling across petabyte-scale training corpora.
When an inference platform deploys a new version of a 175B-parameter model (\(350\text{ GB}\) FP16 weights) across 100 serving replicas, how does the storage access profile contrast with a training checkpoint save?
- It generates continuous small random writes to update parameter journals on each replica node.
- It streams an incremental delta of only modified parameters over hours to minimize bandwidth utilization.
- It creates a synchronized fan-out read burst of roughly \(35\text{ TB}\) (\(100 \times 350\text{ GB}\)) that must complete within the deployment latency budget while serving traffic continues.
- It requires sustained multi-gigabyte-per-second sequential write bandwidth to central durable object storage.
Order the sequence of performance degradation steps that occurs when a training cluster attempts to load a dataset stored as 200 million individual small JPEG files from a parallel file system: (1) Storage data disks and network links sit largely idle despite abundant rated bandwidth, (2) Thousands of concurrent workers execute open(), stat(), and close() system calls for every 10 KB sample, (3) The training loop stalls and GPU utilization collapses while waiting for batch collation, (4) Dedicated metadata servers (MDS) become saturated by hundreds of thousands of lock acquisitions and attribute lookups per second, (5) Data loader worker threads block on serialized file descriptor operations.
The ML Storage Hierarchy
A system architect must organize storage to serve workloads that simultaneously demand terabytes-per-second bandwidth for computation, petabyte-scale capacity for datasets, and extreme durability for checkpoints. No single technology satisfies all three requirements. HBM provides bandwidth but not capacity. Object storage provides capacity and durability but not bandwidth. The resolution is a multi-tier hierarchy that places small amounts of fast, expensive storage close to the accelerator and large amounts of slow, cheap storage at the periphery. Each tier exists because it resolves a specific tension between physics (bandwidth and latency are governed by distance from the accelerator) and economics (cost per bit decreases as capacity increases). The hierarchy extends the classic processor memory hierarchy (registers, L1/L2 cache, DRAM) that students encounter in computer architecture courses, adding tiers below DRAM that are unique to large-scale data systems. Table 2 reveals the extreme bandwidth disparities that ML systems must navigate.
Bandwidth drops roughly 479\(\times\) across the top three tiers, from HBM to local NVMe.
| Storage Tier | Typical Capacity | Bandwidth | Latency | Illustrative Cost Basis |
|---|---|---|---|---|
| GPU HBM | 80 GB | 3.35 TB/s | ~100 ns | ~$15/GB acquisition cost |
| Host DRAM | 512 GB–2 TB | 200 GB/s | ~100 ns | ~$3/GB acquisition cost |
| Local NVMe SSD | 4–30 TB | 7–25 GB/s | ~100 μs | ~$0.10/GB-month provisioned |
| Parallel File System | 100+ PB | 1+ TB/s aggregate | ~1 ms | ~$0.03/GB-month provisioned/service |
| Object Storage | Very large pool | 100 GB/s aggregate | ~50 ms | ~$0.02/GB-month service |
| Archive/Cold Storage | Very large pool | 1 GB/s | Minutes to hours | ~$0.004/GB-month service |
One reading of table 2 is worth flagging: HBM’s advantage over host DRAM is bandwidth, not latency. Random-access latency for both technologies sits in the ~80–150 ns range; HBM achieves its bandwidth lead (10–20\(\times\)) through thousands of parallel traces on a silicon interposer and 3D stacking, not faster cells. The latency cliff between adjacent tiers only opens up at NVMe and below, where the physical distance from the accelerator grows from millimeters to meters.
The storage hierarchy model (principle 7) governs storage tiering and pipeline design. Storage performance decreases and capacity increases as data moves further from the accelerator: each tier in table 2 drops bandwidth by 10–100\(\times\) while increasing capacity by 10–100\(\times\). Data format choices, caching strategies, prefetch buffer sizing, and tiering policies all exist to manage the movement of data upward through the hierarchy so that the accelerator never starves.
Figure 3 maps these six tiers into a spatial hierarchy, showing how bandwidth decreases and capacity increases at each step away from the accelerator.
The pyramid in figure 3 encodes a fundamental trade-off: every step down the hierarchy trades bandwidth for capacity and cost. This trade-off is not arbitrary; it reflects the physics of data proximity. HBM sits on the same silicon interposer as the accelerator, connected by thousands of parallel traces measured in millimeters. Host DRAM communicates over PCIe lanes spanning centimeters. NVMe reaches across a circuit board via a PCIe connector. The parallel file system traverses meters of cable and network switches. Object storage may span kilometers of fiber between data centers. At each level, the increasing physical distance translates directly into increased latency, decreased bandwidth per connection, and decreased cost per byte (because the same medium can store more data at lower density).
The engineering challenge is to ensure that data flows upward through the pyramid fast enough that the top tier (HBM) is never empty when the accelerator needs it. Return to the running example: the durable corpus lives in object storage (Tier 4) as a 3 TB compressed source copy plus 6 TB of tokenized training shards, but the accelerator needs each batch in HBM (Tier 0) within 200 ms. The data must be promoted through intermediate tiers, staged in progressively faster storage, so that by the time the accelerator requests a batch, it is already waiting in host DRAM, one PCIe transfer away from HBM.
Bandwidth cliffs between tiers
The bandwidth ratios between adjacent tiers reveal the severity of each transition in the hierarchy. Between HBM and host DRAM, the ratio is roughly 16.8× (3.35 TB/s vs. ~200 GB/s). Between host DRAM and NVMe, the ratio is roughly 7.1× (200 GB/s vs. ~28 GB/s from a 4-drive RAID-0). Between NVMe and a parallel file system, the ratio depends on the per-node allocation: if a 1 TB/s aggregate parallel file system (PFS) serves 256 nodes, each node receives roughly 4 GB/s, a 7\(\times\) reduction from local NVMe. Between the parallel file system and object storage, the ratio is typically 10\(\times\) or more, depending on the number of concurrent clients and network bandwidth.
These bandwidth cliffs compare the movement capabilities of adjacent tiers, but they do not imply that lower tiers must refill the accelerator’s entire HBM at its internal bandwidth. HBM serves repeated weight, activation, and tensor accesses during computation, while the storage pipeline supplies the newly arriving input batch. The required feed bandwidth is therefore the input-batch byte volume divided by the iteration time, aggregated across accelerators. The batch needed next must still arrive in HBM before the current computation finishes. Every lower tier therefore acts as a prefetch buffer for the one above. Host DRAM buffers input batches for HBM, NVMe buffers data for host DRAM, the parallel file system buffers data for NVMe, and object storage is the ultimate source of truth. Each buffer must be deep enough to absorb the latency and bandwidth variance of the tier below it.
The batch-volume arithmetic also explains why increasing cluster size creates storage pressure. A single node with 8 GPUs needs roughly 4 to 40 GB/s of storage bandwidth under the workload assumptions developed in section 1.3. A cluster of 256 such nodes needs 1,000 to 10,000 GB/s. A cluster of 10,000 nodes needs 40 to 400 TB/s. At the upper end, even a world-class parallel file system with 1,000 object storage servers (the data-serving nodes introduced in section 1.2.5) delivering 1 TB/s aggregate cannot satisfy the demand, and the architecture must rely on local NVMe caching to reduce the load on shared storage. The severity of that cluster-level pressure depends sharply on the input-batch volume and iteration time for each data modality.
Storage bandwidth demand swings wildly with data modality.
Napkin Math 1.2: Text vs. image bandwidth
Problem: How much aggregate storage bandwidth does a 2,048-GPU cluster require for text training vs. image training?
Setup: The bandwidth demand depends entirely on the data modality.
For text training, the demand is surprisingly low. With a typical batch size of 4,096 tokens per GPU and a 200 ms step time, the aggregate bandwidth is:
\[2{,}048 \text{ GPUs} \times 4{,}096 \text{ tokens/GPU} \times 4 \text{ bytes/token} \div 0.2\text{s} \approx {167.8 MB/s}\]
This is easily served by a single network-attached storage node.
For image training, the picture changes dramatically. Using a common batch size of 256 per GPU (ImageNet at \(224{\times}224\), roughly 150 KB/image), the aggregate bandwidth explodes:
\[2{,}048 \text{ GPUs} \times 256 \text{ images/GPU} \times 150 \text{ KB/image} \div 0.2\text{s} \approx {393.2 GB/s}\]
Systems insight: Image training requires 2,300× higher bandwidth than text training and demands a high-performance parallel file system. This fundamental difference drives hierarchy design: text training is volume-heavy but bandwidth-light, bottlenecked by total dataset size and checkpointing; image training is bandwidth-heavy, bottlenecked by the storage system’s ability to feed the accelerators.
The bandwidth cliff between tiers also has implications for the data format at each level. At the HBM tier, data must be in the format the accelerator can directly compute on: float16 tensors, packed token IDs, or preprocessed feature vectors. At the NVMe tier, data can be in a more compact format (compressed JPEG, tokenized text with dictionary encoding) because the CPU has time to decode it while the accelerator processes the previous batch. At the object storage tier, maximum compression is desirable to minimize both storage cost and transfer time, even if decompression adds CPU overhead. The format transition from compressed storage to compute-ready tensors is part of the pipeline’s “value-added” work, transforming raw bytes into the representation that the accelerator needs. This transformation happens in host DRAM, making host DRAM the critical staging area for the pipeline.
The format challenge intensifies for multi-modal training, which combines text, images, audio, and video in a single model. Each modality has a dramatically different data profile: a text token is 4 bytes, a high-resolution image is 150 KB, and a short video clip is 10 MB. They also have different compression characteristics and require different augmentation pipelines. A multi-modal training job must manage multiple parallel data streams, each with its own bandwidth profile and prefetch requirements. The storage hierarchy must be provisioned for the sum of all modalities’ bandwidth demands, not the dominant one alone. For a training job combining 3 TB of text with 50 TB of images and 200 TB of video, the video modality overwhelmingly dominates both storage capacity and I/O bandwidth requirements, even though the text modality may contribute more to model quality. This asymmetry between storage cost and training value is a recurring challenge in multi-modal system design.
The descent starts where computation actually consumes bytes: HBM, the tier fast enough to keep accelerator arithmetic fed but far too scarce to hold the full training corpus.
Tier 0: GPU HBM
The most constrained resource in the entire system is also the most scarce. HBM is the only storage tier where weights and activations can reside during active computation. As established in HBM: Breaking the memory wall, HBM is a 3D-stacked memory technology that places DRAM dies vertically atop the accelerator, connected by thousands of through-silicon vias that provide aggregate bandwidth of 3.35 TB/s on an H100. This bandwidth is roughly 17\(\times\) higher than the chapter’s 200 GB/s host-DRAM figure and roughly 480\(\times\) higher than a single 7 GB/s NVMe drive. That bandwidth is what makes large-scale deep learning feasible: a matrix multiplication involving billions of parameters requires reading those parameters from memory every forward and backward pass.
The constraint at this tier is capacity, not bandwidth. An H100 provides 80 GB of HBM, enough to hold a 40-billion parameter model in FP16 (2 bytes per parameter), but nowhere near enough for the 175B parameter running example. To understand the severity of this constraint, consider the memory budget for training our 175B model. The model weights in FP16 consume 350 GB. FP16 gradients require another 350 GB. The Adam optimizer maintains two additional states (momentum and variance) in FP32, consuming \(175 \times 10^9 \times 4 \times 2 = 1{,}400\) GB. Activations for a single batch, depending on sequence length and batch size, can consume another 100 to 400 GB. The total unpartitioned footprint therefore reaches roughly 2.20–2.50 TB, or 27.5–31.25\(\times\) the capacity of a single H100’s HBM. This capacity pressure is precisely why the partitioning in table 3 is mandatory. From the storage hierarchy perspective, HBM is the destination that every lower tier exists to serve. The data pipeline’s purpose is to ensure that the 80 GB of HBM always contains the data the accelerator needs next, not the data it needed a second ago.
Because HBM capacity is so limited relative to both model size and dataset size, the accelerator processes data in batches. Each batch occupies a fraction of HBM for the duration of one forward-backward pass, then is discarded to make room for the next. The rate at which batches must be supplied sets the bandwidth requirement for all lower tiers.
That batch lifecycle creates a “spill” dynamic down the hierarchy. When weights alone do not fit in one HBM pool, the system has only two basic choices: split the live weights across accelerators, or keep some state outside HBM and fetch it when needed. For the 175B parameter model, FP16 weights occupy 350 GB, requiring at least five 80 GB H100 accelerators just for weight storage, with no room left for activations or optimizer state. Adam’s FP32 momentum and variance add another 1.4 TB. Sharding this footprint across the cluster makes the run possible, but every shard creates more lower-tier traffic and more coordination. The storage point is that HBM scarcity is what forces the rest of the hierarchy to exist.
The razor-thin margin is a defining feature of large model training. Table 3 shows the HBM memory budget for training the 175B parameter model on a single H100 GPU with 80 GB of HBM. The table treats partitioning as a storage layout: model weights are split eight ways inside the node, while optimizer and gradient state are sharded across 256 nodes. The purpose is not to derive the partitioning algorithm, but to show the storage pressure HBM sees.
| Component | Size per GPU |
|---|---|
| Model Weights (FP16, 8-way shard) | 43.75 GB |
| Optimizer State (node-sharded) | 0.7 GB |
| Activations (variable by sequence length) | 10–20 GB |
| Gradient Buffers (FP16, node-sharded) | 0.2 GB |
| Communication Buffers (NCCL) | 2–4 GB |
| Total Occupied | 56.6–68.6 GB |
Even with aggressive partitioning, the total memory footprint reaches 56.6–68.6 GB on a decimal gigabyte basis, about 65.9–79.9 percent of the 80 GB HBM pool when measured against its binary capacity. This leaves a limited buffer for the incoming data pipeline, especially once fragmentation and framework workspaces are included. Any delay in fetching the next batch from host memory risks starving the accelerator, forcing it to sit idle while the most expensive resource in the system produces heat instead of gradients.
The batch lifecycle within HBM illustrates how transient storage at this tier truly is. When a new training batch arrives from host DRAM via PCIe, it is placed in a preallocated input buffer in HBM. The forward pass reads the input data, reads the model weights (which persist across batches), and writes activations to HBM. The backward pass reads the activations, computes gradients, and writes gradient updates. The optimizer step reads gradients and model weights, computes updated weights, and writes them back. After the optimizer step, the input batch and activations are no longer needed and their HBM regions are freed for the next batch. The entire lifecycle of an input batch in HBM, from arrival to deallocation, spans a single training step: typically 100 to 500 ms. Model weights and optimizer state, by contrast, persist in HBM for the entire training run, occupying a fixed allocation that cannot be reclaimed for batch data.
From the data pipeline’s perspective, Tier 0 is not a storage tier to be managed but a constraint to be satisfied. The pipeline’s purpose is to ensure that the batch the accelerator needs next is already resident in HBM before the current batch’s computation completes. If it arrives late, the accelerator stalls. If it arrives early, it consumes HBM that could hold activations. The tension between “just in time” and “just too late” defines the pipeline’s buffer management strategy, quantified in section 1.3.
Tier 1: Host DRAM
One level below HBM, host DRAM serves as the staging area for the data pipeline. Every byte of training data that reaches the accelerator passes through host DRAM first (unless GPUDirect Storage bypasses it, as described in section 1.4). A typical training node contains 512 GB to 2 TB of system memory shared across the host CPU and its peripherals. While the bandwidth between host DRAM and the accelerator is limited to what PCIe Gen 5 (about 64 GB/s per direction, 128 GB/s bidirectional) or NVLink (900 GB/s) can provide, host DRAM plays three critical roles in the ML storage hierarchy.
The data loader pipeline that runs in host DRAM follows four ordered stages:
- Read: I/O threads read compressed data from NVMe or network storage into read buffers.
- Decode: Decode threads decompress the data, such as JPEG decoding for images or decompression for text.
- Augment: Augmentation threads apply transformations, including random cropping, flipping, and normalization for images or tokenization and sequence packing for text.
- Collate: The collation stage assembles individual samples into batches and places them in Pinned Memory for efficient direct memory access (DMA) transfer to the accelerator.
That final placement matters because pinned, or page-locked, memory (exposed in PyTorch as pin_memory=True on the DataLoader) prevents the operating system from paging out the buffer before the DMA transfer completes, allowing the NVMe controller to write directly into a physical address that the PCIe DMA engine can reach without an extra copy. Each stage runs concurrently, forming a pipeline that overlaps I/O, CPU computation, and data transfer. The efficiency of this pipeline determines whether host DRAM can keep up with the accelerator’s appetite.
Host DRAM’s most critical function is serving as a Prefetch Buffer. The CPU data loader reads data from lower tiers (NVMe or network storage), decodes compressed formats (JPEG, gzip), applies augmentations (random crops, flips, color jitter), and assembles tensors in host DRAM. When the accelerator finishes processing batch \(i\), batch \(i+1\) should already be assembled in host memory, ready for transfer to HBM. The depth of this prefetch buffer determines how much I/O variance the pipeline can absorb without stalling.
Recommendation workloads place a different demand on host DRAM: hosting Embedding Tables that can exceed 100 GB, far too large for HBM. These tables reside in host DRAM and are accessed through lookups that fetch only the rows needed for the current batch. The bandwidth between host DRAM and HBM becomes the critical bottleneck for these workloads, which is why some systems use CPU-side DRAM with remote direct memory access (RDMA) to serve embedding lookups across the network.
Host DRAM also provides the Augmentation Workspace that the CPU pipeline requires. Data augmentation operations (resizing images, tokenizing text, applying noise) execute on the CPU and require temporary memory for intermediate results. A training pipeline that applies five augmentations to a 256-image batch at 150 KB per image needs tens of megabytes of working space for each augmentation stage. Although modest per-batch, this memory accumulates when multiple data loader workers run in parallel.
Some augmentation pipelines have moved from CPU to GPU execution, using libraries like NVIDIA Data Loading Library to perform image decoding and augmentation on the accelerator itself. This approach eliminates the CPU augmentation bottleneck and reduces the host DRAM bandwidth demand, because compressed data (smaller) is transferred to the GPU instead of decoded data (larger). The trade-off is that augmentation on the GPU consumes HBM capacity and compute cycles that would otherwise be available for training. For compute-bound workloads (where the GPU is already saturated with matrix multiplications), GPU-based augmentation is counterproductive. For I/O-bound workloads (where the GPU waits for data), it can improve overall throughput by shifting work from the bottleneck (CPU) to the resource with spare capacity (GPU).
The three roles interact in subtle ways. The prefetch buffer and the augmentation workspace compete for the same physical DRAM, and embedding tables consume capacity that could otherwise serve as deeper prefetch queues. A node with 512 GB of DRAM hosting a 200 GB embedding table has only 312 GB remaining for prefetching and augmentation. If the data loader uses 8 workers, each maintaining a decode buffer of 1 GB, the effective prefetch capacity drops further. System architects must balance these competing demands by profiling the actual memory consumption of each pipeline stage and provisioning DRAM accordingly.
The physical layout of DRAM has performance implications that are invisible in single-socket benchmarks but critical at production scale. Multi-socket servers exhibit non-uniform memory access (NUMA) topology where each CPU socket has “local” DRAM that it can access at full bandwidth and “remote” DRAM attached to the other socket at roughly half bandwidth. In a dual-socket DGX node with eight GPUs split four per socket, a data loader thread running on socket 0 that allocates its prefetch buffer in socket 1’s DRAM pays a roughly 2\(\times\) bandwidth penalty on every buffer access. The fix is NUMA-Aware Allocation: pin each data loader worker to the same CPU socket (the same NUMA domain) as the GPUs it serves, and use numactl or libnuma to ensure memory allocation stays local. Proper NUMA pinning can improve data loading throughput by 30–50 percent on dual-socket systems, a gain that is invisible in development environments but essential when every percentage point of utilization translates to thousands of dollars per day.
The gap between host DRAM bandwidth and HBM bandwidth is the first major cliff in the hierarchy: roughly 16.8× using the chapter’s 200 GB/s host-DRAM reference and 3.35 TB/s HBM figure. The host-to-GPU interconnect adds a separate cliff, with effective transfer bandwidth depending on whether the node uses PCIe or NVLink. Any failure to keep host DRAM populated from lower tiers cascades immediately to accelerator starvation, because the accelerator cannot fetch directly from NVMe or network storage. In the running example, the 256-node cluster requires each node’s host DRAM to sustain a continuous flow of decoded, augmented batches ready for PCIe transfer. If the NVMe-to-DRAM read pipeline falls behind by even a few hundred milliseconds, the prefetch buffer drains and the accelerator idles until the next batch arrives.
Tier 2: Local NVMe
When the working set exceeds host DRAM, the system falls to Tier 2: the local NVMe drives attached directly to the compute node. NVMe4 provides a high-performance protocol designed specifically for solid-state drives, achieving 7 GB/s of sequential throughput per drive. With four drives in a RAID-0 configuration, a single node can sustain roughly 28 GB/s of sequential reads before overhead, sufficient to stream the 6 TB serialized dataset from local disk in about 3.6 minutes under ideal sequential conditions.
4 NVMe (Non-Volatile Memory Express): A storage protocol designed for SSDs, connecting directly to the CPU via PCIe lanes. NVMe replaced Advanced Host Controller Interface (AHCI)’s single queue of 32 commands with 64K queues of 64K commands each, a 130-million-fold increase in maximum outstanding I/O. This deep queue parallelism is what allows a multi-worker ML data loader to saturate the drive’s bandwidth; with AHCI, 32 workers would serialize on the single command queue regardless of flash speed.
In ML training, local NVMe acts as a Warm Cache, storing data shards fetched from distributed storage. This design allows workers to re-read samples across multiple epochs without re-traversing the network. For multi-epoch training on petabyte-scale datasets, the network egress cost of re-fetching from object storage each epoch would be prohibitive (section 1.5). Populating local NVMe from shared storage at job start and reading locally thereafter eliminates both cost and latency.
The warm cache pattern requires careful capacity planning. A training node with four 7.68 TB NVMe drives provides approximately 30.7 TB of local storage. For the running example, the 6 TB serialized dataset fits comfortably on a single node’s local storage, with room for checkpoint staging and temporary augmentation buffers. A multi-modal training job combining 20 TB of images, 10 TB of text, and 5 TB of audio totals 35 TB, exceeding local capacity by about 4.3 TB and forcing the pipeline to stream from the parallel file system for at least part of the dataset. The design trade-off is between provisioning more local NVMe (which increases node cost) and accepting network-dependent reads (which risks latency spikes).
NVMe’s internal parallelism is key to its throughput advantage over traditional storage. The NVMe specification supports up to 65,535 I/O queues, each with up to 65,536 outstanding commands. A data loader with 32 workers, each issuing asynchronous reads, can keep the NVMe controller’s internal pipeline saturated. In contrast, the legacy AHCI protocol that NVMe replaced supported a single queue of 32 commands, throttling parallelism at the protocol level regardless of the underlying medium’s capability. This architectural difference explains why NVMe delivers 10\(\times\) to 50\(\times\) the throughput of SATA SSDs with identical NAND flash, even though the storage medium is the same.
Data format design for sequential I/O
The choice of data format on local NVMe has a dramatic impact on effective throughput. Consider three approaches to storing a 1.28 million image dataset.
The first approach stores each image as a separate JPEG file in a directory hierarchy. This format is natural for data collection (download one image, save one file) but adversarial for training I/O. Each open() system call has a fixed overhead of roughly 10–50 \(\mu\)s in the kernel’s virtual file system layer. At 8,000 images per second, the overhead alone consumes 80–400 ms of CPU time per second. Worse, the directory structure forces the file system to maintain an inode for each file, consuming metadata resources that would otherwise be available for data reads.
The second approach packs all images into a small number of large binary files (such as HDF5, LMDB, or raw concatenated tensors with an index file). Each file contains thousands of images stored contiguously, and a separate index maps sample IDs to byte offsets within the file. The data loader seeks to the desired offset and reads the sample directly. This eliminates the per-file metadata overhead and enables sequential access within each binary file. The disadvantage is that the dataset is no longer human-readable, and modifying a single sample requires rewriting the entire file.
The third approach uses the tar-based archive format popularized by WebDataset. Each sample is stored as a group of related files (image, label, metadata) within a standard POSIX tar archive. The tar format supports sequential iteration without a separate index, because each file’s header contains its size, allowing the reader to skip forward to the next sample. This format combines the simplicity of individual files (each sample is self-describing) with the sequential I/O efficiency of large binary files. The tar archives are also valid HTTP byte-range targets, making them directly streamable from object storage without local staging.
For the running example, the 1.5 trillion token dataset is typically stored as a collection of 256 MB to 4 GB binary shards, each containing a contiguous sequence of tokenized text. The data loader opens a shard, reads it sequentially into a buffer, and iterates over tokens within the buffer. When the buffer is exhausted, the loader opens the next shard. The total number of open() calls per epoch is the number of shards (roughly 2,000 if the 6 TB serialized corpus is split into 3 GB shards), not the number of tokens (trillions). This approximately 750,000,000× reduction in metadata operations is what makes streaming from both local NVMe and remote storage feasible at training scale.
At the NVMe tier, compression represents a critical trade-off between I/O bandwidth and CPU cycles. An I/O-bound pipeline, where the NVMe drives cannot keep up with accelerator demand, benefits from aggressive compression: zstd at level 9 achieves roughly 4:1 compression but decompresses at only 0.5 GB/s per CPU core. A CPU-bound pipeline, where decode and augmentation already saturate the host processor, prefers lighter compression: zstd at level 1 offers roughly 3:1 compression but decompresses at 1.5 GB/s per core. On a 28 GB/s four-drive NVMe RAID array, zstd-1 delivers an effective throughput of 84 GB/s of uncompressed data, while zstd-9 delivers 112 GB/s but requires 3\(\times\) more CPU cores dedicated to decompression. The optimal compression level is therefore not a property of the data but a property of the pipeline’s bottleneck, and it can change when the cluster configuration changes (adding more GPUs shifts the bottleneck toward I/O, favoring heavier compression).
A standard ImageNet training pipeline makes the cost of the wrong format visible.
Napkin Math 1.3: The ImageNet bottleneck analysis
Problem: A ResNet-50 training job on ImageNet (1.28M, ~150 KB average) targets 1000 images/s. The question is whether to use individual JPEG files on an HDD or NVMe.
Math:
- Raw Bandwidth: 1000 images/s \(\times\) 150 KB = 150 MB/s.
- HDD reality: A 7200 RPM hard disk drive (HDD) delivers 100 IOPS at random reads. Sustaining 1000 images/s requires 10× more IOPS than the disk provides.
- Result: Shuffling individual files on an HDD will starve the GPU, capping utilization at about 10 percent before decode, seek, and file-system overheads.
Systems insight: The pipeline must either use NVMe (~100 μs random access, three orders of magnitude faster than object storage) or convert the dataset to a sequential format (TFRecord/WebDataset) to achieve sequential throughput.
The central challenge at this tier is the I/O wall: a single NVMe drive is roughly 500\(\times\) slower than HBM, and even a four-drive RAID-0 stripe remains roughly 120\(\times\) slower. Bridging this gap requires pipelining (overlap I/O with compute, detailed in section 1.3) and, increasingly, GPUDirect Storage (detailed in section 1.4) to bypass CPU overhead entirely. The I/O wall at this tier is particularly insidious because NVMe performance is excellent by historical standards. A storage engineer accustomed to HDD-era throughput of 100 MB/s might view 28 GB/s from a local RAID-0 stripe as superabundant. Relative to the accelerator’s appetite, however, 28 GB/s is a trickle. The only way to bridge the gap is to overlap storage reads with computation so thoroughly that the accelerator never perceives the storage delay.
Local NVMe is also the primary tier for Local Checkpoint Staging. When saving a model checkpoint, the fastest strategy is to write to local NVMe at full bandwidth (minimizing the time the training pipeline is paused), then asynchronously replicate to shared storage for durability, since a per-node shard written directly to a contended parallel file system takes several times longer than the same shard written to local drives. The optimal checkpoint frequency depends on cluster failure rates and checkpoint write time, but the storage-side design goal is already clear: minimize \(T_{\text{write}}\) through tiered staging by writing to local NVMe at full bandwidth, then background-copying to shared storage. Section 1.6 works the timings through in full.
The same local NVMe tier also pays for itself by recovering utilization lost to remote-read latency.
Napkin Math 1.4: Return on investment of local NVMe caching
Problem: A vision-model training pipeline runs each step in 800 ms. Fetching data from a shared parallel file system adds 150 ms of I/O wait because of network congestion. How much does adding local NVMe SSDs to each node improve GPU utilization?
Math: GPU utilization \((\eta_{\text{hw}})\) is the fraction of step time spent in computation.
- Remote Only: 800 ms / (800 ms + 150 ms) \(\approx\) 84.2 percent.
- Local Cache: Using prefetching into local NVMe reduces the exposed I/O wait to near zero.
- New Util: 800 ms / (800 ms + 10 ms) \(\approx\) 98.8 percent.
Systems insight: Local storage is a GPU utilization multiplier. In this scenario, adding a $500 NVMe drive to a $30,000 GPU node recovers 14.6 percent of the GPU’s capacity that was previously wasted on I/O wait. Across a 1,024-GPU cluster, that utilization gain is equivalent to adding 149 GPUs worth of useful work without buying that many more accelerators. In ML infrastructure, local NVMe is not auxiliary; it is the physical buffer that decouples expensive compute from unpredictable shared storage.
A practical concern at this tier is SSD Endurance. NAND flash memory can sustain a limited number of write-erase cycles before the cells degrade. Enterprise NVMe drives are rated for 1 to 3 drive writes per day (DWPD) over a 5-year lifespan. For a 7.68 TB drive at 1 DWPD, this means the drive can absorb 7.68 TB of writes per day, or roughly 14 PB total over its lifetime. ML training workloads are predominantly read-heavy (the dataset is written once and read many times), which is favorable for SSD endurance. However, checkpoint writes can be intensive: if each node saves a 4 GB checkpoint shard every 10 minutes, that is 576 GB per day of checkpoint writes, well within the 1 DWPD budget. The risk emerges when local NVMe is used as a staging buffer for both checkpoint writes and dataset caching: the combined write volume from initial dataset staging plus repeated checkpoint saves must remain within the drive’s endurance rating.
Local NVMe provides high bandwidth and low latency within a single node, but distributed training requires every node to access the same datasets and see the same checkpoints. This shared-namespace requirement cannot be satisfied by node-local storage alone and motivates the next tier in the hierarchy.
Tier 3: Parallel file systems
Beyond the single node, the workload requires a shared namespace where all workers can access the same datasets and where durable checkpoints are globally visible. This is the role of the parallel file system.5
5 PFS (Parallel File System): A family of distributed file systems (Lustre, GPFS/Spectrum Scale, BeeGFS, WekaFS) whose defining property is that a single client reads from multiple storage servers simultaneously, aggregating their bandwidth into one logical stream. For ML training, this means a single data shard striped across 100 servers can deliver 100\(\times\) the bandwidth of any individual server, the architectural feature that makes petabyte-scale dataset access feasible within training-iteration time budgets.
Definition 1.1: Parallel file system
Parallel File System (PFS) is a distributed storage architecture for ML training clusters that stripes data across many storage servers to provide aggregate throughput exceeding the capacity of any single device.
- Significance: A PFS aggregates \(\text{BW}_{\text{io}}\) linearly with the number of storage servers (object storage servers [OSS]). A Lustre cluster with 20 OSS nodes each delivering 10 GB/s provides 200 GB/s aggregate, vs. a single network-attached storage server capped at 10 GB/s, enabling a training job to load a 10 GB striped shard in about 50 ms rather than 1 second. This aggregate bandwidth directly reduces the \(D_{\text{vol}}/\text{BW}\) term in the iron law.
- Distinction: Unlike network-attached storage, where every I/O request routes through a single server, a PFS client receives stripe location metadata from a dedicated metadata server (MDS) and then reads data directly from multiple OSS nodes in parallel: the MDS and OSS paths are architecturally separated, so data bandwidth scales with OSS count while metadata operations scale with MDS count.
- Common pitfall: A frequent misconception is that a PFS has unlimited throughput if enough OSS nodes are added. In reality, a Lustre MDS handles roughly 100,000–300,000 metadata operations per second; at 10,000 workers each opening one small file, the MDS saturates in under 1 second and becomes the serialization point that idles the entire cluster regardless of how many OSS nodes are present.
The architecture of a Lustre-style parallel file system separates two concerns that traditional file systems handle together (Schwan 2003). Metadata Servers (MDS) manage the namespace: file creation, directory listings, permission checks, and lock management. Object Storage Servers (OSS)6 manage the actual data blocks, each serving a stripe of every large file. When a client opens a 10 GB training shard, the MDS tells the client which OSS nodes hold which stripes, and the client reads from all of them in parallel. A Lustre7 deployment with 100 OSS nodes, each providing 10 GB/s, delivers an aggregate 1 TB/s.
Schwan, P. 2003. “Lustre: Building a File System for 1,000-Node Clusters.” Proceedings of the 2003 Linux Symposium, 380–86.
6 OSS (Object Storage Server): In parallel file system terminology, “object” means a chunk of striped file data managed by an object storage target, a usage that predates cloud object storage (S3, GCS) by over a decade. Confusing the two is a common source of miscommunication: when a Lustre administrator says “add more OSS nodes,” they mean adding data-serving capacity to the parallel file system, not provisioning cloud buckets.
7 Lustre: A portmanteau of “Linux” and “cluster,” developed at Carnegie Mellon University and first deployed in production in 2003. Lustre is common in HPC and ML infrastructure because its architecture scales aggregate bandwidth linearly with the number of OSS nodes, the same property that makes it a natural choice for training clusters where a single job may demand hundreds of GB/s of sustained read throughput.
Lustre Wiki. 2017. lfs setstripe: Set Striping Pattern of a File. Lustre Wiki manual page.
Lustre Wiki. 2019. Configuring Lustre File Striping. Lustre Wiki.
This abstract architecture has concrete implications for performance tuning. When a training job creates a new dataset directory on Lustre, the administrator configures the Stripe Count (the number of OSS nodes a file is spread across) and Stripe Size (the chunk size written to each OSS) for that directory (Lustre Wiki 2017). For large sequential-read training shards, administrators may choose wider striping and multi-megabyte stripe sizes so a single file can draw bandwidth from multiple OSS nodes; Lustre’s striping guide treats wide striping as useful for very large files or files accessed by many clients, while smaller files often use fewer stripes to reduce overhead (Lustre Wiki 2019). A 4 GB data shard striped across 100 OSS nodes with 4 MB stripes places roughly 10 stripes on each OSS. When a data loader reads large contiguous ranges, the Lustre client can issue parallel read requests to the OSS nodes holding those stripes, aggregating their bandwidth. The client also maintains its own read-ahead buffer, prefetching the next several stripes while the application processes the current ones. This file-system-level read-ahead is distinct from the data loader’s application-level prefetch buffer; the two layers of prefetching compound to provide deep latency hiding, making the physical distance to the OSS nodes nearly transparent to the training process.
The separation between metadata and data paths is what enables the aggregate bandwidth that ML workloads demand. In GPFS8 (IBM Spectrum Scale), the architecture takes a different approach: it stripes data and metadata across shared disks and coordinates concurrent access through token-based distributed locking (Schmuck and Haskin 2002). The result is not a simple MDS/OSS split; it is a shared-disk design whose metadata and data placement can be distributed while the lock protocol preserves consistency across clients. The trade-off is greater complexity in lock management, which must scale to thousands of nodes.
8 GPFS (General Parallel File System): Developed by IBM Research starting in 1998, now marketed as IBM Spectrum Scale. Unlike Lustre’s dedicated metadata-server/object-server organization, GPFS is a shared-disk parallel file system that can stripe data and metadata and uses token-based locking to coordinate concurrent client access. For ML checkpoint writes, this distributed coordination model can reduce reliance on a single dedicated metadata path, but it also makes lock behavior part of the performance envelope.
This separation creates a critical bottleneck: the small file problem. If a dataset consists of millions of 10 KB images stored as individual files, the metadata load overwhelms the MDS long before the data links saturate. Each open() system call requires a metadata lookup, lock acquisition, and attribute fetch. With 10,000 workers simultaneously calling open() on different files, the MDS becomes the serialization point. The throughput of the storage system collapses to the rate at which the MDS can process metadata operations, typically a few hundred thousand per second, far below what the data path could deliver.
Definition 1.2: Small file problem
Small File Problem is an ML data-loading pathology where millions of individually small files overwhelm the metadata server of a storage system.
- Significance: It reduces effective I/O Bandwidth \((\text{BW}_{\text{io}})\) to a fraction of its theoretical rating because each file requires its own metadata operations (
open,stat,close). With 10,000 workers simultaneously accessing small files, the metadata server becomes a serialization point that idles the entire cluster. - Distinction: Unlike bulk data throughput (which measures bit-rate), the small file problem is a metadata latency \((L_{\text{lat}})\) issue: the bottleneck is the frequency of requests, not the size of the data.
- Common pitfall: A frequent misconception is that this is “fixed” by buying faster SSDs. In reality, it is a format problem: the fix is to pack samples into large sequential containers (for example, TFRecord, Parquet) to amortize metadata operations across thousands of samples.
At production scale, the metadata bottleneck can collapse an otherwise high-bandwidth file system.
Example 1.1: The metadata meltdown
Scenario: A large-scale training cluster migrates from a preprocessed sequential dataset to 200 million raw image files stored individually on a parallel file system provisioned for 500 GB/s aggregate bandwidth.
Diagnosis: The file system delivers less than 1 percent of rated throughput. Millions of per-second stat() and open() calls overwhelm the metadata servers, choking data loaders despite abundant network and storage bandwidth.
Systems lesson: At scale, metadata contention becomes the primary storage bottleneck. Bundling 200 million raw images into 50,000 large tar shards (e.g., WebDataset) reduces metadata operations by 4,000\(\times\), restoring high sequential read throughput.
The design response to the small file problem is Striping and Aggregation. Striping distributes a single large file across multiple OSS nodes so that a client can read from all of them in parallel. The stripe size (typically 1 to 4 MB per OSS) determines the granularity: a 4 GB file striped at 1 MB across 100 OSS nodes places 40 MB on each node, and a sequential read saturates all 100 data paths simultaneously. The stripe count (how many OSS nodes participate) can be configured per-file or per-directory, allowing administrators to tune bandwidth for different access patterns. Training data shards benefit from maximum striping; small configuration files benefit from minimal striping to avoid the overhead of coordinating across many nodes.
The interaction between stripe size and workload access pattern determines realized throughput. If the training data loader reads sequentially through a shard, the PFS client reads stripe 1 from OSS-A, stripe 2 from OSS-B, stripe 3 from OSS-C, and so on, naturally distributing the load across all OSS nodes that hold stripes of that file. If the read size is smaller than the stripe size, each read is served by a single OSS node, and the client does not benefit from parallel reads. If the read size spans multiple stripes, the client issues parallel reads to multiple OSS nodes simultaneously. For ML workloads that read multi-megabyte chunks (an entire batch of images, or a 4 MB block of tokenized text), the read size typically exceeds the stripe size, achieving full bandwidth aggregation.
Aggregation complements striping by reducing the number of files that the MDS must track. Small samples are bundled into large sequential files (such as WebDataset9 tar archives or TFRecord sequences) to amortize metadata costs across thousands of samples. A single open() on a 4 GB tar file gives access to 40,000 samples, reducing metadata load by 40,000\(\times\) compared to individual files.
9 WebDataset: A data format that repurposes standard POSIX tar archives for ML training. The design insight is that tar’s sequential header-then-data layout, invented in 1979 for tape backup, maps perfectly onto the streaming access pattern that ML data loaders need. Because tar archives are valid HTTP byte-range targets, a data loader can stream training samples directly from object storage without local staging, reducing the I/O path from five tiers to two.
Schmuck, Frank, and Roger Haskin. 2002. “GPFS: A Shared-Disk File System for Large Computing Clusters.” Proceedings of the USENIX Conference on File and Storage Technologies (FAST ’02), 231–44.
Parallel file systems provide the coordinated shared namespace and lock management required for reliable checkpoints (Schmuck and Haskin 2002). When a checkpoint save completes, every node that subsequently reads that checkpoint must see the same completed state. This guarantee is essential for fault recovery: if a node fails and restarts, it must read the checkpoint that the surviving nodes wrote, not a partially flushed version. Achieving this consistency at scale requires careful coordination between the MDS lock manager and the distributed OSS write paths, which is one reason that checkpoint writes are more expensive than training reads.
The consistency model has subtleties that matter for ML workloads. For training data reads, strong consistency is unnecessary because the data is immutable: once a dataset is preprocessed and uploaded to the parallel file system, it is never modified. Multiple workers reading the same shard simultaneously can do so without locking, because there are no concurrent writers to create conflicts. This read-only access pattern allows the PFS to serve training data at near-theoretical bandwidth. Checkpoint writes, by contrast, require exclusive locks to prevent partial reads during the write, and the lock acquisition and release add latency to every checkpoint operation. Some systems mitigate this by writing checkpoints to a new file rather than overwriting the previous one, trading storage space for reduced lock contention.
The performance of a parallel file system depends not only on the number of OSS nodes but also on the balance of load across them. If a training job reads a single large shard that is striped across 10 OSS nodes while the remaining 90 nodes are idle, the job achieves only 10 percent of the system’s aggregate bandwidth. Conversely, if 100 training jobs each read different shards striped across all 100 OSS nodes, the aggregate bandwidth approaches the theoretical maximum. The scheduling of data access patterns across the cluster is therefore a system-level optimization opportunity that can dramatically affect realized throughput.
At the scale of thousands of nodes, tail latency (Dean and Barroso 2013) dominates system performance. The mathematics is sobering. If a training step requires data from 100 storage servers and each has a 1 percent chance of being slow (due to background maintenance, garbage collection, or network jitter), the probability that all 100 respond quickly is \(0.99^{100} = 0.366\), meaning over 63 percent of training steps will experience at least one slow response. The slowest response determines the step’s completion time, because data-parallel training requires all workers to complete their batch before the collective communication phase begins.
Dean, Jeffrey, and Luiz André Barroso. 2013. “The Tail at Scale.” Communications of the ACM 56 (2): 74–80. https://doi.org/10.1145/2408776.2408794.
Systems mitigate tail latency through Hedged Requests: after waiting for a configurable timeout (typically the median response time), the client issues a redundant read to a different replica of the same data stripe. The first response to arrive is used; the second is discarded. If the storage system replicates each stripe across two OSS nodes, the probability that both replicas are slow is \(0.01^2 = 0.0001\), reducing the fraction of slow steps from 63 percent to less than 1 percent. The cost of the redundant request, one additional network read, is negligible compared to the cost of an idle accelerator consuming hundreds of watts while waiting.
The effectiveness of hedged requests depends on the replicated data layout. If both replicas reside on OSS nodes that share the same network switch, a switch failure makes both copies simultaneously unavailable. Effective hedging requires Failure-Domain-Aware Placement: replicas should reside in different racks, connected through different top-of-rack switches, so that the failure of any single component affects at most one replica.
In production clusters, the parallel file system is a shared utility, simultaneously servicing dozens of concurrent training jobs with different I/O patterns. At any given moment, a large language model job might be streaming sequentially through text shards, a computer vision job might be reading random image shards, and a checkpoint storm from a third job could be saturating write bandwidth. This concurrency gives rise to the Noisy Neighbor Problem, where one job’s I/O pattern severely degrades performance for all other jobs. A checkpoint save that consumes a disproportionate share of the PFS’s internal network bandwidth causes read latency for other jobs to spike, potentially stalling their training pipelines. PFS administrators mitigate this through I/O scheduling policies (quality-of-service tiers, bandwidth quotas per job), but these policies add administrative complexity and can reduce peak single-job throughput.
A related challenge is Namespace Isolation. Different teams and workloads require different storage configurations. A team training on millions of 100 KB images needs a directory with high stripe count and small stripe size to maximize metadata performance. A team working with large video files needs fewer, larger stripes to optimize for sequential bandwidth. Misconfigured striping for one team’s workload can create hotspots that degrade performance for the entire shared file system. The impact of sharing is easy to quantify: a PFS with 1 TB/s aggregate bandwidth, shared across 10 concurrent training jobs, provides only 100 GB/s per job on average. If one job’s checkpoint storm consumes 400 GB/s for 10 seconds, the remaining nine jobs share 600 GB/s, a 33 percent reduction that can trigger data stalls in their accelerator pipelines.
Checkpoint 1.2: Parallel file system design
Consider a training cluster with 512 nodes, each running 8 GPUs. The training job requires 400 GB/s of aggregate read bandwidth.
Parallel file systems solve the shared-namespace problem for active training clusters, but their cost per byte is too high for the organization’s complete data holdings. The petabytes of raw training data, historical checkpoints, and preprocessed datasets that an ML organization accumulates over years require a tier optimized for capacity and durability rather than bandwidth.
Tier 4: Object storage
At the scale of petabytes, object storage provides the durable, cost-effective foundation of the hierarchy. Services like Amazon S3 and Google Cloud Storage organize data in object namespaces where objects are retrieved by keys rather than by POSIX directory paths (Amazon Web Services 2026c; Google Cloud 2026). Unlike file systems, which organize data in hierarchical directories with metadata-rich operations (rename, link, permission inheritance), object storage treats each object as an opaque blob identified by a unique key. This simplification eliminates the metadata complexity that plagues parallel file systems at scale and enables horizontal scaling to very large capacity pools.
Amazon Web Services. 2026c. Naming Amazon S3 Objects. Amazon S3 User Guide.
Google Cloud. 2026. About Cloud Storage Objects. Google Cloud Documentation.
10 Eleven Nines (99.999999999 Percent Durability): A design target of 11 nines annual durability corresponds to an expected loss probability of about \(10^{-11}\) per object-year; for one million objects, that is about one expected object loss per 100,000 years. This extreme durability is why object storage is the only tier where training data and checkpoint archives can be treated as permanent. The same service indirection, erasure coding, replication, and metadata lookup that support durability also make object storage a higher-latency tier than local NVMe or a warm parallel file system, so real-time data pipelines need prefetch buffering.
11 Erasure Coding: Built on Reed-Solomon codes (Reed and Solomon 1960), which use maximum-distance-separable coding to recover the original data from any sufficient subset of encoded fragments. In storage systems, Reed-Solomon-style codes and later local-reconstruction variants trade storage overhead against repair bandwidth and degraded-read cost (Plank 1997; Huang et al. 2012). For ML storage, the trade-off is concrete: a 4+2 code tolerates two missing fragments at 1.5\(\times\) storage overhead, while triple replication costs 3\(\times\); degraded reads then pay extra network I/O and reconstruction work when fragments are unavailable.
Reed, I. S., and G. Solomon. 1960. “Polynomial Codes over Certain Finite Fields.” Journal of the Society for Industrial and Applied Mathematics 8 (2): 300–304. https://doi.org/10.1137/0108018.
Plank, James S. 1997. “A Tutorial on Reed-Solomon Coding for Fault-Tolerance in RAID-Like Systems.” Software: Practice and Experience 27 (9): 995–1012. https://doi.org/10.1002/(SICI)1097-024X(199709)27:9<995::AID-SPE111>3.0.CO;2-6.
Huang, Cheng, Huseyin Simitci, Yikang Xu, Aaron Ogus, Brad Calder, Parikshit Gopalan, Jin Li, and Sergey Yekhanin. 2012. “Erasure Coding in Windows Azure Storage.” 2012 USENIX Annual Technical Conference (USENIX ATC 12), 15–26.
Object storage targets “eleven nines”10 of durability (99.999999999 percent) through erasure coding11 and geographic replication. That target makes object storage the natural source-of-truth tier for training data and checkpoint archives, while still requiring versioning, lifecycle policy, access control, and recovery testing for operational failures outside the storage service’s durability model.
Definition 1.3: Erasure coding
Erasure Coding is a storage protection scheme for ML datasets and checkpoint archives that fragments an object into \(k\) data and \(m\) parity blocks, ensuring the original is recoverable from any \(k\) remaining fragments.
- Significance: It achieves extreme data durability (for example, “eleven nines”) with significantly lower storage overhead than replication. For example, a 4+2 code stores four data fragments and two parity fragments, so it tolerates two unavailable fragments at 1.5\(\times\) storage overhead instead of the 3\(\times\) overhead of triple replication.
- Distinction: Unlike replication (which stores complete copies), erasure coding uses mathematical encoding (for example, Reed-Solomon) to distribute redundant information across different failure domains (disks, racks, or sites).
- Common pitfall: A frequent misconception is that erasure coding is “free durability.” In reality, it is a latency-compute trade-off: reconstructing data after a failure requires additional CPU cycles and increases the tail latency \((L_{\text{lat}})\) of the storage read.
The engineering behind erasure coding illustrates a recurring theme in storage systems: achieving extreme durability through redundancy that is invisible to the application. When an ML training job reads a shard from object storage, the storage service transparently reads \(k\) fragments from available nodes, reconstructs the original shard, and returns it to the client. If one fragment is on a failed disk, the service reads additional coded fragments and reconstructs the missing data. The client never observes the failure, but the storage system pays extra I/O, network, and decoding work, which contributes to the higher tail latency of object storage compared to local NVMe.
The cost advantage of object storage is significant: at a representative $0.02/GB/month, it is 750\(\times\) cheaper per byte than HBM and 5\(\times\) cheaper than local NVMe. For a 100 TB training dataset, object storage costs roughly $24,000 per year under that price assumption, compared to $120,000 for local NVMe. This cost advantage makes object storage a common home for the organization’s training data lake, where raw data, preprocessed datasets, and archived model artifacts can reside durably.
The latency disadvantage is equally significant. A GET request to object storage can incur tens of milliseconds of latency; design estimates use 50 to 100 ms as a representative planning range rather than a universal service guarantee. That latency is a consequence of the multi-layer indirection that provides durability. When a client requests an object, the storage service must look up the object’s location in a distributed metadata index, identify which erasure-coded fragments to read, retrieve fragments from potentially different storage nodes, and reconstruct the original object. This overhead is invisible for large objects (where transfer time dominates) but catastrophic for small ones (where per-request latency dominates).
The solution is the same aggregation pattern used in parallel file systems: samples are bundled into multi-gigabyte shards using formats like WebDataset (Aizman et al. 2019) or Mosaic Streaming (Databricks 2026) that transform high-latency random access into high-bandwidth sequential streaming. Rather than issuing billions of small GET requests, the data loader issues hundreds of large reads in parallel, each fetching an entire shard that contains thousands of samples. With sufficient parallelism and colocated network capacity, object storage can sustain high aggregate throughput, enough to feed large training clusters for some workloads. The streaming pattern works by assigning each data loader worker a subset of shards and having it read them sequentially. Within each shard, samples are stored contiguously, so the worker decodes them in order and shuffles them in a local buffer. This approach achieves pseudo-random access across the dataset while maintaining sequential I/O at the storage level.
Aizman, Alex, Gavin Maltby, and Thomas Breuel. 2019. “High Performance I/O for Large Scale Deep Learning.” 2019 IEEE International Conference on Big Data (Big Data), 5965–67. https://doi.org/10.1109/bigdata47090.2019.9005703.
The architecture of a streaming data loader for object storage differs from a local-storage loader in important ways. A local-storage loader can use memory-mapped I/O to treat the dataset as a virtual memory region, relying on the operating system’s page fault mechanism to load data on demand. This approach is elegant but incompatible with object storage, which does not support the POSIX file system interface that memory mapping requires. Instead, an object-storage loader must explicitly manage HTTP connections, issue ranged GET requests for specific byte ranges within shards, handle retries on transient failures, and manage a local buffer pool for decoded samples. Libraries like WebDataset and Mosaic Streaming encapsulate this complexity, presenting a simple iterator interface to the training loop while managing the HTTP transport and buffering internally.
Applying this streaming architecture to the running example makes the design concrete. The tokenized training set is stored in an S3-like object store as roughly 2,000 shards of 3 GB each. The streaming architecture assigns each of the 256 compute nodes a unique subset of roughly 8 shards. Within each node, 8 data loader worker processes issue concurrent HTTP Range requests to fetch 256 MB chunks from their assigned shards. Across the cluster, this results in 2,048 concurrent requests, allowing aggregate throughput in the 50–100 GB/s range when the object store and network path are provisioned for it, easily saturating the roughly 167.8 MB/s required for text model training. In this regime, the bottleneck often shifts from the object store’s bandwidth to the network bandwidth between the compute VPC and the object-storage endpoint. Organizations that co-locate compute and storage in the same cloud availability zone can reduce cross-network latency, directly reducing the required prefetch buffer depth and improving overall pipeline efficiency.
Object storage exposes large request parallelism. Each GET request is independent and can be served by a different storage node within the cloud provider’s infrastructure. A training cluster with 1,024 nodes, each running 8 data loader workers issuing concurrent requests, generates 8,192 simultaneous GET requests. If each request fetches a 256 MB shard, the aggregate throughput depends on the cloud provider’s network capacity, internal bandwidth, and request-rate quotas. The practical limit is often the network bandwidth between the compute cluster and the object storage service, not the storage service’s internal media bandwidth.
Many object storage services provide strong read-after-write consistency, which means that once a checkpoint is written to object storage, a subsequent read sees the complete data. This was not always the case: until December 2020, Amazon S3 provided eventual consistency for overwrite PUTs and DELETEs, meaning a read immediately after updating or deleting an existing object might return stale data. New-object PUTs were always strongly consistent, but checkpoint workflows that update a “latest” pointer or overwrite an existing artifact were vulnerable: a node recovering from failure might read a stale checkpoint and corrupt the training state. The December 2020 transition to strong read-after-write consistency for all operations on Amazon S3 closed this gap for S3-style checkpoint retention (Amazon Web Services 2020), while the broader design lesson is to verify the consistency semantics of the object store used by the pipeline. This consistency property makes object storage suitable for both training data source (the original dataset) and long-term checkpoint retention (the archival copy after local NVMe staging), provided the pipeline validates the service semantics it relies on.
Amazon Web Services. 2020. Amazon S3 Update – Strong Read-After-Write Consistency. AWS News Blog.
Amazon Web Services. 2026a. Checking Object Integrity in Amazon S3. Amazon S3 User Guide.
The immense scale of ML datasets makes them vulnerable to Silent Data Corruption: subtle bit flips in the storage medium or during network transfer that can introduce training artifacts nearly impossible to diagnose. Object storage services provide per-object checksums that verify integrity on upload, copy, or download; Amazon S3, for example, documents checksum options including CRC-family and cryptographic hashes (Amazon Web Services 2026a). Parallel file systems often rely on underlying RAID or erasure coding for physical integrity but may not provide end-to-end checksums visible to the application. A robust large-scale ML pipeline computes and stores a checksum for each data shard during preprocessing and verifies it when the shard is first loaded by a training worker. The verification overhead is negligible compared to the cost of training on corrupted data. For model checkpoints, integrity verification is even more critical: a single bit flip in a weight or optimizer state can corrupt the model, causing training to diverge silently after recovery. Frameworks and checkpoint libraries can include integrity verification, but the pipeline should not assume it without testing the checkpoint format.
Storage security is a first-class concern in production ML infrastructure. Training datasets often contain sensitive information (personally identifiable data, proprietary text, licensed images) that requires access control. Object storage provides fine-grained security policies through identity and access management roles, per-bucket policies, and integrated encryption for data at rest and in transit. Parallel file systems provide POSIX permissions and access-control lists but often lack the audit logging that compliance requires. For organizations subject to data protection regulations such as the General Data Protection Regulation (GDPR) and the California Consumer Privacy Act, the storage architecture must ensure that data access is logged, that deletion requests can be honored (a task complicated by immutable preprocessed shards), and that model checkpoints do not inadvertently memorize protected information. Storage design therefore has to preserve both throughput and governance metadata.
The transition from Tier 4 to Tier 5 is driven primarily by economics: data that is accessed rarely should move to archive storage when retrieval latency and governance requirements allow it, because the storage cost can be an order of magnitude lower.
Tier 5: Archive and cold storage
The final tier provides long-term preservation for compliance and auditability. Archive services (such as S3 Glacier) are designed for data that is rarely accessed: training logs from previous years, superseded model checkpoints, audit trails for regulatory compliance. At a representative $0.004/GB/month, archive storage costs roughly $4,800 per year for 100 TB, which is 5\(\times\) cheaper than the $0.02/GB/month object-storage assumption used in section 1.2.6. The trade-off is retrieval latency measured in minutes to hours, making this tier unsuitable for operational access.
The primary value of archive storage is organizational memory. When a model trained two years ago produces unexpected behavior in production, the ability to recover the exact training data, hyperparameters, and intermediate checkpoints for forensic analysis depends on archive storage. Organizations that aggressively purge old data to save costs discover, often at the worst possible moment, that they cannot reproduce or explain the behavior of deployed models.
Automated Lifecycle Policies govern the transition of data between tiers based on access recency. As one illustration of how such automation is expressed, a time-based rule for ML infrastructure might move checkpoints as follows: the most recent three checkpoints remain on the parallel file system for fast recovery; checkpoints older than 72 hours are transitioned to object storage; checkpoints older than 90 days are transitioned to archive storage; and checkpoints older than two years are deleted unless flagged for regulatory retention. S3 Lifecycle rules provide the same general transition/archive/delete mechanism for object lifetimes (Amazon Web Services 2026b). The running example later adopts a count-based variant of the same idea (section 1.6), where the transition rule keys on checkpoint count rather than age. Without automation, teams either hoard data on expensive tiers (wasting budget) or delete data too aggressively (losing reproducibility). The lifecycle policy encodes the organization’s cost-recovery trade-off in a declarative rule that requires no manual intervention.
Amazon Web Services. 2026b. Managing the Lifecycle of Objects. Amazon S3 User Guide.
For the 175B model training run, the archive tier holds the complete training lineage: the raw 3 TB compressed source corpus, the 6 TB serialized shard set, all preprocessing scripts, the final checkpoint, and a sampled subset of intermediate checkpoints. If the organization budgets a conservative 100 TB for this retained lineage, the two-year archive cost is roughly $9,600 (100 TB at $0.004/GB/month \(\times\) 24 months), well under one day of GPU time on the training cluster. The asymmetry between archive cost and compute cost makes retention inexpensive relative to the run it documents; failures to archive usually reflect missing lifecycle ownership, unclear retention policy, or retrieval-process neglect rather than raw capacity cost.
Archive storage services offer multiple retrieval speed tiers, each with different pricing. In an S3 Glacier-style service, standard retrieval may complete within hours at moderate cost, expedited retrieval may complete within minutes at a higher cost, and bulk retrieval may trade still more latency for the lowest retrieval price (Amazon Web Services 2026d). The choice of retrieval tier depends on the urgency of the use case. Forensic analysis of a production incident warrants faster retrieval; annual compliance audits can use slower bulk retrieval. Designing the lifecycle policy requires understanding the storage cost, the expected retrieval frequency, and the urgency for each class of data.
Amazon Web Services. 2026d. Understanding Archive Retrieval Options. Amazon S3 User Guide.
Compliance requirements can require organizations to retain training data provenance records for deployed models. The EU AI Act, for instance, requires documentation for high-risk AI systems, including information about training data composition and preprocessing. Archive storage is usually the economically viable tier for retaining the complete lineage of a model, from raw data through preprocessing to the final checkpoint, for a required retention period. The cost of compliance storage is often small compared to the operational and legal cost of insufficient documentation.
Data formats for training
Data format choices determine whether the storage hierarchy delivers its theoretical bandwidth or collapses under metadata overhead. The same multi-terabyte dataset stored in different formats can yield I/O throughput that differs by over 100\(\times\) on identical hardware. For large-scale machine learning, data must be structured for high-throughput sequential access, not for human readability or transactional convenience.
The useful design question is which access cost the workload must pay: per-file metadata, unnecessary feature reads, or sequential shard traversal. Row-Oriented Formats, such as CSV, JSON lines, or a directory of individual image files (JPEG, PNG), are the most intuitive and human-readable. They are easy to inspect and debug, making them suitable for initial data exploration or for datasets small enough to fit entirely in memory (typically under 10 GB). For training at scale, they are catastrophic for I/O performance. Each sample is a separate file, requiring a distinct file system operation (open, stat, read, close) that incurs significant per-sample overhead, often dominating the actual time spent reading data.
A second choice solves a different storage problem: Columnar Formats like Apache Parquet and Apache Arrow avoid unnecessary reads when tabular features can be selected before transfer. They organize data by column rather than by row, which allows for excellent compression as data within a column is typically of the same type and has lower entropy. This structure also enables Predicate Pushdown, where the storage engine reads only the specific columns (features) required by a query, avoiding unnecessary I/O. These formats are well-suited for tabular ML tasks and feature engineering but are less natural for unstructured data like images or audio, which are treated as atomic blobs.
A third choice addresses the training access pattern directly: Sequential Streaming Formats reduce per-sample metadata to the cost of opening a shard. TFRecord, Mosaic’s StreamingDataset format (Databricks 2026), and WebDataset (based on standard tar archives) group many samples into large, contiguous binary files called shards. This amortizes the cost of opening a file over thousands of samples. A data loader opens a single shard and streams its contents sequentially, maximizing bandwidth. The tar-based formats have the added advantage of being valid targets for HTTP byte-range requests, making them ideal for streaming data directly from object storage without downloading the entire file first.
Databricks. 2026. Mosaic Streaming: Main Concepts. Databricks Mosaic AI Training Documentation.
A key trade-off within streaming formats is the presence of an Index. TFRecord and HDF5 often use a separate index file to record the byte offset of each sample within a shard. This enables efficient random access within a shard but introduces a metadata dependency: the index must be read and held in memory. WebDataset is indexless: each record in the tar archive contains its own header specifying its size, allowing for purely sequential streaming without any external metadata. The trade-off is that indexless formats cannot efficiently seek to an arbitrary sample within a shard, a capability that matters for curriculum learning or active learning workloads that require nonsequential data access.
Compression integration also varies across formats. Parquet integrates compression at the column level, exploiting type homogeneity for high ratios. WebDataset and TFRecord typically leave compression to the individual sample: a WebDataset of images stores already-compressed JPEG files, while a text dataset might apply zstd compression per shard. This choice affects the CPU-I/O trade-off discussed in the context of NVMe reads, as per-sample decompression must be handled by the host CPU.
For the running example, the 1.5 trillion token dataset is stored as roughly 2,000 shards of approximately 3 GB each in a custom binary format. Each shard contains a small header (token count, vocabulary size, byte order) followed by a contiguous array of 4-byte token IDs. When staged on POSIX storage such as local NVMe or a parallel file system, the data loader memory-maps the shard and indexes directly into the token array by position, achieving near-peak read bandwidth with zero per-sample metadata overhead. When the same shards are read directly from object storage, the loader uses HTTP ranged GET streaming and an explicit local buffer rather than memory mapping. Table 4 compares the format choices by the access cost they impose on the storage path.
| Format | Overhead/Sample | Random Access | Streaming | Compression |
|---|---|---|---|---|
| Individual files | \(\approx 50\ \mu\)s (open/stat/close) | Yes | Poor | Per-file |
| Parquet | \(\approx 1\ \mu\)s (row group seek) | Yes (row group) | Good | Column-level |
| TFRecord | \(\approx 0.1\ \mu\)s (index lookup) | With index | Excellent | Per-record |
WebDataset (tar) |
~0 (sequential) | No | Excellent | Per-sample |
| Raw binary (tokens) | 0 | Yes (byte offset) | Excellent | None needed |
The comparison in table 4 sets the data-volume term in the pipeline equation, turning format selection into a bandwidth-sizing problem.
Self-Check: Question
Order the six tiers of the ML storage hierarchy from closest physical proximity and highest bandwidth to lowest bandwidth and greatest distance from the accelerator: (1) Local NVMe SSD, (2) Object Storage, (3) Host DRAM, (4) GPU HBM, (5) Parallel File System, (6) Archive / Cold Storage.
Host DRAM (Tier 1) executes a four-stage data loader pipeline: Read, Decode, Augment, and Collate. Why must the final collated batch be placed in page-locked (‘pinned’) host memory before transfer to GPU HBM?
- Pinned memory automatically compresses tensors using host CPU vector units before PCIe transmission.
- Pinned memory locks physical pages in host RAM so the PCIe DMA controller can copy data directly to GPU memory without an intermediate kernel buffer copy.
- Pinned memory replicates the batch across all NUMA nodes to ensure uniform memory access for parallel data loader threads.
- Pinned memory guarantees transactional ACID durability on host storage in case the worker process crashes during transfer.
A vision training cluster migrating to a high-performance parallel file system (PFS) with \(500\text{ GB/s}\) rated aggregate bandwidth reports that throughput during ImageNet training is capped at under \(5\text{ GB/s}\), with storage data disks showing negligible I/O activity. What is the root cause and the correct architectural fix?
- The network fabric is dropping packets due to congestion; enable flow control on top-of-rack switches.
- The parallel file system is bottlenecked on drive endurance wear-leveling; replace SSDs with high-DWPD enterprise drives.
- The dataset is stored as millions of individual image files, saturating the Metadata Server (MDS) with per-file POSIX lookups; repackage images into large sequential shards (such as WebDataset tar archives).
- The GPUs are compute-bound and cannot consume data faster; decrease the batch size to increase I/O request frequency.
A training node uses four local NVMe drives configured in RAID-0 as a warm cache for \(25\text{ TB}\) of pre-shuffled training shards. Explain why RAID-0 is an appropriate engineering trade-off for this specific tier, and identify what workload change would make RAID-0 catastrophic.
A multi-modal training job combines \(3\text{ TB}\) of text, \(50\text{ TB}\) of images, and \(200\text{ TB}\) of video. The infrastructure team provisions storage bandwidth based exclusively on the video modality because video represents over \(75\%\) of total dataset capacity. What failure does this provisioning strategy cause?
- The storage hierarchy will under-provision host DRAM and data-loader CPU decode bandwidth because text and image streams run concurrently and generate additive per-iteration bandwidth and transformation demands.
- The video stream will starve the parallel file system because image and text files use incompatible POSIX stripe sizes.
- The model will fail to converge because object storage cannot maintain ACID consistency when serving multiple modalities simultaneously.
- The training job will exhaust GPU HBM because video tensors automatically overwrite text embeddings during collation.
In a parallel file system architecture like Lustre, namespace management (file creation, directory paths, locks) is handled by a dedicated ____, while raw data blocks are striped across multiple Object Storage Servers (OSS).
The Data Pipeline Equation
Every training job eventually raises a concrete sizing question: how much storage bandwidth must the pipeline deliver before accelerators begin to stall? The required rate depends on the training configuration, and getting it wrong in either direction is expensive. Under-provisioning storage bandwidth starves accelerators. Over-provisioning wastes budget on storage capacity that sits partially idle. The Data Pipeline Throughput Equation in equation 1 quantifies the bandwidth the pipeline must sustain so that accelerators never wait for data:
\[\text{BW}_{\text{required}} = N_{\text{GPU}} \times \eta_{\text{target}} \times \frac{D_{\text{vol,batch}}}{T_{\text{iteration}}} \tag{1}\]
where \(N_{\text{GPU}}\) is the number of accelerators, \(\eta_{\text{target}}\) is the target utilization (typically 0.8 to 0.95), \(D_{\text{vol,batch}}\) is the size of one local batch in bytes, and \(T_{\text{iteration}}\) is the time for one forward-backward pass.
The equation reveals four levers for controlling storage demand:
- Accelerator count: Reducing \(N_{\text{GPU}}\) directly reduces bandwidth requirements, but fewer accelerators also reduce training throughput.
- Target utilization: Lowering \(\eta_{\text{target}}\) reduces the bandwidth needed, but accepting lower utilization wastes expensive hardware.
- Batch volume: Decreasing \(D_{\text{vol,batch}}\) reduces per-iteration data volume, but smaller batches may harm model convergence.
- Iteration time: Increasing \(T_{\text{iteration}}\) gives storage more time to deliver each batch, but slower iterations extend total training time.
In practice, none of these levers is free; the pipeline must be engineered to deliver the bandwidth that the training configuration demands.
As a separate image-training example, consider 256 GPUs training with ImageNet-scale images, 200 ms iterations, and 80 percent target utilization. This configuration requires 39.3 GB/s of aggregate storage throughput. The bandwidth must be sustained continuously for the duration of training, which may last days or weeks. If at any point the storage system delivers less than 39.3 GB/s, accelerators begin to idle. For the chapter’s 175B language-model running example, tokenized text has a much lower per-batch bandwidth demand, but the total data volume and checkpoint traffic over the run are much larger, shifting the bottleneck from peak training-data bandwidth to sustained throughput and checkpoint movement over weeks.
The consequences of falling short are captured by the Data Stall Ratio, defined in equation 2 as the fraction of each training step where the accelerator waits for data:
\[\text{Data Stall \%} = \frac{T_{\text{step}} - T_{\text{compute}}}{T_{\text{step}}} \times 100 \tag{2}\]
where \(T_{\text{step}} = T_{\text{compute}} + T_{\text{I/O}}\) when I/O and compute are not overlapped, or \(T_{\text{step}} = \max(T_{\text{compute}}, T_{\text{I/O}}) = T_{\text{compute}} + \max(0, T_{\text{I/O}} - T_{\text{compute}})\) with pipelining.
Napkin Math 1.5: The data stall ratio
Problem: A GPU processes a batch in 200 ms, but storage takes 250 ms to deliver the next batch. What fraction of each training step is the accelerator idle, and how much does pipelining I/O with compute reduce that stall?
Without pipelining (sequential I/O then compute):
\[T_{\text{step}} = T_{\text{I/O}} + T_{\text{compute}} = 250 + 200 = 450 \text{ ms}\] \[\text{Stall \%} = \frac{250}{450} = 55.6\%\]
With pipelining (I/O overlapped with compute):
\[T_{\text{step}} = \max(200, 250) = 250 \text{ ms}\] \[\text{Stall \%} = \frac{250 - 200}{250} = {20\%}\]
Systems insight: Even with pipelining, the accelerator is idle 20 percent of the time. To eliminate the stall entirely, the next batch must arrive within the 200 ms compute window, either by increasing effective storage bandwidth, hiding tail latency with deeper prefetch buffers, or using more parallel I/O streams.
The data stall ratio provides a diagnostic metric that storage engineers can use to identify whether a training job is compute bound or I/O bound. A stall ratio below 2 percent indicates that the storage pipeline is healthy: the accelerator spends virtually all its time computing. A stall ratio between 2 percent and 10 percent suggests that the pipeline is marginally adequate but will degrade if the training configuration changes (more GPUs, smaller batches, faster model). A stall ratio above 10 percent indicates a clear storage bottleneck that wastes significant compute budget. The C^3 traffic light maps these same green, yellow, and red bands onto the broader fleet diagnosis, so a storage engineer can read a high stall ratio as a red-light signal that computation is sitting idle and place storage alongside the other axes that starve an accelerator. Profiling tools like PyTorch’s DataLoader profiler and NVIDIA Nsight Systems can measure data stall ratio directly by comparing the time the accelerator spends waiting for data vs. computing.
A storage system cannot be a “fire-and-forget” component; it requires continuous monitoring to prevent silent bottlenecks from eroding training efficiency. Key metrics to track in real time include per-tier bandwidth utilization (NVMe, network, object storage), prefetch buffer depth (how many batches are queued and ready), the data stall ratio per GPU, the parallel file system’s metadata operation rate, and NVMe drive health indicators (wear level, temperature, error counts). Alert thresholds should trigger before stalls become visible in training loss curves. An undetected 5 percent increase in data stall ratio across a 1,000-GPU cluster for just one week wastes over $16,800 in idle compute (1,000 GPUs \(\times\) $2/GPU-hour \(\times\) 168 hours \(\times\) 5 percent), making comprehensive storage monitoring a first-order economic concern rather than an operational nicety.
This high-level monitoring must be complemented by fine-grained profiling to pinpoint the exact source of a bottleneck. Profiling occurs at three levels. At the application level, NVIDIA Nsight Systems provides a timeline view that shows exactly when and for how long the accelerator is idle waiting for data, with microsecond precision. At the pipeline level, PyTorch’s built-in DataLoader profiler reports per-worker throughput, batch processing times, and data queue depth, identifying slow workers or insufficient prefetching. At the device level, iostat and nvme-cli provide raw hardware bandwidth and latency metrics. For parallel file systems, Lustre’s lctl get_param and GPFS’s mmpmon give real-time statistics on storage server utilization, metadata operation rates, and client-side cache hit ratios. The most effective debugging approach combines all three levels: correlating an application-level accelerator stall with a specific pipeline worker and a saturated underlying storage device identifies the bottleneck tier and guides optimization effort to where it will have the greatest impact.
A common and costly failure mode is to develop and test a data pipeline on a small local dataset (1 GB) and only discover at full production scale (1 TB+) that the pipeline cannot sustain the required throughput. The root cause is often a bottleneck invisible at small scale but crippling under load: a Python global interpreter lock contention in a data augmentation function, a file descriptor leak that accumulates over millions of samples, or a memory fragmentation issue that causes the prefetch buffer to slow down after hours of continuous operation. Robust teams benchmark the data pipeline in isolation, measuring sustained throughput over at least 10 to 20 minutes at the target data volume, before connecting it to the training loop. This Pipeline Stress Test catches system-level bottlenecks that would otherwise manifest as mysterious training slowdowns days into a production run.
Different ML workloads have dramatically different bandwidth profiles, even when using the same cluster. Image classification with ResNet-50 on ImageNet produces a high bandwidth demand because each batch contains hundreds of large images (150 KB each) and iteration times are short (100 to 200 ms). Language model pretraining produces a lower per-batch bandwidth demand because tokenized text is compact (each token is a 4-byte integer, and a batch of 4,096 tokens occupies only 16 KB per sequence), but the total data volume over the training run is enormous (trillions of tokens). Recommendation model training produces a mixed bandwidth demand: embedding lookups require high-IOPS random access to the embedding table, while the dense layers consume standard sequential training data. Each workload’s bandwidth profile determines which storage tier is the bottleneck and where optimization effort should focus.
Figure 4 traces how GPU utilization responds to storage bandwidth, revealing the steep S-curve that separates the waiting-dominated regime from compute saturation.
The S-curve reveals a sharp transition: below the stall threshold, even modest bandwidth shortfalls cause dramatic utilization drops, while above it, additional bandwidth yields diminishing returns. The plotted technologies show why no single tier suffices: a hard disk and a network file system sit deep in the stall zone, a single NVMe drive lands near the transition knee, and only an NVMe RAID array clears the threshold into the compute-saturated regime. This spread demonstrates why multi-tiered storage architectures are essential for keeping large GPU clusters saturated.
The pipeline equation also reveals a scaling challenge that worsens with cluster size. As \(N_{\text{GPU}}\) increases, the required bandwidth \(\text{BW}_{\text{required}}\) increases linearly, but the storage system’s aggregate bandwidth does not automatically scale to match. Adding more compute nodes to a cluster that shares a parallel file system increases the demand on a fixed storage resource. Eventually, the storage system saturates and every additional GPU beyond the saturation point contributes zero additional training throughput while increasing cost. This saturation point is the practical upper limit on cluster scaling for a given storage configuration, and identifying it quantitatively requires applying equation 1 to the specific storage system’s measured bandwidth.
Example 1.2: The metadata tax
Scenario: A large GPU cluster achieves low model FLOPs utilization despite storage metrics reporting ample network and byte bandwidth.
Diagnosis: Profiling reveals that PyTorch data loaders issue individual stat() calls for millions of files across thousands of workers, overwhelming the metadata server and leaving GPUs stalled on blocking file-open operations invisible to byte-bandwidth counters.
Systems lesson: Storage bottlenecks are often hidden metadata bottlenecks. Precomputing a unified dataset manifest at job start eliminates hot-path POSIX filesystem metadata lookups, maintaining steady pipeline prefetching.
Pipelining and prefetching
The primary weapon against data stalls is Pipelining: the CPU prepares batch \(i+1\) while the GPU processes batch \(i\), overlapping storage transfer with accelerator execution (figure 5). When I/O time is less than compute time, pipelining hides the storage latency entirely, and the accelerator never stalls.
The key insight from figure 5 is that pipelining converts a sequential bottleneck into a parallel overlap, but only when the prefetch buffer is deep enough to absorb variance in I/O latency. Pipelining works perfectly when I/O times are consistent. In practice, they are not. Storage systems exhibit I/O Jitter: variation in read latency caused by a multitude of factors. NVMe drives experience occasional latency spikes during internal garbage collection (when the controller reorganizes NAND flash blocks) or wear-leveling operations. Parallel file systems exhibit latency spikes when multiple training jobs contend for the same OSS nodes, when the MDS processes a burst of metadata operations, or when background scrubbing detects and repairs bit errors. Object storage latency can spike during cross-region replication, garbage collection of versioned objects, or load-balancer rebalancing.
A single slow I/O can create a “bubble” in the pipeline that propagates forward, stalling the accelerator. If the CPU was preparing batch \(i+1\) and the read took twice as long as expected, batch \(i+1\) is not ready when the GPU finishes batch \(i\). The GPU idles until the read completes, and the pipeline falls one batch behind. If subsequent reads are also slow, the pipeline never recovers. The defense is a prefetch buffer: rather than preparing just one batch ahead, the CPU maintains a queue of \(Q_{\text{prefetch}}\) preloaded batches.
The minimum buffer depth \(Q_{\text{prefetch}}\) must absorb the worst-case I/O latency without the queue draining:
\[Q_{\text{prefetch,min}} = \left\lceil \frac{T_{\text{I/O,p99}}}{T_{\text{compute}}} \right\rceil \tag{3}\]
The prefetch depth equation in equation 3 defines how many batches must be in flight simultaneously to hide I/O latency behind computation. The equation assumes that the long-run data supply rate is at least as high as the accelerator’s consumption rate; prefetching absorbs latency variance, not a sustained bandwidth deficit. When average throughput is sufficient but P99 latency exceeds compute time, deeper prefetching prevents stalls. When sustained I/O throughput is lower than demand, the fix is faster storage, more parallel streams, smaller batches, or local staging. The equation uses P99 I/O latency rather than average latency because a single slow read can drain the buffer and stall the accelerator; sizing for the average guarantees frequent stalls at scale.
If I/O at the 99th percentile takes 500 ms and compute takes 200 ms, then \(Q_{\text{prefetch,min}} = 3\) batches, with a safety margin of 5. In practice, data loaders like PyTorch’s DataLoader use prefetch_factor and num_workers parameters to control this depth. Setting prefetch_factor=2 with 4 workers creates a buffer of 8 batches, which is typically sufficient for NVMe-backed pipelines but may be inadequate for object-storage-backed pipelines where P99 latency can exceed 500 ms.
P99 I/O latency sets the required prefetch depth.
To illustrate the memory cost of prefetch buffer depth, consider a large-batch text pipeline where each GPU processes a packed token batch in roughly 200 ms and the collated batch occupies about 40 MB per GPU. Reading from local NVMe, the P99 I/O latency for that batch is approximately 50 ms. The minimum prefetch depth is \(\lceil 50/200 \rceil = 1\) batch, and a safety margin of 2 is adequate. Reading from a parallel file system, the P99 I/O latency rises to roughly 200 ms due to network jitter and contention, requiring a minimum depth of \(\lceil 200/200 \rceil = 1\), with a safety margin of 3 to account for occasional multi-hundred-millisecond outliers. Reading from object storage, the P99 latency can exceed 500 ms, requiring a depth of at least 3, with a safety margin of 5 or more. These numbers translate directly into host DRAM consumption: at 40 MB per batch, a depth-5 prefetch buffer per GPU consumes 200 MB, and 8 GPUs per node consume 1.6 GB. At 40 MB per batch with a depth of 1, the same node needs only 320 MB. The storage tier directly determines the memory cost of the prefetch buffer.
The cost of deep prefetching is memory: each buffered batch occupies host DRAM. A batch of 256 images at \(224{\times}224{\times}3\) bytes (after decoding) occupies roughly 37 MB. A prefetch buffer of 8 such batches consumes 300 MB, which is negligible for a node with 512 GB of DRAM. For large-batch language model training where each batch contains millions of tokens, however, the prefetch buffer can grow to several gigabytes, competing with embedding tables and other DRAM consumers.
The interaction between prefetching and the storage hierarchy creates a layered defense against stalls. The first layer is the prefetch buffer in host DRAM, absorbing I/O variance from NVMe reads. The second layer is the local NVMe warm cache, absorbing network variance from the parallel file system. The third layer is the parallel file system read-ahead cache, absorbing variance from disk seeks across the OSS cluster. Each layer adds latency tolerance at the cost of memory or storage capacity. The system designer’s task is to ensure that the combined depth of all layers exceeds the worst-case latency spike at the lowest tier in regular use. For the running example, if the parallel file system occasionally exhibits a 500 ms latency spike and compute takes 200 ms per batch, the NVMe warm cache removes that network-latency exposure by serving reads locally. The prefetch buffer then needs to absorb the smaller local-NVMe variance represented earlier by a 50 ms P99 rather than the 500 ms parallel-file-system spike.
Checkpoint 1.3: Data pipeline design
A training cluster runs 1,024 GPUs with 128-image batches (150 KB per image after compression, 150 ms per iteration).
Multi-worker data loading
A single CPU core cannot keep a high-throughput accelerator fed, even when the storage hardware is fast enough, because of the CPU work required between the storage read and the GPU transfer. Consider the throughput required for image training: decoding a 150 KB JPEG image into a \(224{\times}224{\times}3\) raw tensor requires entropy decoding of Huffman-coded coefficients, inverse discrete cosine transform, chroma upsampling, and pixel-format conversion. This process takes roughly 1 to 5 ms per image on a server CPU core. After decoding, augmentation adds further CPU work: a random crop requires computing crop coordinates and copying the sub-region; horizontal flip requires copying with reversed column order; color jitter requires per-pixel multiplication and addition. Each augmentation adds 0.5 to 2 ms per image.
At 1,000 images per second per GPU and 8 GPUs per node, a single core would need to decode and augment 8,000 images per second, a throughput 10\(\times\) to 40\(\times\) beyond what a single core can sustain. The solution is Multi-Worker Data Loading, where \(W\) worker processes each read from storage, decode, augment, and enqueue batches independently. The effective I/O throughput scales approximately linearly with \(W\) until one of three bottlenecks is reached: the storage device’s bandwidth saturates, the PCIe bus between host and device saturates, or the workers exhaust host CPU cycles.
In PyTorch’s DataLoader, each worker is a separate process with its own file descriptors and memory space. The num_workers parameter controls \(W\). Setting \(W\) too low leaves the GPU starved; setting \(W\) too high wastes CPU resources on context switching and contention. A good heuristic is to start with \(W = 4 \times G\), where \(G\) is the number of GPUs per node, and profile the data stall ratio, adjusting until stalls are below 2 percent. For a node with 8 GPUs, this yields 32 workers, which on a system with 64 CPU cores leaves 32 cores for the PyTorch runtime, GPU-to-GPU communication threads, and operating system overhead. The division of CPU resources between data loading and training orchestration is itself a capacity planning exercise.
The interaction between multi-worker loading and the storage hierarchy matters. When reading from local NVMe, workers can issue concurrent reads to the same RAID array without contention, because NVMe’s deep command queues (up to 64K outstanding commands) handle parallelism in hardware. When reading from a parallel file system, workers distribute their reads across different OSS nodes, naturally aggregating bandwidth. When reading from object storage, workers issue concurrent GET requests, each to a different shard, achieving parallelism at the HTTP level.
A subtle pitfall in multi-worker loading is Shuffle Quality vs. I/O Efficiency. Perfect shuffling requires that each batch contain samples drawn uniformly from the entire dataset, which implies random access across all shards. Random access, however, defeats the sequential I/O patterns that storage systems optimize for. The practical compromise is shard-level shuffling combined with within-shard shuffling: the loader shuffles the list of shards at epoch start, assigns contiguous groups of shards to each worker, and then shuffles samples within each shard’s local buffer. This approach provides sufficient randomness for training convergence while maintaining sequential I/O at the storage level. Empirical studies confirm that shard-level shuffling produces training loss curves indistinguishable from full random shuffling for most workloads, as long as the shard size is large enough (typically 256 MB or more) to provide adequate within-shard diversity.
The shuffle buffer size creates a memory-randomness trade-off. A larger buffer provides better randomness (because samples are drawn from a larger pool) but consumes more host DRAM. For the running example with text data, a shuffle buffer of 10,000 sequences at 2,048 tokens each, with each token represented as a 4-byte integer, consumes roughly 80 MB. This is negligible relative to the 512 GB of host DRAM. For image data, where each decoded image occupies 150 KB, a shuffle buffer of 10,000 images consumes 1.5 GB, still manageable but a nontrivial fraction of the prefetch budget. The data loader designer must balance shuffle buffer size against prefetch depth, since both compete for the same host DRAM capacity.
The data loading pipeline, from storage read through decode, augmentation, and transfer to accelerator, represents the complete fuel delivery system for the training engine. When any stage becomes the bottleneck, the accelerator starves.
Data locality and placement
In a distributed training cluster, the placement of data shards across the storage hierarchy determines pipeline performance. Each training worker needs efficient access to its assigned portion of the dataset. The core trade-off is between the flexibility of shared storage and the raw speed of local storage. Reads from a node’s local NVMe drives are typically 10–100\(\times\) faster and have lower latency than reads that must traverse the network to a parallel file system or object store.
The simplest strategy is Static Placement. At the beginning of a training job, the orchestrator assigns a fixed subset of data shards to each node. The node stages this data by copying its shards from the shared PFS to local NVMe drives. For the remainder of the training run, all data reads are local, maximizing I/O bandwidth. This approach is highly effective for single-dataset training runs but introduces inflexibility: if the dataset changes or the job requires a different subset of data, the shards must be re-staged.
The alternative is Dynamic Placement, where shards are fetched on demand from shared storage as needed. This provides maximum flexibility, as any node can access any shard at any time. Dynamic placement is essential when the total dataset size exceeds the aggregate local NVMe storage of the cluster, or when the job involves data sampling strategies that change the active subset over time. The cost is performance: every read incurs network latency and consumes shared storage bandwidth.
A more advanced approach is Locality-Aware Scheduling. The scheduler keeps track of which data shards are cached on which nodes’ local NVMe drives. When it starts a new job or replaces a failed node, it prefers a node that already has the required data cached, rather than treating all nodes as interchangeable. This uses the principle of data gravity,12 co-locating compute with data to minimize transfer times. The storage point is simple: cached data only saves time if the placement system knows where the cache is. For teams running repeated experiments on the same dataset, locality-aware scheduling reduces staging time from minutes to zero.
12 Data Gravity: A metaphor treating large datasets as massive objects that attract compute. The gravitational analogy is apt: moving a 100 TB dataset across cloud regions costs over $9,000 in egress fees and takes hours, while launching compute next to the data is near-instantaneous. In ML fleet design, data gravity means the storage location of the training dataset often dictates the physical placement of the entire training cluster.
For the 6 TB serialized dataset distributed across 256 nodes, each node is responsible for approximately 23.4 GB of data. If a node fails, its replacement must stage that shard subset from the PFS. At an uncontended PFS read speed of 4 GB/s, this staging takes about 5.9 seconds; under recovery contention, an effective 400 MB/s per-node rate stretches the same copy to about 58.6 seconds. If the orchestrator can instead schedule the replacement workload on an idle node that already has the data cached from a previous run, staging time is zero and training resumes instantly. At scale, this optimization compounds: in a 10,000-node cluster experiencing 10 node failures per day, locality-aware scheduling can save roughly a minute of staging time per failure, or about 10 minutes per day of aggregate cluster idle time, in the contended case.
Data versioning and pipeline orchestration at scale
Knowing where data lives is only half the story; at scale the storage infrastructure must also record which version of the data each run uses and how it flows through the pipeline. Versioning turns the storage hierarchy into a reproducibility system: the fleet must know not only which bytes it read, but which preprocessing code, shuffle seed, schema, and integrity checks produced those bytes before the run began.
Lighthouse 1.1: Archetype B (DLRM at Scale): Feature store latency
While Archetype A (GPT-4) deals with static, versioned datasets of trillions of tokens, Archetype B (Deep Learning Recommendation Model, or DLRM, at scale), the DLRM workload, deals with dynamic, high-velocity feature streams. For a recommendation system, the “ground truth” changes every second as users click and interact. This forces a move from simple file-based storage to a feature store architecture that must solve the point-in-time correctness problem: ensuring that the features retrieved for training exactly match what the model would have seen at the moment of inference, without “leaking” future information.
That same reproducibility requirement becomes harder when the inputs are live features rather than immutable text shards. Feature store architectures address point-in-time correctness13 by maintaining an immutable feature ledger or a “time-travel” query engine, significantly increasing storage complexity.
13 Point-in-Time Correctness: In recommendation systems, features (for example, user click history) must be retrieved exactly as they existed at the moment of the historical interaction. Retrieving current features for a past event—a “temporal leakage”—inflates training accuracy but causes the model to fail in production. Solving this at petabyte scale requires an immutable feature ledger or a “time-travel” query engine, significantly increasing storage complexity.
14 Hash Cost (SHA-256): Verifying the integrity of a 100 TB dataset using SHA-256 consumes approximately 1,501.5 CPU-core hours under a pipeline-level throughput assumption of 18.5 MB/s per core. For a 30-day foundation model training run, this metadata validation step must be pipelined or performed during ingestion to avoid stalling the fleet’s startup phase.
At the 10,000-GPU scale, the dataset is no longer a static collection of files but a dynamic stream that must be captured with absolute precision. Foundation-model runs can last weeks or months; in the 30-day running example, the data seen near the end of the run must be identical in composition and order to the data seen on day 1. Otherwise, an engineer cannot distinguish between a model regression and a silent change in the input distribution. Dataset versioning provides the necessary “Git for data” capability by snapshotting the cryptographic hashes14 of every data shard, the exact preprocessing code used for tokenization, and the random seeds governing the global shuffle. This level of rigor is essential for audit trails and for debugging the subtle “loss spikes” that characterize large-scale training, where engineers must be able to replay the exact batch that caused a divergence to determine if the cause was a corrupted data sample or a numerical instability in the optimizer.
At petabyte scale, the data pipeline has to make every transformation reproducible. Raw documents are cleaned, tokenized, packed into training examples, and sharded across storage tiers. Each stage writes an immutable artifact, and each artifact records the input version, code version, schema, and statistical checks it satisfied. Once those dependencies are explicit, the pipeline forms a directed acyclic graph: later artifacts depend on earlier artifacts, and no stage is allowed to rewrite its own history. When a training job starts, the cluster manager verifies that each worker’s local NVMe shards match the data snapshot declared for the run. Treating the data pipeline as a graph of versioned artifacts rather than a simple file transfer eliminates the silent data drift that is a primary source of failure in foundation model training.
Beyond pipeline orchestration, a hardware optimization eliminates one of the most common bottlenecks: the CPU’s role as intermediary between storage and accelerator.
Self-Check: Question
The data pipeline throughput equation is \(\text{BW}_{\text{required}} = N_{\text{GPU}} \times \eta_{\text{target}} \times \frac{D_{\text{vol,batch}}}{T_{\text{iteration}}}\). If a cluster doubles its active GPU count from 1,024 to 2,048 while keeping per-GPU batch size, iteration time, and target utilization constant, how does the required aggregate storage bandwidth scale?
- It remains constant because data-parallel workers divide the fixed total dataset into smaller partitions.
- It quadruples (\(4\times\)) because collective communication overhead scales quadratically with worker count.
- It decreases by \(50\%\) because each node requires fewer samples per epoch.
- It doubles (\(2\times\)) because aggregate byte consumption scales strictly linearly with the number of accelerators independently executing forward-backward iterations.
A training iteration has a GPU compute time of \(T_{\text{compute}} = 200\text{ ms}\) and an average I/O fetch time of \(T_{\text{I/O}} = 250\text{ ms}\) per batch. Explain why enabling double-buffering (pipelining batch \(i+1\) during batch \(i\) compute) reduces but cannot eliminate the data stall, and quantify the remaining stall time per step.
A data loader pipeline has an accelerator compute window of \(T_{\text{compute}} = 200\text{ ms}\) per batch. The storage tier exhibits median I/O latency of \(180\text{ ms}\) but experiences P99 tail-latency spikes of \(500\text{ ms}\) due to network jitter. What is the minimum recommended prefetch buffer depth (\(Q_{\text{prefetch}}\)) required to prevent accelerator stalls at scale?
- At least 3 batches (\(Q_{\text{prefetch}} = \lceil 500 / 200 \rceil = 3\)) plus a safety margin, because sizing to median latency (\(180\text{ ms}\)) guarantees the buffer drains during tail-latency events occurring hundreds of times daily.
- Exactly 1 batch, because median I/O latency (\(180\text{ ms}\)) is strictly less than compute time (\(200\text{ ms}\)).
- Zero batches, because multi-worker asynchronous threading eliminates the need for host-memory queue buffering.
- At least 10 batches, because queue depth must equal the total number of CPU worker threads allocated to the data loader.
True or False: If a cluster monitoring dashboard indicates that average storage read bandwidth matches the aggregate throughput predicted by the pipeline equation, storage performance issues can be conclusively ruled out as the cause of low GPU utilization.
Explain how locality-aware scheduling reduces cluster startup latency and relieves bandwidth pressure on the shared parallel file system when a node fails during a 1,024-GPU training run.
Order the four stages of the host DRAM data loading pipeline in their execution sequence: (1) Decode compressed sample representations (e.g., decompressing JPEG images or zstd text shards), (2) Collate individual processed samples into a contiguous batch in pinned host memory, (3) Read compressed binary chunks from persistent storage into host read buffers, (4) Apply data augmentations and feature transformations (e.g., cropping, flipping, token masking).
GPUDirect Storage and the CPU Data-Copy Bypass
The storage hierarchy can provide enough aggregate bandwidth and still leave GPUs waiting when the CPU copies data for thousands of small transfers. In the traditional path, every shard read bounces through host DRAM before reaching GPU HBM; GPUDirect Storage (GDS) removes that host-memory bounce copy when local or RDMA-attached NVMe is the bottleneck. The CPU still submits and coordinates I/O through the software stack. Understanding the traditional path first makes the GDS optimization clear.
The traditional data path for loading training data follows three hops: storage \(\to\) host DRAM \(\to\) GPU HBM. Data is first read from NVMe into a kernel buffer in host DRAM (via a DMA transfer initiated by the NVMe controller), then copied to a user-space buffer (the data loader’s tensor, via a memcpy that the CPU executes), and finally transferred to GPU memory via the PCIe bus (using a cudaMemcpy or cudaMemcpyAsync call that programs the GPU’s DMA engine). Each hop adds latency and consumes CPU resources. The CPU must orchestrate every transfer, manage buffer allocation, and handle interrupts from both the storage device and the GPU. For a single transfer, this overhead is negligible. When eight GPUs each demand thousands of small transfers per second, however, the aggregate CPU load for data movement alone can saturate multiple cores, leaving insufficient CPU capacity for the data augmentation that is also essential to the pipeline.15
15 GDS (GPUDirect Storage): Part of NVIDIA’s GPUDirect family, which also includes GPUDirect RDMA (network adapters writing directly to GPU memory) and GPUDirect Peer-to-Peer (inter-GPU memory access); GDS extends this data-copy-bypass approach to NVMe storage via the cuFile API. With RDMA and GDS, payload data can traverse the path remote storage \(\to\) network \(\to\) GPU memory without a CPU-mediated bounce copy. The CPU still issues and coordinates cuFile operations, but it spends less time copying payloads and can devote more capacity to augmentation and pipeline orchestration.
Definition 1.4: GPUDirect Storage
GPUDirect Storage (GDS) is a technology that enables a direct DMA path between NVMe storage devices and GPU memory, bypassing the system-DRAM bounce buffer and CPU payload copies while retaining CPU submission and control.
- Significance: It eliminates the “bounce buffer” through system memory. In the small-transfer model detailed in notebook 1.6, this reduces per-transfer latency by 75 percent and makes the local transfer path 4× faster. It allows the GPU to saturate the NVMe link speed (for example, 7 GB/s) while reducing CPU utilization for I/O.
- Distinction: Unlike traditional I/O, where payload data is staged through host buffers and copied between them, GDS provides direct memory access between the storage controller and the accelerator. CPU-issued cuFile calls and kernel storage drivers remain in the control path.
- Common pitfall: A frequent misconception is that GDS makes all storage “faster.” In reality, it only accelerates local or RDMA-attached NVMe; it does not eliminate the physical latency of network-attached file systems or object storage.
The software layers in the traditional I/O path contribute to the latency overhead. When a data loader calls read() on an NVMe-backed file, the call traverses the application’s runtime, the Python/C++ boundary, the operating system’s virtual file system layer, the file system driver (ext4, XFS), the block layer, and finally the NVMe driver. Each layer adds a few microseconds of overhead for parameter validation, lock acquisition, and buffer management. On the return path, the NVMe controller raises an interrupt, the interrupt handler wakes the blocked thread, and the data is copied from the kernel buffer to user space. The total round-trip overhead for a small read is 10–50 \(\mu\)s, dominated by the context switches and buffer copies rather than the actual NVMe access time.
GDS changes the payload path without eliminating the software control path. The cuFile API registers a GPU memory region for direct DMA. Subsequent reads transfer payload data from NVMe to GPU memory without an intermediate system-memory bounce buffer, while cuFile, the virtual file system, kernel storage drivers, and nvidia-fs remain involved in submission and coordination. The CPU issues the I/O and checks for completion but avoids the payload-copy work of the traditional path.
The latency reduction from GDS matters most when the training pipeline is already optimized and the remaining bottleneck is the CPU’s ability to mediate transfers. In a node with 8 GPUs, each running a data loader with 4 workers, the CPU must manage 32 concurrent I/O streams. At 120 μs per transfer, the CPU spends significant time in interrupt handling and buffer management. GDS offloads this work to hardware DMA engines, freeing CPU cores for data augmentation and other preprocessing tasks. Figure 6 contrasts the two data paths side by side, showing where GDS eliminates the CPU-mediated copies that dominate per-transfer overhead.
The throughput improvement from GDS is most pronounced for workloads that read many small objects (figure 6), such as decoded image patches, where per-transfer overhead dominates. For large sequential reads (such as streaming a multi-gigabyte training shard), the throughput improvement is more modest because the transfer time dominates the setup overhead. The general principle is that GDS removes a constant overhead per transfer, so workloads with many transfers per second benefit most.
Napkin Math 1.6: The CPU bypass dividend
Problem: A training node with 8 GPUs loads 150 KB at 8,000 images/s per GPU (64,000 images/s total). Compare the CPU load under traditional I/O vs. GDS.
Traditional path: Each image requires a DMA from NVMe to DRAM, a host copy from kernel to user space, and a PCIe transfer to GPU. At 64,000 images/s with 120 μs of CPU time per image, the CPU spends 7.68 seconds of CPU time per wall-clock second, consuming roughly 8 cores worth of processing just for data movement.
GDS path: Each image is transferred directly via DMA from NVMe to GPU. At 30 μs of CPU time per image (for initiating the DMA), the CPU spends 1.92 seconds of CPU time per wall-clock second, freeing roughly 6 cores for data augmentation.
Systems insight: GDS reduces latency and shifts CPU utilization from data copying (which adds no value) to data augmentation (which improves model quality).
GDS has practical limitations. Not all NVMe controllers support peer-to-peer PCIe transfers. The data must be in a format that the GPU can consume directly, which means it must already be decoded or GPU-decodable (raw pixel values, token IDs, or formats handled by GPU decoders, not arbitrary compressed JPEG or gzip streams). In practice, many pipelines use a hybrid approach: CPU-side decoding for compressed formats followed by a normal pinned-memory GPU transfer, while GDS is reserved for direct reads of GPU-consumable data from supported local or remote storage.
The architectural evolution from CPU-mediated copies to direct storage access reflects a broader trend of removing CPU payload copies from the critical data path wherever possible. RDMA and GPUDirect described RDMA, which allows network payloads to move without CPU copying. GDS does the same for storage payloads. Together, RDMA and GDS let data flow from remote storage, through the network fabric, and into GPU memory without a host-memory bounce copy. The CPU still submits and coordinates the operation, while more of its capacity remains available for data augmentation, pipeline orchestration, and error handling.
The GDS design principle also extends to checkpoint writes. In the traditional path, checkpoint data flows from GPU HBM through host DRAM (via PCIe) to NVMe (via CPU-mediated write). With GDS, the checkpoint can be written directly from GPU HBM to NVMe, eliminating the host DRAM copy. For a 1,750 GB checkpoint, this removes one full data copy and reduces the CPU’s involvement in the write path, lowering \(T_{\text{write}}\) further.
The complete data path
Combining GDS with the multi-tier hierarchy, the complete data path connects the tiers for the running example. At the beginning of the training job, the 6 TB serialized shard set, derived from the 3 TB compressed source corpus, is staged from object storage into the cluster’s local NVMe caches, with each node receiving its assigned shard subset during setup. The data loader workers read tokenized shards from NVMe, assemble packed sequences in pinned host DRAM, and transfer those batches to the accelerator. With GDS enabled, token IDs that are already in a GPU-consumable layout can be loaded directly into GPU memory without CPU involvement; compressed formats still require CPU or GPU decompression before use.
During training, the pipeline operates in steady state. The CPU data loader workers continuously read from local NVMe, filling a prefetch queue in host DRAM. The GPU pulls batches from this queue via PCIe DMA. The compute phase (forward pass, backward pass, optimizer step) consumes the batch and updates the model weights in HBM. Every 10 minutes, the training framework initiates a checkpoint: model weights and optimizer state are written from GPU HBM to local NVMe (either through host DRAM or via GDS), and a background thread asynchronously copies the local checkpoint to the parallel file system.
At the end of the training job, the final model checkpoint is promoted from the parallel file system to object storage for long-term retention. The local NVMe copies are deleted during job cleanup. If the model is deployed for inference, it is loaded from object storage into the serving cluster’s HBM, completing the lifecycle of data movement through the hierarchy.
The total number of data copies in this lifecycle is instructive. Each training sample traverses: object storage \(\to\) NVMe (staging), NVMe \(\to\) host DRAM (read), host DRAM \(\to\) GPU HBM (transfer). Each checkpoint traverses: GPU HBM \(\to\) NVMe (local save), NVMe \(\to\) parallel file system (async copy), parallel file system \(\to\) object storage (long-term retention). Every copy consumes bandwidth and contributes latency. The engineering goal is to minimize copies on the critical path (the training loop) and tolerate additional copies on noncritical paths (staging and archival).
The volume of data moved during a 30-day training run reveals a counterintuitive reality. A single staging copy of the 6 TB serialized dataset from object storage to local NVMe accounts for a modest transfer. The checkpointing process, however, generates a vastly larger data stream. With a roughly 1,750 GB checkpoint created every 10 minutes across 256 nodes for 30 days, the system produces approximately 4,320 checkpoints, totaling roughly 7.6 PB of state that must traverse the storage hierarchy. Checkpoint data movement dwarfs training data movement for large models: while the 6 TB training dataset might be read a handful of times (once per epoch), the 7.6 PB of checkpoint data is generated anew, making checkpoint I/O the dominant storage workload. This insight explains why checkpoint staging strategy (write locally, replicate asynchronously) can have a larger impact on overall storage design than training data pipeline optimization for large-model runs. The physical data path dictates where bytes move; the remaining question is what each movement costs.
Self-Check: Question
Which statement precisely describes the architectural data-path modification introduced by GPUDirect Storage (GDS)?
- GDS caches the entire training corpus in GPU HBM to eliminate all storage I/O operations during training epochs.
- GDS compresses training tensors directly inside the NVMe flash controller using hardware acceleration.
- GDS routes network packets through host DRAM bounce buffers to perform real-time data integrity checksumming.
- GDS establishes a direct DMA transfer path between NVMe storage (local or NVMe-oF) and GPU memory, eliminating the CPU-mediated bounce buffer in host DRAM while retaining CPU control-plane coordination.
A computer vision training pipeline uses complex CPU-based JPEG decompression and multi-step data augmentations (color jitter, affine warping). Explain why adopting GPUDirect Storage (GDS) without moving decompression to the GPU yields minimal end-to-end throughput improvement.
True or False: Enabling GPUDirect Storage (GDS) eliminates the physical round-trip network latency and P99 tail-latency spikes associated with fetching shards directly from remote cloud object storage endpoints.
In a high-throughput vision training node with 8 GPUs processing a combined 64,000 images per second, traditional CPU-mediated I/O requires \(120\ \mu\text{s}\) of CPU time per image (consuming \(\approx 7.68\) CPU seconds per wall-clock second, or \(\approx 8\) dedicated CPU cores). GDS reduces CPU overhead to \(30\ \mu\text{s}\) per image (\(1.92\) CPU seconds per second, or \(\approx 2\) cores). What is the primary systems benefit of this ‘CPU bypass dividend’?
- It enables the cluster to eliminate all local NVMe SSDs in favor of remote tape archives.
- It frees approximately 6 CPU cores per node that can be reallocated to computationally intensive data augmentation and pipeline orchestration without adding hardware.
- It reduces GPU power consumption by \(75\%\) during tensor matrix multiplication.
- It doubles the physical PCIe bus bandwidth between the CPU socket and the GPU accelerators.
Order the sequence of operations that occurs in the traditional (non-GDS) storage I/O path when an accelerator requests a batch from local NVMe: (1) The data loader process issues a POSIX read() system call traversing the VFS and filesystem drivers, (2) The NVMe controller initiates a DMA transfer of raw blocks into an OS kernel buffer in host DRAM, (3) The host CPU executes a memcpy to copy payload bytes from kernel space to user-space pinned memory, (4) The CPU initiates a cudaMemcpyAsync to trigger a PCIe DMA transfer from host DRAM to GPU HBM, (5) The accelerator launches compute kernels on the newly arrived tensor resident in HBM.
Storage Economics
A 100 TB training dataset can reside on any tier of the hierarchy, but the cost differs by orders of magnitude depending on which tier is chosen and how the data is accessed. ML storage economics is not simply about choosing the cheapest tier; it is about minimizing Total Cost of Data Delivery, which includes storage costs, transfer costs, and the opportunity cost of idle accelerators.
Consider storing a 100 TB training dataset. The annual storage cost varies enormously by tier:
- Object storage (S3 Standard): $24,000/year
- Local NVMe (provisioned): $120,000/year
- Archive (Glacier): $4,800/year
- HBM equivalent (hypothetically storing 100 TB in GPU memory at $15/GB): $1,500,000 in hardware amortization
The 5× cost difference between local NVMe and object storage (with the full HBM-to-archive span exceeding 3,000\(\times\)) explains why the hierarchy exists: data must live at the cheapest tier possible, migrating upward only when needed and returning downward when done. This cost gradient reflects the underlying physics. Faster storage requires more expensive materials (HBM uses 3D-stacked silicon with through-silicon vias), more energy per bit accessed, and more physical proximity to the accelerator (which limits the amount that can be provisioned per node). Cheaper storage uses commodity components (standard hard drives for archive), consumes minimal energy when idle, and can be located anywhere with network connectivity.
Repeated egress, not storage, dominates cloud cost.
Storage cost, however, is only part of the equation. Data Transfer Costs can dominate, especially in cloud environments. Under the representative cross-boundary egress assumption used here, reading the 100 TB dataset from object storage to compute instances incurs a transfer charge of $9,000. For multi-epoch training that reads the dataset 10 times, the egress cost alone exceeds $90,000, more than the annual storage cost. This inversion, where reading data costs more than storing it, drives the architecture decision to cache data on local NVMe rather than streaming from object storage each epoch.
The economic analysis changes further when accounting for the opportunity cost of accelerator idle time. A cluster of 1,000 GPUs at $2/GPU-hour costs $48,000 per day. If an undersized storage system reduces accelerator utilization from 90 percent to 70 percent, the organization loses $9,600 per day in wasted compute. Over a 30 days training run, this amounts to $288,000 of lost compute value, an amount that would easily fund a parallel file system upgrade or additional NVMe capacity. The economically rational approach treats storage investment not as an expense but as an enabler of compute utilization: every dollar spent improving storage throughput returns several dollars of increased accelerator productivity.
Systems Perspective 1.2: The storage cost iceberg
The visible cost of storage ($/GB/month) is the tip of the iceberg. Below the surface lie costs that often exceed the storage cost itself:
- Egress fees: A representative cross-boundary egress charge of $0.09/GB makes a 100 TB dataset read once per epoch across 10 epochs cost $90,000 in egress alone.
- IOPS charges: Object storage charges per-request fees. S3 Standard GET requests cost about $0.0004 per 1,000 requests, so a dataset of 100M individual files, read once, costs about $40 in GET request fees before data transfer or retrieval charges, even though the storage cost is $2,300/month.
- Idle accelerator cost: If storage stalls reduce GPU utilization from 90 percent to 70 percent on a cluster of 1,000 GPUs at $2/GPU-hour, the lost compute costs $9,600/day (20 percent of $48,000 daily spend), dwarfing any storage savings.
- Retrieval fees: Archive storage charges retrieval fees ($0.02/GB for Glacier) in addition to egress. Restoring a 100 TB dataset from Glacier costs $2,000 in retrieval fees plus $9,000 in egress.
The economically rational strategy often invests more in storage (local NVMe caching, parallel file system capacity) to reduce transfer costs and prevent accelerator stalls.
The cost iceberg reveals that raw storage capacity can account for less than half of the total expenditure; replication, metadata operations, API calls, and cross-region transfers can collectively dominate the bill at scale. Among those hidden line items, egress is the one that often flips the architecture decision. Unlike capacity charges, which scale with the volume of data stored, egress charges scale with the volume of data read, and ML training reads the full dataset on every epoch.
Napkin Math 1.7: The egress tax
Problem: A team trains a vision model on a 50 TB image dataset stored in S3. Training runs for 20 epochs. The decision is whether to stream from S3 each epoch or stage to local NVMe.
Option A: Stream from S3
- Storage: 50 TB \(\times\) $0.023/GB/month \(\times\) 12 months = $13,800/year
- Egress: 50 TB \(\times\) 20 epochs \(\times\) $0.09/GB = $90,000 per training run
- Total for 4 training runs/year: $13,800 + $360,000 = $373,800/year
Option B: Stage to local NVMe
- Storage (S3 source of truth): $13,800/year
- NVMe capacity (50 TB across cluster): 50 TB \(\times\) $0.10/GB/month \(\times\) 12 = $60,000/year
- Egress (stage once per training run): 50 TB \(\times\) 4 runs \(\times\) $0.09/GB = $18,000/year
- Total: $13,800 + $60,000 + $18,000 = $91,800/year
Systems insight: Local NVMe caching saves $282,000/year at 20 epochs per run, enough to fund 9 additional H100 GPUs at list price. Including the $60,000/year provisioned NVMe cost and the once-per-run staging egress, the break-even point is just over 4 epochs per run; by the fifth epoch, local caching is cheaper than streaming from S3 every epoch.
The notebook turns the iceberg into a decision rule: the cheapest storage tier is not always the cheapest delivery path. Object storage can remain the source of truth, but repeated reads make egress, request overhead, and idle-accelerator cost part of the storage design. Multi-epoch vision training may justify staging on local NVMe by the fifth epoch, while single-epoch language-model pretraining may leave the corpus in object storage and optimize the streaming path instead. The architecture is therefore chosen from access pattern, read count, and latency sensitivity rather than from $/GB/month alone.
The cost analysis extends to the parallel file system tier, which occupies a middle ground between NVMe and object storage in both performance and price. A parallel file system capable of delivering 1 TB/s aggregate bandwidth requires roughly 100 OSS nodes, each with multiple NVMe drives and high-bandwidth network connections. The capital and operational cost of such a system can exceed $10 million per year. This expense is justified only if the alternative, streaming from object storage and paying egress fees, is even more expensive, or if the latency requirements of checkpoint writes cannot be met by object storage alone. The break-even analysis depends on the organization’s workload mix: a team running a single long training job may find that staging data on local NVMe and bypassing the parallel file system entirely is the cheapest option, while a team running many concurrent short jobs benefits from the shared namespace that a parallel file system provides.
The decision to Build vs. Buy storage infrastructure hinges on the trade-off between the high capital expenditure of an on-premises parallel file system and the recurring operational expenditure of cloud object storage. A 1-petabyte Lustre deployment costs roughly $3–5 million in hardware, plus an additional $500,000 per year in operational overhead for power, cooling, and engineering support. Storing 1 PB in a cloud object store at $0.02/GB/month costs $240,000 per year for storage alone. However, egress fees for accessing the data dominate the total cost: reading that petabyte at 10 reads/year adds $900,000 in data transfer fees. Under these assumptions, annual cloud delivery costs $1,140,000; after subtracting $500,000 of on-premises operations, the net savings are $640,000 per year. The resulting hardware break-even is roughly 4.7–7.8 years, not 18 to 24 months. Reaching an 18- to 24-month payback requires a hotter workload with many more full-dataset reads per year, lower capital expense, or non-egress drivers such as checkpoint latency and shared-namespace requirements. For the running example, the 6 TB serialized corpus is much smaller than 1 PB, so the local-storage case is driven more by latency, repeated experiments, and checkpoint staging than by one-year egress savings alone.
Hardware degradation introduces the need for a Storage Refresh Cycle. NVMe drives are rated for a specific write endurance, measured in DWPD over a typical five-year warranty period. Many large-scale ML training workloads are predominantly read-heavy once the initial dataset is ingested, so drives in a training cluster can last beyond their rated write lifespan. The primary driver for a refresh cycle may therefore be density rather than wear: newer drives often provide more capacity at a similar price point. Refreshing a cluster from 7.68 TB to 15.36 TB NVMe drives doubles the local cache capacity, enabling larger datasets to be staged directly on compute nodes and reducing dependence on the parallel file system for steady-state reads.
Tiering strategies
The cost structure described in the preceding section turns tiering into a placement policy: keep data only as close to the accelerator as its access frequency and latency requirement justify. A Tiering Strategy encodes that policy across the hierarchy.
The fastest and most expensive layer is the Hot Tier (local NVMe + host DRAM), which holds data being actively consumed by the running training job. Datasets are staged from shared storage to local NVMe at job start. This tier is provisioned per-node and is not shared across the cluster, so data that multiple jobs or teams need simultaneously cannot live here alone.
That shared-access requirement is what justifies the Warm Tier (parallel file system), which holds datasets accessed by multiple jobs or teams, shared checkpoints for fault recovery, and model artifacts under active development. The parallel file system provides the shared namespace necessary for multi-tenant access with strong consistency.
Below the warm tier sits the Cold Tier (object storage), which serves as the canonical repository for all organizational training data. Datasets are authored and versioned in object storage, then promoted to warmer tiers when needed for training. Object storage also serves as the durable backup for checkpoints after they are staged from local NVMe through the parallel file system.
Data that must be retained for compliance or reproducibility but is not expected to be accessed during normal operations drops to the Archive Tier (Glacier or equivalent). Lifecycle policies automatically transition data from cold to archive after a configurable period, typically 90 to 365 days since last access.
The movement of data between tiers should be automated through lifecycle policies. A well-designed tiering system automatically promotes data from cold to warm when a training job requests it, and demotes data from warm to cold when no job has accessed it for a configurable period. Manual tiering introduces operational burden and inevitably leads to either over-provisioning (data left on expensive tiers) or under-provisioning (data unavailable when needed).
Return to the running example to see tiering in action. The 3 TB source corpus and 6 TB serialized training shards live permanently in object storage (cold tier). When a training job is scheduled, the orchestration system triggers a “data staging” phase that copies the tokenized shards to the parallel file system (warm tier) before the first training node boots. Each node’s data loader then copies its assigned shards to local NVMe (hot tier) during the first epoch. Subsequent epochs read entirely from local NVMe, incurring no network traffic. When the job completes, a cleanup process deletes the local NVMe copies and, after a configurable grace period, purges the parallel file system copy. The entire lifecycle, from staging through training to cleanup, is managed by policy rather than by the training engineer.
The economic benefit of automated tiering compounds over time. An organization running 50 concurrent training jobs, each using 10 TB of data, would need 500 TB of parallel file system capacity if all data were left in place. Automated demotion after job completion might reduce the steady-state parallel file system usage to 100 TB, saving $144,000 per year at the parallel file system’s per-TB rate. These savings are invisible in any single experiment but substantial when accumulated across the fleet.
Data staging patterns
The staging decision determines where the job pays for movement: before training starts, during the first epoch, or on every epoch. Three common patterns address different trade-offs between startup latency and steady-state throughput:
- Prestaging: Copy the entire dataset from object storage to local NVMe before the first training iteration begins. This gives the best steady-state performance because all reads are local, but it creates the worst job start time; staging a 10 TB dataset across 256 nodes at 500 MB/s per node takes roughly 80 seconds per node, and shared parallel file system bandwidth can extend that delay to several minutes.
- On-Demand Staging: Copy shards to local NVMe only when the data loader first accesses them. This removes the startup delay but makes the first epoch pay the full network-read cost, which works best for multi-epoch training where later local reads amortize the initial staging cost.
- Streaming: Keep data off local storage and read from the parallel file system or object storage every epoch. This has zero startup delay and zero local storage requirement, but every epoch pays the full network-read cost, making it appropriate for single-epoch pretraining or datasets too large for local NVMe.
Tiering is a placement policy, so the next question is where the tier boundaries can move. Emerging devices shift the boundary between DRAM, NVMe, and archival storage, while inference workloads reuse the same hierarchy for a different objective: reducing cold-start latency and managing serving-time working sets rather than maximizing epoch throughput.
Storage technologies that move tiers
While the six-tier hierarchy represents a common production baseline, memory and storage technologies can fill the bandwidth gaps between existing tiers, reshaping effective storage architecture for large-scale ML. The widest unfilled gap in the hierarchy sits between host DRAM and local NVMe. CXL, an open standard interconnect that allows CPUs, accelerators, and memory devices to share memory with cache-coherent semantics, targets exactly this gap. CXL-attached memory provides bandwidth between that of local DRAM and NVMe (roughly 30–60 GB/s) at latencies that are also intermediate (200–500 ns). For ML workloads, CXL memory could serve as a “Tier 1.5” between host DRAM and local NVMe, creating a massive capacity pool for embedding tables and prefetch buffers without the latency penalty of NVMe. For the running example, CXL-attached memory could expand the effective host memory tier from 512 GB to over 4 TB per node, large enough to hold the compressed source corpus or a large local shard cache, though still short of the full 6 TB serialized training copy on one node.
A different bottleneck appears when CPU-side decoding, not storage bandwidth, throttles the pipeline. The Computational Storage Drive closes that gap by embedding processing elements (field-programmable gate arrays (FPGAs) or simple CPU cores) directly on the SSD controller, enabling decompression, filtering, or format conversion to happen at the storage device rather than consuming host CPU cycles. For ML pipelines where CPU-side decoding is the bottleneck, computational storage could eliminate the CPU from the data path entirely, complementing GDS by offloading work that direct DMA cannot address.
Checkpoint writes remain throttled by SSD write latency, the \(T_{\text{write}}\) term the Young-Daly formula penalizes. Persistent Memory, despite market shifts such as the discontinuation of Intel Optane, remains the architectural idea that attacks that term directly. Byte-addressable non-volatile memory that sits between DRAM and NVMe in both latency and capacity could transform checkpoint storage: the durability of an SSD with write latencies approaching DRAM would reduce \(T_{\text{write}}\) from milliseconds to microseconds, making frequent, low-overhead checkpointing more practical.
These technologies are not yet broadly deployed at the scale of the largest ML clusters, but they illustrate the direction of the storage hierarchy’s evolution. The fundamental principle remains unchanged: faster, more expensive storage closer to the accelerator, with slower, cheaper storage at the periphery. What changes is the granularity of the tiers and the size of the gaps between them.
Storage for inference workloads
The storage requirements for inference differ fundamentally from training. Training reads datasets continuously and writes checkpoints in bursts. Inference reads model weights once at startup and performs no further storage I/O during normal operation. For inference serving, the dataset is replaced by a stream of incoming user requests, and the primary storage challenge shifts from sustained throughput for large datasets to latency for loading the model itself.
The most critical metric for inference storage is Model Loading Latency, often called cold-start time: the duration required to load a model from storage into the accelerator’s HBM. For the 175B parameter language model, the weights alone occupy 350 GB in FP16 format. Loading this sequentially from a single high-performance NVMe drive at 14 GB/s takes 25 seconds, an unacceptable delay for a user-facing application. Loading from a shared PFS at a per-node rate of 4 GB/s takes nearly 88 seconds. From object storage at 1 GB/s, the delay approaches six minutes.
To reduce cold-start time, the model is sharded and loaded in parallel. If the 350 GB model is striped across 8 NVMe drives, each loading a 43.75 GB shard at 7 GB/s, the total load time drops to roughly 6 seconds. When using tensor parallelism across 8 GPUs, each GPU loads only its 43.75 GB shard, which can be accomplished in under 4 seconds by reading from host DRAM. For the most latency-sensitive applications, organizations maintain Warm Replicas: one or more copies of the model weights kept preloaded in host DRAM, ready to be transferred to HBM in under two seconds. This trades DRAM capacity for near-instantaneous cold-start times.
During autoregressive generation, the server keeps a per-request record of the attention keys and values produced by earlier tokens so it can generate the next token without recomputing the entire prefix. This record, called the Key-Value Cache (KV Cache), grows with sequence length and can consume significant HBM. For long sequences (128K tokens or more), KV cache offloading to host DRAM or NVMe extends the effective context window at the cost of increased latency per generated token, because cache blocks must be moved back into HBM before attention can use them. The storage lesson is that inference has its own working set, not just a model-loading problem.
While model serving dictates its own economic calculus, the training phase introduces an entirely different, burst-heavy I/O challenge: the preservation of model state through checkpoint storage.
Self-Check: Question
A team trains a vision model on a \(50\text{ TB}\) dataset stored in cloud object storage (\(\$0.023/\text{GB-month}\)) for 20 epochs across 4 training runs per year. Reading from object storage across a network boundary incurs a \(\$0.09/\text{GB}\) data egress fee. Staging the dataset onto local NVMe caches costs \(\$0.10/\text{GB-month}\). What does the economic analysis reveal about streaming vs. staging?
- Streaming directly from object storage every epoch is cheaper because local NVMe drives add unnecessary provisioned storage overhead.
- Egress fees are negligible compared to monthly storage costs, making tier selection purely a matter of operational convenience.
- Staging data once to local NVMe per run saves roughly \(\$282,000\) per year compared to streaming from object storage every epoch, breaking even after just 5 epochs per run.
- The team should migrate the dataset to cold tape archive to eliminate both egress fees and provisioned storage costs.
In a 1,000-GPU cluster where compute time is billed at \(\$2.00\) per GPU-hour, an undersized storage system introduces a \(20\%\) data stall ratio (reducing GPU utilization from \(90\%\) to \(70\%\)). Calculate the daily cost of this lost compute capacity and explain why investing in high-performance storage is economically rational.
An enterprise evaluates building an on-premises 1 PB parallel file system (\(\$3\text{M to } \$5\text{M}\) capex plus \(\$500\text{k/year}\) opex) versus storing the 1 PB corpus in cloud object storage (\(\$240\text{k/year}\) storage) and paying \(\$0.09/\text{GB}\) egress fees for 10 full-dataset reads per year (\(\$900\text{k/year}\) egress). What is the realistic financial payback horizon for building the on-premises system under these parameters?
- Between 4.7 and 7.8 years, because net annual cloud delivery savings (\(\$640\text{k/year}\)) require multiple years to amortize the multi-million dollar initial hardware expenditure.
- Less than 6 months, because cloud egress fees make any on-premises storage investment instantly profitable.
- Exactly 20 years, because on-premises operational overhead exceeds all cloud storage and egress fees combined.
- There is no payback horizon because cloud object storage is perpetually free for research and training workloads.
In cloud-based ML infrastructure, the recurring fee charged by providers per gigabyte of data transferred out of an object storage bucket across region or internet boundaries is called an ____ fee.
Compare the three primary data staging patterns (prestaging, on-demand staging, and pure streaming) in terms of job startup latency and network bandwidth consumption during multi-epoch training.
Checkpoint Storage
After a thousand GPUs have been training for six hours, a power supply failure turns checkpoint storage into the difference between resuming quickly and repeating hours of work. The decisive storage questions are how quickly the most recent checkpoint was saved, where it resides, and whether it can be read back. Checkpoints are the most demanding write workload in the storage hierarchy. They are also among the most consequential: a lost checkpoint after a hardware failure means repeating hours or days of training. The storage architecture must therefore minimize \(T_{\text{write}}\), the time the training pipeline pauses to save a checkpoint.
A 175B parameter model with Adam optimizer generates checkpoints of approximately 1,750 GB. The checkpoint includes 350 GB of FP16 model weights, 1,400 GB of FP32 optimizer state for momentum and variance, learning rate scheduler state, random number generator state, and the current data loader position. Every GPU in the cluster saves its shard of the checkpoint simultaneously, creating a checkpoint storm that the storage system must absorb without disrupting ongoing training reads.
Sharding turns replicated checkpoint storms into sharded writes.
Definition 1.5: Checkpoint storm
Checkpoint Storm is a burst of synchronized network and storage traffic that occurs when all nodes in an ML training fleet save model state simultaneously.
- Significance: The storm magnitude scales as \(T_{\text{write}} = R \times \text{per-replica state} / \text{BW}_{\text{fabric}}\), where \(R\) is the number of replicas writing at once. For a 70B-parameter model, each replica holds 140 GB FP16 weights, 140 GB gradients, and 840 GB optimizer state. With vanilla data parallelism across 1,024 replicas, a naive checkpoint of that full per-replica state generates 1146.9 TB of simultaneous writes. At 100 GB/s fabric bandwidth, that write takes roughly 11,468.8 seconds, or over 191.1 minutes of training stall per checkpoint event. ZeRO-3, an optimizer-state-sharding scheme in which each node stores only its \(1/N\) slice of the state rather than a full replica, collapses the written state to roughly 1.12 TB total (140 GB weights + 140 GB gradients + 840 GB optimizer state, split across 1,024 replicas), bringing \(T_{\text{write}}\) down to roughly 11.2 seconds. This stall is the checkpoint \(T_{\text{write}}\) term and can dwarf the compute time between checkpoints when the sharding optimization is omitted.
- Distinction: Unlike general I/O contention (which is stochastic and unpredictable), a checkpoint storm is synchronous and periodic: every node writes at the same moment because the training orchestrator triggers checkpoint after a fixed step count. Its predictability makes it both more damaging (all nodes compete simultaneously) and more tractable (it can be prevented by design through staggered scheduling or asynchronous serialization).
- Common pitfall: A frequent misconception is that checkpointing every 100 steps is “low overhead.” At 70B scale, this assumption is catastrophically wrong: if each training step takes 10 seconds and a checkpoint storm takes 11,468.8 seconds, checkpointing every 100 steps means spending most of the run on checkpoint I/O rather than useful training.
The severity of a checkpoint storm depends on two factors: the per-node shard size, determined by the model size and the sharding strategy, and the throughput of the first write tier, typically local NVMe. A concrete 175B example shows why the local-write phase, rather than the durable copy to the parallel file system, governs the exposed training pause.
Napkin Math 1.8: Tiered checkpoint staging
Problem: A 256-node cluster saves a 175B-parameter checkpoint every 10 minutes. Each checkpoint totals 1,750 GB. With ZeRO-3, each node saves roughly 6.8 GB.
- Per-node write to local NVMe (4 drives at 7 GB/s each = 28 GB/s): 6.8 GB \(\div\) 28 GB/s \(\approx\) 0.24 seconds.
- Async copy to PFS: 256 \(\times\) 6.8 GB \(\approx\) 1.8 TB total. If the PFS provides 1 TB/s aggregate, the storm completes in roughly 1.8 seconds.
- Per-node PFS bandwidth: If all 256 write simultaneously, each gets 1000 GB/s \(\div\) 256 = 3.9 GB/s.
- Training pause: Only about 0.24 seconds (the local NVMe write). The PFS copy overlaps with the next training iteration.
- Overhead: 0.24 seconds pause every 600 seconds \(\approx\) 0.04 percent training time lost to checkpointing.
Systems insight: Under these 1 TB/s aggregate-PFS assumptions, tiered staging reduces checkpoint overhead from about a 1.8 seconds PFS-direct write to a sub-second local write. The key insight is that \(T_{\text{write}}\) for the training pipeline is the local write time, not the durable write time.
The Tiered Staging strategy minimizes \(T_{\text{write}}\) by writing in two phases. In the first phase, each node writes its checkpoint shard to local NVMe at full bandwidth. With 4 NVMe drives providing 28 GB/s aggregate, a per-node shard of roughly 6.8 GB (a 256-node ZeRO-3 split of the 1,750 GB total checkpoint) completes in roughly 0.24 seconds. The training pipeline can resume immediately after the local write completes.
In the second phase, a background process asynchronously copies the local checkpoint to the parallel file system for durability. This copy can overlap with the next training iteration, so it does not block the pipeline. The risk is that if the node fails before the async copy completes, the local checkpoint is lost. The mitigation is to replicate checkpoints to at least two peer nodes’ NVMe drives before declaring the save complete, providing durability even if one node fails.
The total storage consumed by checkpoints over the life of a training run is substantial. A 175B parameter model checkpointed every 10 minutes over a 30-day training run generates roughly 4,320 checkpoints, each 1,750 GB, for a total of approximately 7.6 PB of checkpoint data. Retaining all of them is neither necessary nor economical. The retention policy this run adopts keeps the three most recent checkpoints on the parallel file system for fast recovery, copies every 100th checkpoint to object storage for long-term auditability, and deletes the rest. This policy reduces the parallel file system checkpoint footprint from 7.6 PB to roughly 5.25 TB (three live full checkpoints) while preserving 43 historical snapshots in object storage for posttraining analysis.
Incremental checkpointing offers a further optimization for reducing \(T_{\text{write}}\). Rather than saving the entire model state every checkpoint, an incremental checkpoint saves only the parameters that changed since the last full checkpoint. For models where a large fraction of parameters are frozen (such as fine-tuning scenarios where only the last few layers are updated), incremental checkpoints can be orders of magnitude smaller than full checkpoints. The trade-off is recovery complexity: restoring from an incremental checkpoint requires applying a chain of incremental updates to a base checkpoint, which extends recovery time. Most production systems use a hybrid approach, saving incremental checkpoints frequently and full checkpoints periodically (every 10th to 100th increment).
Checkpoint storage interacts directly with the system’s failure model. From the storage perspective, the design goal is to minimize \(T_{\text{write}}\) (the time the training pipeline pauses) while ensuring that at least one durable copy of the checkpoint exists before the next failure window opens. Reducing \(T_{\text{write}}\) through tiered staging makes more frequent checkpoints affordable. Minimizing \(T_{\text{write}}\), however, only matters if the checkpoint can actually be read back; the costlier failure is a checkpoint that was written but never verified as restorable.
War Story 1.1: The backup that had not been restored (2017)
Context: On January 31, 2017, a GitLab.com site reliability engineer working a database replication incident accidentally wiped the primary PostgreSQL data directory (GitLab 2017).
Mechanism: All five layered backup paths failed simultaneously: S3 dumps were silently empty due to a version mismatch, Azure disk snapshots were disabled, replication was broken, LVM snapshots were six hours stale, and WAL archiving was unimplemented.
Impact: Six hours of production database writes, user comments, and repository metadata were permanently lost, requiring an 18-hour emergency restoration from a staging snapshot.
Fix: GitLab instituted automated daily backup restoration testing, unified PostgreSQL versioning across environments, and implemented automated WAL archiving to S3.
Systems lesson: Storage reliability is a restore property, not a backup property. A checkpoint, replica, or dump only counts if the team regularly proves that it can be located, validated, and restored under incident conditions. ML systems encounter this exact vulnerability: a model checkpoint written to object storage or a feature store snapshot is useless if silent version mismatches or missing restore tests prevent resuming a multi-day training run after node preemption.
GitLab. 2017. Postmortem of Database Outage of January 31. GitLab postmortem.
That incident turns checkpoint storage from a capacity question into a restore-design question.
Checkpoint 1.4: Checkpoint storage design
A training cluster of 128 nodes saves a 175B-parameter model checkpoint every 10 minutes. Each checkpoint is 1,750 GB total, distributed across all nodes.
Distributed checkpoint coordination
In a sharded training setup with 128 nodes, no single node necessarily holds the complete training state. One node may hold a shard of the optimizer state, while other model-partitioning strategies split the weights themselves across devices. A complete checkpoint therefore requires every node to save its shard, and the checkpoint is only complete when all shards have been durably written. This creates a coordination problem: the system must confirm that all 128 nodes have finished writing before training can resume.
The simplest approach is a synchronous barrier: all nodes pause training, write their shards to local NVMe, then run a cluster-wide acknowledgement operation to confirm completion. Only when every node has acknowledged its write does training resume. This approach minimizes the risk of inconsistent checkpoints, where some shards are from step \(i\) and others from step \(i+1\), but it maximizes the training pause because the slowest node determines the barrier time.
Asynchronous checkpointing reduces the training pause by writing in the background. Each node snapshots its shard to a pinned memory buffer (a fast copy within DRAM), resumes training immediately, and writes the buffer to NVMe in a background thread. The snapshot captures a consistent point-in-time view of the model state. The risk is that if a node fails during the asynchronous write, the local NVMe may contain an incomplete shard. The mitigation requires either waiting for the async write to complete before considering the checkpoint durable, or replicating the in-memory snapshot to a peer node before allowing the next training step to overwrite the snapshot buffer.
The choice between synchronous and asynchronous checkpointing depends on the ratio of \(T_{\text{write}}\) to \(T_{\text{iteration}}\). If \(T_{\text{write}}\) is small relative to \(T_{\text{iteration}}\) (for example, 1 second vs. 200 ms per iteration, meaning the checkpoint pause costs 5 iterations), synchronous checkpointing is acceptable. If \(T_{\text{write}}\) is large (for example, 30 seconds for a 500B+ parameter model), the training pause is prohibitive, and asynchronous checkpointing becomes essential.
Beyond the choice of synchronous or asynchronous methods, Checkpoint Format Optimization reduces the per-node I/O volume. In the simplest data-parallel setup, every node holds an identical copy of the model weights, so a naive checkpoint would redundantly save the same data from every node. Sharded checkpoint protocols avoid that redundancy by saving shards instead of full replicas. DeepSpeed’s Zero-Redundancy Checkpointing uses its ZeRO optimizer-state partitioning: each of the \(H\) nodes saves only its \(1/H\) shard of the optimizer state, and the system saves one consolidated copy of the weights. PyTorch’s Distributed Checkpoint protocol follows the same storage principle by writing each rank’s sharded data to a distinct file. For the 175B model using ZeRO-3 across 256 nodes, the result is concrete: each node writes only its roughly 6.8 GB shard of the total 1,750 GB state, reducing the local write from minutes to around a second on one NVMe drive, or well below a second on a local stripe. The tiered-staging derivation earlier in this section already threaded these per-node shard sizes and write times through the running example, and the same arithmetic governs distributed coordination: the exposed pipeline pause is the local NVMe write, while the durable copy to the parallel file system overlaps with subsequent training.
With the checkpoint accounting now derived in full, the running example’s storage demands can be consolidated against the same hierarchy, so the training dataset, checkpoints, and archive lineage are visible side by side.
Systems Perspective 1.3: The 175B model's storage footprint
Table 5 assembles the complete storage picture for the running example, a 30-day training run of a 175B-parameter model on 256 nodes.
Table 5: 175B-Parameter Training Storage Footprint: Volume and primary storage tier for each data category in a 30-day, 256-node training run.
| Category | Volume | Primary Tier |
|---|---|---|
| Training dataset (compressed source) | 3 TB | Object Storage |
| Training dataset (tokenized, per epoch) | 6 TB | Object Storage \(\to\) NVMe cache \(\to\) Host DRAM |
| Model weights (FP16) | 350 GB | GPU HBM (distributed) |
| Optimizer state (FP32) | 1,400 GB | GPU HBM (ZeRO-partitioned) |
| Single checkpoint (full) | 1,750 GB | NVMe \(\to\) PFS \(\to\) Object Storage |
| All checkpoints (30 days, 10-min interval) | 7.6 PB | NVMe (transient) \(\to\) PFS (recent) \(\to\) Object (archive) |
| Archive (retained checkpoints + dataset) | ~84.2 TB | Glacier |
The total data moved through the hierarchy is approximately 7.6 PB of checkpoint data plus 6 TB per 1 epoch of training data reads. For a single-epoch language model training run, checkpoint I/O dominates data loading I/O by a factor of over 1,260.
Feature stores and model registries, the operational systems that manage feature serving and model versioning, are also built on top of this storage hierarchy, depending on the same tiering, durability, and latency boundaries introduced here. Training streams its fuel sequentially and writes checkpoints in bursts; retrieval-augmented inference reverses that access pattern, replacing sequential streaming with random graph traversal, so the same hierarchy must now serve a workload it was not tuned for. Vector databases, specialized storage systems for approximate nearest-neighbor search in embedding spaces, serve the retrieval-augmented generation pipeline by making that reversed access pattern operational.
Self-Check: Question
A 256-node cluster saves a 175B-parameter model checkpoint (\(1.75\text{ TB}\) total: \(350\text{ GB}\) weights, \(1.4\text{ TB}\) Adam optimizer state) every 10 minutes. Under tiered staging, each node writes its \(6.84\text{ GB}\) ZeRO-3 shard to local NVMe (\(28\text{ GB/s}\) local array) in \(\approx 0.25\text{ s}\), followed by an asynchronous background copy to a \(1\text{ TB/s}\) parallel file system taking \(\approx 1.75\text{ s}\). What is the exposed training pause time (\(T_{\text{write}}\)) per checkpoint?
- Roughly \(2.0\text{ s}\), because training must remain paused until both the local write and the durable PFS copy complete.
- Roughly \(0.25\text{ s}\), because the training barrier releases immediately after the fast local NVMe write completes, while the PFS replication proceeds asynchronously in the background.
- Zero seconds, because modern storage drivers execute zero-copy writes without interrupting GPU tensor execution.
- Roughly \(1.75\text{ s}\), because parallel file system latency determines the minimum barrier synchronization time across nodes.
True or False: In distributed ML infrastructure, storage reliability is defined primarily as a write-completion property: once all nodes successfully execute and acknowledge their checkpoint write calls, the checkpoint can be guaranteed reliable for cluster recovery.
A cluster of 1,000 GPUs trains a 70B-parameter model (\(140\text{ GB}\) FP16 weights, \(140\text{ GB}\) gradients, \(840\text{ GB}\) optimizer state = \(1.12\text{ TB}\) per replica state). Contrast the write volume and pause time of naive full-replica checkpointing against ZeRO-3 sharded checkpointing across a \(100\text{ GB/s}\) shared storage fabric.
A 30-day training run of a 175B model generates 4,320 full checkpoints totaling roughly \(7.56\text{ PB}\) of state data. Which retention policy balances rapid failure recovery, long-term auditability, and storage cost without exhausting the parallel file system budget?
- Retain all 4,320 checkpoints on the parallel file system to provide granular step-by-step rollback capabilities throughout the entire 30-day run.
- Delete all intermediate checkpoints immediately after each step and rely exclusively on live memory replication across peer nodes for fault tolerance.
- Retain the 3 most recent checkpoints on the parallel file system for fast local recovery, copy every 100th checkpoint to cloud object storage for long-term lineage, and purge older intermediate snapshots.
- Compress all checkpoints with gzip and write them directly to cold tape archive without maintaining any copies on NVMe or parallel file systems.
Order the sequence of steps executed during a tiered asynchronous checkpointing operation: (1) Background daemons asynchronously transfer the local checkpoint shards from NVMe to the shared parallel file system, (2) The training orchestrator initiates a synchronized step barrier across all worker ranks, (3) Each rank snapshots its model weights and optimizer state shard into a local pinned DRAM buffer, (4) The training barrier releases and accelerators immediately resume forward-backward computation for the next step, (5) Each node flushes its pinned memory snapshot to local NVMe at full drive bandwidth.
Retrieval Infrastructure: Vector Indexes
The storage hierarchy so far has optimized the training fuel line: large shards, sequential reads, and checkpoint bursts. Retrieval-augmented inference adds a storage workload that belongs in the same chapter because it reverses the access pattern again. A retrieval system first converts documents into vectors that represent semantic meaning, then serves an inference request by finding nearby vectors and returning their source documents as context. Instead of streaming sequential blobs via formats like TFRecord or Parquet, the storage system now traverses high-dimensional vector graphs.
Systems Perspective 1.4: The IOPS bottleneck in high-dimensional search
This architectural pattern shifts the primary storage bottleneck from Sequential Read Bandwidth to Random-Access IOPS. Vector databases must traverse high-dimensional graph indexes to find approximate nearest neighbors across billions of embeddings. The performance is governed by a strict physical constraint: the Recall vs. Latency vs. Capacity trade-off. Maximizing recall requires traversing a larger portion of the index, driving up IOPS and latency. The index is large because each embedded document chunk occupies substantial storage: a 1,536-dimension embedding in FP32 (4 bytes per value) consumes approximately 6.1 KB per vector, so a billion-document corpus requires roughly 6.1 TB of raw vector storage before the graph adjacency lists that enable fast navigation. If those adjacency lists add 50 to 100 bytes per node, they add roughly 50 GB to 100 GB, making raw vectors plus minimal graph metadata about 6.2 TB at the high end for a billion-entry corpus. Full production indexes can be larger once identifiers, graph levels, allocator overhead, deleted-entry slack, and replication are included, but those are implementation overheads rather than the raw vector-plus-adjacency footprint. At that scale, the index no longer fits in DRAM, which is the design pressure that motivates disk-backed alternatives. In-memory hierarchical navigable small world graph indexes make the same graph-navigation idea fast when the index fits in DRAM (Malkov and Yashunin 2020), while hybrid search combines vector similarity with lexical or metadata filters and therefore stresses both random vector traversal and document fetches. Disk-backed graph indexes such as DiskANN show how billion-scale search can trade DRAM footprint against SSD-backed graph traversal while targeting high recall and low query latency (Subramanya et al. 2019).
Subramanya, Suhas Jayaram, Fnu Devvrit, Harsha Vardhan Simhadri, Ravishankar Krishnawamy, and Rohan Kadekodi. 2019. “DiskANN: Fast Accurate Billion-Point Nearest Neighbor Search on a Single Node.” Advances in Neural Information Processing Systems (NeurIPS) 32.
Malkov, Yury A., and Dmitry A. Yashunin. 2020. “Efficient and Robust Approximate Nearest Neighbor Search Using Hierarchical Navigable Small World Graphs.” IEEE Transactions on Pattern Analysis and Machine Intelligence 42 (4): 824–36. https://doi.org/10.1109/TPAMI.2018.2889473.
This makes retrieval infrastructure a useful counterexample to the training fuel line. The same hierarchy still applies, but the objective changes: training storage hides sequential bandwidth behind prefetching, whereas vector search spends storage budget on the index levels that keep random graph traversal inside the serving latency service-level objective. A disk-backed index is economical only if the extra SSD traversals do not erase the quality gain from searching a larger corpus. The retrieval workload thus reuses the same physical hierarchy while inverting the objective, which closes the access-pattern contrast that the fuel line opened.
Self-Check: Question
How does the storage performance bottleneck for a vector retrieval index (such as serving billion-scale nearest-neighbor embeddings) contrast with the primary bottleneck of an ML training data loader?
- Vector retrieval is bottlenecked by sequential streaming bandwidth (GB/s), whereas training data loaders are bottlenecked by random \(4\text{ KB}\) read IOPS.
- Vector retrieval requires continuous multi-terabyte burst writes, whereas training data loaders perform purely read-only operations.
- Vector retrieval is strictly compute-bound on matrix multiplication units and generates zero storage device interaction.
- Vector retrieval traverses high-dimensional graph structures requiring high random-access IOPS and low point-lookup latency, whereas training data loaders require sustained high-bandwidth sequential streaming.
True or False: In approximate nearest neighbor (ANN) vector search, increasing target recall from \(90\%\) to \(99\%\) requires exploring more nodes in the graph index, which increases the number of random storage IOPS and elevates query latency.
A billion-entry vector index of 1536-dimensional FP32 embeddings consumes roughly \(6.1\text{ TB}\) of raw vector data plus graph adjacency overhead. Explain why systems migrate from pure in-memory indexes (HNSW) to disk-backed graph indexes (DiskANN), and identify the primary hardware trade-off involved.
The Synthetic Fuel Line
The storage architecture changes again when the fleet exhausts its supply of human-authored training data, because synthesized data must carry its own provenance. As high-quality human-generated text becomes harder to expand, the fleet encounters the Data Wall: the point where additional training samples must increasingly come from synthesis, simulation, curation, or expensive human collection (Villalobos et al. 2022). This shift from simple collection to managed data generation sends more than payload bytes through the hierarchy. A “synthetic fuel line” must also store the Provenance Chain of every sample: which model generated it, which filters accepted or rejected it, which judge or verifier models scored it, and which downstream run consumed it. Without that lineage, the system risks Model Collapse, where a model degrades by training on its own unverified errors (Shumailov et al. 2024).
Villalobos, Pablo, Anson Ho, Jaime Sevilla, Tamay Besiroglu, Lennart Heim, and Marius Hobbhahn. 2022. “Will We Run Out of Data? Limits of LLM Scaling Based on Human-Generated Data.” arXiv Preprint arXiv:2211.04325.
Shumailov, Ilia, Zakhar Shumaylov, Yiren Zhao, Nicolas Papernot, Ross Anderson, and Yarin Gal. 2024. “AI Models Collapse When Trained on Recursively Generated Data.” Nature 631 (8022): 755–59. https://doi.org/10.1038/s41586-024-07566-y.
Napkin Math 1.9: The synthetic tax
Problem: Calculate the storage amplification of a 1 TB synthetic dataset that requires cryptographic lineage and multi-model verification.
- Raw Payload: 1 TB.
- Provenance Overhead: 40 percent extra for lineage hashes, generation logs, and reward-model scores.
- Verification Factor: To avoid “self-poisoning,” each sample is verified by 3 independent “judge” models.
- Result: Total footprint = 1 TB \(\times\) 1.4 \(\times\) 3 = 4.2 TB.
Systems insight: Synthetic data is verified data, and verification has a 4.2× storage tax. In the Machine Learning Fleet, storage moves from being a simple bit-bucket to a provenance engine. A system that cannot store the why and who behind a synthetic token risks poisoning the future of the fleet with its own past mistakes.
The synthetic fuel line closes the chapter’s storage arc by making lineage part of the payload. Large-scale training, checkpointing, retrieval, and synthetic-data generation stress different tiers, but each failure mode comes from the same mistake: treating storage as passive capacity instead of an active system that controls throughput, reproducibility, and model quality.
Self-Check: Question
A team generates a \(1\text{ TB}\) synthetic text dataset. Storing full cryptographic lineage (generation logs, prompts, reward scores) adds \(40\%\) metadata overhead (\(1.4\text{ TB}\) total), and ensuring data quality requires independent scoring by 3 verifier judge models. What is the total storage footprint resulting from this ‘synthetic tax’?
- Roughly \(4.2\text{ TB}\) (\(1\text{ TB} \times 1.4 \times 3\)), demonstrating that verified synthetic data amplifies physical storage requirements by over \(4\times\) compared to raw human text.
- Exactly \(1.0\text{ TB}\), because verifier models run entirely in GPU registers without generating persistent storage artifacts.
- Roughly \(0.4\text{ TB}\), because synthetic data compresses more efficiently than natural language text.
- Roughly \(14\text{ TB}\), because every verifier model stores a full \(350\text{ GB}\) copy of its internal neural activations for every sample.
Explain why synthetic training data pipelines must treat storage as an active ‘provenance engine’ by recording the generating model, filters, and verifier scores for every token, rather than storing plain text files.
The degenerative failure mode where a machine learning model progressively degrades in quality and loses distributional diversity by recursively training on unverified synthetic data produced by earlier models is called model ____.
Fallacies and Pitfalls
Storage design errors are among the most expensive mistakes in ML infrastructure because they are discovered late, when training begins, and remediation requires either expensive hardware upgrades or time-consuming data reformatting. The following fallacies and pitfalls capture the most common errors that experienced storage engineers make when first encountering ML workloads.
Fallacy: NVMe is fast enough to feed GPUs directly without pipelining.
A single NVMe drive delivers 7 GB/s, while an H100 consumes 3.35 TB/s from HBM. The gap is roughly 478.6×. Even four drives in RAID-0 only close this gap to about 120\(\times\) before overhead. Without pipelining and prefetching to hide the latency of loading from NVMe to host DRAM to HBM, every batch transfer introduces a stall equal to the transfer time. NVMe speed is necessary but nowhere near sufficient; the entire pipeline architecture (multi-worker loading, prefetch buffers, async transfers) exists precisely because no single storage device can match accelerator bandwidth. The confusion arises because NVMe bandwidth is quoted in absolute terms (GB/s), which sounds impressive, but the relevant metric is the ratio of storage bandwidth to accelerator consumption rate, and this ratio is unfavorable by two to three orders of magnitude.
Pitfall: Relying on prefetching to hide object storage latency.
Prefetching hides average latency, not tail latency. Object storage P99 latency can spike to several hundred milliseconds during congestion or cross-region failover. A prefetch buffer of depth \(Q_{\text{prefetch}}\) absorbs variance up to \(Q_{\text{prefetch}} \times T_{\text{compute}}\) milliseconds. If a tail-latency spike exceeds this window, the buffer drains and the accelerator stalls. For training jobs that run for weeks, even rare P99.9 spikes occur frequently enough (thousands of times per day at scale) to measurably reduce utilization. The mitigation is not to assume prefetching solves all problems, but to provision buffer depth based on measured tail latency and to stage data on local NVMe where possible.
Fallacy: Millions of small training files are harmless at scale.
Storing each training sample as an individual file (one JPEG per image, one JSON per text sample) is natural for data collection but catastrophic for training at scale. Each file requires metadata operations (open(), stat(), close()) that serialize on the metadata server. At 10,000 concurrent workers, metadata operations become the bottleneck long before data bandwidth saturates. The solution is to aggregate samples into large sequential shards (TFRecord, WebDataset tar, Parquet) during preprocessing. This reduces metadata operations by 10,000 to 100,000\(\times\) and transforms random access patterns into sequential streaming.
Pitfall: Ignoring egress costs when designing the storage architecture.
Cloud egress costs are invisible during development but can dominate at scale. Under a representative $0.09/GB cross-boundary egress fee, a training job that reads a 100 TB dataset from object storage 10 times incurs $90,000 in egress fees, far exceeding the annual storage cost of $24,000 under the object-storage price assumption in section 1.2.6. These fees apply when reads cross a region, provider, or internet boundary; same-region reads may be free or discounted, which is exactly why the cost stays hidden until a cross-region or multi-cloud topology makes it unavoidable. Teams that prototype with small datasets on object storage and then scale up discover that their storage architecture is economically unsustainable. The fix is to budget egress costs explicitly and to design the data pipeline to minimize cross-tier transfers, typically by staging data on local NVMe at job start rather than streaming from object storage each epoch.
Fallacy: Average write bandwidth is enough for checkpoint design.
Checkpoints are written by all nodes simultaneously, creating bursts that can exceed steady-state bandwidth by 10\(\times\) or more. A parallel file system sized for average write load will bottleneck during checkpoint storms, extending \(T_{\text{write}}\) and reducing the effective training throughput. The parallel file system must be provisioned for peak burst bandwidth, not average, even though the burst capacity sits idle most of the time.
Pitfall: Assuming faster accelerators automatically improve training throughput.
When an organization upgrades from A100 to H100 GPUs, they expect training time to decrease proportionally to the compute improvement. If the storage pipeline was already marginal on A100s, delivering data just fast enough to avoid stalls, the faster H100 compute simply hits the I/O wall sooner. The accelerator upgrade reduces \(T_{\text{compute}}\) without reducing \(T_{\text{I/O}}\), which means the data stall ratio increases. Every accelerator upgrade must be accompanied by a storage pipeline audit to ensure that the faster compute does not simply expose a previously hidden storage bottleneck.
Fallacy: RAID configurations optimized for databases are suitable for ML training.
Database-oriented RAID configurations like RAID 5 or RAID 6 prioritize redundancy over raw bandwidth, incurring a 15–25 percent write performance penalty due to parity calculations. This overhead is unnecessary for ML workloads where training data is immutable and already backed up in durable object storage. For local NVMe caches feeding accelerators, the correct choice is RAID 0 (striping), which maximizes sequential read throughput by combining the bandwidth of all drives without parity overhead. The data on local NVMe is a cache, not a source of truth; losing it to a drive failure costs a re-staging operation, not data loss.
Pitfall: Creating full copies for each dataset snapshot.
Naive dataset versioning is financially and operationally unsustainable at scale. For a 10 TB dataset, creating a full copy for each version quickly exhausts storage budgets and slows experimentation cycles. A 5 percent change between versions stores 9.5 TB of redundant data. The correct approach uses content-addressable storage or delta encoding, where only changed samples are stored. This reduces the storage cost of a new version from 10 TB to roughly 500 GB, a 20\(\times\) reduction. Tools like DVC and lakeFS implement this pattern, tracking dataset lineage without duplicating unchanged content.
Fallacy: Compression always helps because it reduces the amount of data to read.
This is only true if the pipeline is I/O-bound. Compression reduces I/O volume but increases CPU load due to decompression. For a CPU-bound pipeline where complex data augmentation already saturates the host processor, adding decompression work makes the bottleneck worse, not better, leading to a net decrease in throughput to the accelerator. The correct approach is to profile the pipeline first: if the host CPU is the bottleneck, use uncompressed or lightly compressed formats (LZ4); if storage or network I/O is the bottleneck, use aggressive compression (zstd, gzip). The optimal compression level is a property of the pipeline’s bottleneck, not a universal constant.
Pitfall: Choosing a compression format before profiling the pipeline bottleneck.
Teams often standardize on one compression format for operational simplicity, then apply it to every dataset regardless of access pattern. That shortcut hides the real question: whether the job is paying more for bytes moved or cycles spent decoding them. A storage pipeline should choose compression after measuring CPU utilization, storage bandwidth, network bandwidth, and accelerator idle time on representative batches; otherwise the format becomes another fixed assumption that moves the bottleneck rather than reducing it. These fallacies all return to the same accounting exercise: where each byte lives, how often it moves, and which tier pays the cost.
Self-Check: Question
An engineering team configuring local NVMe storage on compute nodes selects RAID 5 to protect against drive failures during training. Why is this choice a fallacy for ML training workloads?
- RAID 5 cannot be formatted with modern Linux filesystems such as ext4 or XFS.
- RAID 5 disables hardware DMA transfers, preventing the GPU from accessing host DRAM.
- Local NVMe serves as a warm read cache whose source of truth is already durably protected in object storage, so RAID 5 wastes \(15\text{ to } 25\%\) write throughput and capacity on redundant parity calculations.
- RAID 5 increases drive endurance wear by \(10\times\) compared to single-drive configurations.
A training team upgrades its cluster from A100 to H100 GPUs, expecting a \(3\times\) end-to-end training speedup. However, wall-clock epoch time barely improves, and GPU utilization drops from \(85\%\) to \(35\%\). Diagnose the system bottleneck and explain why upgrading compute caused this regression.
A team applies aggressive zstd level 9 compression (\(4:1\) ratio, decompression throughput \(\approx 0.5\text{ GB/s}\) per core) to training shards on local NVMe. While storage space decreases, training step time increases significantly. What caused this performance regression?
- Compressed shards cannot be read by NVMe controllers because flash drives require raw uncompressed binary blocks.
- The pipeline was already CPU-bound on data decoding and augmentation, so adding heavy decompression work saturated the host CPU, starving the GPU of assembled batches.
- Zstd level 9 introduces non-deterministic bit flips that cause stochastic gradient descent to diverge.
- The parallel file system rejects compressed shards larger than 1 GB due to POSIX file locking constraints.
True or False: Sizing a data loader’s prefetch buffer depth based on average storage read latency ensures that training runs will not experience data stalls during multi-week training jobs on shared object storage.
A team creates full \(10\text{ TB}\) copies of a pretraining dataset for every snapshot version, creating 20 versions over six months (\(200\text{ TB}\) total storage). Explain how content-addressable storage or delta encoding optimizes this workflow when successive versions differ by only \(5\%\).
Summary
Storage in ML systems is not a passive repository; it is an active, multi-tiered pipeline whose sole purpose is to keep accelerator HBM populated with data. The hierarchy spanning HBM, host DRAM, local NVMe, parallel file systems, object storage, and cold archive exists because no single technology can simultaneously deliver the bandwidth, capacity, and cost profile that large-scale training demands. Roughly three orders of magnitude in aggregate bandwidth separate HBM from cold archive, and each intermediate tier serves as a staging buffer that absorbs the mismatch between the rate at which accelerators consume data and the rate at which persistent storage can supply it. The data pipeline throughput equation, \(\text{BW}_{\text{required}} = N_{\text{GPU}} \times \eta_{\text{target}} \times D_{\text{vol,batch}} / T_{\text{iteration}}\), provides the quantitative foundation for sizing every tier: miss the required bandwidth at any level and expensive accelerators idle; over-provision and capital is wasted on storage capacity that sits underutilized.
What makes ML storage particularly challenging is that these workloads invert nearly every assumption baked into decades of storage system design. Databases optimize for random IOPS, cacheable working sets, and continuous small writes. ML training demands sequential streaming throughput over datasets that dwarf all cache levels, punctuated by massive checkpoint bursts that saturate bandwidth for seconds before returning to silence. The metadata overhead of small files, harmless in traditional workloads, becomes the dominant bottleneck when millions of individual samples must be opened, inspected with stat calls, and closed per epoch. Aggregating samples into large shards, choosing sequential streaming formats like WebDataset or TFRecord, and designing prefetch pipelines sized for P99 tail latency rather than average latency are all direct engineering responses to these inverted access patterns. GPUDirect Storage pushes this optimization further by taking the CPU out of the payload path, freeing host cores for the augmentation work that the training pipeline also requires; the CPU still submits and coordinates the I/O.
The economics of the hierarchy are equally consequential. The orders-of-magnitude cost difference between HBM and archive storage mandates a tiering strategy, but the true cost of data delivery extends well beyond per-gigabyte storage prices. Egress fees for moving data out of object storage, IOPS charges for metadata-heavy access patterns, and the opportunity cost of idle accelerators waiting on slow checkpoints all factor into the total cost of ownership. Checkpoint staging, where models write first to fast local NVMe and replicate asynchronously to shared storage, exemplifies how careful pipeline design can decouple training pause time from the performance limitations of the underlying file system.
Engineers who internalize the storage hierarchy gain a systematic diagnostic framework for training performance. When a cluster reports low accelerator utilization, the instinct is often to suspect the compute configuration or the model itself. In practice, the root cause is frequently buried in the data path: a data loader reading individual files instead of shards, a prefetch buffer sized for average latency rather than tail latency, a checkpoint strategy that blocks training while writing to a slow parallel file system, or a NUMA-unaware memory allocation that halves effective DRAM bandwidth. Diagnosing these failures requires understanding which tier is the bottleneck and why, a question that the pipeline equation and the storage hierarchy framework make answerable.
This diagnostic perspective connects directly to how a training job is split across the fleet, because the splitting strategy dictates the demand patterns placed on storage. Data-parallel layouts replicate the model on every node, creating uniform read patterns but massive checkpoint redundancy as every node saves the same parameters. Pipeline-style layouts create sequential dependencies between stages, where a data loading stall in an early stage cascades down the pipeline and starves downstream work. Expert-style layouts create nonuniform access patterns where different accelerator groups require different subsets of the data at any given time. Each strategy imposes a unique storage signature, which is why storage cannot be designed independently from the computation it feeds.
Key Takeaways: Feed the accelerators or waste them
- HBM is the destination: Every lower tier exists to keep GPU HBM populated (principle 7). The roughly 30\(\times\) aggregate bandwidth gap between HBM and object storage (and the much larger per-client gap once a single instance pulls from a shared object endpoint) drives every design decision in the ML storage hierarchy.
- ML workloads invert storage assumptions: Traditional caching, IOPS optimization, and small-write durability patterns all produce the wrong answer for ML training. Throughput (GB/s) matters more than IOPS, and small files make metadata the first bottleneck; aggregated shards reduce metadata operations by orders of magnitude (principle 6).
- The pipeline equation governs design: Required bandwidth scales linearly with GPU count and inversely with iteration time. Use \(\text{BW}_{\text{required}} = N_{\text{GPU}} \times \eta_{\text{target}} \times D_{\text{vol,batch}} / T_{\text{iteration}}\) to size every tier.
- Pipelining hides average latency, not tail latency: Prefetch buffers must be sized for P99 I/O latency, not average, to prevent accelerator stalls at scale. Buffer depth of \(\lceil T_{\text{I/O,p99}} / T_{\text{compute}} \rceil\) is the minimum.
- GPUDirect Storage eliminates CPU bottlenecks: GDS bypasses the CPU in the data path, reducing per-transfer latency by 4× and freeing CPU cores for augmentation.
- Checkpoint staging minimizes \(T_{\text{write}}\): Write to local NVMe first, then replicate asynchronously to shared storage. This decouples checkpoint pause time from parallel file system performance.
- Economics drive tiering: The 5× cost difference between local NVMe and object storage (and the >3,000\(\times\) span from HBM to archive) mandates a tiering strategy (principle 7). Egress fees often exceed storage fees; design for total cost of data delivery, not storage cost alone.
Every other chapter in this volume optimizes something the accelerators do. This one optimizes what reaches them. The whole storage hierarchy exists to keep the most expensive resource in the building from going idle, and that reframes where performance can be won. When data delivery is the binding constraint, a cluster can sit at half utilization with every accelerator healthy. The system is then only as fast as the tier that feeds it.
What’s Next: From storage to splitting
Infrastructure is complete. Modern clusters combine accelerators that compute at petaFLOP/s (Compute Infrastructure), fabrics that move gradients at TB/s (Network Fabrics), and a storage hierarchy that feeds them data. The next challenge is not a hardware problem but an algorithmic one: partitioning a single training job across these thousands of resources. Distributed Training explores the parallelism strategies (data, tensor, pipeline, and expert parallelism) that split computation across the fleet.
Self-Check: Question
A 2,048-GPU training cluster reports \(40\%\) GPU hardware utilization. Telemetry reveals: (1) GPUs spend \(45\%\) of iteration time waiting for data tensors, (2) Storage data disks on the parallel file system report less than \(5\%\) bandwidth utilization, (3) Data loader host CPU cores report \(100\%\) utilization, and (4) The dataset is stored as 50 million individual JPEG files. What is the primary root cause and the most effective remediation?
- The parallel file system network fabric is saturated; upgrade InfiniBand links between compute nodes and storage servers.
- GPU HBM capacity is exhausted; apply aggressive 4-bit activation quantization to free GPU memory.
- NVMe drive endurance limits have triggered write throttling; replace compute node local SSDs.
- The workload is suffering from both metadata server saturation (individual small files) and CPU-bound decoding; repackage the dataset into large WebDataset tar shards and offload JPEG decompression to GPU decoders.
Synthesize how the ML storage hierarchy (spanning HBM, DRAM, NVMe, PFS, Object Storage, and Archive) co-designs bandwidth physics with capacity economics to prevent accelerator starvation.
Explain how different distributed training parallelism strategies (data parallelism, pipeline parallelism, and expert parallelism) place distinct demand signatures on the storage and checkpointing infrastructure.
Self-Check Answers
Self-Check: Answer
A storage procurement team is sizing storage hardware for a cluster dedicated to pretraining foundation models on a \(200\text{ TB}\) immutable text corpus. Which purchasing decision represents the most severe misallocation of budget based on ML workload characteristics?
- Paying a premium for enterprise SSDs optimized for high \(4\text{ KB}\) random-read IOPS while under-provisioning sustained sequential read bandwidth (GB/s).
- Aggregating raw text samples into \(256\text{ MB}\) to \(4\text{ GB}\) contiguous binary shards prior to training to amortize file-system metadata operations.
- Provisioning local NVMe drives on compute nodes to serve as a warm read cache for multi-epoch training passes.
- Sizing the parallel file system write tier to absorb synchronized multi-terabyte checkpoint write bursts from hundreds of nodes.
Answer: The correct answer is A. Paying a premium for enterprise SSDs optimized for high \(4\text{ KB}\) random-read IOPS while under-provisioning sustained sequential read bandwidth (GB/s). ML pretraining streams large contiguous batches sequentially, where a drive delivers \(7\text{-}14\text{ GB/s}\), whereas \(4\text{ KB}\) random reads drop throughput to \(\approx 0.5\text{ GB/s}\); optimizing for random IOPS buys capabilities the workload never utilizes while starving the pipeline of raw gigabytes-per-second throughput. Shard aggregation is the standard mitigation against metadata serialization, local NVMe caching prevents repeated network egress, and sizing for checkpoint bursts directly addresses the bursty write inversion.
Learning Objective: Evaluate storage procurement decisions against the sequential-streaming and bursty-write inversions of ML workloads
True or False: An in-memory LRU cache sized to \(300\text{ GB}\) placed in front of a \(3\text{ TB}\) uniformly shuffled pretraining dataset will achieve roughly a \(90\%\) hit rate after the first epoch warms the cache because all samples are reused across epochs.
Answer: False. LRU caching relies on temporal locality, where recently accessed items are likely to be accessed again soon. In full-dataset pretraining, every sample is read exactly once per epoch in a shuffled sequence; by the time a sample is revisited in epoch 2, the remaining \(2.7\text{ TB}\) of data has streamed through the cache, completely evicting earlier contents. The steady-state hit rate for a cyclic scan larger than cache capacity approaches \(0\%\), making standard LRU caching ineffective without staging the full working set or restructuring access patterns.
Learning Objective: Analyze why temporal-locality caching strategies such as LRU fail on uniformly streamed ML pretraining datasets
Explain why ML data loaders implement shard-level shuffling combined with within-shard buffer mixing rather than true global per-sample random shuffling across petabyte-scale training corpora.
Answer: True global random shuffling requires issuing non-sequential per-sample seeks across the entire petabyte-scale corpus, which collapses storage performance to the drive’s random-read IOPS rate (causing a \(10\times\) to \(30\times\) throughput drop on NVMe and \(100\times\) on HDD). Shard-level shuffling combined with in-memory buffer mixing preserves high-bandwidth sequential streaming at the physical storage device by reading large (\(256\text{ MB}\) to \(4\text{ GB}\)) contiguous blocks, while still providing sufficient sample-level randomness within each local buffer to satisfy stochastic gradient descent convergence requirements.
Learning Objective: Justify shard-level shuffling as an optimal systems compromise between convergence randomness and storage sequential throughput
When an inference platform deploys a new version of a 175B-parameter model (\(350\text{ GB}\) FP16 weights) across 100 serving replicas, how does the storage access profile contrast with a training checkpoint save?
- It generates continuous small random writes to update parameter journals on each replica node.
- It streams an incremental delta of only modified parameters over hours to minimize bandwidth utilization.
- It creates a synchronized fan-out read burst of roughly \(35\text{ TB}\) (\(100 \times 350\text{ GB}\)) that must complete within the deployment latency budget while serving traffic continues.
- It requires sustained multi-gigabyte-per-second sequential write bandwidth to central durable object storage.
Answer: The correct answer is C. It creates a synchronized fan-out read burst of roughly \(35\text{ TB}\) (\(100 \times 350\text{ GB}\)) that must complete within the deployment latency budget while serving traffic continues. A model rollout is the architectural mirror image of a checkpoint storm: instead of many nodes simultaneously writing state to storage (fan-in burst), many replica nodes simultaneously read the same large model weights from storage (fan-out burst). The small-random-writes option describes OLTP database journaling. The delta-streaming option assumes parameter-level differential rollouts that production serving frameworks avoid in favor of immutable weight images. The central-write option confuses read distribution to serving nodes with training checkpoint writes.
Learning Objective: Classify model rollout storage traffic as a synchronized fan-out read burst and quantify its cluster-wide volume
Order the sequence of performance degradation steps that occurs when a training cluster attempts to load a dataset stored as 200 million individual small JPEG files from a parallel file system: (1) Storage data disks and network links sit largely idle despite abundant rated bandwidth, (2) Thousands of concurrent workers execute open(), stat(), and close() system calls for every 10 KB sample, (3) The training loop stalls and GPU utilization collapses while waiting for batch collation, (4) Dedicated metadata servers (MDS) become saturated by hundreds of thousands of lock acquisitions and attribute lookups per second, (5) Data loader worker threads block on serialized file descriptor operations.
Answer: The correct order is: (2) Thousands of concurrent workers execute open(), stat(), and close() system calls for every 10 KB sample, (4) Dedicated metadata servers (MDS) become saturated by hundreds of thousands of lock acquisitions and attribute lookups per second, (5) Data loader worker threads block on serialized file descriptor operations, (1) Storage data disks and network links sit largely idle despite abundant rated bandwidth, (3) The training loop stalls and GPU utilization collapses while waiting for batch collation. The pathology begins when workers flood the namespace with per-file POSIX calls (2), overwhelming the metadata servers (4), which causes data loader worker threads to block waiting for metadata responses (5); because threads are blocked on metadata, payload requests never reach data disks (1), leaving GPUs starved for training batches (3).
Learning Objective: Analyze the causal failure cascade of the small-file metadata bottleneck in parallel file systems
Self-Check: Answer
Order the six tiers of the ML storage hierarchy from closest physical proximity and highest bandwidth to lowest bandwidth and greatest distance from the accelerator: (1) Local NVMe SSD, (2) Object Storage, (3) Host DRAM, (4) GPU HBM, (5) Parallel File System, (6) Archive / Cold Storage.
Answer: The correct order is: (4) GPU HBM, (3) Host DRAM, (1) Local NVMe SSD, (5) Parallel File System, (2) Object Storage, (6) Archive / Cold Storage. GPU HBM (Tier 0) sits on the silicon interposer delivering terabytes per second at sub-microsecond latency. Host DRAM (Tier 1) connects across PCIe/NVLink at hundreds of gigabytes per second. Local NVMe (Tier 2) sits on compute nodes delivering tens of gigabytes per second. Parallel File Systems (Tier 3) aggregate bandwidth across a dedicated cluster fabric at gigabytes per second per node. Object Storage (Tier 4) spans cloud/datacenter pools delivering high capacity with tens of milliseconds of latency. Archive Storage (Tier 5) holds cold data at lowest cost with minutes-to-hours retrieval latency.
Learning Objective: Classify the six tiers of the ML storage hierarchy by physical proximity, bandwidth, and latency
Host DRAM (Tier 1) executes a four-stage data loader pipeline: Read, Decode, Augment, and Collate. Why must the final collated batch be placed in page-locked (‘pinned’) host memory before transfer to GPU HBM?
- Pinned memory automatically compresses tensors using host CPU vector units before PCIe transmission.
- Pinned memory locks physical pages in host RAM so the PCIe DMA controller can copy data directly to GPU memory without an intermediate kernel buffer copy.
- Pinned memory replicates the batch across all NUMA nodes to ensure uniform memory access for parallel data loader threads.
- Pinned memory guarantees transactional ACID durability on host storage in case the worker process crashes during transfer.
Answer: The correct answer is B. Pinned memory locks physical pages in host RAM so the PCIe DMA controller can copy data directly to GPU memory without an intermediate kernel buffer copy. Standard virtual memory pages can be paged out or relocated by the operating system, forcing the GPU driver to copy data into an intermediate pinned staging buffer before initiating DMA; allocating pinned memory directly (
pin_memory=Truein PyTorch) eliminates this extra CPU memory copy and allows direct DMA across PCIe. The compression option is incorrect as pinned memory is an OS page-locking mechanism, not a compression algorithm. The NUMA replication claim is false because pinning binds pages to specific physical addresses in a specific NUMA node rather than replicating them. The ACID durability option confuses volatile host DRAM staging with persistent transaction logging.Learning Objective: Explain the architectural function of pinned host memory in accelerating CPU-to-GPU DMA data transfers
A vision training cluster migrating to a high-performance parallel file system (PFS) with \(500\text{ GB/s}\) rated aggregate bandwidth reports that throughput during ImageNet training is capped at under \(5\text{ GB/s}\), with storage data disks showing negligible I/O activity. What is the root cause and the correct architectural fix?
- The network fabric is dropping packets due to congestion; enable flow control on top-of-rack switches.
- The parallel file system is bottlenecked on drive endurance wear-leveling; replace SSDs with high-DWPD enterprise drives.
- The dataset is stored as millions of individual image files, saturating the Metadata Server (MDS) with per-file POSIX lookups; repackage images into large sequential shards (such as WebDataset tar archives).
- The GPUs are compute-bound and cannot consume data faster; decrease the batch size to increase I/O request frequency.
Answer: The correct answer is C. The dataset is stored as millions of individual image files, saturating the Metadata Server (MDS) with per-file POSIX lookups; repackage images into large sequential shards (such as WebDataset tar archives). The signature of near-idle data disks combined with collapsed aggregate throughput is the classic small-file problem: opening, stating, and closing millions of individual files serializes on the MDS lock and namespace managers long before data path bandwidth is utilized. Packing thousands of images into large (\(256\text{ MB}\) to \(4\text{ GB}\)) sequential shards amortizes each metadata operation across thousands of samples. The network congestion and drive endurance options misdiagnose a software/format metadata bottleneck as a hardware degradation issue. The compute-bound batch size claim contradicts the premise of underutilized storage delivery.
Learning Objective: Analyze parallel file system metadata saturation from telemetry signatures and prescribe shard-aggregation remediation
A training node uses four local NVMe drives configured in RAID-0 as a warm cache for \(25\text{ TB}\) of pre-shuffled training shards. Explain why RAID-0 is an appropriate engineering trade-off for this specific tier, and identify what workload change would make RAID-0 catastrophic.
Answer: RAID-0 maximizes sequential read and write throughput (aggregating bandwidth to roughly \(28\text{ GB/s}\)) with zero storage capacity overhead for parity calculations, which is completely safe because local NVMe is a warm cache holding immutable training data whose durable source of truth resides in object storage or a parallel file system; if a drive fails, the node simply re-stages its assigned shards. This configuration becomes catastrophic if the same RAID-0 array is used as the sole storage location for un-checkpointed model weights, in-flight gradients, or ephemeral training logs, because a single drive failure would permanently destroy non-reproducible training progress.
Learning Objective: Justify RAID-0 storage configurations for warm cache tiers and identify failure boundaries where lack of redundancy causes unrecoverable data loss
A multi-modal training job combines \(3\text{ TB}\) of text, \(50\text{ TB}\) of images, and \(200\text{ TB}\) of video. The infrastructure team provisions storage bandwidth based exclusively on the video modality because video represents over \(75\%\) of total dataset capacity. What failure does this provisioning strategy cause?
- The storage hierarchy will under-provision host DRAM and data-loader CPU decode bandwidth because text and image streams run concurrently and generate additive per-iteration bandwidth and transformation demands.
- The video stream will starve the parallel file system because image and text files use incompatible POSIX stripe sizes.
- The model will fail to converge because object storage cannot maintain ACID consistency when serving multiple modalities simultaneously.
- The training job will exhaust GPU HBM because video tensors automatically overwrite text embeddings during collation.
Answer: The correct answer is A. The storage hierarchy will under-provision host DRAM and data-loader CPU decode bandwidth because text and image streams run concurrently and generate additive per-iteration bandwidth and transformation demands. Multimodal training runs parallel ingestion pipelines for each modality; while video dominates static storage capacity, images and text impose distinct, additive demands on host DRAM prefetch buffers, CPU decoding threads, and network throughput that cannot be subsumed within the video pipeline’s envelope. Sizing only for video neglects the high sample-rate decoding demands of images and text. The POSIX stripe-incompatibility option is incorrect because stripe sizes are configured per directory or file. The ACID consistency claim is irrelevant since object stores serve immutable read shards. The HBM overwriting claim describes a nonexistent memory management bug.
Learning Objective: Apply the additive-demand rule to multi-modal storage provisioning across concurrent data streams
In a parallel file system architecture like Lustre, namespace management (file creation, directory paths, locks) is handled by a dedicated ____, while raw data blocks are striped across multiple Object Storage Servers (OSS).
Answer: The correct term is Metadata Server (or MDS). The separation of the Metadata Server (MDS) from Object Storage Servers (OSS) allows data bandwidth to scale linearly with the number of OSS nodes, though the MDS can become a bottleneck if datasets contain millions of small individual files.
Learning Objective: Explain the architectural role of the Metadata Server (MDS) in parallel file systems
Self-Check: Answer
The data pipeline throughput equation is \(\text{BW}_{\text{required}} = N_{\text{GPU}} \times \eta_{\text{target}} \times \frac{D_{\text{vol,batch}}}{T_{\text{iteration}}}\). If a cluster doubles its active GPU count from 1,024 to 2,048 while keeping per-GPU batch size, iteration time, and target utilization constant, how does the required aggregate storage bandwidth scale?
- It remains constant because data-parallel workers divide the fixed total dataset into smaller partitions.
- It quadruples (\(4\times\)) because collective communication overhead scales quadratically with worker count.
- It decreases by \(50\%\) because each node requires fewer samples per epoch.
- It doubles (\(2\times\)) because aggregate byte consumption scales strictly linearly with the number of accelerators independently executing forward-backward iterations.
Answer: The correct answer is D. It doubles (\(2\times\)) because aggregate byte consumption scales strictly linearly with the number of accelerators independently executing forward-backward iterations. In the pipeline throughput equation, each data-parallel accelerator requires an independent batch \(D_{\text{vol,batch}}\) every step \(T_{\text{iteration}}\), so doubling \(N_{\text{GPU}}\) exactly doubles the total bytes per second that the storage system must deliver to the fleet. The constant-bandwidth option confuses dataset size with per-iteration ingestion rate. The quadratic scaling option confuses inter-GPU all-reduce communication with storage data loader ingestion. The halving option misinterprets worker count scaling.
Learning Objective: Apply the pipeline throughput equation to predict aggregate storage bandwidth requirements as cluster compute scales
A training iteration has a GPU compute time of \(T_{\text{compute}} = 200\text{ ms}\) and an average I/O fetch time of \(T_{\text{I/O}} = 250\text{ ms}\) per batch. Explain why enabling double-buffering (pipelining batch \(i+1\) during batch \(i\) compute) reduces but cannot eliminate the data stall, and quantify the remaining stall time per step.
Answer: Pipelining overlaps I/O with compute such that step time becomes \(T_{\text{step}} = \max(T_{\text{compute}}, T_{\text{I/O}}) = T_{\text{compute}} + \max(0, T_{\text{I/O}} - T_{\text{compute}})\). Because \(T_{\text{I/O}} (250\text{ ms}) > T_{\text{compute}} (200\text{ ms})\), the pipeline remains fundamentally I/O-bound: when the GPU completes its 200 ms forward-backward pass, the next batch is still 50 ms away from completing its transfer. Pipelining reduces step time from sequential execution (\(200 + 250 = 450\text{ ms}\)) to \(250\text{ ms}\), but an exposed stall of \(50\text{ ms}\) (a \(20\%\) stall ratio, calculated as \((250 - 200) / 250 \times 100\)) persists until storage bandwidth is increased or I/O volume is reduced.
Learning Objective: Calculate the exposed data stall time when I/O fetch duration exceeds accelerator computation time under pipelining
A data loader pipeline has an accelerator compute window of \(T_{\text{compute}} = 200\text{ ms}\) per batch. The storage tier exhibits median I/O latency of \(180\text{ ms}\) but experiences P99 tail-latency spikes of \(500\text{ ms}\) due to network jitter. What is the minimum recommended prefetch buffer depth (\(Q_{\text{prefetch}}\)) required to prevent accelerator stalls at scale?
- At least 3 batches (\(Q_{\text{prefetch}} = \lceil 500 / 200 \rceil = 3\)) plus a safety margin, because sizing to median latency (\(180\text{ ms}\)) guarantees the buffer drains during tail-latency events occurring hundreds of times daily.
- Exactly 1 batch, because median I/O latency (\(180\text{ ms}\)) is strictly less than compute time (\(200\text{ ms}\)).
- Zero batches, because multi-worker asynchronous threading eliminates the need for host-memory queue buffering.
- At least 10 batches, because queue depth must equal the total number of CPU worker threads allocated to the data loader.
Answer: The correct answer is A. At least 3 batches (\(Q_{\text{prefetch}} = \lceil 500 / 200 \rceil = 3\)) plus a safety margin, because sizing to median latency (\(180\text{ ms}\)) guarantees the buffer drains during tail-latency events occurring hundreds of times daily. The prefetch depth rule \(Q_{\text{prefetch,min}} = \lceil T_{\text{I/O,p99}} / T_{\text{compute}} \rceil\) dictates that the queue must hold enough preloaded batches to sustain compute during a P99 outlier (\(500\text{ ms} / 200\text{ ms} = 2.5 \to 3\)). Sizing against the median (the 1-batch option) causes the queue to empty whenever a tail spike occurs, stalling the accelerator. Multi-worker threading (the zero-batch option) supplies throughput but does not eliminate latency variance. Setting queue depth strictly to thread count (the 10-batch option) ignores the mathematical ratio between I/O tail latency and compute duration.
Learning Objective: Calculate minimum prefetch buffer depth from P99 I/O latency and iteration compute duration
True or False: If a cluster monitoring dashboard indicates that average storage read bandwidth matches the aggregate throughput predicted by the pipeline equation, storage performance issues can be conclusively ruled out as the cause of low GPU utilization.
Answer: False. Average bandwidth metrics mask transient tail-latency spikes, worker-side lock contention, metadata serialization, and prefetch buffer underruns. Even if aggregate gigabytes-per-second over a 10-minute window matches the theoretical target, microsecond-level and millisecond-level I/O jitter can cause individual GPUs to stall repeatedly at step boundaries, driving down utilization. Diagnostics must evaluate per-step wait-for-data distributions (P95/P99 stall times) rather than aggregate bandwidth averages alone.
Learning Objective: Evaluate why average bandwidth metrics fail to rule out storage bottlenecks without fine-grained tail-latency and stall-ratio profiling
Explain how locality-aware scheduling reduces cluster startup latency and relieves bandwidth pressure on the shared parallel file system when a node fails during a 1,024-GPU training run.
Answer: When a node fails, a naive scheduler places the replacement task on an arbitrary idle node, requiring it to re-stage tens of gigabytes of training shards from the shared parallel file system (taking minutes and competing with active workers for shared bandwidth). A locality-aware scheduler tracks which nodes already have the required data shards cached on their local NVMe drives from previous runs or peer replicas, scheduling the restart where data already resides; this eliminates re-staging latency, resumes training immediately, and prevents recovery storms from degrading shared-tier bandwidth across the fleet.
Learning Objective: Analyze how locality-aware scheduling optimizes node recovery times and mitigates shared storage contention at fleet scale
Order the four stages of the host DRAM data loading pipeline in their execution sequence: (1) Decode compressed sample representations (e.g., decompressing JPEG images or zstd text shards), (2) Collate individual processed samples into a contiguous batch in pinned host memory, (3) Read compressed binary chunks from persistent storage into host read buffers, (4) Apply data augmentations and feature transformations (e.g., cropping, flipping, token masking).
Answer: The correct order is: (3) Read compressed binary chunks from persistent storage into host read buffers, (1) Decode compressed sample representations (e.g., decompressing JPEG images or zstd text shards), (4) Apply data augmentations and feature transformations (e.g., cropping, flipping, token masking), (2) Collate individual processed samples into a contiguous batch in pinned host memory. The pipeline first reads compressed bytes from NVMe or network storage into DRAM (3), unpacks/decompresses the raw samples via CPU decode threads (1), executes stochastic transformations and augmentations on CPU cores (4), and finally packages individual tensors into a collated batch in page-locked pinned memory ready for PCIe DMA transfer to the accelerator (2).
Learning Objective: Analyze the operational stages of the host DRAM data loader pipeline from storage read to pinned-memory collation
Self-Check: Answer
Which statement precisely describes the architectural data-path modification introduced by GPUDirect Storage (GDS)?
- GDS caches the entire training corpus in GPU HBM to eliminate all storage I/O operations during training epochs.
- GDS compresses training tensors directly inside the NVMe flash controller using hardware acceleration.
- GDS routes network packets through host DRAM bounce buffers to perform real-time data integrity checksumming.
- GDS establishes a direct DMA transfer path between NVMe storage (local or NVMe-oF) and GPU memory, eliminating the CPU-mediated bounce buffer in host DRAM while retaining CPU control-plane coordination.
Answer: The correct answer is D. GDS establishes a direct DMA transfer path between NVMe storage (local or NVMe-oF) and GPU memory, eliminating the CPU-mediated bounce buffer in host DRAM while retaining CPU control-plane coordination. In the traditional path, data is copied from NVMe to a kernel buffer, copied via CPU memcpy to user space, and then transferred to the GPU via PCIe DMA; GDS uses the cuFile API and
nvidia-fsto program direct peer-to-peer DMA between the NVMe controller and GPU HBM, skipping host DRAM payload copies while the CPU continues to issue and manage I/O control requests. The HBM caching option is physically impossible given dataset-to-HBM capacity ratios. The flash compression claim mischaracterizes GDS as in-storage compute. The bounce-buffer routing option describes the exact traditional bottleneck GDS was designed to eliminate.Learning Objective: Explain the architectural data-path modification introduced by GPUDirect Storage compared to traditional CPU-mediated I/O
A computer vision training pipeline uses complex CPU-based JPEG decompression and multi-step data augmentations (color jitter, affine warping). Explain why adopting GPUDirect Storage (GDS) without moving decompression to the GPU yields minimal end-to-end throughput improvement.
Answer: GDS optimizes the payload data transfer path by enabling direct DMA from storage to GPU memory, eliminating host DRAM bounce copies. However, if the data is stored in compressed formats (like JPEG) that must be decoded and transformed by host CPU cores, the raw bytes must still pass through CPU registers and host memory for decompression before tensor assembly; bypassing host DRAM with GDS is only beneficial if the data is already in GPU-consumable format (uncompressed/tokenized tensors) or if decoding and augmentation are offloaded to GPU hardware decoders (such as NVIDIA DALI).
Learning Objective: Analyze the technical preconditions and workload characteristics required for GPUDirect Storage to deliver throughput gains
True or False: Enabling GPUDirect Storage (GDS) eliminates the physical round-trip network latency and P99 tail-latency spikes associated with fetching shards directly from remote cloud object storage endpoints.
Answer: False. GDS optimizes the local or RDMA-attached PCIe/NVMe-over-Fabrics data transfer path by eliminating CPU-mediated bounce-buffer copies. It has no effect on the underlying physical network latency, cross-datacenter transit times, or multi-tenant congestion inherent in remote cloud object storage services like Amazon S3 or Google Cloud Storage, which still require tiered prefetch buffering or local caching.
Learning Objective: Evaluate the architectural boundaries of GPUDirect Storage and distinguish local DMA acceleration from remote network latency
In a high-throughput vision training node with 8 GPUs processing a combined 64,000 images per second, traditional CPU-mediated I/O requires \(120\ \mu\text{s}\) of CPU time per image (consuming \(\approx 7.68\) CPU seconds per wall-clock second, or \(\approx 8\) dedicated CPU cores). GDS reduces CPU overhead to \(30\ \mu\text{s}\) per image (\(1.92\) CPU seconds per second, or \(\approx 2\) cores). What is the primary systems benefit of this ‘CPU bypass dividend’?
- It enables the cluster to eliminate all local NVMe SSDs in favor of remote tape archives.
- It frees approximately 6 CPU cores per node that can be reallocated to computationally intensive data augmentation and pipeline orchestration without adding hardware.
- It reduces GPU power consumption by \(75\%\) during tensor matrix multiplication.
- It doubles the physical PCIe bus bandwidth between the CPU socket and the GPU accelerators.
Answer: The correct answer is B. It frees approximately 6 CPU cores per node that can be reallocated to computationally intensive data augmentation and pipeline orchestration without adding hardware. By offloading raw memory-copy and interrupt-handling work to hardware DMA engines, GDS reduces per-transfer CPU overhead by \(75\%\) (from \(120\ \mu\text{s}\) to \(30\ \mu\text{s}\)), freeing CPU cores to perform complex data augmentations that improve model convergence without throttling the input pipeline. The tape archive option is absurd for active training feeds. The GPU power reduction claim is false because GDS changes storage transfer overhead, not GPU arithmetic energy. The PCIe bus bandwidth claim confuses hardware physical link capacity with software transfer efficiency.
Learning Objective: Calculate the CPU core savings delivered by GPUDirect Storage and evaluate its impact on host preprocessing capacity
Order the sequence of operations that occurs in the traditional (non-GDS) storage I/O path when an accelerator requests a batch from local NVMe: (1) The data loader process issues a POSIX read() system call traversing the VFS and filesystem drivers, (2) The NVMe controller initiates a DMA transfer of raw blocks into an OS kernel buffer in host DRAM, (3) The host CPU executes a memcpy to copy payload bytes from kernel space to user-space pinned memory, (4) The CPU initiates a cudaMemcpyAsync to trigger a PCIe DMA transfer from host DRAM to GPU HBM, (5) The accelerator launches compute kernels on the newly arrived tensor resident in HBM.
Answer: The correct order is: (1) The data loader process issues a POSIX read() system call traversing the VFS and filesystem drivers, (2) The NVMe controller initiates a DMA transfer of raw blocks into an OS kernel buffer in host DRAM, (3) The host CPU executes a memcpy to copy payload bytes from kernel space to user-space pinned memory, (4) The CPU initiates a cudaMemcpyAsync to trigger a PCIe DMA transfer from host DRAM to GPU HBM, (5) The accelerator launches compute kernels on the newly arrived tensor resident in HBM. The traditional path begins with a file-system read call (1), stages data into an OS kernel buffer via storage DMA (2), requires a CPU-mediated memory copy into user space (3), executes a second DMA transfer over PCIe to GPU memory (4), and finally enables GPU computation (5).
Learning Objective: Analyze the multi-hop data movement and CPU mediation steps in the traditional storage I/O path
Self-Check: Answer
A team trains a vision model on a \(50\text{ TB}\) dataset stored in cloud object storage (\(\$0.023/\text{GB-month}\)) for 20 epochs across 4 training runs per year. Reading from object storage across a network boundary incurs a \(\$0.09/\text{GB}\) data egress fee. Staging the dataset onto local NVMe caches costs \(\$0.10/\text{GB-month}\). What does the economic analysis reveal about streaming vs. staging?
- Streaming directly from object storage every epoch is cheaper because local NVMe drives add unnecessary provisioned storage overhead.
- Egress fees are negligible compared to monthly storage costs, making tier selection purely a matter of operational convenience.
- Staging data once to local NVMe per run saves roughly \(\$282,000\) per year compared to streaming from object storage every epoch, breaking even after just 5 epochs per run.
- The team should migrate the dataset to cold tape archive to eliminate both egress fees and provisioned storage costs.
Answer: The correct answer is C. Staging data once to local NVMe per run saves roughly \(\$282,000\) per year compared to streaming from object storage every epoch, breaking even after just 5 epochs per run. Streaming \(50\text{ TB}\) across 20 epochs costs \(\$90,000\) in egress per run (\(\$360,000/\text{year}\) for 4 runs) plus \(\$13,800/\text{year}\) in object storage. Staging once per run incurs only \(\$18,000/\text{year}\) in egress plus \(\$60,000/\text{year}\) for local NVMe and \(\$13,800/\text{year}\) in object storage (total \(\$91,800/\text{year}\)), yielding \(\$282,000\) in net annual savings. The break-even point occurs at roughly 4.3 epochs per run. The streaming-is-cheaper option ignores the massive compounding cost of repeated multi-epoch egress. The egress-is-negligible claim inverts reality: egress charges dominate monthly capacity pricing. The tape archive suggestion is unviable for active multi-run training feeds.
Learning Objective: Calculate the break-even point and cost savings of local NVMe data staging versus repeated cloud object storage streaming
In a 1,000-GPU cluster where compute time is billed at \(\$2.00\) per GPU-hour, an undersized storage system introduces a \(20\%\) data stall ratio (reducing GPU utilization from \(90\%\) to \(70\%\)). Calculate the daily cost of this lost compute capacity and explain why investing in high-performance storage is economically rational.
Answer: A 1,000-GPU cluster costs \(\$48,000\) per day (\(1{,}000 \times \$2.00 \times 24\text{ hrs}\)). A \(20\%\) utilization drop represents \(\$9,600\) per day (\(1{,}000 \times \$2.00 \times 24 \times 0.20\)) in wasted compute expenditure, totaling \(\$288,000\) over a 30-day training run. Investing in local NVMe drives or a high-throughput parallel file system to eliminate the \(20\%\) stall pays for itself within weeks by recovering hundreds of thousands of dollars of previously wasted accelerator compute capacity.
Learning Objective: Justify storage infrastructure capital investments by quantifying the opportunity cost of storage-induced accelerator idle time
An enterprise evaluates building an on-premises 1 PB parallel file system (\(\$3\text{M to } \$5\text{M}\) capex plus \(\$500\text{k/year}\) opex) versus storing the 1 PB corpus in cloud object storage (\(\$240\text{k/year}\) storage) and paying \(\$0.09/\text{GB}\) egress fees for 10 full-dataset reads per year (\(\$900\text{k/year}\) egress). What is the realistic financial payback horizon for building the on-premises system under these parameters?
- Between 4.7 and 7.8 years, because net annual cloud delivery savings (\(\$640\text{k/year}\)) require multiple years to amortize the multi-million dollar initial hardware expenditure.
- Less than 6 months, because cloud egress fees make any on-premises storage investment instantly profitable.
- Exactly 20 years, because on-premises operational overhead exceeds all cloud storage and egress fees combined.
- There is no payback horizon because cloud object storage is perpetually free for research and training workloads.
Answer: The correct answer is A. Between 4.7 and 7.8 years, because net annual cloud delivery savings (\(\$640\text{k/year}\)) require multiple years to amortize the multi-million dollar initial hardware expenditure. Cloud delivery costs \(\$1.14\text{M/year}\) (\(\$240\text{k}\) storage + \(\$900\text{k}\) egress). Subtracting on-premises annual operations (\(\$500\text{k}\)) leaves net annual savings of \(\$640\text{k/year}\). Dividing the \(\$3\text{M}\) to \(\$5\text{M}\) capex by \(\$640\text{k}\) gives a break-even range of roughly 4.7 to 7.8 years. The 6-month claim is overly optimistic and ignores fixed facility, power, and operational overheads. The 20-year claim fails to account for the \(\$900\text{k}\) annual egress cost in the cloud model. The perpetually free claim is factually false.
Learning Objective: Evaluate build-versus-buy trade-offs for large-scale storage infrastructure using capital expenditure, operational costs, and data egress fees
In cloud-based ML infrastructure, the recurring fee charged by providers per gigabyte of data transferred out of an object storage bucket across region or internet boundaries is called an ____ fee.
Answer: The correct term is egress (or data egress). Egress fees scale with the volume of data read rather than the volume stored, often exceeding monthly storage capacity costs for multi-epoch deep learning workloads.
Learning Objective: Explain the concept of data egress fees charged when reading datasets across cloud network boundaries
Compare the three primary data staging patterns (prestaging, on-demand staging, and pure streaming) in terms of job startup latency and network bandwidth consumption during multi-epoch training.
Answer: Prestaging copies the entire dataset to local NVMe before training starts; it incurs the highest job startup delay (minutes to hours) but eliminates network bandwidth consumption and latency variance during training. On-demand staging copies individual shards to local NVMe upon their first access; it eliminates initial startup delay, pays network transfer costs during epoch 1, and serves subsequent epochs with zero network traffic. Pure streaming reads shards from remote storage on every epoch; it has zero startup delay and requires no local NVMe capacity, but consumes high network bandwidth continuously and remains vulnerable to network tail-latency stalls across all epochs.
Learning Objective: Compare the trade-offs of prestaging, on-demand staging, and pure streaming data delivery patterns
Self-Check: Answer
A 256-node cluster saves a 175B-parameter model checkpoint (\(1.75\text{ TB}\) total: \(350\text{ GB}\) weights, \(1.4\text{ TB}\) Adam optimizer state) every 10 minutes. Under tiered staging, each node writes its \(6.84\text{ GB}\) ZeRO-3 shard to local NVMe (\(28\text{ GB/s}\) local array) in \(\approx 0.25\text{ s}\), followed by an asynchronous background copy to a \(1\text{ TB/s}\) parallel file system taking \(\approx 1.75\text{ s}\). What is the exposed training pause time (\(T_{\text{write}}\)) per checkpoint?
- Roughly \(2.0\text{ s}\), because training must remain paused until both the local write and the durable PFS copy complete.
- Roughly \(0.25\text{ s}\), because the training barrier releases immediately after the fast local NVMe write completes, while the PFS replication proceeds asynchronously in the background.
- Zero seconds, because modern storage drivers execute zero-copy writes without interrupting GPU tensor execution.
- Roughly \(1.75\text{ s}\), because parallel file system latency determines the minimum barrier synchronization time across nodes.
Answer: The correct answer is B. Roughly \(0.25\text{ s}\), because the training barrier releases immediately after the fast local NVMe write completes, while the PFS replication proceeds asynchronously in the background. Tiered checkpoint staging explicitly decouples training pause time (\(T_{\text{write}}\)) from durable shared-storage write time: the synchronous blocking phase is only the time required to flush the shard to high-bandwidth local NVMe (\(6.84\text{ GB} / 28\text{ GB/s} \approx 0.244\text{ s}\)), representing less than \(0.05\%\) overhead on a 10-minute interval. The 2.0-second and 1.75-second options incorrectly assume the training loop must block on the slower shared-tier network transfer. The zero-second option is unrealistic because taking a consistent point-in-time state snapshot requires at least a brief memory barrier.
Learning Objective: Explain how tiered checkpoint staging minimizes the exposed training pause time by decoupling local NVMe writes from asynchronous durable replication
True or False: In distributed ML infrastructure, storage reliability is defined primarily as a write-completion property: once all nodes successfully execute and acknowledge their checkpoint write calls, the checkpoint can be guaranteed reliable for cluster recovery.
Answer: False. Storage reliability is a restore property, not a write property. A checkpoint is only reliable if the infrastructure continuously and automatically validates that saved shards can be located, reconstructed, schema-validated, and restored under realistic preemption and recovery conditions; unvalidated backups frequently fail during real incidents due to silent corruption, missing metadata, or software version mismatches.
Learning Objective: Evaluate the difference between write-completion acknowledgments and end-to-end restore validation in checkpoint reliability
A cluster of 1,000 GPUs trains a 70B-parameter model (\(140\text{ GB}\) FP16 weights, \(140\text{ GB}\) gradients, \(840\text{ GB}\) optimizer state = \(1.12\text{ TB}\) per replica state). Contrast the write volume and pause time of naive full-replica checkpointing against ZeRO-3 sharded checkpointing across a \(100\text{ GB/s}\) shared storage fabric.
Answer: Naive full-replica checkpointing has all 1,000 replicas write their complete state simultaneously, generating a massive checkpoint storm of \(1.12\text{ PB}\) (\(1{,}000 \times 1.12\text{ TB}\)) that takes roughly \(11{,}200\text{ s}\) (over 3 hours) to write across a \(100\text{ GB/s}\) fabric, completely stalling training. ZeRO-3 sharded checkpointing partitions the optimizer, gradient, and weight states across the 1,000 workers such that each rank writes only its \(1/1000\) slice, collapsing total cluster write volume to \(1.12\text{ TB}\) total and reducing shared fabric write time to roughly \(11.2\text{ s}\).
Learning Objective: Analyze how ZeRO-3 state sharding reduces cluster checkpoint write volume and eliminates multi-hour checkpoint storm stalls
A 30-day training run of a 175B model generates 4,320 full checkpoints totaling roughly \(7.56\text{ PB}\) of state data. Which retention policy balances rapid failure recovery, long-term auditability, and storage cost without exhausting the parallel file system budget?
- Retain all 4,320 checkpoints on the parallel file system to provide granular step-by-step rollback capabilities throughout the entire 30-day run.
- Delete all intermediate checkpoints immediately after each step and rely exclusively on live memory replication across peer nodes for fault tolerance.
- Retain the 3 most recent checkpoints on the parallel file system for fast local recovery, copy every 100th checkpoint to cloud object storage for long-term lineage, and purge older intermediate snapshots.
- Compress all checkpoints with gzip and write them directly to cold tape archive without maintaining any copies on NVMe or parallel file systems.
Answer: The correct answer is C. Retain the 3 most recent checkpoints on the parallel file system for fast local recovery, copy every 100th checkpoint to cloud object storage for long-term lineage, and purge older intermediate snapshots. Keeping only 3 recent checkpoints on the parallel file system bounds active high-performance storage to \(\approx 5.25\text{ TB}\) (\(3 \times 1.75\text{ TB}\)), providing instant recovery from common hardware preemption, while archiving every 100th checkpoint (\(pprox 43\) snapshots) to cheaper object storage preserves historical lineage for post-training validation at minimal cost. Retaining all 7.56 PB on PFS wastes hundreds of thousands of dollars on high-cost storage. Deleting all checkpoints leaves the run vulnerable to multi-node failures. Tape-only checkpointing imposes prohibitive multi-hour retrieval delays during recovery.
Learning Objective: Design a tiered checkpoint retention policy that balances rapid crash recovery against long-term storage capacity costs
Order the sequence of steps executed during a tiered asynchronous checkpointing operation: (1) Background daemons asynchronously transfer the local checkpoint shards from NVMe to the shared parallel file system, (2) The training orchestrator initiates a synchronized step barrier across all worker ranks, (3) Each rank snapshots its model weights and optimizer state shard into a local pinned DRAM buffer, (4) The training barrier releases and accelerators immediately resume forward-backward computation for the next step, (5) Each node flushes its pinned memory snapshot to local NVMe at full drive bandwidth.
Answer: The correct order is: (2) The training orchestrator initiates a synchronized step barrier across all worker ranks, (3) Each rank snapshots its model weights and optimizer state shard into a local pinned DRAM buffer, (5) Each node flushes its pinned memory snapshot to local NVMe at full drive bandwidth, (4) The training barrier releases and accelerators immediately resume forward-backward computation for the next step, (1) Background daemons asynchronously transfer the local checkpoint shards from NVMe to the shared parallel file system. The process begins with a coordinated barrier (2), creates a fast in-memory snapshot (3), writes the shard to local NVMe (5), releases the compute barrier to resume training (4), and asynchronously replicates the shard to shared storage in the background (1).
Learning Objective: Analyze the multi-stage execution workflow of tiered asynchronous checkpointing
Self-Check: Answer
How does the storage performance bottleneck for a vector retrieval index (such as serving billion-scale nearest-neighbor embeddings) contrast with the primary bottleneck of an ML training data loader?
- Vector retrieval is bottlenecked by sequential streaming bandwidth (GB/s), whereas training data loaders are bottlenecked by random \(4\text{ KB}\) read IOPS.
- Vector retrieval requires continuous multi-terabyte burst writes, whereas training data loaders perform purely read-only operations.
- Vector retrieval is strictly compute-bound on matrix multiplication units and generates zero storage device interaction.
- Vector retrieval traverses high-dimensional graph structures requiring high random-access IOPS and low point-lookup latency, whereas training data loaders require sustained high-bandwidth sequential streaming.
Answer: The correct answer is D. Vector retrieval traverses high-dimensional graph structures requiring high random-access IOPS and low point-lookup latency, whereas training data loaders require sustained high-bandwidth sequential streaming. Retrieval-augmented generation inverts the training access pattern: instead of streaming large contiguous shards sequentially, vector search algorithms (like HNSW or DiskANN) navigate sparse high-dimensional graph adjacency lists, issuing thousands of small, non-sequential pointer lookups where latency and random IOPS govern query response time. The sequential-streaming option inverts the two workloads. The burst-write claim confuses retrieval query serving with training checkpointing. The zero-storage claim ignores that billion-scale vector indexes span terabytes of storage.
Learning Objective: Compare the storage performance bottlenecks of vector retrieval graph traversal against training data streaming
True or False: In approximate nearest neighbor (ANN) vector search, increasing target recall from \(90\%\) to \(99\%\) requires exploring more nodes in the graph index, which increases the number of random storage IOPS and elevates query latency.
Answer: True. Approximate nearest neighbor algorithms face a strict physical trade-off between recall, latency, and capacity. Achieving higher recall requires expanding the search beam (evaluating more candidate nodes and traversing deeper graph levels), which directly increases the number of vector distance computations and random disk/DRAM reads per query, increasing tail latency.
Learning Objective: Analyze the fundamental recall-latency-IOPS trade-off governing high-dimensional vector search infrastructure
A billion-entry vector index of 1536-dimensional FP32 embeddings consumes roughly \(6.1\text{ TB}\) of raw vector data plus graph adjacency overhead. Explain why systems migrate from pure in-memory indexes (HNSW) to disk-backed graph indexes (DiskANN), and identify the primary hardware trade-off involved.
Answer: At billion-vector scale, a full in-memory HNSW index (including graph adjacency lists and memory allocator overhead) requires \(8\text{ to } 10\text{ TB}\) of host DRAM, which is cost-prohibitive and requires large multi-node sharding. Disk-backed graph architectures like DiskANN compress vectors into compact in-DRAM representations (such as product quantization) to guide initial graph traversal while storing full-precision vectors and graph links on fast local NVMe SSDs; this trades a minor increase in query latency (incurred by issuing a few random NVMe reads per search) for an order-of-magnitude reduction in expensive DRAM capacity.
Learning Objective: Compare in-memory (HNSW) and disk-backed (DiskANN) vector indexing architectures in terms of capacity cost and query latency trade-offs
Self-Check: Answer
A team generates a \(1\text{ TB}\) synthetic text dataset. Storing full cryptographic lineage (generation logs, prompts, reward scores) adds \(40\%\) metadata overhead (\(1.4\text{ TB}\) total), and ensuring data quality requires independent scoring by 3 verifier judge models. What is the total storage footprint resulting from this ‘synthetic tax’?
- Roughly \(4.2\text{ TB}\) (\(1\text{ TB} \times 1.4 \times 3\)), demonstrating that verified synthetic data amplifies physical storage requirements by over \(4\times\) compared to raw human text.
- Exactly \(1.0\text{ TB}\), because verifier models run entirely in GPU registers without generating persistent storage artifacts.
- Roughly \(0.4\text{ TB}\), because synthetic data compresses more efficiently than natural language text.
- Roughly \(14\text{ TB}\), because every verifier model stores a full \(350\text{ GB}\) copy of its internal neural activations for every sample.
Answer: The correct answer is A. Roughly \(4.2\text{ TB}\) (\(1\text{ TB} \times 1.4 \times 3\)), demonstrating that verified synthetic data amplifies physical storage requirements by over \(4\times\) compared to raw human text. Synthetic data pipelines require storing not just the raw text payload, but the complete provenance record (\(+40\% \to 1.4\text{ TB}\)) multiplied across the multiple independent verification passes (\(1.4\text{ TB} \times 3 = 4.2\text{ TB}\)) required to filter low-quality tokens. The 1.0-TB option ignores provenance metadata and verifier logs. The 0.4-TB compression claim is factually false. The 14-TB activation option invents unnecessary persistent storage of transient backward activations.
Learning Objective: Calculate the storage amplification factor (‘synthetic tax’) introduced by provenance metadata and multi-judge verification passes
Explain why synthetic training data pipelines must treat storage as an active ‘provenance engine’ by recording the generating model, filters, and verifier scores for every token, rather than storing plain text files.
Answer: If synthetic data is stored as unverified plain text without lineage, future models risk recursively training on uncurated, erroneous synthetic outputs produced by prior generations, triggering ‘model collapse’ where model diversity and output quality progressively degrade. Storing an immutable provenance chain (generating model ID, prompt template, rejection filters, and verifier reward scores) ensures that data can be audited, filtered, re-weighted, or purged when a generator or judge model is found to possess systematic errors or biases.
Learning Objective: Justify why synthetic data storage systems must maintain immutable cryptographic provenance to prevent recursive model collapse
The degenerative failure mode where a machine learning model progressively degrades in quality and loses distributional diversity by recursively training on unverified synthetic data produced by earlier models is called model ____.
Answer: The correct term is collapse (or model collapse). Model collapse occurs when recursive training on unverified model-generated artifacts causes probability distributions to narrow and output quality to degrade, which robust storage architectures prevent by tracking sample provenance and verifier lineage.
Learning Objective: Explain the mechanism of model collapse caused by recursive training on uncurated synthetic data
Self-Check: Answer
An engineering team configuring local NVMe storage on compute nodes selects RAID 5 to protect against drive failures during training. Why is this choice a fallacy for ML training workloads?
- RAID 5 cannot be formatted with modern Linux filesystems such as ext4 or XFS.
- RAID 5 disables hardware DMA transfers, preventing the GPU from accessing host DRAM.
- Local NVMe serves as a warm read cache whose source of truth is already durably protected in object storage, so RAID 5 wastes \(15\text{ to } 25\%\) write throughput and capacity on redundant parity calculations.
- RAID 5 increases drive endurance wear by \(10\times\) compared to single-drive configurations.
Answer: The correct answer is C. Local NVMe serves as a warm read cache whose source of truth is already durably protected in object storage, so RAID 5 wastes \(15\text{ to } 25\%\) write throughput and capacity on redundant parity calculations. In ML training, local NVMe is an ephemeral cache holding immutable training shards and transient checkpoint buffers; if an NVMe drive fails, the node can re-stage its shards from durable object storage or a parallel file system. Using RAID 0 (striping) maximizes sequential read throughput (\(28\text{ GB/s}\) across 4 drives) with zero parity overhead, which is the optimal systems trade-off when lower tiers own durability. The filesystem and DMA disablement claims are false. The wear claim is exaggerated.
Learning Objective: Evaluate why database RAID parity configurations are counterproductive for ephemeral ML cache tiers compared to RAID-0 striping
A training team upgrades its cluster from A100 to H100 GPUs, expecting a \(3\times\) end-to-end training speedup. However, wall-clock epoch time barely improves, and GPU utilization drops from \(85\%\) to \(35\%\). Diagnose the system bottleneck and explain why upgrading compute caused this regression.
Answer: The training pipeline was previously operating near the threshold of the I/O wall on A100 GPUs. Upgrading to H100s reduced computation time per batch (\(T_{\text{compute}}\)) by \(\approx 3\times\) without increasing storage delivery bandwidth (\(T_{\text{I/O}}\)); because \(T_{\text{I/O}}\) now significantly exceeds \(T_{\text{compute}}\), the workload shifted from being compute-dominated to severely I/O-bound. The GPUs finish their forward-backward passes rapidly and sit idle waiting for the next batch, driving up the data stall ratio and collapsing hardware utilization.
Learning Objective: Analyze training throughput regressions following accelerator compute upgrades using the I/O wall framework
A team applies aggressive zstd level 9 compression (\(4:1\) ratio, decompression throughput \(\approx 0.5\text{ GB/s}\) per core) to training shards on local NVMe. While storage space decreases, training step time increases significantly. What caused this performance regression?
- Compressed shards cannot be read by NVMe controllers because flash drives require raw uncompressed binary blocks.
- The pipeline was already CPU-bound on data decoding and augmentation, so adding heavy decompression work saturated the host CPU, starving the GPU of assembled batches.
- Zstd level 9 introduces non-deterministic bit flips that cause stochastic gradient descent to diverge.
- The parallel file system rejects compressed shards larger than 1 GB due to POSIX file locking constraints.
Answer: The correct answer is B. The pipeline was already CPU-bound on data decoding and augmentation, so adding heavy decompression work saturated the host CPU, starving the GPU of assembled batches. Compression involves an explicit trade-off between storage I/O bandwidth and CPU cycles; if a pipeline is already bottlenecked on host CPU processing (such as image augmentation), aggressive compression exacerbates the CPU bottleneck by dedicating CPU cores to slow decompression (\(0.5\text{ GB/s/core}\) vs \(1.5\text{ GB/s/core}\) for zstd level 1), reducing overall batch delivery rate to the GPU. The flash controller, non-deterministic bit flip, and POSIX lock claims are completely false.
Learning Objective: Analyze the CPU-versus-I/O trade-offs of data compression and identify when decompression overhead degrades pipeline throughput
True or False: Sizing a data loader’s prefetch buffer depth based on average storage read latency ensures that training runs will not experience data stalls during multi-week training jobs on shared object storage.
Answer: False. Sizing prefetch depth based on average latency ensures stalls will occur frequently. Shared object storage exhibits significant tail-latency variance where P99 and P99.9 latency spikes reach hundreds of milliseconds due to network congestion, load balancing, or failovers. When a tail spike occurs, a shallow queue sized to the average quickly drains, causing the accelerator to idle. Prefetch depth must be sized to P99 tail latency (\(Q_{\text{prefetch}} = \lceil T_{\text{I/O,p99}} / T_{\text{compute}} \rceil\)) plus a safety margin.
Learning Objective: Evaluate why prefetch queues sized to average latency fail to prevent accelerator stalls under tail-latency variance
A team creates full \(10\text{ TB}\) copies of a pretraining dataset for every snapshot version, creating 20 versions over six months (\(200\text{ TB}\) total storage). Explain how content-addressable storage or delta encoding optimizes this workflow when successive versions differ by only \(5\%\).
Answer: Naive full-copy snapshotting stores \(9.5\text{ TB}\) of redundant unchanged data per version, wasting \(190\text{ TB}\) across 20 versions. Content-addressable storage (like lakeFS or DVC) shards data into immutable blocks addressed by cryptographic hashes; when a new version modifies \(5\%\) of the data, the storage system only writes the \(500\text{ GB}\) of new/modified shards while referencing existing immutable shards for the remaining \(9.5\text{ TB}\). This reduces total storage consumption from \(200\text{ TB}\) to roughly \(19.5\text{ TB}\) (a \(\approx 10\times\) storage savings) and accelerates version creation to near-instantaneous pointer updates.
Learning Objective: Compare naive full-copy dataset versioning against delta-encoded content-addressable snapshotting in terms of storage efficiency
Self-Check: Answer
A 2,048-GPU training cluster reports \(40\%\) GPU hardware utilization. Telemetry reveals: (1) GPUs spend \(45\%\) of iteration time waiting for data tensors, (2) Storage data disks on the parallel file system report less than \(5\%\) bandwidth utilization, (3) Data loader host CPU cores report \(100\%\) utilization, and (4) The dataset is stored as 50 million individual JPEG files. What is the primary root cause and the most effective remediation?
- The parallel file system network fabric is saturated; upgrade InfiniBand links between compute nodes and storage servers.
- GPU HBM capacity is exhausted; apply aggressive 4-bit activation quantization to free GPU memory.
- NVMe drive endurance limits have triggered write throttling; replace compute node local SSDs.
- The workload is suffering from both metadata server saturation (individual small files) and CPU-bound decoding; repackage the dataset into large WebDataset tar shards and offload JPEG decompression to GPU decoders.
Answer: The correct answer is D. The workload is suffering from both metadata server saturation (individual small files) and CPU-bound decoding; repackage the dataset into large WebDataset tar shards and offload JPEG decompression to GPU decoders. The telemetry presents the classic composite data loading bottleneck: 50 million individual files saturate metadata servers while leaving bulk data disks idle, and host CPU cores are completely overwhelmed attempting to open and decode millions of images sequentially, starving GPUs of batch tensors (\(45\%\) wait time). Repackaging samples into large sequential shards eliminates POSIX metadata overhead, and shifting decompression to GPU hardware decoders (or using fast formats) relieves the CPU bottleneck. The InfiniBand upgrade option misidentifies a CPU/metadata bottleneck as a fabric bandwidth shortfall. The quantization and drive endurance options are wholly unrelated to data loader ingestion stalls.
Learning Objective: Evaluate composite storage and host-CPU data loading bottlenecks from multi-tier cluster telemetry and prescribe architectural remediations
Synthesize how the ML storage hierarchy (spanning HBM, DRAM, NVMe, PFS, Object Storage, and Archive) co-designs bandwidth physics with capacity economics to prevent accelerator starvation.
Answer: No single storage technology can simultaneously deliver the terabytes-per-second bandwidth required for arithmetic execution, the petabyte-scale capacity needed for datasets and checkpoint histories, and an affordable financial cost. The hierarchy resolves this tension by placing small amounts of ultra-fast, expensive storage (HBM at \(\$15/\text{GB}\), \(3.35\text{ TB/s}\)) directly adjacent to compute, backed by progressively larger, cheaper, and higher-latency staging tiers (Host DRAM for decoding/augmentation, Local NVMe for warm caching and sub-second checkpoint staging, PFS for cluster-wide shared namespaces, Object Storage for eleven-nines durability, and Archive for compliance). Prefetching pipelines and asynchronous staging bridge the bandwidth cliffs between adjacent tiers, ensuring the accelerator’s HBM is continuously replenished just-in-time.
Learning Objective: Explain how the ML storage hierarchy balances bandwidth physics and capacity economics to sustain high accelerator utilization
Explain how different distributed training parallelism strategies (data parallelism, pipeline parallelism, and expert parallelism) place distinct demand signatures on the storage and checkpointing infrastructure.
Answer: Data parallelism creates uniform, high-throughput streaming reads across all nodes but generates massive write redundancy during checkpoint storms if full replicas are saved rather than sharded states. Pipeline parallelism introduces sequential stage dependencies where a data loading stall in an early stage bubbles down the entire pipeline and starves all downstream accelerators. Expert parallelism (Mixture of Experts) routes tokens dynamically to different expert nodes, generating non-uniform, routing-dependent storage and memory access patterns where localized memory stalls can create stragglers that delay global synchronization barriers.
Learning Objective: Compare the distinct storage ingestion and checkpoint write demand signatures created by data, pipeline, and expert parallelism strategies
