ML Lifecycle

Consider what happens without orchestration. Day one: “Build a diagnostic model for rural clinics.”¹ Day 90: 95 percent accuracy on the test set. Day 120: 96 percent accuracy after a month of architecture tuning. Day 150: model handed to deployment engineers. Day 151: deployment engineers report the model requires 4 GB of memory. Day 152: someone checks the deployment target—tablets in mobile clinics with 512 MB available. Day 153: five months of work is discarded.

¹ Lab-to-Deployment Gap: Beede et al. (2020) documented this empirically for a deep-learning diabetic retinopathy screening system deployed in Thai clinics. Although the system had specialist-level accuracy in earlier validation, 21 percent of images submitted during the first six months failed its image-quality requirements, often because clinic lighting, camera maintenance, or dilation practices did not match the system’s assumptions. Those rejections added work for nurses, forced retakes or referrals, and exposed workflow and infrastructure barriers rather than simply a model-accuracy problem.

The model’s accuracy was excellent. The team’s machine learning skills were excellent. The failure was a workflow failure. A deployment constraint that should have shaped every decision from day one was discovered only after the work was done. The tablet’s memory limit should have propagated backward to the first architecture meeting, constraining which models were even worth considering. Instead, the team optimized each component in isolation (data collection, architecture selection, training), and the integration failure appeared only when the pieces were assembled. This is the default outcome when ML development lacks systematic orchestration.

ML systems are composed of three interacting elements: Data, Algorithm, and Machine. They run under physical constraints that partition deployment into four paradigms: Cloud, Edge, Mobile, and TinyML. The parts and the operating environments are now in place. The missing piece is orchestration: how these components connect into a functioning system.

That failure is what the ML Workflow is designed to prevent: an engineering framework for making constraints explicit at each development stage and tracing how they propagate across Data, Algorithm, and Machine. It marks the shift from model researcher to systems engineer. A researcher optimizes individual elements: a better architecture, a cleaner dataset, a faster accelerator. A systems engineer orchestrates those elements into production systems that reliably deliver value. The day-153 failure was not a data problem, a modeling problem, or a hardware problem in isolation; it was a missing connection among all three. The workflow supplies the mental map that keeps technical decisions attached to the larger system.

The orchestration framework is what we call the machine learning lifecycle—a structured, iterative process² that guides the development, evaluation, and improvement of ML systems (Amershi et al. 2019). The formal definition emphasizes continuous management rather than a one-time release.

² CRISP-DM (Cross-Industry Standard Process for Data Mining): CRISP-DM codified data-intensive system development as six interconnected, iterative phases rather than a linear waterfall (Chapman et al. 2000). Its core design principle (feedback loops between all phases) directly informs the modern ML lifecycle’s structure. Boehm’s software-engineering economics work showed that late fixes can cost orders of magnitude more than early fixes (Boehm 1981); the workflow model later uses a deliberately simpler \(2^{N_{\text{stage}}-1}\) model, where \(N_{\text{stage}}\) is the lifecycle stage index, to show how constraint violations compound across ML workflow stages.

Chapman, Pete, Julian Clinton, Randy Kerber, Thomas Khabaza, Thomas Reinartz, Colin Shearer, and Rudiger Wirth. 2000. “CRISP-DM 1.0: Step-by-Step Data Mining Guide.” SPSS Inc 1: 78.

Here, lifecycle describes the stages themselves and workflow describes the engineering discipline of orchestrating them; the lifecycle is what gets traversed, the workflow is how the traversal is managed. This distinction requires systems thinking: analyzing how a system’s parts interrelate rather than treating them in isolation. The patterns formalized in section 1.9 and illustrated through the detailed case study explain why ML systems require integrated engineering approaches rather than sequential component optimization.

Definition 1.1: Machine learning lifecycle

Machine Learning Lifecycle is the iterative engineering process of building, deploying, monitoring, and retraining ML systems, where each stage feeds information back to earlier stages because model performance degrades continuously after deployment.

1. Significance: The lifecycle is a closed loop, not a linear pipeline. Distribution divergence \(\mathcal{D}(P_t \lVert P_0)\) between current and training traffic is an alert signal that raises the probability of accuracy loss; the exact relationship depends on the model, labels, loss, and deployment distribution. Periodic retraining re-incurs the full \(O/(R_{\text{peak}} \cdot \eta_{\text{hw}})\) compute cost, so drift velocity and validation delay turn lifecycle maintenance into a budgeting problem, not just an engineering process.
2. Distinction: Unlike a traditional software lifecycle, which degrades only when code changes, the ML lifecycle degrades when the world changes. A deployed model’s accuracy erodes through data drift even when the code, infrastructure, and configuration remain untouched.
3. Common pitfall: A frequent misconception is that the lifecycle ends at deployment. In reality, deployment is the beginning of the feedback loop: production monitoring surfaces drift, drift triggers retraining, and retraining produces a new model that re-enters the deployment stage.

Figure 1 traces two parallel pipelines through the complete lifecycle. The data pipeline (green, top row) transforms raw inputs through collection, ingestion, analysis, labeling, validation, and preparation into ML-ready datasets. The model development pipeline (blue, bottom row) takes these datasets through training, evaluation, validation, and deployment to create production systems. The feedback paths are central: deployment returns online performance to data collection, while the curved data-quality loops send data fixes back to collection and data needs back to analysis. These feedback paths create the continuous improvement cycles that distinguish ML from traditional linear development.

Figure 1: Dual-Pipeline ML Development: The data pipeline (green, top) progresses from collection through preparation. The model pipeline (blue, bottom) takes prepared datasets through training and deployment. Feedback arrows show how deployment experience reshapes collection, while data fixes and data needs feed back into earlier data-pipeline stages.

This framework sets up the technical chapters ahead. The data pipeline receives comprehensive treatment in Data Engineering, model training scales up in Model Training, software frameworks enabling iterative development appear in ML Frameworks, and deployment and ongoing operations unfold in ML Operations. The interconnections among these pieces must be understood first, because each technical chapter assumes familiarity with the overall workflow.

The conceptual stages of the ML lifecycle establish the what and why of the development process. The operational layer constitutes the how: the implementation of this lifecycle through automation, tooling, and infrastructure. ML Operations names and develops those practices in detail. This distinction matters: the lifecycle is the conceptual framework; operational infrastructure is the machinery that implements it at scale.

Quantifying the ML lifecycle

Practitioner time allocation makes the lifecycle bottleneck measurable: the stages that consume engineering effort are often not the stages that receive the most attention. Understanding the ML lifecycle conceptually is necessary but insufficient for engineering decisions; quantitative characterization reveals where effort and compute actually go in ML projects, exposing which stages bottleneck development and where optimization investments yield the highest returns.

Reports about where practitioners spend the most time follow a consistent pattern: data work often dominates. In the 2016 CrowdFlower data-science survey, 60 percent of respondents selected cleaning and organizing data as the activity where they spent the most time, while 19 percent selected collecting datasets (CrowdFlower 2016). Together, these two data-centered responses account for 79 percent of the survey’s “most time” responses. That survey reports practitioners’ primary time sink rather than a universal project-level effort budget, but it captures the practical lesson that data preparation can dominate ML engineering effort. Model development and training (the focus of Model Training), despite receiving the most research attention, is only one part of the lifecycle; deployment, integration, and initial monitoring setup add their own engineering burden. This distribution surprises teams accustomed to traditional software where implementation dominates. In ML projects, the “source code” is the data, and preparing that source code is a primary engineering activity. The long tail of figure 2 is as telling as its dominant slice: the model-focused activities (mining patterns, building training sets, refining algorithms) together drew only 16 percent of responses.

CrowdFlower. 2016. Data Science Report 2016.

Figure 2: Data Scientist Most-Time Responses: In CrowdFlower’s 2016 survey, 60 percent of respondents selected cleaning and organizing data as the activity where they spent the most time, with 19 percent selecting data collection. Model-focused responses such as pattern mining, training set construction, and algorithm refinement together represent roughly 16 percent of responses. Source: CrowdFlower, Data Science Report 2016.

Beyond time allocation, iteration cycles characterize successful ML projects. Return to figure 1 and notice the feedback loops driving these iterations: each arrow represents a path that teams traverse repeatedly. Production ML systems usually require repeated iteration across data, model, and infrastructure stages, where each cycle may revisit multiple stages. Understanding what triggers these iterations guides resource allocation. Data quality issues (missing labels, distribution mismatches, preprocessing errors) are often a major source of rework. Architecture and training choices (model capacity, tunable settings such as learning rate and batch size, training instability) and infrastructure issues (latency violations, resource constraints, integration failures) create additional loops that teams must budget for explicitly.

These proportions explain why data engineering capabilities often determine project success more than modeling sophistication. They also explain a structural choice in this book: Part I concludes with Data Engineering precisely because data is where most effort goes, most iterations originate, and most failures begin. Understanding the data pipeline first provides leverage over the single largest source of project risk before the modeling, training, and optimization techniques that follow.

The cost of late discovery follows an exponential pattern³ formalized later as the constraint propagation principle (section 1.9); for now, the practical consequence is what matters. Late-stage constraint discoveries create exponential cost escalation because violations must be corrected across multiple preceding stages. This exponential cost structure motivates explicit stage interface contracts: validating outputs at each stage transition catches violations early, while correction costs remain manageable. Section 1.2.2 formalizes these contracts once the six stages themselves have been introduced.

³ Exponential Cost Escalation: Boehm’s Software Engineering Economics (Boehm 1981) quantified this pattern for traditional software, showing that defects found postdeployment can cost far more to fix than those caught during requirements. ML systems have their own version of this escalation because late-discovered constraints can require retraining, data-pipeline changes, and renewed validation, not just code changes.

Boehm, Barry W. 1981. Software Engineering Economics. Prentice-Hall.

This compounding cost of slow iteration creates what we call the iteration tax. A quick calculation makes the bottleneck concrete.

Slow iteration loses to fast feedback over time.

Napkin Math 1.1: The iteration tax

Problem: A diabetic retinopathy (DR) screening system for rural clinics must choose between a large ensemble trained on high-resolution fundus images (training time: 1 week, accuracy: 95 percent) and a lightweight model suitable for edge deployment on clinic hardware (training time: 1 hour, accuracy: 90 percent). Which approach yields a better screening system in six months?

Math: In six months (~26 weeks), the possible experiment count is:

1. Large model: 26 weeks of calendar time at 1 week per experiment. Each experiment improves accuracy by ~0.15 percentage points (diminishing returns).
2. Small model: 26 weeks of calendar time at 168 h/week gives 4,368 possible experiments at 1 hour each. Even with smaller gains per iteration, the compound effect is substantial.

Result: If each iteration improves accuracy by 0.1 percentage points on average, the small model starts at 90 percent and reaches 100 percent after 100 effective iterations, before applying the 99 percent ceiling. It therefore renders as 99 percent. The large model starts at 95 percent and reaches 98.9 percent after 26 slower iterations. Even assuming we use only a fraction of the theoretical capacity (for example, 100 effective iterations out of thousands possible), the compound effect dominates. In practice, the small model’s rapid iteration enables discovering better architectures, label-preserving data augmentations, and tunable training settings.

Systems insight: Iteration velocity is a feature. A system that allows ten experiments/day will almost always eventually outperform a system that allows one experiment/week, even if the latter starts with a better model. This “iteration tax” explains why startups with fast iteration often outperform larger teams with slower cycles. For our DR screening scenario, the lightweight model’s rapid iteration cycle enables the team to experiment with label-preserving input transformations, preprocessing pipelines, and architecture variations far more quickly, ultimately converging on a more robust screening system despite starting at lower accuracy.

The iteration tax makes a broader point: ML workflows are not slow versions of traditional software lifecycles. They are structurally different, and the differences show up in where time is spent, how feedback loops operate, and how late discoveries compound cost.

ML vs. traditional software

In financial software development, a traditional sequential lifecycle⁴ can specify transaction processing, security protocols, and regulatory compliance as explicit rules (Royce 1970). Those specifications translate directly into system behavior through explicit programming. This deterministic approach contrasts sharply with the probabilistic nature of ML systems described in ML vs. Traditional Software, where outputs are statistical predictions rather than deterministic transformations and where “correct” behavior is defined by distributions rather than specifications. The data-heavy effort, repeated iteration, and escalating late-stage correction costs established earlier therefore have no direct counterpart in traditional software engineering.

⁴ Waterfall Model: Enforces a strict sequential process where system requirements are finalized before implementation begins, a practice inherited from physical manufacturing. This core assumption, that the specification is stable, fails for ML systems where the training data itself is the specification and its properties can only be discovered through empirical iteration. Empirical software-engineering studies report remediation costs that can rise by orders of magnitude when defects are found late; this chapter’s simplified workflow model quantifies the same compounding for ML lifecycle stages.

Royce, Winston W. 1970. “Managing the Development of Large Software Systems.” Proceedings of IEEE WESCON 26: 328–88.

Machine learning systems require a structurally different approach. Consider financial transaction processing: traditional systems follow predetermined rules (if account balance > transaction amount, then allow transaction), while ML-based fraud detection systems learn to recognize suspicious patterns from historical transaction data. This shift from explicit programming to learned behavior reshapes the development lifecycle, altering how we approach system reliability and robustness.

These differences alter how lifecycle stages interact. Unlike traditional software where later phases rarely influence earlier ones, ML systems require continuous feedback loops: deployment insights reshape data collection, monitoring drives model updates, and production data reveals distributional properties invisible in development. This dynamism demands continuous deployment practices that traditional release cycles cannot accommodate (section 1.8).

Table 1 contrasts these differences across six development dimensions, from problem definition through maintenance. These differences reflect the core challenge of working with data as a first-class citizen in system design, something traditional software engineering methodologies were not designed to handle⁵.

⁵ Data Versioning: Unlike code, which changes through discrete, auditable commits, data can drift gradually (distribution shift), suddenly (schema migration), or subtly (label quality degradation). Git cannot version multi-terabyte datasets, forcing specialized tools like DVC and Git LFS. The systems consequence: without data versioning, teams cannot reproduce a prior training run or diagnose whether an accuracy regression stems from a code change or a data change, making root-cause analysis intractable.

Table 1: Traditional Software vs. ML Development Lifecycles: Six dimensions where ML development diverges from traditional software engineering. The most critical difference appears in the final row: while traditional software rarely sees later stages influence earlier phases, ML systems require continuous feedback loops where deployment insights reshape data collection, monitoring drives model updates, and production experiences inform architectural decisions. These differences explain why traditional project management approaches fail when applied to ML projects without modification.

Aspect	Traditional Software Lifecycles	Machine Learning Lifecycles
Problem Definition	Precise functional specifications are defined upfront.	Performance-driven objectives evolve as the problem space is explored.
Development Process	Linear progression of feature implementation.	Iterative experimentation with data, features, and models.
Testing and Validation	Deterministic, binary pass/fail testing criteria.	Statistical validation and metrics that involve uncertainty.
Deployment	Behavior remains static until explicitly updated.	Performance may change over time due to shifts in data distributions.
Maintenance	Maintenance involves modifying code to address bugs or add features.	Continuous monitoring, updating data pipelines, retraining models, and adapting to new data distributions.
Feedback Loops	Minimal; later stages rarely impact earlier phases.	Frequent; insights from deployment and monitoring often refine earlier stages like data preparation and model design.

The erosion of determinism: Breaking OS assumptions

This shift from code-centric to data-centric development erodes more than just project management models; it breaks the fundamental assumptions of modern operating systems. For over fifty years, OS kernels (from Unix to Windows) have been optimized for spatial and temporal locality⁶: the belief that if a program reads byte \(X\), it will likely read \(X+1\) soon, and if it uses memory address \(Y\), it will likely reuse it.

⁶ Locality of Reference: Formalized by Denning (1968) as the principle governing virtual memory design. The cost of violating locality is quantitative: an L1 cache hit costs approximately 1 ns, while a DRAM access costs 50–100 ns (50–100\(\times\) penalty), and a Non-Volatile Memory Express (NVMe) SSD read costs 10–100 \(\mu\)s (10,000–100,000\(\times\) penalty). Random shuffling of multi-terabyte datasets during each training epoch triggers the worst case at every level of the memory hierarchy, explaining why ML data loaders must implement their own prefetching logic rather than relying on OS page cache heuristics.

Denning, Peter J. 1968. “The Working Set Model for Program Behavior.” Communications of the ACM 11 (5): 323–33. https://doi.org/10.1145/363095.363141.

ML workflows violate these abstractions at scale. A multi-terabyte dataset being randomly shuffled during every training epoch (one full pass over the dataset) presents a “worst-case” workload for traditional file system buffers and virtual memory prefetchers. When every “instruction” (a sample) is fetched stochastically from a massive pool, the OS’s predictive caching logic fails, and the system defaults to expensive disk I/O or network transfers. A systems engineer must acknowledge that the “Abstractions of the 1970s,” once designed to hide hardware latency, are often the primary sources of the overhead term \((L_{\text{lat}})\) in the iron law for Software 2.0. Bridging this gap requires the specialized data engineering and hardware-aware optimizations we examine in the following Parts.

Before introducing the six-stage framework, the key distinction is worth making explicit.

Checkpoint 1.1: ML vs. traditional software

ML systems are not traditional software with a model attached. Check the differences that force a separate workflow:

• Failure modes: Can you distinguish Silent Failure (degradation/drift) from Explicit Failure (crash/exception)?
• Logic source: Do you understand that in ML, “Data is Source Code”? Changing data changes behavior just like changing code.
• Iteration: Can you explain why ML requires continuous retraining loops rather than static release cycles?

Self-Check: Question

1. Team A ships a DR screening model and considers the project complete once the model reaches production. Team B treats the production launch as the start of ongoing retraining driven by drift detection and subgroup monitoring. Which team’s posture matches the ML lifecycle as this chapter defines it, and why?

   1. Team A, because once a model meets its test-set targets and clears validation, the engineering work shifts to traditional service-operations tasks rather than lifecycle tasks.
   2. Team B, because the lifecycle is a continuous engineering discipline for managing system entropy across the Data, Algorithm, and Machine axes, so deployment is the start of the feedback loop rather than its end.
   3. Neither, because the lifecycle in this chapter is really a label for the MLOps tooling layer and does not prescribe whether teams keep iterating after launch.
   4. Team A, because a model that still satisfies its original specification cannot have degraded, so post-launch retraining is a discretionary polish step rather than lifecycle work.

2. Explain why a team that spends months improving test-set accuracy can still fail at building a usable ML system if deployment constraints are discovered only after model development.

3. A DR screening team plans a six-month project and budgets its engineer-months assuming model architecture and training will consume most of the effort, because that is where the research papers focus. Using the chapter’s quantitative breakdown, which reallocation should they make before kickoff, and why?

   1. Shift the majority of engineer-months to deployment and monitoring, because production integration is reported at 60–80 percent of total effort for ML projects.
   2. Keep model development as the dominant bucket, because architecture and hyperparameter sweeps are the only iteration loops worth planning around.
   3. Shift the majority of engineer-months to data collection, labeling, validation, and preparation, because the chapter’s survey example reports 79 percent of practitioner time in cleaning/organizing and collecting data.
   4. Split the budget evenly across all six lifecycle stages, because the chapter argues that stage contracts equalize the engineering load once they are enforced.

4. True or False: A team can adopt a mostly sequential waterfall workflow for an ML project if they freeze the codebase early, because later stages mainly verify the existing implementation rather than forcing changes to earlier decisions.

5. A training pipeline randomly shuffles a multi-terabyte dataset every epoch, storing samples in object storage backed by a mix of NVMe and spinning disk. End-to-end throughput is poor even though the accelerator advertises ample FLOPs. Which explanation best matches the chapter’s OS-abstraction argument, and what does it imply the team cannot fix with more compute?

   1. The workload defeats the spatial and temporal locality assumptions that OS page caching and prefetching rely on, so stochastic sample access penalizes the memory hierarchy at every tier — a penalty that more peak FLOP/s cannot reduce because the stall is in data delivery.
   2. Random shuffling makes the workload compute-bound, so adding a faster accelerator or more parallel kernels should close the throughput gap.
   3. Training bypasses the memory hierarchy entirely once the accelerator is warm, so storage latency is irrelevant to end-to-end throughput regardless of shuffle strategy.
   4. Probabilistic models must reread identical samples at fixed intervals to preserve statistical correctness, so throughput is bounded by a re-read constraint rather than by data access patterns.

See Answers →

Lifecycle Stages

These distinctions translate directly into the structured six-stage framework that organizes how ML projects unfold. The rural-clinic failure can be located precisely in the lifecycle: deployment constraints were discovered only after data, model, and evaluation decisions had already hardened around the wrong target. Where traditional software follows requirements through implementation to testing, ML systems demand a different organizational structure, one that preserves feedback from deployment back into data, training, and evaluation rather than ending at release. The six-stage framework that follows captures this loop.

As figure 3 illustrates, the ML lifecycle distills into six core stages laid out in reading order, wrapping from a top row to a bottom row: Problem Definition establishes objectives and constraints; Data Collection and Preparation encompasses the data pipeline; Model Development and Training creates models; Evaluation and Validation ensures quality; Deployment and Integration brings systems to production; and Monitoring and Maintenance ensures continued effectiveness. The prominent feedback loop connecting monitoring back to data collection (the key insight in the diagram) shows that production signals (drift detection, performance degradation, new failure modes) flow back to inform earlier phases, capturing the cyclical nature that distinguishes ML from linear software development.

Figure 3: Simplified Lifecycle with Feedback: Six stages laid out in reading order across two rows—the top row covers problem definition, data collection, model development, and evaluation; the bottom row continues with deployment and monitoring. The feedback loop from monitoring back to data collection captures the essential insight that production insights drive continuous refinement across earlier stages, because data distributions shift, model performance drifts, and operational requirements evolve.

To make these stages concrete, consider how they apply to MobileNetV2, a mobile vision model whose small footprint makes deployment constraints visible. For MobileNetV2, Problem Definition establishes tight constraints: about 14 MB model size, about 300 MFLOP, and real-time inference on mobile-class hardware. Those constraints shape the rest of the workflow immediately. Data Collection must account for on-device preprocessing limitations, and Model Development must choose an architecture whose operations fit the budget. MobileNetV2 does this through depthwise separable convolutions⁷, not merely by reducing parameter count. Evaluation validates both accuracy and latency on target devices, Deployment tests whether the model fits the device’s memory and power envelope, and Monitoring tracks performance across diverse device populations. Each stage’s decisions propagate through subsequent stages, and the workflow framework makes these dependencies explicit. A DR screening model optimized for rural clinic deployment faces analogous pressures: limited device memory, strict power budgets, and the need for real-time inference without reliable connectivity. These shared constraints are why we use DR as the chapter’s running case study.

⁷ Depthwise Separable Convolutions: Replacing a standard convolution with this cheaper factorization reduces computation by roughly 8–9\(\times\) for typical kernel sizes (Sandler et al. 2018), which is what makes the roughly 300 MFLOP inference budget plausible on mobile-class hardware. Network Architectures covers the architectural mechanism in depth.

Sandler, Mark, Andrew Howard, Menglong Zhu, Andrey Zhmoginov, and Liang-Chieh Chen. 2018. “MobileNetV2: Inverted Residuals and Linear Bottlenecks.” 2018 IEEE/CVF Conference on Computer Vision and Pattern Recognition, 4510–20. https://doi.org/10.1109/cvpr.2018.00474.

The diagram suggests linear progression, but the feedback loop reveals the true iterative nature of ML development.

Checkpoint 1.2: The workflow cycle

The ML lifecycle is not a straight line; it is a spiral of continuous refinement.

The Stages

• Problem definition: Have you defined success metrics that actually map to business value?
• Data: Is your data pipeline reproducible, and have you specified what it must deliver before model development begins?
• Modeling: Are you iterating fast enough?
• Deployment: Have you accounted for the constraint propagation principle?

Figure 3 captures this loop, but its deeper weight is quantitative: each stage corresponds to specific terms in the performance equation, and this mapping reveals a workflow-level version of the iron law: decisions made during data collection constrain what is achievable during model development, which in turn determines deployment requirements. The stage-by-stage mapping connects the lifecycle to the iron law of ML systems defined in Iron Law of ML Systems.

The binding constraint differs dramatically across workload archetypes, causing each lifecycle stage to optimize different iron law terms. ResNet-50, DLRM, and keyword spotting (KWS) are useful anchors because each stresses a different part of the system: dense vision training tries to keep accelerators busy, sparse recommendation spends much of its time moving embedding rows, and keyword spotting is constrained first by tiny memory and always-on energy budgets. Table 2 shows how the same workflow stages manifest for these three recurring workload archetypes.

Systems Perspective 1.1: The iron law of workflow

The six lifecycle stages are not merely procedural steps; they are the engineering levers used to optimize the variables in the iron law of ML systems \((T = \frac{D_{\text{vol}}}{\text{BW}} + \frac{O}{R_{\text{peak}} \cdot \eta_{\text{hw}}} + L_{\text{lat}})\):

• Problem definition: Sets the target constraints: accuracy, latency, cost, privacy, and deployment paradigm. These targets determine which terms of the equation are allowed to grow and which must be bounded from the start.
• Data collection and preparation: Primarily determines the dataset size and composition \((D)\), plus the bytes the pipeline must move \((D_{\text{vol}})\). High-quality curation reduces the sample count needed to reach a target accuracy and can reduce the data movement downstream.
• Model development and training: Defines the Operations \((O)\) term. The chosen model structure sets the computational floor.
• Evaluation and validation: Verifies whether the achieved Efficiency \((\eta_{\text{hw}})\) and model accuracy jointly meet deployment requirements on the target hardware.
• Deployment and integration: Focuses on minimizing the Overhead \((L_{\text{lat}})\) tax through efficient serving infrastructure.
• Monitoring and maintenance: Observes drift, latency, throughput, and cost after launch, then feeds violations back into earlier stages for re-optimization.

Viewed this way, managing the workflow is mathematically equivalent to minimizing the total system latency and cost.

Table 2: Workflow Variations by Lighthouse Model: The same lifecycle stages target different iron law terms depending on the workload’s binding constraint. ResNet-50 emphasizes useful computation per unit time, DLRM emphasizes data movement and embedding freshness, and KWS is strictly bound by energy and memory capacity.

Stage	ResNet-50 vision training	DLRM recommendation	KWS TinyML
Data Eng	Keep image batches available fast enough to sustain >80% GPU utilization.	Keep online feature-store lookups (model-input reads) below 2 ms; embedding tables dominate storage and freshness.	Curate short audio clips for a 256 KB SRAM-class device.
Training	Coordinate preprocessing, batching, mixed precision, and model execution to reduce accelerator idle time.	Optimize sparse embedding lookups because memory bandwidth limits throughput.	Search for the smallest model family that still recognizes the trigger phrase reliably.
Deploy	Use large batches, often >128, when throughput and cost matter more than single-request latency.	Meet strict interactive latency targets, such as <10 ms p99, while keeping features fresh.	Stay within an always-on energy budget, often below 1 mW.

Production systems rarely fall neatly into a single archetype. A medical imaging classifier, for instance, may require sustained computation while being trained over large image datasets yet face strict energy and memory constraints when deployed to portable clinic devices. Understanding how the same workflow framework adapts to each archetype, and how a single project can span multiple archetypes simultaneously, is essential for making sound engineering decisions.

Each stage of this workflow presents distinct engineering challenges, from curating high-quality datasets to maintaining model performance in production. DR screening earns its place as the case study that threads through every stage by passing three tests: it appears simple on the surface but reveals deep complexity in practice, it spans enough of the deployment spectrum to exercise the workflow framework, and its journey from research to production is well documented, so we can learn from real decisions rather than hypothetical ones.

Case study: DR screening

The documentation behind DR screening spans both sides of the lab-to-field divide: Gulshan et al. (2016) document the large validation study for automated DR detection, while Beede et al. (2020) document what changed when a related deep-learning system was used in Thai clinics. The problem appears straightforward (classify retinal images as healthy or diseased), but the path from laboratory success toward clinical use illustrates lifecycle complexity. Together, these sources give us a documented path from data collection and validation to workflow integration and infrastructure constraints.

⁸ Diabetic Retinopathy (DR): Affects 93–103 million people worldwide, with 22–35 percent of diabetic patients developing retinopathy. In developing countries, up to 90 percent of DR-caused vision loss is preventable with early detection, yet specialist access remains severely limited. This gap defines the ML systems problem: the screening task must be automated at scale on low-cost edge hardware in clinics that lack both ophthalmologists and reliable connectivity, making inference latency, model size, and offline capability binding deployment constraints.

Diabetic retinopathy affects about 100 million people worldwide and is a leading cause of preventable blindness⁸. To appreciate what the model must learn, look closely at figure 4: the clinical challenge is detecting characteristic hemorrhages (dark red spots) that indicate disease progression. Rural areas in developing countries have approximately one ophthalmologist per 100,000+ people, making AI-assisted screening not merely convenient but medically essential.

Figure 4: Retinal Hemorrhages: Diabetic retinopathy causes visible hemorrhages in retinal images. While this appears to be straightforward image classification, the path from laboratory success to clinical deployment illustrates every aspect of AI lifecycle complexity. Source: Google.

Initial research achieved expert-level performance in controlled settings. However, the journey to clinical deployment revealed how technical excellence must integrate with data quality challenges, infrastructure constraints in rural clinics, regulatory requirements, and workflow integration⁹. For the metrics that recur in this case, sensitivity is the true-positive rate, specificity is the true-negative rate, and AUC is the area under the ROC curve. The same constraint propagation dynamics apply whether the target is medical imaging systems or mobile applications like MobileNetV2, and the lifecycle stages ahead trace these dynamics in concrete detail.

⁹ Healthcare AI Deployment Gap: Many healthcare AI systems with strong laboratory accuracy still struggle to reach clinical deployment because real clinics expose workflow, image-quality, infrastructure, and human-factors constraints that were absent from controlled evaluation (Beede et al. 2020). The gap explains why the DR system’s expert-level area under the curve (AUC) did not translate directly to clinic adoption: success depends less on model accuracy alone and more on integration with clinical workflows, data infrastructure in resource-limited settings, and regulatory clearance pathways. For ML systems engineers, this means deployment constraints, not model metrics, are often the binding bottleneck.

Beede, Emma, Elizabeth Baylor, Fred Hersch, Anna Iurchenko, Lauren Wilcox, Paisan Ruamviboonsuk, and Laura M. Vardoulakis. 2020. “A Human-Centered Evaluation of a Deep Learning System Deployed in Clinics for the Detection of Diabetic Retinopathy.” Proceedings of the CHI Conference on Human Factors in Computing Systems (CHI), 1–12. https://doi.org/10.1145/3313831.3376718.

Stage interface specification

Each lifecycle stage operates as a distinct engineering phase with defined inputs, outputs, and quality invariants. Think of these as API contracts between teams: just as a microservice must adhere to its Swagger definition to prevent system crashes, a data pipeline must adhere to its schema and distribution contracts to prevent model failures. Table 3 formalizes these contracts, making explicit what each stage must receive and produce. This specification transforms the abstract lifecycle diagram into actionable engineering requirements. When a stage’s output fails to meet its contract, the deficiency propagates forward, compounding costs at each subsequent stage.

Table 3: Stage Interface Specification: Each lifecycle stage has explicit input requirements, output deliverables, and quality invariants that must hold for the stage to be considered complete. Violations of these contracts create technical debt that compounds through subsequent stages. The deployment paradigm selection in Problem Definition (Cloud, Edge, Mobile, or TinyML from ML Systems) constrains all downstream stages, as a TinyML target imposes different data, model, and monitoring requirements than a Cloud target.

Stage	Input Contract	Output Contract	Quality Invariant
Problem Definition	Business requirements; operational context	Measurable objectives; deployment paradigm selection; resource constraints	All success criteria are quantifiable; target deployment paradigm is explicit
Data Collection & Preparation	Objectives; deployment target; quality requirements	Versioned dataset with schema; preprocessing pipeline; data validation rules	Distribution approximates anticipated production environment; labeling meets accuracy requirements
Model Development & Training	Dataset; accuracy targets; resource constraints	Trained model weights; training configuration; experiment logs	Meets accuracy thresholds within computational budget; architecture compatible with deployment target
Evaluation & Validation	Trained model; held-out test data; evaluation criteria	Performance metrics across subgroups; failure mode analysis; validation certificate	No critical subgroup falls below minimum thresholds; confidence calibration meets domain requirements
Deployment & Integration	Validated model; infrastructure requirements; service-level agreement (SLA) targets	Serving endpoint; monitoring instrumentation; rollback procedures	Latency and throughput meet paradigm requirements; integration tests pass
Monitoring & Maintenance	Live system; performance baselines; alert threshold	Drift detection alerts; retraining triggers; incident reports	Performance stays within acceptable bounds; degradation detected before user impact

This specification reveals why ML projects experience the iteration cycles diagrammed in figure 3. When a downstream stage discovers that an upstream contract was violated (for example, evaluation reveals the training data distribution does not match production), the project must iterate back to fix the root cause. Teams that validate contracts at each stage transition catch violations early, when correction costs are lowest. This validation process is best understood as auditing stage transitions.

Example 1.1: Auditing stage transitions

Scenario: A team claims to have completed Problem Definition for a medical imaging classifier. Before Data Collection begins, the stage transition must be audited against table 3.

Verification: Check the output contract:

1. Measurable objectives: ✓ “Achieve more than 90 percent sensitivity and more than 80 percent specificity for referable cases”
2. Deployment paradigm selection: ✗ Missing. The team says “deployment will be figured out later”
3. Resource constraints: ✗ Incomplete. Budget specified, but no latency or memory targets

Invariant:

• “All success criteria are quantifiable”: ✓ Sensitivity/specificity targets are quantifiable
• “Target deployment paradigm is explicit”: ✗ VIOLATION. No paradigm selected

Result: Stage transition blocked. Two contract violations detected.

Cost analysis: Proceeding without deployment paradigm selection risks discovering at stage 5 (Deployment) that the target is Edge deployment with less than 100 ms latency and less than 500 MB memory. The constraint propagation principle (section 1.9.1) prices that slip at 16× the effort of resolving it now at stage 1.

Resolution: Return to Problem Definition. Establish deployment target (for example, “Edge deployment on an NVIDIA Jetson-class clinic device with less than 50 ms inference latency and less than 200 MB model size”). This constraint will shape Data Collection (preprocessing must be device-compatible), Model Development (architecture must fit memory budget), and Evaluation (must include device-specific performance testing), avoiding 2–4 iteration cycles and roughly 8–16 weeks of rework.

Systems insight: The same pattern applies to MobileNetV2. If Problem Definition specifies “mobile deployment” without the specific constraints established earlier (model size and FLOP budget), the team might develop a 200 MB ResNet-50 variant optimized for accuracy, only to discover at Deployment that it violates every mobile constraint.

The DR case study and Stage Interface Specification provide the concrete context and formal contracts that ground each lifecycle stage. The first stage, Problem Definition, determines every constraint that subsequent stages must satisfy.

Self-Check: Question

1. Order the following lifecycle phases in the sequence this chapter establishes for a fresh ML project: (1) Deployment and Integration, (2) Problem Definition, (3) Monitoring and Maintenance, (4) Data Collection and Preparation, (5) Model Development and Training, (6) Evaluation and Validation.

2. A medical imaging team declares Problem Definition complete with quantified sensitivity and specificity targets, but the deployment paradigm (Cloud, Edge, Mobile, or TinyML) is marked as ‘TBD — to be decided after model development.’ Using the stage interface table, what should the audit verdict be, and why?

   1. Complete — quantifiable success metrics satisfy the Output Contract, and the paradigm can be chosen later once the accuracy envelope is known.
   2. Complete if the team commits in writing to compress or distill the trained model during deployment to fit whatever paradigm they later select.
   3. Blocked — the Output Contract explicitly requires the deployment paradigm and resource constraints to be set at Problem Definition, because those choices reshape what data must be collected and what architectures are even feasible.
   4. Blocked only if the project later proves infeasible — if Data Collection and Model Development succeed under multiple paradigms, the missing field becomes retroactively harmless.

3. The chapter uses MobileNetV2 with its roughly 300 MFLOPs budget to illustrate workflow thinking rather than treating it as just an architecture case study. Explain what MobileNetV2 teaches about how constraints propagate across lifecycle stages.

4. Which mapping between lifecycle stages and iron-law terms is most consistent with the chapter’s ‘iron law of Workflow’ perspective, and why do the other mappings misread the framework?

   1. Data Collection and Preparation → \(D\) and \(D_{\text{vol}}\); Model Development and Training → \(O\); Deployment and Integration → \(L_{\text{lat}}\) — because each stage primarily sets the cost of its matching term.
   2. Problem Definition → \(\text{BW}\); Evaluation and Validation → \(O\); Monitoring and Maintenance → \(D_{\text{vol}}\) — because these stages are where those quantities are measured.
   3. Deployment and Integration → \(D_{\text{vol}}\); Monitoring and Maintenance → \(O\); Data Collection → \(L_{\text{lat}}\) — because these stages constrain the largest budgets in production systems.
   4. Evaluation and Validation → \(R_{\text{peak}}\); Data Collection → \(L_{\text{lat}}\); Problem Definition → \(O\) — because validation tests peak performance and early stages set startup overhead.

5. A senior engineer reviewing the DR project’s stage transitions notices that Problem Definition handed Data Collection only a brief prose summary, with no documented schema, no sensitivity threshold, and no deployment paradigm specified. What is the clearest systems-level reason the chapter gives for why this hand-off should be rejected, rather than accepted with a promise to clarify later?

   1. Because every stage transition should pass a formal audit, regardless of whether the downstream work could proceed with partial information.
   2. Because stage boundaries function as interface contracts: unchecked inputs let a single missing constraint (a sensitivity threshold, a paradigm, a schema) propagate silently into later stages, where the Constraint Propagation Principle makes the correction cost roughly \(2^{N_{\text{stage}}-1}\) times larger than catching it now.
   3. Because data engineers prefer structured hand-offs, so an ad-hoc prose summary creates friction that reduces team morale over time.
   4. Because the senior engineer’s role is primarily enforcement, so any ambiguity at a stage boundary is a policy violation regardless of downstream impact.

See Answers →

Problem Definition

Problem definition in ML begins with sentences that look deceptively simple. A product manager writes: “Build a model that detects diabetic retinopathy.” That single sentence conceals a dozen engineering decisions: sensitivity thresholds for patient safety, hardware capabilities in rural clinics, latency budgets that keep clinicians engaged, and regulatory frameworks governing approval. In traditional software, requirements translate directly into implementation rules. In ML systems, defining what the system should do is inseparable from defining how it will learn to do it—and the physical constraints under which it must operate. This first stage, the leftmost box in figure 3, lays the foundation for all subsequent phases in the ML lifecycle.

The DR screening case makes this concrete. What appears to be a straightforward classification task (detect disease in retinal photographs) actually requires balancing five competing constraints: diagnostic accuracy (patient safety), computational efficiency (rural clinic hardware), workflow integration (clinical adoption), regulatory compliance (FDA approval), and cost-effectiveness (sustainable deployment in resource-limited settings). Each constraint tightens the feasible design space for the others: pursuing higher accuracy through larger models conflicts with the hardware budget; achieving regulatory compliance demands annotation protocols that increase data collection costs. This multi-constraint optimization problem has no analogue in traditional software development.

Constraint layers

The DR example reveals that ML problem definitions are not single requirements but stacks of interacting constraint layers. Accuracy constraints (>90 percent sensitivity, >80 percent specificity across diverse populations and equipment) sit on top of infrastructure constraints (edge devices with limited compute, intermittent connectivity, inference within clinical workflow timeframes) which sit on top of regulatory constraints (FDA validation, audit trails, privacy compliance). Each layer narrows the feasible design space for the layers above it.

Privacy compliance in an ML system carries a distinctive operational weight that a generic data-handling rule does not capture. In a traditional database, deleting a patient’s record is a DELETE statement. In an ML system, the model weights encode statistical patterns learned from that record: honoring a right-to-erasure request technically requires proving that the data no longer influences the model, which means either machine unlearning (an active research area with incomplete guarantees) or retraining from scratch on the remaining data. At DR-system scale, a full retrain triggered by a single erasure request can cost hundreds of accelerator-hours, turning privacy compliance into a recurring compute budget item and an architectural constraint on how training provenance is tracked.

This layered structure generalizes beyond healthcare. Any ML problem definition must address at least three constraint layers: statistical (what accuracy, across which subpopulations), physical (what hardware, under what latency and memory budgets), and operational (what regulatory, organizational, or workflow requirements apply). The constraint propagation principle (section 1.9) explains why: a constraint that exists but remains unspecified does not disappear—it simply surfaces later at exponentially higher cost.

The specific constraints for the DR system did not emerge from technical analysis alone. They required systematic collaboration between engineers, ophthalmologists, and clinic administrators to translate clinical needs into measurable engineering requirements. Key decisions (balancing model complexity with hardware limitations, ensuring interpretability for healthcare providers, and accounting for patient privacy) emerged from this cross-disciplinary process. Without domain expertise, the engineering team might have optimized for aggregate accuracy while missing the sensitivity threshold that determines clinical safety.

War Story 1.1: When the label was the bias

Context: In 2014, Amazon assembled a roughly twelve-person engineering team at its Edinburgh hub to build an internal machine-learning system for ranking technical job applicants, training it on a decade of historical resumes and hiring outcomes (Dastin 2018).

Failure mode: The training labels were the bias. Because the prior decade of technical hiring at Amazon had been male-dominated, the model learned that male-coded resumes were more likely to belong to the people who had been hired. It penalized resumes containing the word “women’s”—as in “women’s chess club captain”—and downgraded graduates of two all-women’s colleges. The model had learned to predict the historical labeling decision, not the underlying ability to do the job. Amazon disbanded the team by early 2017 and never used the tool to evaluate live applicants. A four-year, dozen-engineer effort produced no deployable system because the workflow optimized for the wrong target.

Systems lesson: Problem definition must specify fairness, auditability, and rejection criteria before data collection and training. A workflow trained on biased labels does not learn the operational goal; it learns to reproduce the labels.

Dastin, Jeffrey. 2018. “Amazon Scraps Secret AI Recruiting Tool That Showed Bias Against Women.” Reuters.

Problem definitions evolve

Unlike traditional software specifications that stabilize after requirements review, ML problem definitions are living documents that evolve as the system scales. The DR system initially targeted a handful of clinics with consistent imaging setups. Scaling to hundreds of clinics with varying equipment, staff expertise, and patient demographics¹⁰ forced revisions to every constraint layer: accuracy targets needed stratification by demographic group, infrastructure constraints had to accommodate heterogeneous hardware, and regulatory requirements expanded to include fairness reporting.

¹⁰ Demographic Drift: Models trained on the initial handful of clinics learn statistical biases specific to that population. Scaling to hundreds of clinics with varying patient demographics exposes these biases as performance gaps, forcing the problem definition to evolve from a single aggregate accuracy target to stratified per-group thresholds. In facial-analysis benchmarks, demographic error-rate disparities exceeded 40\(\times\) (Buolamwini and Gebru 2018); in healthcare risk scoring, proxy labels produced racially biased allocation despite similar need (Obermeyer et al. 2019). These examples show why fairness reporting becomes a binding engineering constraint that reshapes every downstream stage.

Buolamwini, Joy, and Timnit Gebru. 2018. “Gender Shades: Intersectional Accuracy Disparities in Commercial Gender Classification.” Conference on Fairness, Accountability and Transparency, 77–91.

Obermeyer, Ziad, Brian Powers, Christine Vogeli, and Sendhil Mullainathan. 2019. “Dissecting Racial Bias in an Algorithm Used to Manage the Health of Populations.” Science 366 (6464): 447–53. https://doi.org/10.1126/science.aax2342.

This evolution is not a sign of poor initial planning—it is inherent to ML systems. Scaling exposes edge cases invisible at pilot scale, and production data reveals distributional properties that no training set fully captures. The problem definition must accommodate this reality by specifying both current targets and the mechanisms for revising them: which metrics trigger re-evaluation, who approves revised thresholds, and how changes propagate to downstream stages.

Self-Check: Question

1. Why is the statement ‘Build a model that detects diabetic retinopathy’ inadequate as a complete problem definition for an ML system?

   1. Because it names a disease rather than a specific deployment paradigm label, and every ML problem definition must start with one of Cloud, Edge, Mobile, or TinyML.
   2. Because it omits the interacting statistical, physical, and operational constraints (sensitivity thresholds, rural-clinic hardware limits, clinical workflow fit, FDA requirements) that determine what system is actually feasible.
   3. Because clinical applications should begin with model architecture selection rather than task framing, so the sentence is in the wrong order.
   4. Because ML problem definitions should avoid measurable thresholds until data has been collected, and this sentence implies a measurable goal.

2. Explain why domain experts (ophthalmologists, clinic administrators) must participate in problem definition for a high-stakes ML system such as DR screening, rather than being consulted only at evaluation or deployment time.

3. A team pilots the DR system in three clinics with one aggregate accuracy target and succeeds. When they expand to 200 clinics across Thailand and India, sensitivity drops five to eight percent for specific demographic groups and on older fundus cameras. How does the chapter say the team should respond, and what does it say about the original definition?

   1. Keep the original aggregate accuracy target and address subgroup gaps only through improved monitoring dashboards, because changing targets mid-project signals poor planning.
   2. Freeze the problem definition and treat the subgroup drop as a training-data coverage bug, because problem definitions should remain fixed once a pilot succeeds.
   3. Revise the problem definition to include stratified subgroup thresholds and updated hardware assumptions, because scaling exposes constraints that were invisible at pilot scale — problem definitions are living documents that evolve with deployment reality.
   4. Delay subgroup analysis until a regulatory body requires a fairness audit, because treating subgroup variation as an active constraint increases project scope beyond what the pilot validated.

4. True or False: For a DR system, the clinical business goal (detect retinopathy early) is stable across scale, but the engineering targets that implement that goal (aggregate accuracy thresholds, per-subgroup sensitivity floors, per-device latency budgets) must be rewritten as the deployment expands from three pilot clinics to two hundred.

See Answers →

Data Collection

With objectives defined and constraints layered, the next practical task is identifying the data that can teach the model to meet these objectives. The constraints, metrics, and deployment targets from problem definition exist only on paper until a team acquires the data that will teach the model to satisfy them. This transition from defining goals to data collection marks a critical juncture where many projects fail. As the quantitative data in section 1.1.1 established, data-related activities consume the majority of project time, making decisions at this stage disproportionately consequential. In iron law terms, this stage primarily determines dataset size and composition \((D)\), along with the byte volume \((D_{\text{vol}})\) that downstream stages must move. The deployment constraints established during problem definition now become data requirements: if the model must run on edge devices, the data pipeline must produce inputs compatible with edge preprocessing. If the model must achieve 90 percent sensitivity across diverse populations, the data must include sufficient examples from each population.

Data collection and preparation is not a preliminary step but the primary engineering activity of most ML projects. Data Engineering addresses data engineering as its core focus. For DR screening, the challenge is substantial: the data must be statistically diverse enough to train a model that generalizes across populations, operationally feasible to collect in resource-limited clinics, and annotated with enough clinical rigor to satisfy regulatory scrutiny.

Problem definition decisions shape data requirements in the DR example. The multi-dimensional success criteria established (accuracy across diverse populations, hardware efficiency, and regulatory compliance) demand a data collection strategy that goes beyond typical computer vision datasets. Not all data contributes equally to learning, either—Data Selection shows that strategically selecting training examples can match the accuracy of the full dataset at a fraction of the compute cost, a principle that becomes critical when iteration velocity determines project success.

The DR system requires on the order of \(10^5\) retinal fundus photographs, each reviewed by multiple expert ophthalmologists. Expert consensus addresses the inherent subjectivity in medical diagnosis (two ophthalmologists may disagree on borderline cases) while establishing ground truth labels that can withstand regulatory scrutiny. The annotation process must capture clinically relevant features like microaneurysms, hemorrhages, and hard exudates across the full spectrum of disease severity.

High-resolution retinal scans can generate tens of megabytes per image, creating substantial infrastructure challenges. A clinic processing dozens of patients per day can produce gigabytes to tens of gigabytes of imaging data per week, exceeding the capacity of rural internet connections with only a few megabits per second of upload. This tension between bandwidth and compute forces architectural decisions toward edge-computing solutions rather than cloud-based processing.

Edge summaries beat raw medical-image uploads when bandwidth dominates.

Napkin Math 1.2: Bandwidth vs. compute

Problem: A rural clinic captures retinal images for DR screening. Can the clinic upload all images to the cloud for processing, or must it process them locally on edge hardware?

Math:

1. Daily data: At 150 patients/day, 10 photos/patient, and 5 MB/photo, the clinic produces 7.5 GB/day.
2. Upload time: The uplink is 2 Mb/s, or 0.25 MB/s. Dividing 7,500 MB by that rate gives 30,000 s, approximately 8 h.
3. The constraint: If the clinic operates for 8 h, uploading this data would require 104.2 percent of the clinic’s total operating time, effectively saturating the connection and blocking all other operations.

Systems insight: A Cloud-only architecture is too “expensive” in terms of bandwidth. Moving to the edge requires uploading only detection summaries (10 KB/patient), reducing bandwidth usage by 5,000×.

Lab-to-field data gap

Laboratory data and production data inhabit different worlds. This lab-to-field gap appears when DR screening deploys to rural clinics across Thailand and India: images arrive from diverse camera equipment operated by staff with varying expertise, often under suboptimal lighting with inconsistent patient positioning. A model trained on high-quality research images from standardized fundus cameras may fail on blurry, poorly-lit images from older equipment—not because the algorithm is wrong, but because the data distribution has shifted beyond the training envelope.

As the Bandwidth vs. Compute exercise quantified, this data volume makes cloud-only processing infeasible. The architectural conclusion is edge deployment using specialized hardware such as NVIDIA Jetson¹¹. Local preprocessing reduces bandwidth requirements by orders of magnitude but demands correspondingly more local computation, forcing a trade-off: simpler models that run on constrained hardware, or more powerful edge devices that increase per-clinic costs.

¹¹ NVIDIA Jetson: NVIDIA’s Jetson family spans a wide SKU spectrum, from Jetson Orin Nano (7–15 W) through Jetson Orin NX (10–25 W) to Jetson AGX Orin (15–60 W). For per-clinic deployment, the Jetson Orin Nano-class device (4–8 GB shared LPDDR5, 7–15 W power envelope) provides integrated GPU compute for edge preprocessing while remaining within clinic power and cost budgets. This hardware choice imposes the exact trade-off described: the tight memory budget and power envelope constrain model complexity. Developers are forced to reduce model size and computation until the system fits within those limits, making model size a direct function of the per-clinic hardware cost.

The bandwidth constraint makes infrastructure a data-collection decision rather than a late implementation detail. A typical solution architecture therefore combines edge devices for local inference and preprocessing, clinic aggregation servers for data management and buffering, and cloud training infrastructure for periodic model updates. Typical deployments target end-to-end latency under 100 milliseconds and availability sufficient to support clinical workflow without connectivity-induced delays.

Privacy constraints impose a similar architectural decision. Patient privacy regulations often motivate privacy-preserving distributed training approaches: workflows that keep raw clinic data local while sharing only approved updates or summaries. This approach adds complexity to both data collection workflows and model training infrastructure but often proves necessary for regulatory approval and clinical adoption.

Distributed data infrastructure

As the number of clinics grows from a handful to hundreds, data infrastructure must scale accordingly. Each retinal image travels through multiple stages: clinic cameras capture the image, local systems provide initial storage and processing, quality validation checks ensure usability, secure transmission moves data to central systems, and finally, integration with training datasets completes the pipeline. The infrastructure decisions at each stage are shaped by the deployment constraints established during problem definition.

Storage tiers are another place where the data pipeline either preserves or erodes downstream iteration velocity. Different data access patterns demand different storage solutions, so teams typically implement tiered storage architectures¹², each calibrated to access frequency and performance requirements.

¹² Tiered Storage: Places data on different storage media based on access frequency and performance requirements. The storage price gap is roughly 4.3× in this example: NVMe SSDs deliver 500,000+ input/output operations per second (IOPS) at ~$0.10/GB/month, while object storage costs ~$0.023/GB/month but with 100–200 ms latency. For ML training loops requiring sustained sequential reads at 1–10 GB/s, choosing the wrong tier converts a compute-bound training pipeline into an I/O-bound one, directly inflating the iron law’s data term \((D_{\text{vol}}/\text{BW})\).

Hot storage uses high-throughput NVMe SSDs for data currently used in training loops. Warm storage uses S3-compatible object storage for recent datasets and active validation sets. Cold storage uses low-cost archival systems, such as AWS Glacier, for historical data required for regulatory audit trails but rarely accessed.

In practice, the boundary between tiers is dynamic: a dataset migrates from warm to hot when selected for the next training run, and from hot to cold when the model it trained is superseded. Automated lifecycle policies manage these transitions, promoting data based on training schedules and demoting it based on access recency—a pattern that Data Engineering explores in detail.

Rural clinic deployments face severe connectivity constraints that force a choice between transmission strategies. Clinics with reliable broadband can stream images in near-real-time for centralized processing, but clinics with intermittent satellite links, common in remote regions of India and sub-Saharan Africa, require store-and-forward architectures that batch images during connectivity windows and reconcile results asynchronously. The choice propagates through the entire stack: store-and-forward clinics need larger local storage buffers, more robust local inference capabilities, and conflict-resolution logic when locally generated predictions differ from later cloud-based analysis.

Infrastructure scalability poses a harder challenge than raw capacity. As the system grows from a handful of pilot clinics to hundreds of production sites, data heterogeneity grows faster than data volume: each clinic’s camera model, lighting environment, and operator habits produce subtly different image distributions. The infrastructure must handle increasing throughput while also tracking which data came from where. This provenance metadata proves essential for debugging accuracy regressions at specific sites and for satisfying the audit trail requirements that regulatory validation demands. Scaling from initial clinics to a broader network therefore introduces emergent complexity: variability in equipment, workflows, operating conditions, and image sizes as newer clinics add higher-resolution devices. Each clinic effectively becomes an independent data source¹³, yet the system must ensure consistent performance across all locations.

¹³ Distributed Clinic Data: Training across clinic sites without simply pooling all raw data addresses privacy and governance constraints, but it shifts cost into coordination. Each site may use different cameras, serve different patient populations, and follow different operating routines, so the system must track where data came from and how each site differs. The workflow cost is therefore not just storage capacity; it is the engineering work needed to compare, validate, and update models across sites whose data does not behave identically.

The workflow response is coordination infrastructure. Shared artifact repositories, versioned APIs, and automated testing pipelines make clinic-specific variation visible before it becomes a model failure. That same heterogeneity is what makes point-of-capture validation necessary: the larger and more varied the clinic network becomes, the less useful it is to discover quality failures weeks later in a centralized training run.

Quality assurance and validation

A blurry retinal image that slips past quality checks does not merely waste storage—it corrupts the training distribution, degrades model accuracy, and may produce a misdiagnosis months later in a clinic thousands of miles away. Quality assurance ensures that data meets the requirements downstream stages depend on. In our DR example, automated checks at the point of collection flag issues like poor focus or incorrect framing, allowing clinic staff to recapture images immediately rather than discovering the problem weeks later during model training.

Validation extends beyond image quality to verify proper labeling, patient association, and privacy compliance. Local validation catches problems at the point of capture; centralized validation detects distributional anomalies across the full clinic network—for instance, flagging when a particular site’s images skew toward a narrow demographic range that would bias the training set.

Data collection decisions directly constrain model development: bandwidth limits dictate what architectures are feasible, privacy requirements shape training pipelines, and quality variations across clinic environments determine robustness requirements. Figure 5 traces these feedback pathways concretely. Follow each labeled arrow: evaluation reveals the DR model underperforms on images from older fundus cameras, triggering targeted data collection from clinics using that equipment. Validation across diverse patient populations shows lower sensitivity for patients with cataracts, driving data augmentation strategies that simulate lens opacities. Monitoring detects accuracy drift in clinics that upgraded their imaging equipment, feeding back to update preprocessing steps.

Figure 5: Feedback Paths Across Lifecycle Stages: Six labeled feedback arrows connect the lifecycle stages. Data gaps identified during evaluation flow back to collection. Validation issues inform training adjustments. Performance insights from monitoring trigger new evaluation cycles. Model updates propagate from monitoring to training. Data quality issues feed back to preparation. Deployment constraints propagate backward to influence model design.

These feedback pathways reinforce a central point: data collection does not end when training begins. The quality, volume, and diversity of the data flowing through these pipelines now become the raw material for the next stage—turning curated datasets into trained models.

Self-Check: Question

1. A DR team is choosing between (i) collecting 50,000 high-resolution raw fundus photos per week (25 MB each) from 200 clinics to a central store, or (ii) collecting 50,000 edge-preprocessed feature summaries per week (50 KB each) plus a weekly 10 percent raw sample for validation. Both options yield equivalent training signal. Which choice lowers the \(D_{\text{vol}}/\text{BW}\) term for the central training pipeline, and what is the deeper systems lesson?

   1. Option (i), because raw images preserve information and raw pixel counts dominate \(D_{\text{vol}}\) regardless of whether the bytes actually reach the training cluster.
   2. Option (ii), because \(D_{\text{vol}}\) in the iron law is the data the training pipeline must actually read and move; pre-computing summaries at the edge plus retaining a 10 percent raw audit sample shrinks the ingest volume by about 10\(\times\) — a classic ‘move computation to the data’ move.
   3. Both options change only \(L_{\text{lat}}\), not \(D_{\text{vol}}\), because data collection is a fixed cost that does not appear in the iron law’s data term.
   4. Neither option changes \(D_{\text{vol}}\), because the iron law is defined at model training time and is independent of the data pipeline’s choices.

2. A rural clinic captures 150 patients per day, 10 photos each, at 5 MB per photo, over an 8-hour clinic day with a 2 Mbps uplink. The chapter’s Bandwidth vs. Compute exercise works this out; what conclusion does it force on the deployment architecture, and why do the alternative fixes fail?

   1. Cloud-only inference is practical because the 7.5 GB daily payload can fit inside the clinic day with time to spare for other traffic.
   2. Upload raw images continuously and move all preprocessing to central servers, because central compute is cheaper per FLOP than edge compute.
   3. Edge processing plus summary upload is required, because raw uploads would take roughly 8.3 hours on a 2 Mbps link — saturating the clinic day — while summary uploads (~10 KB/patient) reduce bandwidth by roughly 5,000\(\times\) and fit in seconds.
   4. The bottleneck is really annotation quality, so network architecture is secondary and either upload strategy works equally well at this stage.

3. Explain why research-quality retinal images alone, even in large quantities, are insufficient training data for deploying a DR system to rural clinics across Thailand and India.

4. Why does scaling from a handful of pilot clinics to hundreds of production sites make data infrastructure harder in ways that go beyond storing more images?

   1. Because data heterogeneity grows faster than data volume, so provenance and per-site metadata become essential for debugging site-specific accuracy regressions and satisfying regulatory audit trails.
   2. Because object storage cannot be used once a dataset exceeds a few terabytes, forcing a switch to exotic storage systems.
   3. Because centralized training removes the need to track which site produced which data, so the metadata layer simplifies at scale.
   4. Because the main engineering challenge becomes neural architecture search rather than data management once clinic counts exceed 100.

5. True or False: If most collected images pass basic file-format checks, any remaining quality problems (blurry frames, poor lighting, cropped edges) can usually be deferred to model training because more data tends to wash out a few bad examples.

See Answers →

Model Development

The DR team has 128,000 labeled retinal images, a validated preprocessing pipeline, and a target: more than 90 percent sensitivity on edge hardware with less than 50 ms inference latency. The question is no longer what data to collect but what model to build—and that question has no answer independent of the deployment constraints already established. In iron law terms, this stage defines the Operations \((O)\) term: architectural choices set the computational floor that hardware must sustain. The challenges extend well beyond selecting algorithms and tuning hyperparameters¹⁴. Model Training covers the training methodologies, infrastructure requirements, and distributed training strategies in detail. In high-stakes domains like healthcare, every design decision affects clinical outcomes, so technical performance and operational constraints must be integrated from the start.

¹⁴ Hyperparameter: These architectural and optimizer choices (for example, learning rate, network depth) directly define the computational operations \((O)\) for each training run. Because each combination requires a full and independent training run, the search for an optimal configuration incurs a multiplicative, not additive, cost. A naive grid search over just 5 hyperparameters with 4 values each requires 1,024 (\(4^{5}\)) complete training experiments, making it economically infeasible.

¹⁵ Transfer Learning: Addresses the DR system’s sharp optimization challenge by reusing representations already learned from ImageNet’s 14.2 million general images (Deng et al. 2009, 2024). Fine-tuning with thousands of domain-specific retinal images rather than training from scratch on millions reduces the dataset size and annotation burden \((D)\) and can also reduce training data movement \((D_{\text{vol}})\), while reducing the Operations term \((O)\) of the iron law (Yosinski et al. 2014; Amershi et al. 2019). Without this technique, the DR project would need far more labeled retinal images to reach equivalent accuracy, making the annotation cost alone prohibitive.

Deng, Jia, Wei Dong, Richard Socher, Li-Jia Li, Kai Li, and Li Fei-Fei. 2009. “ImageNet: A Large-Scale Hierarchical Image Database.” 2009 IEEE Conference on Computer Vision and Pattern Recognition, 248–55. https://doi.org/10.1109/cvpr.2009.5206848.

Deng, Jia, Wei Dong, Richard Socher, Li-Jia Li, Kai Li, and Li Fei-Fei. 2024. ImageNet.

Yosinski, Jason, Jeff Clune, Yoshua Bengio, and Hod Lipson. 2014. “How Transferable Are Features in Deep Neural Networks?” Advances in Neural Information Processing Systems 27.

Amershi, Saleema, Andrew Begel, Christian Bird, Robert DeLine, Harald Gall, Ece Kamar, Nachiappan Nagappan, Besmira Nushi, and Thomas Zimmermann. 2019. “Software Engineering for Machine Learning: A Case Study.” 2019 IEEE/ACM 41st International Conference on Software Engineering: Software Engineering in Practice (ICSE-SEIP), 291–300. https://doi.org/10.1109/icse-seip.2019.00042.

The DR system faces a sharp optimization challenge: achieve expert-level diagnostic accuracy while fitting within edge device memory and latency budgets. Data and compute budgets are finite, so techniques that reduce both requirements without sacrificing accuracy become essential design choices. Transfer learning¹⁵ addresses exactly this constraint: rather than training a model from scratch, it adapts models pretrained on large datasets (like ImageNet’s 14.2 million full-hierarchy images) to specific tasks (Deng et al. 2009, 2024; Yosinski et al. 2014). Because transfer learning reuses representations already learned from millions of general images, practitioners can achieve expert-level performance with thousands rather than millions of domain-specific training examples, sharply reducing both training time and data collection effort. This approach became widespread in the 2013–2014 era through influential work including Yosinski et al. (2014), establishing it as the foundation for practical computer vision applications.

Using transfer learning combined with a meticulously labeled dataset of 128,000 images, developers in DR projects achieve AUC¹⁶ of 0.99 with sensitivity of 97.5 percent and specificity of 93.4 percent (Gulshan et al. 2016), comparable to or exceeding ophthalmologist performance in controlled settings. This result validates approaches that combine large-scale pretraining with domain-specific fine-tuning. The training strategy uses error gradients to adjust model weights; Neural Computation establishes that mechanism before Model Training develops the training systems around it.

¹⁶ AUC (Area Under the ROC Curve): Measures the area under the receiver operating characteristic (ROC) curve plotting true positive rate vs. false positive rate across all classification thresholds, ranging from 0.5 (random) to 1.0 (perfect). Unlike accuracy, AUC is threshold-independent and robust to class imbalance, making it the standard metric for medical screening systems. The systems consequence: a model with 0.99 AUC can still produce unacceptable sensitivity at the specific operating threshold chosen for deployment, so AUC alone cannot validate deployment readiness.

Gulshan, Varun, Lily Peng, Marc Coram, Martin C. Stumpe, Derek Wu, Arunachalam Narayanaswamy, Subhashini Venugopalan, et al. 2016. “Development and Validation of a Deep Learning Algorithm for Detection of Diabetic Retinopathy in Retinal Fundus Photographs.” JAMA 316 (22): 2402. https://doi.org/10.1001/jama.2016.17216.

Achieving high accuracy is only the first challenge. Edge deployment constraints impose strict efficiency requirements: models may need to fit within tens to hundreds of megabytes, complete inference in tens of milliseconds, and operate within tight memory budgets.

From a workflow perspective, accuracy gains must always be weighed against deployment feasibility. Ensemble learning¹⁷ illustrates this trade-off: combining predictions from multiple models often yields better performance than any individual model, but at the cost of multiplied inference time and memory usage. Bagging trains multiple models on different data subsets, boosting sequentially trains models to correct previous errors, and stacking uses a meta-model to combine base model predictions. These methods generate diversity in different ways, but they impose the same workflow burden: every constituent model adds serving work that must fit the deployment budget. Winning entries in ML competitions¹⁸ typically ensemble 10 to 50 models, achieving impressive accuracy that proves difficult to deploy under real-world latency and memory constraints.

¹⁷ Ensemble Learning: Combines predictions from multiple models (bagging, boosting, stacking) to achieve better accuracy than any individual model. Competition-winning entries typically ensemble 10–50 models. The systems trade-off is direct: ensembling multiplies inference latency, memory footprint, and serving cost in proportion to the number of constituent models. A 50-model ensemble that wins a Kaggle competition may require 50\(\times\) the memory and compute at inference, making it incompatible with any edge deployment budget.

¹⁸ Competition-Production Gap: The Netflix Prize (2006–2009) is the canonical example: the winning BellKor ensemble improved RMSE by 10.06 percent over Netflix’s baseline and earned a $1M prize (Koren et al. 2009), but Netflix never deployed the winning approach because the engineering complexity of serving the ensemble exceeded the business value of the accuracy gain (Johnston 2012). Netflix engineers later found that simpler models plus better data infrastructure delivered more production value, validating this section’s thesis that iteration velocity and deployment feasibility outweigh isolated accuracy optimization.

Koren, Yehuda, Robert Bell, and Chris Volinsky. 2009. “Matrix Factorization Techniques for Recommender Systems.” Computer 42 (8): 30–37. https://doi.org/10.1109/mc.2009.263.

Johnston, Casey. 2012. “Netflix Never Used Its $1 Million Algorithm Due to Engineering Costs.” Ars Technica, April.

Initial research models are often much larger (sometimes multiple gigabytes when using ensembles) and therefore violate deployment constraints, requiring systematic optimization to reach a deployable form factor while preserving clinical utility. These constraints drive systematic model compression and optimization rather than isolated accuracy tuning. Later model-compression techniques reduce computation and memory footprint, but each reduction must be revalidated against clinical accuracy. Model Compression details those techniques. The development process requires continuous iteration between accuracy optimization and efficiency optimization: model capacity, preprocessing choices, and execution cost all affect both dimensions simultaneously.

Reproducible system artifacts

The accuracy-efficiency balancing act produces more than trained weights alone. A common failure mode is treating the trained model weights as the sole output of this stage. In a mature ML workflow, the deliverable is a reproducible system artifact with four components:

• Model Weights: The learned parameters.
• Inference Code: The exact code used to run the model, including preprocessing logic.
• Environment Specification: The complete dependency graph (for example, Docker container, requirements.txt, CUDA drivers) required to execute the code.
• Configuration: Hyperparameters and runtime settings.

Without bundling the environment with the model, dependency mismatches create failures that are uniquely dangerous in ML. In a traditional software system, a missing library version causes a crash: the failure is loud and immediate. In an ML system, a mismatch in the CUDA version, the underlying linear algebra library, or an image-resizing routine (OpenCV versus PIL, for example) typically does not crash the serving process. Instead, it introduces subtle floating-point variations or pixel interpolation differences that silently shift the model’s output distribution, degrading accuracy in ways that monitoring may not detect until many inferences have already been served. Environment reproducibility in ML is therefore a requirement for mathematical determinism, not merely for successful execution. A system that achieves 99 percent accuracy in development but runs on a mismatched BLAS implementation in production is a broken system, even if it never raises an exception.

Accuracy vs. efficiency

Medical applications demand specific performance metrics¹⁹ that differ from the standard classification outputs and losses Neural Computation introduces. A DR system requires high sensitivity (to prevent vision loss from missed cases) and high specificity (to avoid overwhelming referral systems). These metrics must be maintained across diverse patient populations and image quality conditions.

¹⁹ Medical AI Performance Metrics: Medical AI demands sensitivity (true positive rate) and specificity (true negative rate) rather than aggregate accuracy. For DR screening, >90 percent sensitivity is mandatory because missed cases cause blindness. The subtler systems trap is positive predictive value (PPV): a model with 95 percent accuracy in a lab can drop to 50 percent PPV in a low-prevalence population, making it clinically useless despite strong technical metrics. This prevalence dependence means a single model requires different operating thresholds per deployment site, a constraint invisible in standard ML evaluation.

²⁰ Model Compression Pipeline: Bridging the gap between research accuracy and edge deployment requires an iterative “compress-validate-adjust” loop. Each compression step can reduce model size or execution cost, but it can also silently degrade sensitivity below the clinical threshold. Finding a model that fits in device memory while preserving clinical sensitivity typically requires multiple iterations because only the full validation suite reveals whether the smaller model still satisfies the problem definition.

Optimizing for clinical performance alone is not enough. Edge deployment constraints from the data collection phase impose additional requirements: the model must run efficiently on resource-limited hardware while maintaining inference speeds compatible with clinical workflows. Improvements in one dimension often come at the cost of others: the Operations \((O)\) term, the model byte footprint that contributes to \(D_{\text{vol}}\), and fixed serving overhead \((L_{\text{lat}})\) can pull in different directions. Network Architectures explores model capacity, while ML Systems discusses deployment feasibility, and the inherent tension between them drives architectural decisions. Systematic compression and revalidation²⁰ can bridge the gap, meeting deployment requirements while aiming to preserve clinical utility.

The ensemble trade-off illustrates a broader pattern: choosing an ensemble of lightweight models over a single large model reduces per-model complexity (enabling edge deployment) but increases pipeline complexity (requiring orchestration logic and multi-model monitoring). Every architectural decision creates this kind of downstream ripple.

Constraint-driven development

Real-world constraints shape model development from initial exploration through final optimization, demanding systematic experimentation. Development begins when data scientists collaborate with domain experts (ophthalmologists in the DR case) to identify characteristics indicative of target conditions. An ophthalmologist knows that microaneurysms smaller than 125 micrometers are the earliest sign of retinopathy; without that domain knowledge, a model architect might choose a resolution or receptive field, the input region each internal feature can see, that makes these features invisible to the network. This interdisciplinary approach ensures that model architectures capture clinically relevant features while respecting the computational constraints identified during data collection.

Computational constraints profoundly shape experimental approaches. Production ML workflows create multiplicative costs: multiple model variants, multiple hyperparameter sweeps, and multiple preprocessing approaches can quickly translate into on the order of \(10^2\) training runs. When each run costs hundreds to thousands of dollars in compute, iteration costs can reach six figures per experiment cycle. This economic reality drives investments in efficient experimentation—better job scheduling, caching of intermediate results, early stopping, and automated resource optimization. Systematic hyperparameter optimization and disciplined experiment design can reduce computational costs dramatically compared to exhaustive search while achieving comparable or better results. Teams that invest in optimization infrastructure early recover the investment within the first few experiment cycles.

The inherent uncertainty of ML outcomes demands scientific methodology: controlled variables through fixed random seeds and environment versions, systematic ablation studies²¹ to isolate component contributions, confounding factor analysis to separate architecture effects from optimization effects, and statistical significance testing across multiple training runs using paired offline tests rather than the A/B testing²² reserved for comparing models on live production traffic. Without this rigor, teams cannot distinguish genuine performance improvements from statistical noise—a distinction that becomes critical when a 0.5 percent accuracy difference determines whether a model meets the clinical sensitivity threshold.

²¹ Ablation Studies: Named for surgical tissue removal, ablation studies systematically disable individual components to isolate their contribution to performance. The rigor matters because a 0.5 percent accuracy difference can determine whether the DR model meets its clinical sensitivity threshold. Without ablation, a team cannot distinguish a genuine architectural improvement from noise introduced by a different random seed, wasting iteration cycles on phantom gains.

²² A/B Testing in ML: Compares a new model (B) against the production baseline (A) on live, randomly segmented traffic to isolate the model’s causal impact from confounding variables. The sample size requirement is the critical systems constraint: reliably detecting the 0.5 percent sensitivity lift that determines clinical acceptability requires millions of patient interactions, meaning the test duration scales inversely with traffic volume. For a low-throughput DR screening deployment, reaching statistical significance \((p < 0.05)\) can take weeks, directly gating iteration velocity.

At every development milestone, teams validate models against the deployment constraints identified in earlier lifecycle stages. Each architectural innovation must be evaluated for accuracy improvements and compatibility with edge device limitations and clinical workflow requirements. This dual validation approach ensures that development efforts align with deployment goals rather than optimizing for laboratory conditions that do not translate to real-world performance.

Prototype to production

A team of three data scientists can manage experiments with spreadsheets and shared notebooks. A team of 30 cannot. As projects evolve from prototype to production, complexity grows across multiple dimensions simultaneously: larger datasets, more sophisticated models, concurrent experiments, and distributed training infrastructure. The informal coordination that worked at pilot scale becomes the primary bottleneck at production scale, a coordination tax that figure 6 quantifies by contrasting manual workflows against shared workflow platforms. The figure also shows the flywheel effect: shared infrastructure makes later experiments cheaper because each new project inherits reusable components. The axes are relative units intended to show shape, not absolute throughput.

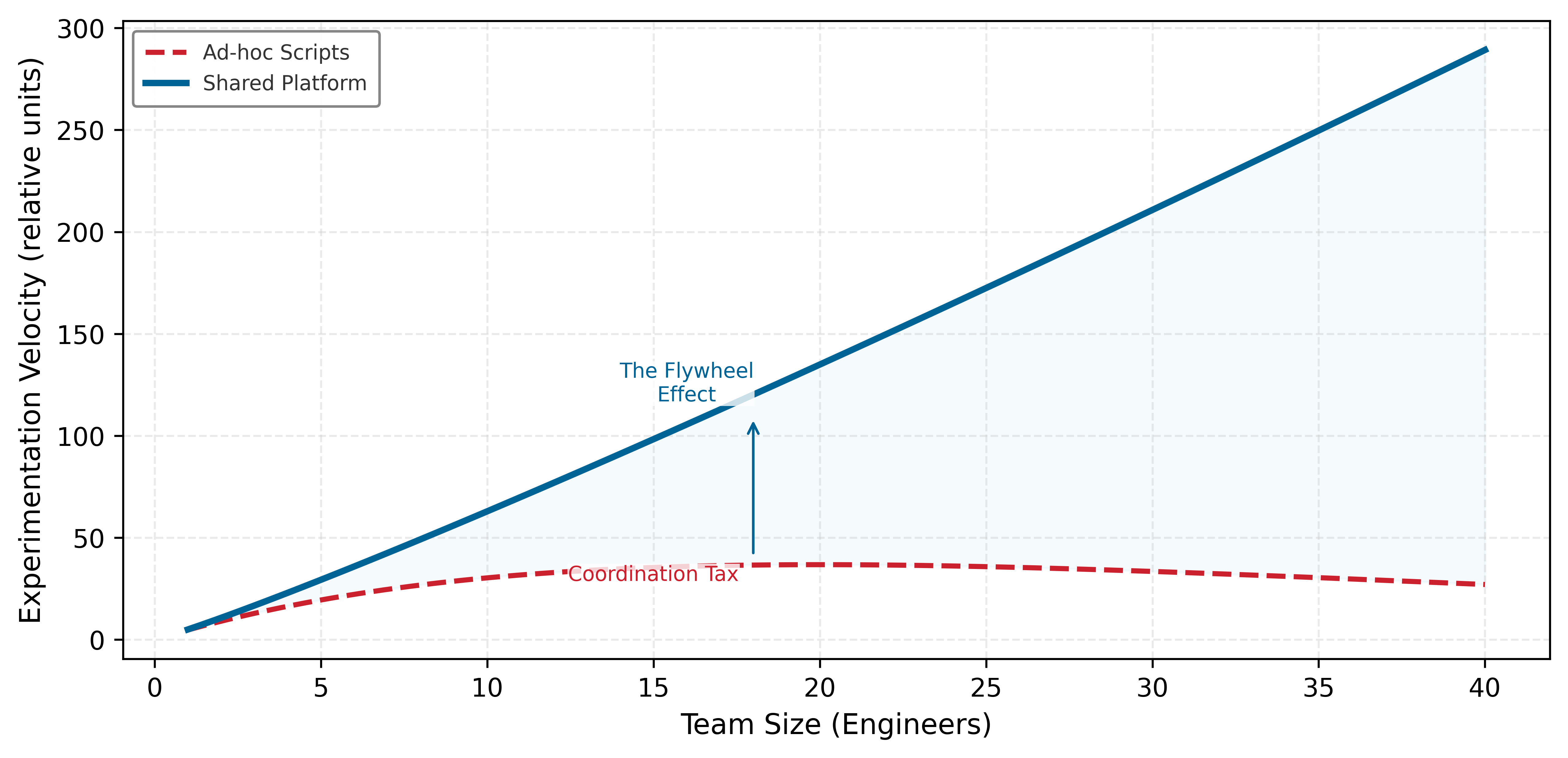

Figure 6: Workflow Automation Returns: Why infrastructure investment yields outsized returns. Ad-hoc scripts (red) scale linearly with team size but eventually saturate due to the coordination tax. In contrast, a shared workflow platform (blue) enables the Flywheel Effect, where shared components allow experimentation velocity to scale super-linearly. Axes are in relative units.

The two curves in figure 6 encode different scaling laws rooted in coordination cost. The red curve saturates because every additional engineer in a manual workflow must synchronize with every existing engineer: sharing data splits, resolving experiment conflicts, and reconciling notebook versions. This coordination overhead grows combinatorially with team size, so beyond a threshold the marginal engineer adds more synchronization burden than experimental throughput. The blue curve escapes this ceiling because a shared platform absorbs coordination into infrastructure: reusable preprocessing components eliminate duplicate work, a versioned experiment tracker prevents conflicting runs, and an automated pipeline scheduler removes manual handoffs. Each new engineer inherits the full platform rather than negotiating with every colleague, which is why experimentation velocity scales super-linearly with team size. The widening gap between the two curves represents the cumulative return on infrastructure investment, and it explains why organizations that defer platform work face a compounding disadvantage as their teams grow.

Reproducibility and technical debt

The flywheel effect accelerates experimentation—but rapid iteration creates a hidden liability. If experiments are not reproducible, the team cannot reliably distinguish genuine improvements from noise, and the codebase accumulates technical debt²³ that compounds with every unreproducible result.

²³ ML Artifact Interdependence: The “technical debt” accumulated from rapid iteration compounds because ML artifacts are deeply interdependent: a model’s accuracy is valid only for the specific data version, preprocessing pipeline, and hyperparameter configuration that produced it. Changing any single artifact can invalidate all downstream results. Without lineage tracking, the team cannot distinguish whether a 2 percent accuracy regression stems from a code change, a data change, or a random seed difference, forcing expensive re-runs of experiments whose provenance is lost.

Reproducing ML results is harder than reproducing traditional software because the “source code” includes data versions, random seeds, hardware configurations, and library versions, not just program logic. A training run that achieves 97 percent accuracy on one GPU may yield 95 percent on another due to nondeterministic floating-point operations, and the team cannot diagnose whether a 2 percentage-point improvement came from a genuine architectural insight or a lucky random seed. Systematic experiment tracking (unique run identifiers, automated artifact versioning, and queryable experiment databases) transforms this chaos into scientific methodology and limits technical debt. Experiment-tracking systems such as MLflow and Weights & Biases track the lineage between artifacts (data version, code commit, hyperparameters, resulting model), enabling teams to reconstruct the exact differences between run 47 and run 48 months after the experiments completed.

The cost of neglecting reproducibility is economic, not just scientific. Teams that cannot reproduce a result waste cycles re-running experiments that may or may not converge to the same outcome. At scale, where individual training runs cost hundreds to thousands of dollars, this waste compounds rapidly. Investment in reproducibility infrastructure (versioned environments, deterministic pipelines, automated checkpointing) pays for itself within the first few experiment cycles by eliminating redundant computation and enabling confident architectural decisions.

Reproducible, optimized models are necessary but not sufficient. A model that achieves expert-level accuracy on curated research data may still fail in production. The next stage subjects these trained artifacts to systematic testing against the conditions they will actually encounter.

Self-Check: Question

1. The DR team must choose between (i) a dense ResNet-152 variant requiring roughly 11 GFLOPs per inference on the retinal image, or (ii) a MobileNetV2-style architecture using depthwise separable convolutions that requires roughly 300 MFLOPs per inference. Both meet the sensitivity floor. Under the chapter’s iron-law framing, which statement correctly describes how the choice changes the Operations (\(O\)) term and what that implies for edge deployment?

   1. Both architectures set the same \(O\), because both must satisfy the same sensitivity target; the choice only changes training time, not inference operations.
   2. Choice (i) sets a ~37\(\times\) higher \(O\) than choice (ii), and since edge hardware caps the product \(R_{\text{peak}} \times \eta_{\text{hw}}\), only the MobileNetV2-style architecture fits inside the <50 ms inference latency budget — which is why Model Development is where \(O\) is set, not merely measured.
   3. Choice (ii) sets a higher \(O\) because depthwise separable convolutions require more operations per parameter than standard convolutions, so dense architectures are preferred on edge hardware.
   4. The \(O\) term is determined by Data Collection rather than Model Development, so the architecture choice is a separate concern from the iron law’s compute term.

2. Explain why a competition-winning 50-model ensemble may be a poor choice for edge-deployed DR screening even if it improves accuracy, using the Netflix Prize case as a reference point.

3. Which deliverable best matches the chapter’s idea of a reproducible system artifact, and why are the alternatives insufficient?

   1. The model weights alone, because preprocessing and dependencies can be recreated from the training script later if needed.
   2. The trained weights plus inference code, environment specification (Docker image or locked dependency graph), and runtime configuration — the full bundle needed to reproduce execution on a fresh machine.
   3. A performance report and a test-set score, because those are the artifacts deployment engineers actually consume.
   4. A compressed checkpoint plus a slide deck describing the architecture search process, because architecture provenance is what downstream teams need most.

4. A team chooses a lightweight model that starts five percentage points below a larger model but retrains in one hour instead of one week. Based on the chapter’s Iteration Tax analysis, why might this still be the better systems choice over a six-month development window?

   1. Because smaller models always achieve higher final accuracy than larger ones once both have stopped improving.
   2. Because the iteration budget is tens-to-hundreds of experiments at one-hour cycles versus ~26 at one-week cycles; each additional experiment compounds improvements across data, preprocessing, and hyperparameters, and the compound effect of roughly 100 effective iterations can overtake a better starting point.
   3. Because long training cycles eliminate the need for validation and monitoring, so the larger model accumulates hidden technical debt.
   4. Because edge-compatible models remove the need for any later deployment optimization, so iteration is the only remaining dimension to optimize.

5. A DR team’s validation accuracy drops two percent between run 47 and run 48. Nobody can tell whether the regression came from a code change, a data version bump, a different random seed, or a framework upgrade, so they spend three weeks re-running experiments to bisect. Explain why artifact lineage would have changed the diagnostic cost and what a lineage record actually links together.

6. Why does a growing ML team often need a shared platform rather than continuing with spreadsheets and notebooks that worked during prototyping, and how does the MLOps flywheel change the scaling curve?

See Answers →

Evaluation and Validation

The DR team’s model achieves an AUC of 0.99 on the curated research dataset—matching the best ophthalmologists. Then they test it on images from a rural clinic in Chiang Mai where a technician with two weeks of training operates a five-year-old fundus camera. Sensitivity drops to 78 percent. The model has not failed in any algorithmic sense; it has simply never seen images this blurry, this poorly lit, or this inconsistently framed. Laboratory success does not guarantee production value, and the gap between the two is where many ML projects fail. Before deployment, trained models must undergo rigorous evaluation and validation to confirm they meet performance requirements across the diverse conditions encountered in production. This stage bridges model development and deployment, transforming experimental artifacts into production-ready systems through systematic testing against predefined metrics, edge cases, and real-world scenarios.

Production validation is a gate: field sensitivity below the required floor fails deployment.

Evaluation and validation address different questions. Evaluation measures model performance against held-out test data using metrics established during problem definition. Validation confirms that the model generalizes appropriately to conditions it will encounter in production, including edge cases, distribution shifts, and unusual input conditions. Together these processes establish the evidence base required for deployment decisions and define validation as a risk-management discipline.

Definition 1.2: Model validation

Model Validation is the gate that determines whether a trained model is safe to deploy by testing it against the full constraint surface of the deployment environment: latency targets, subgroup performance targets, cost budgets, and robustness under distribution shift.

1. Significance: Validation adds dimensions that test-set accuracy ignores. A model achieving 95 percent accuracy on a static test set may miss a 100 ms latency target on its slowest requests, underperform a required subgroup threshold such as a maximum five percentage-point performance gap across demographic groups, or lose more than ten percentage points of accuracy under common image-quality problems such as blur and glare. Each unchecked dimension is a deployment risk that compounds silently in production.
2. Distinction: Unlike model evaluation (which measures accuracy on a held-out test set drawn from the same distribution as training), model validation tests the model against the full constraint surface of the deployment environment: latency, throughput, subgroup reliability, robustness, and cost.
3. Common pitfall: A frequent misconception is that validation is “one more test.” In reality, it is a multi-dimensional gate: a model can pass the accuracy test and still fail validation because it violates latency, subgroup reliability, or cost constraints that accuracy alone does not measure.

Evaluation metrics and thresholds

Effective evaluation begins with metrics that align with problem definition objectives. For our DR screening system, standard classification metrics like accuracy prove insufficient. Clinical requirements demand specific sensitivity and specificity thresholds: sensitivity above 90 percent ensures few cases of disease-causing retinopathy are missed, while specificity above 80 percent prevents overwhelming referral systems with false positives.

Beyond aggregate metrics, stratified evaluation reveals performance variations across patient subgroups. A model achieving 94 percent overall accuracy might drop below 80 percent for patients with specific comorbidities, particular age groups, or images captured under certain lighting conditions. These disparities, invisible in aggregate metrics, become critical in production where every patient deserves reliable predictions. Benchmarking provides systematic treatment of these evaluation methodologies.

Evaluation must also address calibration²⁴: whether a predicted 80 percent confidence corresponds to 80 percent observed correctness. Poorly calibrated models undermine clinical trust even when accuracy metrics appear strong. Clinicians relying on confidence scores for triage decisions need those scores to reflect true uncertainty.

²⁴ Calibration: A calibrated model’s predicted probabilities match observed frequencies: 80 percent confidence should correspond to 80 percent correctness. Calibration is distinct from accuracy, and the systems consequence for the DR system is severe: clinicians use confidence scores for triage decisions, so a miscalibrated model that assigns 90 percent confidence to uncertain cases misdirects clinical workflows more dangerously than a less accurate but well-calibrated alternative. Platt scaling and temperature scaling correct calibration posttraining.

Offline and online evaluation

The validation gate begins offline and then moves progressively closer to production. Offline evaluation on held-out test sets establishes baseline performance but cannot predict production behavior. Online evaluation deploys models in controlled production conditions through staged rollout²⁵: shadow mode runs the model to make predictions but does not serve them to users, canary deployment routes a small percentage of traffic to test production behavior, and A/B testing provides statistical comparison against the baseline with larger traffic volumes. This staged rollout meaning is separate from the cross-tier compression pattern called progressive deployment in ML Systems; here the emphasis is validation risk, not producing smaller model variants.

²⁵ Staged Rollout: Shadow mode runs the new model in parallel, logging predictions without serving them; canary deployment (named after coal-mine canaries) then exposes 1–5 percent of traffic, increasing gradually if metrics hold. This staged approach catches 70–80 percent of production issues before full rollout, a critical safeguard because ML failures are statistical (degraded accuracy) rather than functional (crashes), making them invisible to traditional health checks. ML Operations details implementation strategies.

Each validation stage catches a different class of failure, as table 4 summarizes.

Table 4: Staged Validation Coverage: Each deployment stage surfaces a distinct class of failure, so the stages are complementary rather than redundant.

Validation stage	Failure mode it catches
Offline evaluation	Algorithmic issues
Shadow mode	Integration issues
Canary deployment	Scaling issues
A/B testing	User-facing issues

Teams should plan for this staged validation workflow from the beginning, because retrofitting staged rollout to an already-deployed system proves more difficult than building it into the original deployment architecture.

Production-condition validation

After staged evaluation establishes basic behavior, production-condition validation tests whether the model survives the specific environment named during problem definition. This process reveals failure modes that standard evaluation cannot detect, and its three checks move outward in scope: from the sites a model meets at deployment, to the individual inputs it sees at inference, to the slow drift of the world it operates in.

Cross-validation across data sources addresses the site-level question of whether the model has learned generalizable patterns or overfit to characteristics specific to training data sources. A DR model trained primarily on images from high-quality research cameras must demonstrate robust performance on images from the diverse equipment deployed across clinic networks. Validation datasets should include images from equipment manufacturers, lighting conditions, and operator skill levels representative of actual deployment contexts.

Even within a single validated site, individual inputs vary, so robustness testing narrows the lens to the single inference, subjecting models to realistic perturbations and edge cases. For image-based systems, this includes testing with varying brightness, contrast, focus quality, and partial occlusions. In our DR example, teams discover that models optimized for research-quality images may fail on images captured by technicians with minimal training, requiring preprocessing pipelines that normalize image quality before inference.

A model that passes both checks today can still fail next year, which is why temporal validation extends the horizon, assessing whether models maintain performance over time. Data distributions shift as patient populations change, equipment ages, and clinical practices evolve. Models validated only on historical data may degrade unexpectedly when deployed. This includes data or covariate drift when the input distribution changes, and concept drift when the relationship between inputs and labels changes; both motivate the continuous monitoring discussed in section 1.8.

Regulatory validation

Healthcare AI systems face additional validation requirements mandated by regulatory frameworks. FDA clearance for medical devices requires demonstration of safety and effectiveness through clinical validation studies with appropriate sample sizes and statistical rigor²⁶. These requirements influence the entire development process, from study design through documentation practices.

²⁶ FDA AI/ML Regulation: The FDA regulates AI/ML-based medical devices under its Software as a Medical Device (SaMD) framework. The FDA’s 2021 AI/ML SaMD Action Plan identified lifecycle management, real-world performance monitoring, and predetermined change control planning as central issues for adaptive medical-device software (U.S. Food and Drug Administration 2021). This regulatory architecture directly constrains ML workflow design by requiring versioned model artifacts, reproducible training pipelines, and audit trails at every lifecycle stage, turning regulatory compliance into a first-class engineering requirement.

U.S. Food and Drug Administration. 2021. Artificial Intelligence/Machine Learning (AI/ML)-Based Software as a Medical Device (SaMD) Action Plan. U.S. Department of Health; Human Services.

Domain-specific validation goes beyond regulatory compliance to address stakeholder requirements. Clinical validation studies in our DR example involve deploying the system alongside expert graders and comparing predictions against ground truth established by consensus panels of ophthalmologists. These studies must demonstrate comparable accuracy and acceptable failure modes: systems that fail safely (referring uncertain cases to specialists) receive more clinical trust than those that fail silently.

Human factors validation assesses how clinicians interact with system predictions and whether the overall workflow achieves intended outcomes. A technically accurate model that clinicians distrust or misuse fails to deliver clinical value. Validation studies should measure end-to-end workflow outcomes (clinician confidence, referral appropriateness, and patient satisfaction) alongside model performance metrics.

Deployment readiness

Successful validation produces the evidence package for deployment decisions: documentation covering performance across relevant metrics and subgroups, characterization of failure modes and their frequencies, validated preprocessing and inference pipelines, and evidence of regulatory compliance where required. The transition from validation to deployment represents a decision point where teams assess whether accumulated evidence supports production release. This decision balances technical performance metrics, operational readiness, regulatory status, and organizational capacity for monitoring and maintenance. Incomplete validation creates deployment risks that compound throughout the system lifecycle.

Validation failures drive model architecture revisions, training data augmentation, and preprocessing pipeline improvements. Validation successes establish the performance baselines and monitoring thresholds that guide production operations. Once a model clears this gate, with documented evidence across metrics, subgroups, and failure modes, it is ready to leave the laboratory and enter the operating environment it was designed for. The central issue shifts from laboratory performance to whether the system can operate reliably in its target environment.

Self-Check: Question

1. What is the most important distinction between evaluation and validation in this section, and why are the alternative framings insufficient?

   1. Evaluation measures performance on held-out data using metrics fixed at Problem Definition; validation confirms the model meets business, robustness, and efficiency constraints under production-representative conditions — different questions, different evidence, different artifacts.
   2. Evaluation is done by researchers and validation is done by regulators, so the distinction is primarily about organizational responsibility.
   3. Evaluation focuses on inference latency while validation focuses on training efficiency, so the two cover different performance dimensions.
   4. Evaluation uses deterministic tests and validation avoids metrics because production is too uncertain to quantify.

2. A DR model reports 94 percent overall accuracy but sensitivity drops below 80 percent for patients with cataracts and below the 90 percent sensitivity floor for one demographic subgroup. How should the section’s framework interpret this, and which mitigations are inadequate?

   1. The model is ready, because aggregate accuracy dominates subgroup metrics in screening systems.
   2. The model passes if calibration is good enough, because calibration compensates for subgroup underperformance.
   3. The model has a serious validation problem: aggregate metrics hide subgroup failures that violate clinical safety thresholds set at Problem Definition, and stratified evaluation exists precisely to surface them before deployment.
   4. The model should skip offline analysis and move directly to A/B testing, because production traffic will reveal whether clinicians notice the subgroup gap.

3. Explain why a DR model with AUC 0.99 on a curated research dataset can still be unready for medical screening deployment.

4. Which sequence best reflects the section’s progressive-deployment logic for online validation, and why does the ordering matter?

   1. A/B testing, then canary deployment, then shadow mode — exposing users first so real-world signal arrives quickly.
   2. Shadow mode (no user impact, catches integration issues), then canary deployment (1–5 percent of traffic, catches scaling issues), then broader A/B testing (statistical comparison against baseline) — each stage catches failure modes the prior stage cannot reveal.
   3. Full deployment first, then shadow mode, then rollback if any issues emerge.
   4. Canary deployment, then offline evaluation, then shadow mode, because offline evaluation is the final safety net after live traffic.

5. True or False: If a DR model matches lab performance on a held-out test set drawn from the same research pipeline, that is usually strong evidence the model will behave similarly after deployment to clinics using different cameras and operators.

See Answers →

Deployment and Integration

A model that passes every validation test in the lab still faces its hardest exam when it meets the real world. Consider the DR system: a validated model must now run on tablets in rural clinics with intermittent connectivity, integrate with hospital information systems it was never tested against, and produce results that clinicians trust enough to act on, all within latency budgets that leave no room for cloud round-trips. Deployment is where the abstract constraints specified during problem definition become concrete engineering requirements. In iron law terms, this stage focuses on minimizing the Overhead \((L_{\text{lat}})\) term through efficient serving infrastructure, and the binding constraint varies by archetype: ResNet-50-class vision workloads use batching to improve throughput, DLRM-class recommendation workloads enforce strict latency targets, and TinyML-class audio workloads operate under severe energy budgets (table 2). ML Operations covers the operational aspects of deployment and maintenance in depth.

Deployment requirements

The requirements for deployment stem from both the technical specifications of the model and the operational constraints of its intended environment. In our DR example, the model must operate in rural clinics with limited computational resources and intermittent internet connectivity, while automated quality checks flag poor-quality images for recapture. It must fit into the existing clinical workflow, requiring rapid, interpretable results that assist healthcare providers without causing disruption.

These requirements influence deployment strategies. The edge deployment decision established during data collection (driven by the bandwidth constraints quantified in the Bandwidth vs. Compute exercise) now determines the optimization targets: tight model size, latency, and memory budgets that the systematic compression techniques in Model Compression must satisfy. Once compressed, the model must be served efficiently under latency and throughput constraints; Model Serving addresses the serving infrastructure that bridges optimized models and production traffic. A cost comparison makes these deployment trade-offs concrete.

Napkin Math 1.3: Cloud vs. edge deployment economics

Problem: A production model processes about 760,000 billable screening images per month across 500 clinics, assuming one processed image per patient after local selection and quality checks. Should the deployment use a cloud inference endpoint or edge inference on an on-premises server?

Option A: Cloud inference.

• Model runs on centralized GPU servers
• Inference cost: ~$0.01/image (cloud GPU time + API overhead)
• Annual inference cost across 500 clinics, 50 patients/day, 1 billable image per patient, 365 days/year, and $0.01/image per image is $91,250/year
• Plus: Network costs for uploading 5 MB per billable image = ~$45,000/year
• Total: ~$136,250/year operational cost
• Risk: 200 ms+ breaks clinical workflow; connectivity outages halt screening

Option B: Edge deployment on a clinic device.

• One-time hardware: one $500/device device per clinic across 500 clinics requires $250,000 capital expense
• Inference cost: ~$0.001/image (electricity only)
• Annual cost: approximately $25,000/year maintenance plus approximately $9,125/year inference electricity, for about $34,125/year
• Total: $250,000 upfront + ~$34,125/year
• Benefit: latency below 50 ms; works offline; much lower per-inference cost

Systems insight: Edge deployment pays back in ~2.4 years and provides better reliability, yet it requires tighter model optimization (must fit in edge memory) and more complex update pipelines. The deployment paradigm selected during Problem Definition determines whether the edge option is even viable.

Cloud and edge lifetime costs cross as scale grows.

Integration with existing systems poses additional challenges. The ML system must interface with hospital information systems (HIS) for accessing patient records and storing results. HIS integration for a probabilistic ML model differs fundamentally from integrating a deterministic sensor: rather than storing a single crisp value like a blood pressure reading, the system must communicate confidence scores and uncertainty estimates that the HIS can display and that clinicians can act on. A confidence threshold that triggers automatic referral versus one that queues for physician review must be encoded in the interface contract from day one, not retrofitted after deployment. Privacy regulations add a further ML-specific constraint: HIPAA and analogous frameworks govern not only secure storage and transmission but also whether production inferences can be retained, re-associated with patient records, and legally fed back into the continuous retraining loop. A regulatory architecture that prohibits retaining inference outputs severs the feedback path that post-deployment accuracy improvement depends on, making privacy compliance a constraint on the model update pipeline, not just on data transit. ML Operations details operational considerations that apply to these deployments.

Pilot to full deployment

Deployment proceeds through phases that progressively expose the system to real-world complexity, because each phase catches different failure modes. Simulated environments catch integration issues before any real users are affected. Pilot sites reveal real-world variability invisible in simulation: equipment differences, operator skill levels, patient population diversity. Full deployment exposes the long tail of the input distribution, including image artifacts, lighting conditions, and rare clinical presentations that the training set and pilot sites never encountered. These tail conditions are precisely where the model is least reliable, because the training distribution cannot capture what it has never seen.

Scaling across multiple sites compounds these challenges. Each clinic presents unique constraints (different imaging equipment, varying network reliability, diverse operator expertise levels, and distinct workflow patterns), creating data quality inconsistencies that force preprocessing adjustments no pilot could have anticipated. The deployment paradigm itself constrains solutions: edge deployment minimizes latency but imposes strict model complexity limits, while cloud deployment enables flexibility but introduces network latency that may violate clinical workflow requirements.

Successful deployment requires more than technical optimization. Clinician trust depends on model calibration and explainability, not just aggregate accuracy: a clinician who cannot assess when the model is uncertain cannot know when to override it. Robust operation therefore requires human-in-the-loop routing, where the system automatically escalates predictions below a safe confidence threshold to a specialist rather than presenting them as actionable results. Reliability mechanisms such as automated image quality checks, this confidence-based routing, and stress testing for peak volumes keep systems operating safely across conditions.

Managing improvements across distributed deployments requires centralized version control and automated update pipelines. Deployment feedback (usability concerns, performance regressions, integration surprises) shapes the monitoring strategies that keep the system healthy over time. Deployment is not an endpoint but a transition into continuous operations, where the system’s behavior must be watched as carefully as any patient it screens.

Self-Check: Question

1. A DR screening deployment must complete end-to-end inference in under 100 ms on a tablet in a rural clinic, but profiling shows each request spends 15 ms in the model, 60 ms in a cloud round-trip for auxiliary features, and 40 ms in serialization and integration with the hospital information system — 115 ms total. Which engineering action most directly reduces the iron law’s fixed overhead (\(L_{\text{lat}}\)) term, and why are the alternatives less effective?

   1. Replace the model with a 2\(\times\) larger one to improve accuracy, because Deployment and Integration is primarily about accuracy, not latency.
   2. Cache auxiliary features locally so the cloud round-trip is replaced by an on-device lookup, because \(L_{\text{lat}}\) is the sum of per-request fixed overheads (network, serialization, integration) that Deployment and Integration is explicitly responsible for minimizing.
   3. Collect more training data to improve the model’s accuracy on clinic images, because better accuracy will reduce the number of requests that hit the SLO budget.
   4. Switch from the edge to a cloud-only architecture to centralize compute, because centralization always lowers \(L_{\text{lat}}\).

2. For a DR system serving rural clinics with intermittent connectivity, what is the strongest argument the section gives for edge deployment over cloud-only deployment, and what does the answer NOT claim?

   1. Edge deployment removes the need for model compression and update pipelines entirely.
   2. Cloud-only systems cannot integrate with hospital information systems under any conditions.
   3. Edge deployment can pay back economically across clinics while simultaneously reducing latency and preserving operation during network outages — an operational fit forced by connectivity and SLA physics, not a superiority claim about accuracy.
   4. Edge deployment guarantees higher diagnostic accuracy than centralized inference because local models train on local data.

3. Explain why passing validation in the lab is still not sufficient to ensure successful deployment, even for a model that has cleared every stratified metric and robustness check.

4. Why does the section recommend phased rollout from simulation to pilot sites to full deployment?

   1. Because each phase exposes a different class of failure — simulation catches integration bugs, pilots catch real-world heterogeneity (equipment, operators, patient populations), and full deployment catches scale-specific problems (contention, rare edge cases) — so skipping a phase exports its failure class into a more expensive stage.
   2. Because pilot deployments are mainly used to improve benchmark scores before the final validation gate.
   3. Because full deployment should occur before users provide feedback on the interface, so the pilot is a formality.
   4. Because simulation environments are usually better than production for measuring network and storage bottlenecks, so real deployment is a confirmation step.

See Answers →

Monitoring and Maintenance

Six months after the DR screening system launches, a clinic in northern Thailand upgrades its fundus cameras. The new equipment produces sharper images with slightly different color profiles—an improvement by any clinical measure. Yet the model’s sensitivity drops by 8 percent at that site, because the pixel distributions it learned during training no longer match the images it receives. No code changed. No one made an error. The data simply drifted beyond the training envelope, and the model degraded silently. Traditional software maintains static behavior until explicitly updated; ML systems degrade through data drift even when untouched. This structural difference means that deployment is not the end of the lifecycle but the beginning of an ongoing operational phase. Monitoring provides the statistical telemetry to detect degradation; maintenance ensures the system evolves in response. ML Operations develops these operational practices in full.

For the DR screening system, monitoring tracks performance across hundreds of clinics, detecting when changing patient demographics, new imaging technologies, or equipment degradation affect accuracy. Proactive maintenance plans for incorporating new imaging modalities like OCT, expanding diagnostic capabilities while maintaining regulatory compliance. Three feedback pathways drive continuous improvement: performance insights flow back to data collection (identifying underrepresented demographics), data quality issues trigger preparation refinements (catching equipment-specific artifacts), and model updates initiate retraining when drift exceeds thresholds.

Production monitoring

Monitoring must serve two audiences simultaneously: technical teams tracking system health metrics and clinical staff needing actionable insights. Initial deployment typically reveals blind spots invisible during laboratory validation²⁷. Clinics with older equipment show accuracy decreases. Specific patient subgroups, such as those with proliferative retinopathy or cataracts complicating the fundus image, trigger higher error rates. These discoveries drive targeted data collection and architectural improvements.

²⁷ Lab-to-Clinic Performance Gap: Medical AI systems can experience substantial performance drops when deployed in real-world settings, sometimes in the double-digit percentage-point range when camera models, image quality, patient populations, or operator workflows differ from development data. The gap arises because training data cannot capture the full diversity of production conditions. FDA has emphasized total product lifecycle oversight and real-world performance monitoring for AI/ML-enabled medical devices, and device submissions may need evidence appropriate to the product’s intended use and risk. For ML systems engineers, this means monitoring infrastructure should be a deployment prerequisite, not a postlaunch addition.

²⁸ PSI and KS Test: Two lightweight statistical methods for detecting distribution drift. PSI bins features and computes divergence (PSI < 0.1: stable, 0.1–0.2: moderate drift, >0.2: significant drift). The KS test measures maximum distance between cumulative distributions in \(\mathcal{O}(n \log n)\) time. Both are computationally cheap enough for real-time monitoring, which is the critical systems property: detecting drift days or weeks before it degrades model accuracy allows proactive retraining rather than reactive incident response, and ML Operations covers drift detection pipelines in depth.

A DR screening system, where missed diagnoses cause blindness, demands real-time monitoring, not periodic offline evaluations. Teams establish quantitative performance thresholds for latency, accuracy, and data distribution stability. Lightweight statistical tests such as Population Stability Index (PSI) and Kolmogorov-Smirnov (KS) tests²⁸ can trigger automated responses ranging from on-call alerts to retraining workflows; ML Operations develops the monitoring pipelines around these tests.

A production DR system tracks four metric categories, each calibrated to catch problems at a different timescale:

• Model performance metrics (requiring ground truth, available with delay): sensitivity (target above 90 percent, alert if seven-day rolling average drops below 88 percent), specificity (target above 80 percent, alert if it drops below 78 percent), and subgroup performance (alert if any demographic drops more than 5 percent below baseline).
• Proxy metrics (available immediately, without ground truth): prediction confidence distribution (alert if mean confidence drops >10 percent), referral rate (alert if rate changes >15 percent from baseline), and image quality rejection rate (alert if >20 percent of images fail quality checks).
• Operational metrics: Inference latency (P95 below 50 ms, alert if above 100 ms), throughput (alert if queue depth exceeds 50 images), and error rate (alert if more than 0.1 percent of requests fail).
• Data stability metrics: Feature and prediction distributions compared with a baseline, with alerts when recent traffic moves outside the expected range.

The hierarchy matters: operational metrics catch immediate problems (seconds), proxy metrics catch model issues without waiting for ground truth (hours), and performance metrics catch accuracy degradation requiring labeled data (weeks).

Maintenance at scale

Model updates require careful validation and controlled rollouts. Teams employ A/B testing frameworks to evaluate updates and implement rollback mechanisms²⁹ that address issues quickly. Unlike traditional software where CI/CD handles changes deterministically, ML systems must account for data evolution that affects behavior in ways traditional pipelines were not designed to handle.

²⁹ ML Rollback Complexity: Unlike traditional software, an ML model’s validity is coupled to the data distribution on which it was trained, not just its code. “Data evolution” means a simple rollback restores a model artifact but cannot restore the past data environment, creating a temporal state mismatch. Even a sub-60-second rollback is therefore a mitigation tactic, not a true system restore, as the stale model’s performance on live data is not guaranteed.

³⁰ Data Lineage: The automated recording of metadata linking each clinic’s production logs to the exact data, code, and model version that generated them. Without this explicit trail, correlating a site-specific accuracy drop with a training experiment requires a manual forensic analysis across hundreds of gigabytes of logs, turning a minutes-long metadata query into a multi-week engineering task.

Scaling from pilot sites to hundreds of clinics causes monitoring complexity to grow rapidly. Each additional clinic generates operational logs (inference times, quality metrics, error rates), creating data volumes reaching hundreds of gigabytes per week. The monitoring infrastructure must track both global metrics and site-specific behaviors, maintain data lineage³⁰, the metadata trail linking production logs to data, code, and model versions, for regulatory compliance, and correlate production issues with training experiments for root cause analysis.

Proactive maintenance closes the lifecycle loop: predictive models identify potential problems from operational patterns, scheduled or drift-triggered retraining pipelines incorporate newly validated data, and production insights feed back to refine problem definitions, data quality standards, and architectural decisions. The patterns underlying these dynamics (why constraints propagate, why feedback operates at multiple timescales, and why system-level behavior diverges from component-level behavior) are the subject of section 1.9.

Self-Check: Question

1. Why does this chapter treat deployment as the beginning of the feedback loop rather than the end of the lifecycle?

   1. Because once deployed, most ML systems become deterministic and can be maintained like ordinary software.
   2. Because production data can drift silently — the Thailand camera upgrade drops sensitivity eight percent without any code change — so the system must be monitored and updated continuously; the statistical contract between the model and its inputs is dynamic in a way traditional software’s contract is not.
   3. Because post-deployment issues are usually caused only by bugs in monitoring dashboards, so the engineering focus shifts to dashboard reliability.
   4. Because validation metrics become less useful than live throughput numbers after launch, so monitoring replaces evaluation.

2. Which monitoring signal is most useful for catching a possible model problem quickly when ground-truth labels are not yet available, and what makes the alternatives too slow or too stale?

   1. Seven-day sensitivity measured from adjudicated outcomes.
   2. Prediction-confidence distribution or referral-rate shifts, because proxy metrics surface statistical changes within hours — before labels arrive — which is the exact window the section says other signals cannot cover.
   3. Quarterly fairness audit reports.
   4. AUC computed from the original research validation set.

3. Explain why production monitoring uses a hierarchy of operational, proxy, and performance metrics rather than relying on a single metric class.

4. Why is rollback more complicated for ML systems than for traditional software systems?

   1. Because restoring an older model artifact does not restore the past data distribution it was trained for — the code can be version-controlled, but the live data environment has already moved on, so the rolled-back model may behave worse than the failing new one on current inputs.
   2. Because ML serving stacks do not support version control for models.
   3. Because only online-trained models can be rolled back safely.
   4. Because latency increases make model versions impossible to switch under load.

5. A rural clinic’s DR sensitivity drops five percent overnight with no code deploy. Hundreds of gigabytes of production logs exist, but the team cannot tell whether the cause is a preprocessing change from three weeks ago, a dataset version bump, a model retrain, or the clinic’s recent camera upgrade. Explain how a data-lineage record would change the root-cause analysis from a multi-week forensic effort into a tractable query, and identify what the lineage metadata must link.

See Answers →

Systems Thinking

The DR case study showed the lifecycle acting as a coupled system: bandwidth limits drove edge deployment, edge deployment constrained model size, and model size reshaped preprocessing. Three structural patterns explain that cascade. Recognizing them transforms reactive debugging about deployment failure into proactive design that surfaces downstream constraints early.

Constraint propagation principle

Late-discovered constraints trigger exponential rework.

The DR case study illustrated constraint propagation repeatedly: bandwidth limits drove edge deployment, which constrained model size, which reshaped data preprocessing. Each decision narrowed the feasible design space for every subsequent stage. This narrowing gives the pattern its name.

Definition 1.3: The constraint propagation principle

The Constraint Propagation Principle states that, in the ML lifecycle, a constraint discovered at a late stage propagates backward through all earlier stages, and the cost of correction grows roughly exponentially with the number of stages traversed.

1. Significance: A 100 ms latency target discovered at deployment (stage 5) propagates backward to constrain model size (stage 3: algorithm complexity \(O\)), which constrains dataset requirements (stage 2: dataset size \(D\)), which constrains problem definition (stage 1: what accuracy is achievable). Each backward step multiplies the rework cost because decisions at each stage were made without the constraint that is now imposed. Within the iron law, a deployment constraint on \(L_{\text{lat}}\) or \(R_{\text{peak}}\) redefines the feasible region for \(O\), \(D_{\text{vol}}\), and \(\eta_{\text{hw}}\) at every earlier stage.
2. Distinction: Unlike modular decomposition (which encourages independent optimization of each component), this principle mandates end-to-end reasoning: optimizing accuracy in isolation may produce a model that is infeasible to deploy, making the “local maximum” in accuracy a “global minimum” in system viability.
3. Common pitfall: A frequent misconception is that deployment is “the last step.” In reality, the deployment environment is the day-one constraint: its latency budget, memory capacity, and power envelope define the boundaries of every upstream decision.

Propagation operates bidirectionally, creating dynamic constraint networks rather than linear dependencies. When rural clinic deployment reveals tight bandwidth limitations, teams must redesign data preprocessing pipelines to reduce transmitted data by large factors. This requires model architectures optimized for compressed inputs, which influences training strategies that account for data degradation. Understanding these cascading relationships enables teams to make architectural decisions that accommodate rather than fight against systemic constraints.

The constraint propagation principle quantifies what experienced ML engineers know intuitively: decisions made in ignorance of downstream constraints create compounding technical debt³¹. The stage interface specification (table 3) operationalizes this principle by making constraints explicit at each stage boundary, aligning with the model, data, and infrastructure contract practices discussed in ML Operations. Those contracts enable early detection before propagation costs escalate. When propagation occurs specifically through data quality failures, the resulting pattern is known as a data cascade: a chain of downstream failures triggered by bad data (Sambasivan et al. 2021). Data Engineering formalizes this failure mode and traces how it unfolds stage by stage.

³¹ ML Technical Debt: ML systems accumulate debt faster than traditional software through mechanisms such as entanglement (changing one feature affects all others because the model learned joint distributions), hidden feedback loops (predictions influence future training data), and undeclared consumers (downstream systems depending on outputs without contracts) (Sculley et al. 2015). Since ML code is often only a small part of a production system, the surrounding configuration, pipelines, and infrastructure are where this debt compounds silently, explaining why late-discovered constraints propagate so expensively.

Sculley, D., Gary Holt, Daniel Golovin, Eugene Davydov, Todd Phillips, Dietmar Ebner, Vinay Chaudhary, Michael Young, Jean-François Crespo, and Dan Dennison. 2015. “Hidden Technical Debt in Machine Learning Systems.” Advances in Neural Information Processing Systems 28: 2503–11.

Sambasivan, Nithya, Shivani Kapania, Hannah Highfill, Diana Akrong, Praveen Paritosh, and Lora M Aroyo. 2021. “‘Everyone Wants to Do the Model Work, Not the Data Work’: Data Cascades in High-Stakes AI.” Proceedings of the 2021 CHI Conference on Human Factors in Computing Systems, 1–15. https://doi.org/10.1145/3411764.3445518.

Multi-scale feedback

ML systems succeed through orchestrating feedback loops across multiple timescales, each serving different optimization purposes. Our DR deployment exemplifies this pattern: minute-level loops catch a misconfigured camera before it produces a day’s worth of unusable images; daily loops detect proxy shifts such as referral-rate changes, confidence drops, rejection-rate spikes, or site-specific camera failures; weekly loops aggregate labeled accuracy statistics when ground truth is available and run drift detection tests; monthly loops reveal that demographic shifts in a region require expanded training data; and quarterly loops evaluate whether the overall architecture still meets evolving clinical needs.

Feedback loops span minutes to quarters across five orders of magnitude.

The temporal structure of these feedback loops reflects the inherent dynamics of ML systems. Rapid loops enable quick correction of operational issues—a clinic’s misconfigured camera can be detected and corrected within minutes. Slower loops enable strategic adaptation; recognizing that population demographic shifts require expanded training data takes months of monitoring to detect reliably. This multi-scale approach prevents both reactionary changes (over-responding to daily fluctuations) and sluggish adaptation (under-responding to meaningful trends). Concretely, fast iteration is not just a productivity metric; it is a systems feature that allows teams to discover better architectures and optimal hyperparameters an order of magnitude faster than competitors bound by slow, rigid pipelines.

Emergent complexity and resource trade-offs

Complex systems produce emergent behaviors invisible when analyzing individual components. In our DR deployment, individual clinics show stable performance, yet system-wide analysis detects subtle degradation affecting specific demographic groups—patterns invisible in single-site monitoring but critical for equitable healthcare delivery. ML systems are especially prone to this kind of probabilistic degradation through data drift and bias amplification, whereas traditional distributed systems more commonly fail through deterministic cascades like server crashes or resource exhaustion. The distinction matters because probabilistic degradation lacks the obvious error signals that trigger traditional incident response.

Resource optimization introduces multi-dimensional trade-offs that traditional software never faces. A 2 percent accuracy improvement might require doubling the model size, forcing deployment onto more powerful hardware; when multiplied across hundreds of clinics, that incremental accuracy gain translates into significant capital expenditure. These trade-offs manifest the power wall and memory wall from ML Systems: edge deployment reduces latency but constrains model complexity; cloud deployment enables flexibility but introduces network latency that may violate workflow requirements. Understanding these nonlinear relationships enables strategic architectural decisions rather than isolated component optimization.

Together, these three patterns (constraint propagation, multi-scale feedback, and emergent complexity with its attendant resource trade-offs) define the engineering discipline that transforms ML development from ad-hoc experimentation into systematic practice. A late-discovery scenario tests the most consequential pattern.

Checkpoint 1.3: The cost of late discovery

Apply the constraint propagation principle to this scenario:

A team discovers during monitoring (Stage 6) that their DR model fails for patients over 70 years old. This demographic requirement should have been specified at Problem Definition (Stage 1).

• Cost multiplier: Calculate the relative cost multiplier using the formula from the constraint propagation principle definition.
• Affected stages: Identify which intermediate stages must be revisited to fix this issue.
• Prevention rule: State the design rule that would have prevented this late-stage rework.

A discovery at monitoring, the final stage, carries the steepest multiplier of all, since the fix must propagate back through every stage that preceded it. These principles predict specific failure modes; the following fallacies and pitfalls capture the most common ways teams violate them.

Self-Check: Question

1. What does the Constraint Propagation Principle say about discovering an important constraint late in the lifecycle?

   1. Late constraints usually affect only the current stage, because earlier stages can be treated as modular.
   2. The correction cost grows roughly as \(2^{N_{\text{stage}}-1}\) times the base effort when discovery is delayed to stage \(N_{\text{stage}}\) — every stage the unmet constraint has traversed compounds the rework because artifacts produced downstream inherit the hidden violation.
   3. Only deployment constraints propagate backward; data and evaluation constraints do not.
   4. The main consequence is lower benchmark accuracy rather than broader system rework.

2. A demographic fairness requirement should have been specified in Problem Definition (stage 1) but is discovered only during Monitoring and Maintenance (stage 6). Using the section’s principle, quantify the cost multiplier and walk through which stages must likely be revisited.

3. Which example best illustrates the section’s idea of multi-scale feedback?

   1. Using one weekly report as the single source of truth for every operational and strategic decision.
   2. Separating workflows so short-term alerts never influence longer-term retraining plans.
   3. Combining minute-level operational fixes, weekly drift analysis, and quarterly architectural reviews to improve the same system at different timescales — each loop catches failures the others move too slowly or too quickly to see.
   4. Waiting for quarterly business reviews before responding to any model degradation, to avoid overfitting operations to short-term noise.

4. Why can system-wide behavior in a distributed ML deployment differ from what any single clinic or component appears to show locally?

   1. Because emergent complexity can reveal global demographic or drift patterns that are invisible in isolated local monitoring — cross-site aggregation surfaces population structure that any single site’s metrics average away.
   2. Because probabilistic systems eliminate the need for cross-site aggregation once local metrics look stable.
   3. Because only deterministic failures matter at scale; probabilistic degradation averages out across enough sites.
   4. Because resource trade-offs disappear when deployments are large enough to amortize hardware costs.

See Answers →

Fallacies and Pitfalls

ML workflows introduce counterintuitive complexities that lead teams to apply familiar software patterns to structurally different problems. These fallacies and pitfalls capture errors that waste development cycles, cause production failures, and create technical debt that compounds as systems scale.

Fallacy: ML development can follow traditional software workflows without modification.

Engineers assume waterfall or standard agile processes will work for ML projects. In production, ML replaces deterministic specifications with probabilistic optimization, static behavior with dynamic adaptation, and isolated development with continuous feedback loops (table 1). Traditional approaches treat requirements as fixed and testing as binary pass/fail, but ML systems require iterative experimentation where problem definitions evolve through exploration. Practitioner surveys consistently report data work, not modeling, as the dominant claim on practitioners’ time (section 1.1.1), and many ML initiatives struggle to reach production when rigid phase gates prevent teams from revisiting data, model, and deployment assumptions. Organizations that adapt workflows to accommodate ML’s experimental nature can reduce rework and shorten time-to-deployment.

Pitfall: Treating data preparation as a one-time preprocessing step.

Teams assume they can “finish” data preparation and move on to modeling. In production, data distributions shift continuously. The two-pipeline architecture in figure 1 shows data and model pipelines running in parallel with continuous feedback, not sequentially. As section 1.8 establishes, data quality decisions cascade through model training, validation, and deployment. Data quality issues are a common source of production ML failures. Recommendation systems, fraud models, and clinical models may all need feature, label, or preprocessing updates as the world changes, and unchecked drift can produce several-point accuracy losses or larger failures under training-serving skew. Without continuous validation, drift is often discovered only after users or operators notice degraded behavior; teams that build data validation pipelines from the start can detect drift earlier and retrain proactively.

Fallacy: Passing model evaluation means the system is ready for deployment.

Engineers treat the model development pipeline as the entire workflow, assuming strong evaluation metrics mean the system is complete. This is single-axis thinking. The two-pipeline architecture in figure 1 exposes the blind spot: this mindset ignores half the lifecycle—data pipeline feedback loops, deployment integration, and production monitoring remain unaddressed. The diabetic retinopathy screening case study (section 1.2.1) demonstrates the gap: the model passed evaluation but required additional validation to handle equipment variations across clinics, operator skill differences, and demographic diversity absent from curated development data. Evaluation metrics measure algorithm quality in isolation; production readiness requires verifying the complete system, including data freshness, preprocessing consistency, latency under load, and failure recovery. The constraint propagation principle (section 1.9.1) prices the oversight: every stage a discovery slips multiplies the correction effort. Teams that equate strong evaluation metrics with deployment readiness consistently underestimate the integration effort.

Pitfall: Scaling data collection before checking marginal model value.

Teams assume that scaling dataset size is the most reliable path to accuracy gains, treating data collection as a monotonically beneficial investment. In practice, returns diminish sharply after sufficient coverage of the target distribution. Doubling a dataset from 500K to 1M examples can easily produce less than 1 percentage point of accuracy gain while doubling labeling costs, storage requirements, and preprocessing time. The feedback loops in figure 1 illustrate why: model performance depends on the interaction between data quality, model capacity, and deployment conditions, not data volume alone. A 100K-example dataset with careful label quality control and balanced class representation can outperform a 1M-example dataset with noisy labels and skewed distributions. The Data Collection and Preparation stage (section 1.4) establishes that data quality decisions cascade through every subsequent stage. Teams should compare the marginal value of cleaning existing data against collecting more data.

Fallacy: Skipping validation stages accelerates delivery.

Teams assume cutting validation time ships faster. In production, the multi-stage validation process exists because each stage catches different failure modes (section 1.6). Skipping shadow mode testing can expose integration issues only after launch, including 10–50\(\times\) latency spikes under production traffic. Bypassing canary deployment can turn localized model failures into broad user-facing incidents. Postdeployment fixes are often 10–100\(\times\) more expensive than catching issues during validation, because they combine incident response, rollback, root-cause analysis, data repair, and renewed validation. A team that “saves” time by skipping validation may spend substantially more time on emergency remediation. Organizations investing in systematic validation infrastructure improve first-deployment success by catching production-condition failures earlier.

Pitfall: Deferring deployment paradigm selection until after model development.

Teams assume they can “figure out deployment later” and focus first on model accuracy. In production, deployment paradigm (Cloud, Edge, Mobile, TinyML) is not a late-stage detail; it is a binding constraint shaping every preceding stage (table 3). A team that develops a 2 GB ensemble model discovers their target is TinyML with 256 KB memory. The resulting cascade requires revisiting Data Collection, Model Development, and Evaluation. By the constraint propagation principle, a stage-5 discovery costs \(2^{4} = 16\times\) the effort of incorporating the constraint at stage 1. Teams that defer paradigm selection create avoidable iteration cycles and schedule risk. The paradigm determines what can be built, not merely where it runs.

Self-Check: Question

1. True or False: If a team has strong offline evaluation metrics and a tight shipping deadline, skipping shadow mode or canary validation is often a reasonable way to accelerate launch because any remaining issues are usually minor integration details.

2. Which practice most clearly reflects the pitfall of treating data preparation as a one-time task?

   1. Building continuous data validation and drift checks into the production pipeline.
   2. Freezing data work after the first training set is prepared and assuming later model issues are mainly architectural, so debugging focuses on model code rather than data quality.
   3. Using monitoring feedback to trigger data-quality investigations at specific sites.
   4. Versioning datasets so regressions can be traced to changes in training inputs.

3. Why is the belief that ‘more data always improves performance’ a fallacy in this chapter’s workflow view?

   1. Because larger datasets automatically make calibration worse.
   2. Because once a deployment paradigm is chosen, collecting new data becomes impossible.
   3. Because returns diminish sharply past sufficient coverage, and better label quality, distribution coverage, or representation of underserved subgroups often outperforms simply scaling raw volume — the DR subgroup gap is a data-quality problem, not a data-quantity one.
   4. Because model capacity never needs to increase when dataset size doubles.

See Answers →

Summary

The lifecycle is a feedback loop, not a checklist. The data pipeline transforms raw inputs through collection, ingestion, analysis, labeling, validation, and preparation into ML-ready datasets. The model development pipeline takes these datasets through training, evaluation, validation, and deployment to create production systems. With the full chapter as context, the feedback arrows in figure 1 carry the chapter’s central meaning: each one represents a lesson learned in production flowing back to strengthen earlier stages, creating the continuous improvement cycles that distinguish ML from traditional linear development.

Understanding this framework explains why machine learning systems demand specialized approaches distinct from traditional software. ML workflows replace deterministic specifications with probabilistic optimization, static behavior with dynamic adaptation, and isolated development with continuous feedback loops. The iron law of workflow provides the quantitative backbone: lifecycle stages set constraints, shape specific terms in the performance equation \((T = \frac{D_{\text{vol}}}{\text{BW}} + \frac{O}{R_{\text{peak}} \cdot \eta_{\text{hw}}} + L_{\text{lat}})\), and feed production violations back into re-optimization. This systematic perspective recognizes that success emerges not from perfecting individual stages in isolation, but from understanding how data quality affects model performance, how deployment constraints shape training strategies, and how production insights inform each subsequent development iteration.

Three patterns define the engineering discipline of the ML lifecycle. Data work dominates: practitioner surveys and production experience both place data collection, cleaning, labeling, validation, and preparation at the top of where engineering time goes, while model development is only one part of the lifecycle. Production-ready systems also require repeated iteration cycles across data, model, and infrastructure stages, so investment in data engineering yields high leverage because data quality issues are often a major source of rework. Finally, cost escalation compounds across stages: the constraint propagation principle says a constraint discovered at stage \(N_{\text{stage}}\) costs roughly \(2^{N_{\text{stage}}-1}\) times more to fix than if caught at stage 1, and a deployment paradigm mismatch discovered at stage 5 triggers a 16× cost multiplier. Early validation pays exponential dividends.

This workflow framework transforms ML development from ad-hoc experimentation into disciplined engineering practice. By understanding how data pipelines and model development interact through feedback loops, teams can anticipate integration challenges, allocate resources effectively, and avoid the cascading failures that derail most ML projects. The constraint propagation principle, where late-stage discoveries create exponential cost multipliers, underscores why systematic workflow management is not bureaucratic overhead but essential risk mitigation.

Key Takeaways: See the whole map first

• The lifecycle is a loop, not a checklist: Data and model pipelines advance in parallel, but production feedback is what makes them a system. Monitoring, validation, and retraining send lessons from deployment back into collection, labeling, architecture, and infrastructure decisions.
• Late constraints compound exponentially: A deployment limit found at stage \(N_{\text{stage}}\) costs roughly \(2^{N_{\text{stage}}-1}\) more than if caught at problem definition. The stage-5 mismatch’s 16× multiplier is why requirements must flow backward early.
• Iteration velocity becomes model quality: In the worked example, a lightweight model starting 5 percentage points behind reaches the 99 percent ceiling because faster cycles create more chances to improve data, architecture, and hyperparameters. Workflow speed compounds into capability.
• Interfaces make feedback actionable: Stage contracts define inputs, outputs, and quality invariants so that data, model, and deployment teams can detect violations before integration. Without explicit contracts, each stage can optimize locally while the system fails globally.
• Production speaks on different clocks: Real-time inference monitoring, batch retraining triggers, and quarterly model revisions answer different failure modes. Treating all feedback as one loop either reacts too slowly to drift or churns expensive workflows without signal.
• Workflow carries constraints through time: Problem definition fixes constraints, data collection sets \(D\) and \(D_{\text{vol}}\), model development sets \(O\), deployment spends \(L_{\text{lat}}\), and monitoring sends violations back into re-optimization. The lifecycle is Data-Algorithm-Machine coupling unfolding over time.

Seen as a checklist, the lifecycle is a sequence of stages to clear in order. Seen correctly, it is a loop. A constraint discovered at deployment does not stay there; it propagates backward into model selection and forward into data collection, its cost compounding at every stage it survived undetected. A workflow is therefore a coupled system rather than a pipeline, the same coupling the D·A·M taxonomy describes in space, now unfolding in time. Optimizing one stage in isolation moves the failure instead of removing it, which is why the discipline is to see the whole map before touching any single part of it.

What’s Next: From blueprint to fuel

The workflow framework established here provides the organizing structure for every technical chapter that follows. We now have the blueprint for the engine, yet an engine without fuel is just a heavy block of metal. The answer lies in data. We begin with the first axis of the D·A·M taxonomy: Data Engineering. From there, each part of the book maps to a different region of the workflow: Part II builds the core system (data pipelines, neural architectures, frameworks, training), Part III optimizes it for deployment (data selection, model compression, hardware acceleration, benchmarking), and Part IV deploys and operates it in production (model serving, operational practices, responsible engineering). Each chapter assumes familiarity with where its specific techniques fit within this complete workflow, building on the systematic perspective developed here.

Self-Check: Question

1. Which pair of parallel pipelines does the chapter use to organize the ML workflow as a whole, and why do the alternatives fail to match the book’s structural view?

   1. A data pipeline from collection through preparation and a model-development pipeline from training through deployment, unified by continuous feedback loops — the two parallel tracks the summary returns to one final time.
   2. A training pipeline and a monitoring pipeline, with all other stages treated as implementation details of one or the other.
   3. A hardware pipeline and a software pipeline, with data folded into software.
   4. A research pipeline and a regulatory pipeline, with deployment handled separately from both.

2. Explain how the chapter’s quantitative takeaways — 79 percent of survey time in data cleaning/collection, repeated iteration across stages, and \(2^{N_{\text{stage}}-1}\) cost escalation — should reshape how a team allocates engineering attention on a fresh ML project.

3. A project manager argues that if one constraint discovery at stage 2 costs one engineer-day, then the same discovery at stage 6 should cost about four engineer-days (linear in the number of stages traversed). Using the chapter’s Constraint Propagation Principle, why is this wrong, and what is the correct estimate?

   1. The manager is right — correction cost grows linearly with the number of stages traversed, because each stage’s rework is approximately equal to the base effort.
   2. The manager is wrong — correction cost grows exponentially as \(2^{N_{\text{stage}}-1}\), so a stage-6 discovery costs roughly \(2^{6-2} = 16\times\) a stage-2 discovery, because each traversed stage produces artifacts that are invalidated and must be rebuilt on top of every prior stage’s rework.
   3. The manager is wrong — correction cost is constant regardless of when a constraint is discovered, because engineers work at the same rate in every stage.
   4. The manager is wrong — correction cost grows logarithmically with stage count, so late discovery is cheaper than early discovery once documentation is in place.

See Answers →

Self-Check Answers

Self-Check: Answer

1. Team A ships a DR screening model and considers the project complete once the model reaches production. Team B treats the production launch as the start of ongoing retraining driven by drift detection and subgroup monitoring. Which team’s posture matches the ML lifecycle as this chapter defines it, and why?

   1. Team A, because once a model meets its test-set targets and clears validation, the engineering work shifts to traditional service-operations tasks rather than lifecycle tasks.
   2. Team B, because the lifecycle is a continuous engineering discipline for managing system entropy across the Data, Algorithm, and Machine axes, so deployment is the start of the feedback loop rather than its end.
   3. Neither, because the lifecycle in this chapter is really a label for the MLOps tooling layer and does not prescribe whether teams keep iterating after launch.
   4. Team A, because a model that still satisfies its original specification cannot have degraded, so post-launch retraining is a discretionary polish step rather than lifecycle work.

   Answer: The correct answer is B. The chapter defines the lifecycle as a continuous engineering discipline for managing system entropy across the Data, Algorithm, and Machine axes and explicitly names deployment as the beginning of the feedback loop. The posture that stops at launch treats ML as traditional software whose specification is stable — the same mistake the chapter warns against because models degrade through data drift even when the code is untouched. Reducing the lifecycle to MLOps tooling confuses the conceptual framework with its operational implementation.

   Learning Objective: Classify post-deployment engineering practice against the chapter’s lifecycle definition and distinguish the lifecycle framework from its MLOps implementation layer.

2. Explain why a team that spends months improving test-set accuracy can still fail at building a usable ML system if deployment constraints are discovered only after model development.

   Answer: ML workflow success depends on orchestrating constraints across stages, not optimizing one component in isolation. The chapter’s opening example makes this concrete: a diagnostic model reaching 96 percent accuracy but requiring 4 GB of memory is useless on rural-clinic tablets with 512 MB available, so five months of accuracy work is discarded once the memory budget surfaces. The practical consequence is that deployment constraints must propagate backward from day one to shape architecture and data choices, because the tablet’s memory limit carries exactly the same weight at the first architecture meeting as it does on launch day.

   Learning Objective: Explain how late discovery of deployment constraints invalidates earlier model-focused work and forces backward propagation of physical limits into problem-definition decisions.

3. A DR screening team plans a six-month project and budgets its engineer-months assuming model architecture and training will consume most of the effort, because that is where the research papers focus. Using the chapter’s quantitative breakdown, which reallocation should they make before kickoff, and why?

   1. Shift the majority of engineer-months to deployment and monitoring, because production integration is reported at 60–80 percent of total effort for ML projects.
   2. Keep model development as the dominant bucket, because architecture and hyperparameter sweeps are the only iteration loops worth planning around.
   3. Shift the majority of engineer-months to data collection, labeling, validation, and preparation, because the chapter’s survey example reports 79 percent of practitioner time in cleaning/organizing and collecting data.
   4. Split the budget evenly across all six lifecycle stages, because the chapter argues that stage contracts equalize the engineering load once they are enforced.

   Answer: The correct answer is C. The chapter’s survey example reports 60 percent of practitioner time cleaning and organizing data plus 19 percent collecting datasets, or 79 percent in those two data-centered buckets. That makes the research-paper intuition misallocate the bulk of the budget. The “deployment and monitoring dominate” alternative confuses post-launch operations with development effort. Treating iteration cycles as model-only ignores the chapter’s point that data, model, and infrastructure stages all create feedback loops. Equalizing budgets across stages contradicts the measured distribution and would underfund the stage most likely to drive rework.

   Learning Objective: Apply the chapter’s time-allocation breakdown (60 percent cleaning/organizing plus 19 percent collection) to reallocate project budgets away from the research-paper default.

4. True or False: A team can adopt a mostly sequential waterfall workflow for an ML project if they freeze the codebase early, because later stages mainly verify the existing implementation rather than forcing changes to earlier decisions.

   Answer: False. The chapter’s waterfall discussion refutes this: ML systems produce feedback at every later stage that can force earlier rework. Monitoring may reveal drift that demands new data collection, validation may expose subgroup failures that force architectural revision, and deployment may surface memory constraints that invalidate the original model. A frozen codebase cannot prevent these reversals because the “source code” in ML includes the data and the operating environment, not just program logic.

   Learning Objective: Distinguish how feedback from later stages reshapes earlier decisions in ML versus traditional software workflows and identify why code-level freezes cannot contain ML rework.

5. A training pipeline randomly shuffles a multi-terabyte dataset every epoch, storing samples in object storage backed by a mix of NVMe and spinning disk. End-to-end throughput is poor even though the accelerator advertises ample FLOPs. Which explanation best matches the chapter’s OS-abstraction argument, and what does it imply the team cannot fix with more compute?

   1. The workload defeats the spatial and temporal locality assumptions that OS page caching and prefetching rely on, so stochastic sample access penalizes the memory hierarchy at every tier — a penalty that more peak FLOP/s cannot reduce because the stall is in data delivery.
   2. Random shuffling makes the workload compute-bound, so adding a faster accelerator or more parallel kernels should close the throughput gap.
   3. Training bypasses the memory hierarchy entirely once the accelerator is warm, so storage latency is irrelevant to end-to-end throughput regardless of shuffle strategy.
   4. Probabilistic models must reread identical samples at fixed intervals to preserve statistical correctness, so throughput is bounded by a re-read constraint rather than by data access patterns.

   Answer: The correct answer is A. Shuffling multi-terabyte data stochastically means successive fetches target arbitrary addresses, defeating both spatial locality (reading X+1 after X) and temporal locality (reusing X soon), which are the assumptions behind OS page caches, virtual memory prefetchers, and file system buffers. The DRAM penalty is 50–100\(\times\) an L1 hit and NVMe is 10,000–100,000\(\times\) worse, so the bottleneck shifts to the memory hierarchy regardless of accelerator capability. Claiming the workload is compute-bound inverts the diagnosis; the “memory hierarchy doesn’t matter” answer contradicts the arithmetic of the penalty; and the “probabilistic models must re-read” answer invents a mechanism absent from the chapter.

   Learning Objective: Analyze how randomized data access patterns in ML training defeat classical OS locality mechanisms, and identify why adding peak compute cannot remove a data-delivery bottleneck.

← Back to Questions

Self-Check: Answer

1. Order the following lifecycle phases in the sequence this chapter establishes for a fresh ML project: (1) Deployment and Integration, (2) Problem Definition, (3) Monitoring and Maintenance, (4) Data Collection and Preparation, (5) Model Development and Training, (6) Evaluation and Validation.

   Answer: The correct order is: (2) Problem Definition, (4) Data Collection and Preparation, (5) Model Development and Training, (6) Evaluation and Validation, (1) Deployment and Integration, (3) Monitoring and Maintenance. Each stage consumes artifacts and constraints from the previous one: Problem Definition produces the deployment paradigm and accuracy targets that Data Collection must satisfy, Data Collection produces the versioned dataset that Model Development requires, Model Development produces the trained artifact that Evaluation gates, and only validated artifacts can be deployed and then monitored. Swapping Deployment ahead of Evaluation would ship an unvalidated model, and placing Data Collection before Problem Definition removes the sensitivity, latency, and hardware targets the data strategy depends on.

   Learning Objective: Sequence the six core ML lifecycle stages and justify why each stage’s output is a precondition for the next stage’s input contract.

2. A medical imaging team declares Problem Definition complete with quantified sensitivity and specificity targets, but the deployment paradigm (Cloud, Edge, Mobile, or TinyML) is marked as ‘TBD — to be decided after model development.’ Using the stage interface table, what should the audit verdict be, and why?

   1. Complete — quantifiable success metrics satisfy the Output Contract, and the paradigm can be chosen later once the accuracy envelope is known.
   2. Complete if the team commits in writing to compress or distill the trained model during deployment to fit whatever paradigm they later select.
   3. Blocked — the Output Contract explicitly requires the deployment paradigm and resource constraints to be set at Problem Definition, because those choices reshape what data must be collected and what architectures are even feasible.
   4. Blocked only if the project later proves infeasible — if Data Collection and Model Development succeed under multiple paradigms, the missing field becomes retroactively harmless.

   Answer: The correct answer is C. The stage interface table lists deployment paradigm selection and resource constraints alongside measurable objectives in Problem Definition’s Output Contract. Deferring paradigm choice violates the contract and triggers the exact backward-propagation failure the chapter’s opening example describes, where a 4 GB model is discarded because the target is a 512 MB tablet. Treating metrics alone as sufficient ignores that the paradigm choice determines feasible architectures before any data is collected. Promising later compression confuses mitigation with compliance; the Constraint Propagation Principle says late discovery costs \(2^{N_{\text{stage}}-1}\) more, so the ‘blocked only if it later fails’ framing invites the most expensive correction path.

   Learning Objective: Apply stage interface contracts to decide whether a lifecycle transition should be allowed or blocked, and recognize that deferred constraints become exponentially more expensive under constraint propagation.

3. The chapter uses MobileNetV2 with its roughly 300 MFLOPs budget to illustrate workflow thinking rather than treating it as just an architecture case study. Explain what MobileNetV2 teaches about how constraints propagate across lifecycle stages.

   Answer: MobileNetV2 demonstrates that a single deployment-target choice (mobile inference) reshapes every other stage: Problem Definition fixes the roughly 300 MFLOPs budget and on-device latency target, Data Collection must produce preprocessing pipelines compatible with mobile inference, Model Development selects depthwise separable convolutions specifically because denser operators would exceed the FLOP ceiling, and Evaluation must measure on-device latency alongside accuracy. Without that coordination, a team could hand deployment engineers a 4 GB ensemble that nothing on the target device can run. The system consequence is that architecture choice is inseparable from deployment context — the FLOP budget is not a post-hoc pruning target but a primary input that pre-eliminates entire model families before training begins.

   Learning Objective: Explain how a deployment target (like a mobile FLOP budget) propagates backward through Problem Definition, Data Collection, Model Development, and Evaluation, and identify why backward propagation pre-eliminates architectures before training.

4. Which mapping between lifecycle stages and iron-law terms is most consistent with the chapter’s ‘iron law of Workflow’ perspective, and why do the other mappings misread the framework?

   1. Data Collection and Preparation → \(D\) and \(D_{\text{vol}}\); Model Development and Training → \(O\); Deployment and Integration → \(L_{\text{lat}}\) — because each stage primarily sets the cost of its matching term.
   2. Problem Definition → \(\text{BW}\); Evaluation and Validation → \(O\); Monitoring and Maintenance → \(D_{\text{vol}}\) — because these stages are where those quantities are measured.
   3. Deployment and Integration → \(D_{\text{vol}}\); Monitoring and Maintenance → \(O\); Data Collection → \(L_{\text{lat}}\) — because these stages constrain the largest budgets in production systems.
   4. Evaluation and Validation → \(R_{\text{peak}}\); Data Collection → \(L_{\text{lat}}\); Problem Definition → \(O\) — because validation tests peak performance and early stages set startup overhead.

   Answer: The correct answer is A. The chapter explicitly ties data work to dataset size and composition (\(D\)) plus data movement (\(D_{\text{vol}}\)), model development to \(O\) (architecture and training choices define the computational operations the hardware must sustain), and deployment to \(L_{\text{lat}}\) (fixed overhead minimization through serving infrastructure). The other mappings confuse stages that measure a quantity with stages that set it — Evaluation and Monitoring observe system behavior, but Problem Definition and Data Collection determine what \(D\) and \(D_{\text{vol}}\) become, not \(\text{BW}\) or \(L_{\text{lat}}\). Assigning \(R_{\text{peak}}\) to Evaluation is a category error: \(R_{\text{peak}}\) is a hardware property, not a validation output.

   Learning Objective: Map each lifecycle stage to the iron-law term it most directly governs, and distinguish stages that set a quantity from stages that merely measure it.

5. A senior engineer reviewing the DR project’s stage transitions notices that Problem Definition handed Data Collection only a brief prose summary, with no documented schema, no sensitivity threshold, and no deployment paradigm specified. What is the clearest systems-level reason the chapter gives for why this hand-off should be rejected, rather than accepted with a promise to clarify later?

   1. Because every stage transition should pass a formal audit, regardless of whether the downstream work could proceed with partial information.
   2. Because stage boundaries function as interface contracts: unchecked inputs let a single missing constraint (a sensitivity threshold, a paradigm, a schema) propagate silently into later stages, where the Constraint Propagation Principle makes the correction cost roughly \(2^{N_{\text{stage}}-1}\) times larger than catching it now.
   3. Because data engineers prefer structured hand-offs, so an ad-hoc prose summary creates friction that reduces team morale over time.
   4. Because the senior engineer’s role is primarily enforcement, so any ambiguity at a stage boundary is a policy violation regardless of downstream impact.

   Answer: The correct answer is B. The chapter frames stage boundaries as explicit contracts with input requirements, output deliverables, and quality invariants precisely so violations are caught at the boundary rather than surfacing during deployment. A missing sensitivity threshold does not stay missing — it resurfaces as a silent failure in Evaluation or a subgroup regression in Monitoring, where fixing it requires revisiting Problem Definition, re-collecting data, and retraining. That cost grows exponentially with the number of stages traversed, which is the Constraint Propagation Principle’s central claim. The ‘audit everything’ and ‘enforcement is the point’ framings treat contracts as paperwork rather than as cost-control mechanisms; the ‘team morale’ framing trades a \(2^{N_{\text{stage}}-1}\) quantitative argument for a soft-skills one.

   Learning Objective: Justify why stage interface contracts block rather than defer constraint violations, citing the exponential correction cost implied by the Constraint Propagation Principle.

← Back to Questions

Self-Check: Answer

1. Why is the statement ‘Build a model that detects diabetic retinopathy’ inadequate as a complete problem definition for an ML system?

   1. Because it names a disease rather than a specific deployment paradigm label, and every ML problem definition must start with one of Cloud, Edge, Mobile, or TinyML.
   2. Because it omits the interacting statistical, physical, and operational constraints (sensitivity thresholds, rural-clinic hardware limits, clinical workflow fit, FDA requirements) that determine what system is actually feasible.
   3. Because clinical applications should begin with model architecture selection rather than task framing, so the sentence is in the wrong order.
   4. Because ML problem definitions should avoid measurable thresholds until data has been collected, and this sentence implies a measurable goal.

   Answer: The correct answer is B. The chapter argues that problem definitions are stacks of interacting constraint layers — statistical (>90 percent sensitivity across subgroups), physical (edge device memory and latency budgets), and operational (FDA validation, audit trails, privacy). The one-sentence task label addresses none of them, so it pre-commits no design space and downstream stages inherit ambiguity. The ‘pick a paradigm label’ alternative reduces the problem to a taxonomic tag, missing the multi-constraint structure. Starting with architecture inverts the chapter’s order of operations. Treating thresholds as something to defer until after data collection violates the Constraint Propagation Principle — unspecified thresholds resurface at 2^(N_stage-1) cost.

   Learning Objective: Explain why ML problem definitions must encode interacting statistical, physical, and operational constraint layers rather than only a prediction task.

2. Explain why domain experts (ophthalmologists, clinic administrators) must participate in problem definition for a high-stakes ML system such as DR screening, rather than being consulted only at evaluation or deployment time.

   Answer: Engineers alone will optimize whatever metric is specified, but specifying the right metric requires knowing which clinical failures carry which human costs. Ophthalmologists know that sensitivity below 90 percent means missed cases that progress to blindness, that specificity below 80 percent overwhelms referral systems, and that microaneurysms smaller than 125 micrometers are the earliest disease signal — each of which translates into a measurable engineering target (sensitivity floor, specificity floor, minimum image resolution). Without this translation at problem-definition time, the team might optimize aggregate accuracy while silently violating the subgroup thresholds that determine whether the system is clinically safe. The practical consequence is that data collection and model design inherit clinically valid targets from day one rather than discovering them through a failed pilot.

   Learning Objective: Justify how cross-disciplinary collaboration at Problem Definition converts real-world safety and workflow needs into measurable engineering requirements that constrain all downstream stages.

3. A team pilots the DR system in three clinics with one aggregate accuracy target and succeeds. When they expand to 200 clinics across Thailand and India, sensitivity drops five to eight percent for specific demographic groups and on older fundus cameras. How does the chapter say the team should respond, and what does it say about the original definition?

   1. Keep the original aggregate accuracy target and address subgroup gaps only through improved monitoring dashboards, because changing targets mid-project signals poor planning.
   2. Freeze the problem definition and treat the subgroup drop as a training-data coverage bug, because problem definitions should remain fixed once a pilot succeeds.
   3. Revise the problem definition to include stratified subgroup thresholds and updated hardware assumptions, because scaling exposes constraints that were invisible at pilot scale — problem definitions are living documents that evolve with deployment reality.
   4. Delay subgroup analysis until a regulatory body requires a fairness audit, because treating subgroup variation as an active constraint increases project scope beyond what the pilot validated.

   Answer: The correct answer is C. The chapter describes problem definitions as living documents and uses exactly this scaling pattern — demographic drift and hardware heterogeneity exposing hidden constraints — as the motivating example. Keeping an aggregate target would hide the subgroup failures that scaling has revealed, which is the opposite of the systems-engineering move. Treating it as a coverage bug frames a missing requirement as a data issue, preserving the original definition’s blind spot. Waiting for regulators abdicates the engineering responsibility the chapter assigns to the team itself: surface constraints early, not under external pressure.

   Learning Objective: Analyze how scaling an ML deployment forces revisions to problem-definition targets and constraints, and distinguish requirement revision from data-coverage patching.

4. True or False: For a DR system, the clinical business goal (detect retinopathy early) is stable across scale, but the engineering targets that implement that goal (aggregate accuracy thresholds, per-subgroup sensitivity floors, per-device latency budgets) must be rewritten as the deployment expands from three pilot clinics to two hundred.

   Answer: True. The chapter treats the high-level business goal as durable while explicitly arguing that engineering targets are living documents: pilot-scale aggregate accuracy hides subgroup gaps that only appear across diverse demographics, and homogeneous pilot hardware hides the heterogeneity of real clinic equipment. The systems consequence is that problem definition has two layers — the stable clinical intent and the evolving engineering contract — and conflating them causes scaling failures.

   Learning Objective: Distinguish the stable clinical intent of an ML problem from the engineering targets that implement it, and recognize why only the latter must be revised as deployment scales.

← Back to Questions

Self-Check: Answer

1. A DR team is choosing between (i) collecting 50,000 high-resolution raw fundus photos per week (25 MB each) from 200 clinics to a central store, or (ii) collecting 50,000 edge-preprocessed feature summaries per week (50 KB each) plus a weekly 10 percent raw sample for validation. Both options yield equivalent training signal. Which choice lowers the \(D_{\text{vol}}/\text{BW}\) term for the central training pipeline, and what is the deeper systems lesson?

   1. Option (i), because raw images preserve information and raw pixel counts dominate \(D_{\text{vol}}\) regardless of whether the bytes actually reach the training cluster.
   2. Option (ii), because \(D_{\text{vol}}\) in the iron law is the data the training pipeline must actually read and move; pre-computing summaries at the edge plus retaining a 10 percent raw audit sample shrinks the ingest volume by about 10\(\times\) — a classic ‘move computation to the data’ move.
   3. Both options change only \(L_{\text{lat}}\), not \(D_{\text{vol}}\), because data collection is a fixed cost that does not appear in the iron law’s data term.
   4. Neither option changes \(D_{\text{vol}}\), because the iron law is defined at model training time and is independent of the data pipeline’s choices.

   Answer: The correct answer is B. Data Collection primarily shapes \(D_{\text{vol}}\) through which bytes the training pipeline must actually move and store, not through the raw byte count produced at the sensor. The all-raw option is \(50{,}000 \times 25\) MB = 1,250 GB/week. The summary-plus-audit option is \(50{,}000 \times 50\) KB plus a 10 percent raw sample, or about 127.5 GB/week, reducing ingest volume by about 10\(\times\) while preserving a sampled raw stream for auditing and debugging. The ‘raw dominates regardless’ framing confuses data produced with data moved. Framing the change as \(L_{\text{lat}}\) only ignores the bandwidth arithmetic in the chapter’s own exercise. The claim that \(D_{\text{vol}}\) is independent of collection contradicts the chapter’s explicit mapping of this stage to the Data term.

   Learning Objective: Apply the iron-law Data term (\(D_{\text{vol}}/\text{BW}\)) to a concrete collection design choice and explain why moving computation to the edge changes the training pipeline’s bandwidth pressure rather than just its latency.

2. A rural clinic captures 150 patients per day, 10 photos each, at 5 MB per photo, over an 8-hour clinic day with a 2 Mbps uplink. The chapter’s Bandwidth vs. Compute exercise works this out; what conclusion does it force on the deployment architecture, and why do the alternative fixes fail?

   1. Cloud-only inference is practical because the 7.5 GB daily payload can fit inside the clinic day with time to spare for other traffic.
   2. Upload raw images continuously and move all preprocessing to central servers, because central compute is cheaper per FLOP than edge compute.
   3. Edge processing plus summary upload is required, because raw uploads would take roughly 8.3 hours on a 2 Mbps link — saturating the clinic day — while summary uploads (~10 KB/patient) reduce bandwidth by roughly 5,000\(\times\) and fit in seconds.
   4. The bottleneck is really annotation quality, so network architecture is secondary and either upload strategy works equally well at this stage.

   Answer: The correct answer is C. The chapter’s numbers — \(150 \times 10 \times 5\) MB ÷ (2 Mbps / 8) ≈ 8.3 hours — show that raw uploads exceed the 8-hour clinic day, so cloud-only processing is physically infeasible on this link. The summary-upload arithmetic compares 7,500 MB of raw images with 150 \(\times\) 10 KB of summaries, giving a ~5,000\(\times\) reduction, which is what makes edge deployment a response to bandwidth physics rather than a stylistic preference. The ‘fits with room to spare’ answer ignores the arithmetic; delaying preprocessing to the cloud keeps the same binding constraint and ignores it; and attributing the bottleneck to annotation confuses a separate quality concern with the connectivity constraint that actually forces edge deployment.

   Learning Objective: Apply the chapter’s bandwidth-versus-compute arithmetic to determine when connectivity physics forces edge-heavy architectures and when cloud-only processing becomes infeasible.

3. Explain why research-quality retinal images alone, even in large quantities, are insufficient training data for deploying a DR system to rural clinics across Thailand and India.

   Answer: Lab and field data inhabit different distributions. Research datasets come from standardized fundus cameras, trained operators, and controlled lighting; field data comes from five-year-old cameras, technicians with two weeks of training, and inconsistent patient positioning — enough that the chapter reports AUC 0.99 on research images but 78 percent sensitivity on Chiang Mai clinic images. The shift is not a modeling error but a data-envelope error: the production inputs fall outside the training distribution. The system consequence is that Data Collection must deliberately sample the heterogeneity of production conditions (multiple camera models, operator skill levels, lighting environments), not just increase raw sample count, or the model will inherit a blind spot that no amount of lab accuracy can compensate for.

   Learning Objective: Analyze how mismatches between lab data distributions and field data distributions create deployment risk, and identify why targeted heterogeneity sampling — not volume — closes the gap.

4. Why does scaling from a handful of pilot clinics to hundreds of production sites make data infrastructure harder in ways that go beyond storing more images?

   1. Because data heterogeneity grows faster than data volume, so provenance and per-site metadata become essential for debugging site-specific accuracy regressions and satisfying regulatory audit trails.
   2. Because object storage cannot be used once a dataset exceeds a few terabytes, forcing a switch to exotic storage systems.
   3. Because centralized training removes the need to track which site produced which data, so the metadata layer simplifies at scale.
   4. Because the main engineering challenge becomes neural architecture search rather than data management once clinic counts exceed 100.

   Answer: The correct answer is A. The chapter emphasizes that variations in cameras, workflows, and operator habits produce heterogeneous distributions, and the infrastructure must track which site produced which data so accuracy regressions at a specific site can be traced to a specific equipment upgrade or workflow change. Claiming object storage ‘breaks’ at pilot scale contradicts the chapter’s discussion of tiered storage. The claim that centralized training removes provenance requirements is exactly backwards: centralization makes provenance more important, because the central model is trained on a mixture whose composition the team must be able to reconstruct. Reframing the challenge as architecture search ignores the chapter’s evidence that data work dominates practitioner time and that data quality issues are a major source of rework.

   Learning Objective: Explain why provenance-aware infrastructure becomes more important as data collection scales across heterogeneous sites, and identify why the scaling challenge is a metadata problem rather than a pure storage problem.

5. True or False: If most collected images pass basic file-format checks, any remaining quality problems (blurry frames, poor lighting, cropped edges) can usually be deferred to model training because more data tends to wash out a few bad examples.

   Answer: False. The chapter argues that poor-quality images distort the training distribution at exactly the tail where clinical safety depends on correct behavior — a blurry image that slips through corrupts the training set and can produce a misdiagnosis months later. Catching these issues at collection (automated focus and framing checks, operator feedback in real time) is far cheaper than retraining, and it is one of the places where the Constraint Propagation Principle bites hardest: a quality issue detected at stage 6 costs roughly \(2^{6-2} = 16\times\) what it costs at stage 2.

   Learning Objective: Evaluate why early data-quality checks matter even when a dataset is large, and connect the ‘catch at stage 2’ discipline to the exponential cost of late-stage data corrections.

← Back to Questions

Self-Check: Answer

1. The DR team must choose between (i) a dense ResNet-152 variant requiring roughly 11 GFLOPs per inference on the retinal image, or (ii) a MobileNetV2-style architecture using depthwise separable convolutions that requires roughly 300 MFLOPs per inference. Both meet the sensitivity floor. Under the chapter’s iron-law framing, which statement correctly describes how the choice changes the Operations (\(O\)) term and what that implies for edge deployment?

   1. Both architectures set the same \(O\), because both must satisfy the same sensitivity target; the choice only changes training time, not inference operations.
   2. Choice (i) sets a ~37\(\times\) higher \(O\) than choice (ii), and since edge hardware caps the product \(R_{\text{peak}} \times \eta_{\text{hw}}\), only the MobileNetV2-style architecture fits inside the <50 ms inference latency budget — which is why Model Development is where \(O\) is set, not merely measured.
   3. Choice (ii) sets a higher \(O\) because depthwise separable convolutions require more operations per parameter than standard convolutions, so dense architectures are preferred on edge hardware.
   4. The \(O\) term is determined by Data Collection rather than Model Development, so the architecture choice is a separate concern from the iron law’s compute term.

   Answer: The correct answer is B. Model Development is the stage where \(O\) is set because architectural choices define how many operations each forward pass requires, and the ~11 GFLOPs vs. ~300 MFLOPs gap (~37\(\times\)) directly determines whether inference completes within the deployment latency budget on a given \(R_{\text{peak}} \times \eta_{\text{hw}}\). The ‘both set the same \(O\)’ framing confuses sensitivity (a loss target) with operations (a compute count). Claiming depthwise separable convolutions are denser inverts the arithmetic — they are specifically designed to reduce operations per useful feature. Attributing \(O\) to Data Collection contradicts the chapter’s explicit mapping, which assigns dataset size/byte movement to collection and \(O\) to development.

   Learning Objective: Compare two concrete architecture choices by their Operations (\(O\)) term and explain why Model Development — not Data Collection — is the stage that sets \(O\) for the iron law.

2. Explain why a competition-winning 50-model ensemble may be a poor choice for edge-deployed DR screening even if it improves accuracy, using the Netflix Prize case as a reference point.

   Answer: An ensemble’s accuracy gain is paid for in inference cost: latency, memory, and serving complexity scale roughly with the number of constituent models, so a 50-model ensemble that fits in a lab GPU may require 50\(\times\) the memory and compute at inference. On rural-clinic edge hardware with tight memory and <50 ms latency budgets, that cost violates deployment constraints before any clinical benefit materializes. The Netflix Prize is the canonical cautionary tale — the winning BellKor ensemble earned a $1M prize for a 10 percent RMSE improvement but was never deployed because serving 800+ constituent models exceeded the business value of the accuracy gain. The practical implication is that deployment feasibility can dominate small benchmark gains, and ‘win the benchmark, fail production’ is a recurring outcome when the Operations and Overhead terms are ignored during model selection.

   Learning Objective: Analyze when ensemble accuracy gains are outweighed by multiplicative inference cost on edge hardware, and cite the Netflix Prize as empirical evidence that benchmark wins do not always translate to production value.

3. Which deliverable best matches the chapter’s idea of a reproducible system artifact, and why are the alternatives insufficient?

   1. The model weights alone, because preprocessing and dependencies can be recreated from the training script later if needed.
   2. The trained weights plus inference code, environment specification (Docker image or locked dependency graph), and runtime configuration — the full bundle needed to reproduce execution on a fresh machine.
   3. A performance report and a test-set score, because those are the artifacts deployment engineers actually consume.
   4. A compressed checkpoint plus a slide deck describing the architecture search process, because architecture provenance is what downstream teams need most.

   Answer: The correct answer is B. The chapter explicitly requires mature workflows to package weights, inference code, environment, and configuration together, because a trained model is valid only within the specific dependency graph and runtime that produced it. Treating weights alone as sufficient recreates the ‘works on my machine’ failure mode — a model with 99 percent accuracy that depends on a library version absent from production is broken. Performance reports document a result but cannot reproduce it. A slide deck documents intent but not execution; it cannot survive a framework version bump.

   Learning Objective: Identify the full artifact bundle required for reproducible ML execution and explain why weights alone, metrics alone, or documentation alone fail to reproduce a trained system.

4. A team chooses a lightweight model that starts five percentage points below a larger model but retrains in one hour instead of one week. Based on the chapter’s Iteration Tax analysis, why might this still be the better systems choice over a six-month development window?

   1. Because smaller models always achieve higher final accuracy than larger ones once both have stopped improving.
   2. Because the iteration budget is tens-to-hundreds of experiments at one-hour cycles versus ~26 at one-week cycles; each additional experiment compounds improvements across data, preprocessing, and hyperparameters, and the compound effect of roughly 100 effective iterations can overtake a better starting point.
   3. Because long training cycles eliminate the need for validation and monitoring, so the larger model accumulates hidden technical debt.
   4. Because edge-compatible models remove the need for any later deployment optimization, so iteration is the only remaining dimension to optimize.

   Answer: The correct answer is B. The chapter’s Iteration Tax argument is not that small models are inherently better but that iteration velocity is a feature: a one-hour cycle admits ~100 effective experiments over six months, each improving some combination of data, preprocessing, or hyperparameters, and the compound effect overtakes the one-week cycle’s ~26 experiments even when the latter starts with a stronger model. Claiming small models always win on final accuracy contradicts the chapter’s own framing. The ‘long cycles remove validation’ and ‘edge removes deployment work’ options are category errors that oversimplify the argument.

   Learning Objective: Explain how iteration velocity compounds across a fixed development window, and quantify why rapid cycles can overtake a better-starting but slower-iterating baseline.

5. A DR team’s validation accuracy drops two percent between run 47 and run 48. Nobody can tell whether the regression came from a code change, a data version bump, a different random seed, or a framework upgrade, so they spend three weeks re-running experiments to bisect. Explain why artifact lineage would have changed the diagnostic cost and what a lineage record actually links together.

   Answer: Without lineage, a regression forces the team to reconstruct run context by guesswork — re-running experiments costs hundreds to thousands of dollars each, and the root cause may still remain ambiguous because non-deterministic floating-point behavior confounds the comparison. With lineage, the team queries a single record that links each run to its exact dataset version, code commit, hyperparameter set, framework version, random seed, and hardware configuration, so ‘what changed between 47 and 48’ is a metadata lookup rather than a multi-week bisection. Tools like MLflow and Weights & Biases maintain this linkage as a first-class object. The system consequence is that lineage converts a forensic engineering problem into a queryable data problem, which is why the chapter treats it as reproducibility infrastructure rather than optional tooling — the investment pays back within the first few regressions.

   Learning Objective: Explain why artifact lineage changes the diagnostic cost of an accuracy regression from weeks of re-runs to a single metadata query, and identify which objects (data version, code commit, hyperparameters, environment, seed, hardware) lineage must link.

6. Why does a growing ML team often need a shared platform rather than continuing with spreadsheets and notebooks that worked during prototyping, and how does the MLOps flywheel change the scaling curve?

   Answer: Manual coordination scales combinatorially: each added engineer must synchronize data splits, experiment runs, and artifact versions with every existing engineer, so marginal throughput saturates and eventually decreases — the Coordination Tax visible as the flattening red curve in the MLOps Leverage figure. A shared platform absorbs coordination into infrastructure: a centralized feature store removes redundant preprocessing, a versioned experiment tracker prevents conflicting runs, and automated pipelines remove manual handoffs. Each new engineer inherits the full platform rather than negotiating with colleagues, producing super-linear scaling (the blue curve). The system consequence is that organizations that defer platform work face a compounding disadvantage: the gap between the two curves widens every quarter the team grows, and the return on infrastructure investment pays back through eliminated coordination overhead rather than through any single feature.

   Learning Objective: Explain how shared infrastructure changes experimentation from combinatorial coordination to super-linear scaling, and connect the MLOps Leverage curves to the compounding cost of deferring platform work.

← Back to Questions

Self-Check: Answer

1. What is the most important distinction between evaluation and validation in this section, and why are the alternative framings insufficient?

   1. Evaluation measures performance on held-out data using metrics fixed at Problem Definition; validation confirms the model meets business, robustness, and efficiency constraints under production-representative conditions — different questions, different evidence, different artifacts.
   2. Evaluation is done by researchers and validation is done by regulators, so the distinction is primarily about organizational responsibility.
   3. Evaluation focuses on inference latency while validation focuses on training efficiency, so the two cover different performance dimensions.
   4. Evaluation uses deterministic tests and validation avoids metrics because production is too uncertain to quantify.

   Answer: The correct answer is A. Evaluation answers ‘how well does the model perform on defined test data?’ while validation answers ‘is this model robust, efficient, and acceptable under production-representative conditions?’ — different questions requiring different evidence (stratified metrics, robustness tests, regulatory artifacts). Reducing validation to a regulator-vs-researcher boundary misses its technical content. Splitting evaluation and validation by inference vs. training confuses them with runtime concerns. Claiming validation ‘avoids metrics’ directly contradicts the section, which names sensitivity floors, calibration checks, and subgroup thresholds as validation metrics.

   Learning Objective: Compare the roles of held-out evaluation and production-oriented validation in the lifecycle, and identify the different evidence artifacts each produces.

2. A DR model reports 94 percent overall accuracy but sensitivity drops below 80 percent for patients with cataracts and below the 90 percent sensitivity floor for one demographic subgroup. How should the section’s framework interpret this, and which mitigations are inadequate?

   1. The model is ready, because aggregate accuracy dominates subgroup metrics in screening systems.
   2. The model passes if calibration is good enough, because calibration compensates for subgroup underperformance.
   3. The model has a serious validation problem: aggregate metrics hide subgroup failures that violate clinical safety thresholds set at Problem Definition, and stratified evaluation exists precisely to surface them before deployment.
   4. The model should skip offline analysis and move directly to A/B testing, because production traffic will reveal whether clinicians notice the subgroup gap.

   Answer: The correct answer is C. The section emphasizes stratified evaluation because aggregate metrics can conceal clinically unacceptable subgroup behavior — a sensitivity floor at 90 percent for the population means nothing if a demographic subgroup falls to 78 percent and missed cases in that subgroup cause blindness. Calibration is a separate property (predicted confidence matching observed correctness) that does not repair subgroup accuracy gaps. Skipping offline analysis in favor of production A/B testing gambles patient safety on whether a clinician notices, which is precisely the failure mode progressive validation exists to prevent.

   Learning Objective: Analyze why subgroup-level failures can block deployment despite strong aggregate metrics, and identify why calibration and accelerated rollout are not substitutes for stratified offline validation.

3. Explain why a DR model with AUC 0.99 on a curated research dataset can still be unready for medical screening deployment.

   Answer: AUC summarizes threshold-independent ranking quality — how well the model orders positive cases above negative ones across every operating point — but deployment uses a single fixed threshold, and at that threshold the model must satisfy a specific sensitivity floor (>90 percent) and specificity floor (>80 percent) on production-representative data. The section’s Chiang Mai example shows the gap concretely: AUC 0.99 on research images becomes 78 percent sensitivity on clinic images from a five-year-old camera operated by a less-experienced technician — the ranking is still good in the abstract, but the distribution shifted enough that the chosen threshold now misses disease at a rate that fails the clinical contract. The practical consequence is that strong threshold-free benchmarks cannot substitute for validation at the actual deployed operating point on production-representative data.

   Learning Objective: Explain why threshold-free offline metrics (AUC) do not establish deployment readiness and identify the role of operating-point validation on production-representative data.

4. Which sequence best reflects the section’s progressive-deployment logic for online validation, and why does the ordering matter?

   1. A/B testing, then canary deployment, then shadow mode — exposing users first so real-world signal arrives quickly.
   2. Shadow mode (no user impact, catches integration issues), then canary deployment (1–5 percent of traffic, catches scaling issues), then broader A/B testing (statistical comparison against baseline) — each stage catches failure modes the prior stage cannot reveal.
   3. Full deployment first, then shadow mode, then rollback if any issues emerge.
   4. Canary deployment, then offline evaluation, then shadow mode, because offline evaluation is the final safety net after live traffic.

   Answer: The correct answer is B. The section explicitly sequences progressive deployment from lowest-risk to highest-risk: shadow mode catches integration bugs without user impact by running the model in parallel and logging predictions; canary deployment catches scaling issues by exposing a small traffic slice; A/B testing catches user-facing statistical differences at scale. Each stage reveals failures invisible to the prior stage, and rearranging the sequence exposes users to risks the earlier stages exist to eliminate. The ‘expose users first’ and ‘full deployment first’ options invert the risk-management logic; treating offline evaluation as the final step ignores that offline cannot catch production-only failure modes.

   Learning Objective: Sequence the stages of progressive online validation from lowest-risk to broadest statistical comparison, and identify the distinct failure modes each stage catches.

5. True or False: If a DR model matches lab performance on a held-out test set drawn from the same research pipeline, that is usually strong evidence the model will behave similarly after deployment to clinics using different cameras and operators.

   Answer: False. The section introduces production-condition validation precisely because held-out lab data shares the research pipeline’s distribution — equipment, operators, lighting — and therefore cannot reveal failures that arise from distribution shift. The chapter’s Chiang Mai example shows the gap empirically: a model matching lab performance can still drop to 78 percent sensitivity on field images. Robustness to equipment variation, operator skill, and temporal drift must be validated against data that resembles production, not against data that resembles training.

   Learning Objective: Evaluate why production-condition validation reveals risks that in-distribution offline testing cannot catch, and identify which production-side variables (equipment, operators, temporal drift) define the validation envelope.

← Back to Questions

Self-Check: Answer

1. A DR screening deployment must complete end-to-end inference in under 100 ms on a tablet in a rural clinic, but profiling shows each request spends 15 ms in the model, 60 ms in a cloud round-trip for auxiliary features, and 40 ms in serialization and integration with the hospital information system — 115 ms total. Which engineering action most directly reduces the iron law’s fixed overhead (\(L_{\text{lat}}\)) term, and why are the alternatives less effective?

   1. Replace the model with a 2\(\times\) larger one to improve accuracy, because Deployment and Integration is primarily about accuracy, not latency.
   2. Cache auxiliary features locally so the cloud round-trip is replaced by an on-device lookup, because \(L_{\text{lat}}\) is the sum of per-request fixed overheads (network, serialization, integration) that Deployment and Integration is explicitly responsible for minimizing.
   3. Collect more training data to improve the model’s accuracy on clinic images, because better accuracy will reduce the number of requests that hit the SLO budget.
   4. Switch from the edge to a cloud-only architecture to centralize compute, because centralization always lowers \(L_{\text{lat}}\).

   Answer: The correct answer is B. Deployment and Integration’s primary iron-law target is \(L_{\text{lat}}\), the fixed overhead of serving: network round-trips, serialization, and hospital-system integration. Removing the 60 ms cloud round-trip by caching features locally cuts \(L_{\text{lat}}\) from 100 ms to ~40 ms, bringing the 115 ms path under the 100 ms budget. A larger model raises \(O\) and tightens the budget further. More training data reduces error but not overhead. Switching to cloud-only reintroduces the very round-trip the cache would eliminate — ‘centralization lowers \(L_{\text{lat}}\)’ contradicts the chapter’s explicit argument that connectivity physics often dictates edge deployment for tight latency budgets.

   Learning Objective: Apply the iron-law fixed overhead term to a concrete deployment budget and identify which engineering moves (caching, local integration, model choice, architecture placement) change \(L_{\text{lat}}\) versus other terms.

2. For a DR system serving rural clinics with intermittent connectivity, what is the strongest argument the section gives for edge deployment over cloud-only deployment, and what does the answer NOT claim?

   1. Edge deployment removes the need for model compression and update pipelines entirely.
   2. Cloud-only systems cannot integrate with hospital information systems under any conditions.
   3. Edge deployment can pay back economically across clinics while simultaneously reducing latency and preserving operation during network outages — an operational fit forced by connectivity and SLA physics, not a superiority claim about accuracy.
   4. Edge deployment guarantees higher diagnostic accuracy than centralized inference because local models train on local data.

   Answer: The correct answer is C. The section’s economics exercise shows edge deployment can recover its upfront cost per clinic while also reducing latency and preserving operation during outages — three operational benefits that stem from deployment physics. Claiming edge removes compression or update pipelines inverts the argument: edge imposes tighter model budgets, making compression more important, not less. Asserting cloud cannot integrate with hospital systems contradicts real production architectures. Edge does not guarantee higher accuracy; it imposes constraints that often require accepting slightly lower accuracy in exchange for feasibility.

   Learning Objective: Evaluate cloud-versus-edge deployment choices under connectivity, latency, and cost constraints, and distinguish operational-fit claims from accuracy superiority claims.

3. Explain why passing validation in the lab is still not sufficient to ensure successful deployment, even for a model that has cleared every stratified metric and robustness check.

   Answer: Deployment exposes the model to environments that validation cannot fully simulate: live hospital information systems with their own schemas and latency, intermittent connectivity that alters request patterns, clinicians with specific workflow timing expectations, and data-handling requirements shaped by the site’s privacy and audit posture. A DR model may be accurate and well-calibrated in validation yet still fail if it cannot fit the clinician’s timing window, cannot handle the hospital system’s data format, or does not present results in a way that supports the referral decision. The practical implication is that integration engineering and workflow design are first-class deployment activities, not postscript details — a validated artifact becomes a deployed system only after the surrounding integration stack meets its own correctness bar.

   Learning Objective: Explain why operational integration, workflow fit, and environment-specific constraints remain open risks after lab validation and identify the engineering disciplines that close those risks at deployment time.

4. Why does the section recommend phased rollout from simulation to pilot sites to full deployment?

   1. Because each phase exposes a different class of failure — simulation catches integration bugs, pilots catch real-world heterogeneity (equipment, operators, patient populations), and full deployment catches scale-specific problems (contention, rare edge cases) — so skipping a phase exports its failure class into a more expensive stage.
   2. Because pilot deployments are mainly used to improve benchmark scores before the final validation gate.
   3. Because full deployment should occur before users provide feedback on the interface, so the pilot is a formality.
   4. Because simulation environments are usually better than production for measuring network and storage bottlenecks, so real deployment is a confirmation step.

   Answer: The correct answer is A. The section frames phased rollout as risk segmentation: simulations isolate integration defects in a controlled environment, pilots expose the heterogeneity that no simulation captures (cameras, clinicians, workflows), and full rollout surfaces contention and rare events that only appear at scale. Skipping a phase does not eliminate its failure class; it simply transfers it to a more expensive stage where correction is harder. Using pilots to inflate metrics misreads the purpose; deploying before user feedback ignores the workflow-fit dimension; and preferring simulations for network measurement contradicts the section’s claim that real deployment surfaces production-specific bottlenecks.

   Learning Objective: Analyze how staged rollout segments deployment risk into distinct failure classes and identify the class each phase is responsible for catching.

← Back to Questions

Self-Check: Answer

1. Why does this chapter treat deployment as the beginning of the feedback loop rather than the end of the lifecycle?

   1. Because once deployed, most ML systems become deterministic and can be maintained like ordinary software.
   2. Because production data can drift silently — the Thailand camera upgrade drops sensitivity eight percent without any code change — so the system must be monitored and updated continuously; the statistical contract between the model and its inputs is dynamic in a way traditional software’s contract is not.
   3. Because post-deployment issues are usually caused only by bugs in monitoring dashboards, so the engineering focus shifts to dashboard reliability.
   4. Because validation metrics become less useful than live throughput numbers after launch, so monitoring replaces evaluation.

   Answer: The correct answer is B. The chapter’s core point is that ML systems degrade silently through data drift without any code modification — the Thailand camera-upgrade example shows an eight-percent sensitivity drop caused purely by a shift in input distribution. Treating deployment as the endpoint imports a traditional-software mindset that misses the ongoing statistical maintenance ML systems require. The ‘ML becomes deterministic’ claim inverts the section’s central argument. Reducing post-deployment issues to dashboard bugs trivializes the drift problem. Claiming live throughput replaces validation metrics confuses monitoring (ongoing) with evaluation (gate-based) — both remain necessary.

   Learning Objective: Explain why post-deployment monitoring is part of the ML lifecycle rather than an optional operations add-on, using the data-drift mechanism as the structural reason.

2. Which monitoring signal is most useful for catching a possible model problem quickly when ground-truth labels are not yet available, and what makes the alternatives too slow or too stale?

   1. Seven-day sensitivity measured from adjudicated outcomes.
   2. Prediction-confidence distribution or referral-rate shifts, because proxy metrics surface statistical changes within hours — before labels arrive — which is the exact window the section says other signals cannot cover.
   3. Quarterly fairness audit reports.
   4. AUC computed from the original research validation set.

   Answer: The correct answer is B. The section distinguishes proxy metrics (available within hours, without ground truth) from performance metrics (weeks, requiring labels) and operational metrics (seconds, but not model-quality indicators), and flags confidence-distribution and referral-rate shifts as the fastest indicators of trouble in the label-free window. Seven-day sensitivity requires adjudicated outcomes and is the very lag the proxy layer exists to bridge. Quarterly fairness reports are too slow for incident response. AUC on the research validation set is stale and disconnected from live behavior, so it cannot detect production drift.

   Learning Objective: Identify which production monitoring layer covers which timescale and explain why proxy metrics are the correct choice for surfacing model issues before ground-truth labels arrive.

3. Explain why production monitoring uses a hierarchy of operational, proxy, and performance metrics rather than relying on a single metric class.

   Answer: Different failures surface on different timescales, and no single metric class covers all of them. Operational metrics (latency, throughput, error rate) catch immediate service incidents within seconds but say nothing about model quality; proxy metrics (confidence distribution, referral rate, image-quality rejection rate) catch statistical drift within hours without waiting for ground truth; performance metrics (sensitivity, specificity, subgroup accuracy) catch genuine accuracy degradation within weeks but require labeled outcomes that arrive with delay. A monitoring stack that uses only operational metrics will miss silent drift that leaves latency untouched; one that uses only performance metrics will detect a regression weeks after patients have been harmed; one that uses only proxy metrics will miss both service outages and definitive accuracy losses. The practical consequence is that production monitoring must be layered, with alert thresholds tuned so each layer catches the failure class the others cannot see in time.

   Learning Objective: Analyze how different monitoring layers cover failures on different timescales and justify why the layered hierarchy is structurally necessary rather than redundant.

4. Why is rollback more complicated for ML systems than for traditional software systems?

   1. Because restoring an older model artifact does not restore the past data distribution it was trained for — the code can be version-controlled, but the live data environment has already moved on, so the rolled-back model may behave worse than the failing new one on current inputs.
   2. Because ML serving stacks do not support version control for models.
   3. Because only online-trained models can be rolled back safely.
   4. Because latency increases make model versions impossible to switch under load.

   Answer: The correct answer is A. The section explains that an ML model’s validity is coupled to the data distribution on which it was trained, not just to its code: reverting to an older artifact restores the code path but leaves the model facing a live data environment that has already shifted, so the stale model’s performance on current inputs is not guaranteed. The ‘no version control’ framing misses the real issue — version control exists; temporal mismatch is the problem. Only-online-trained rollback inverts the argument. The latency claim is unrelated to the underlying state-mismatch problem.

   Learning Objective: Explain why model rollback is a mitigation tactic rather than a true system restore, grounded in the temporal mismatch between a restored artifact and current production data.

5. A rural clinic’s DR sensitivity drops five percent overnight with no code deploy. Hundreds of gigabytes of production logs exist, but the team cannot tell whether the cause is a preprocessing change from three weeks ago, a dataset version bump, a model retrain, or the clinic’s recent camera upgrade. Explain how a data-lineage record would change the root-cause analysis from a multi-week forensic effort into a tractable query, and identify what the lineage metadata must link.

   Answer: Without lineage, the team must correlate three weeks of change logs across data, code, and model artifacts against site-specific telemetry to bisect the regression — a manual forensic task across hundreds of gigabytes that consumes multi-week engineering effort and often produces an ambiguous answer. With lineage, the team queries a metadata index that ties each clinic’s production predictions to the exact model version, training dataset version, preprocessing pipeline, code commit, hyperparameters, and hardware configuration that generated them. The query becomes: ‘show me every artifact change in the causal chain for site X’s inference traffic between day N-3 and day N,’ which resolves in minutes and narrows the candidates to a testable set. The system consequence is that lineage converts a forensic search into a graph query, turning opaque compound changes into attributable single-point differences — which is why the section treats lineage as a regulatory-grade audit requirement rather than optional hygiene.

   Learning Objective: Explain how data lineage changes the cost and tractability of root-cause analysis for a site-specific regression and enumerate the metadata links (model, data, preprocessing, code, hyperparameters, hardware) the lineage record must maintain.

← Back to Questions

Self-Check: Answer

1. What does the Constraint Propagation Principle say about discovering an important constraint late in the lifecycle?

   1. Late constraints usually affect only the current stage, because earlier stages can be treated as modular.
   2. The correction cost grows roughly as \(2^{N_{\text{stage}}-1}\) times the base effort when discovery is delayed to stage \(N_{\text{stage}}\) — every stage the unmet constraint has traversed compounds the rework because artifacts produced downstream inherit the hidden violation.
   3. Only deployment constraints propagate backward; data and evaluation constraints do not.
   4. The main consequence is lower benchmark accuracy rather than broader system rework.

   Answer: The correct answer is B. The principle states that correction cost scales approximately as \(2^{N_{\text{stage}}-1}\) times the base effort, because each traversed stage has produced artifacts (dataset versions, trained weights, deployed services) that are invalid under the newly surfaced constraint and must be rebuilt. The modularity claim is exactly what the principle rejects — the whole point is that stages are coupled through artifact consumption. Restricting propagation to deployment constraints understates the principle’s scope. Framing the consequence as lower benchmark accuracy trivializes the real cost, which is multi-stage rework.

   Learning Objective: Identify the core claim of the Constraint Propagation Principle about late-discovered requirements and explain why the exponential form reflects compound artifact invalidation.

2. A demographic fairness requirement should have been specified in Problem Definition (stage 1) but is discovered only during Monitoring and Maintenance (stage 6). Using the section’s principle, quantify the cost multiplier and walk through which stages must likely be revisited.

   Answer: The cost multiplier is roughly \(2^{6-1} = 32\times\) the base effort because the missing requirement has propagated through every intervening stage, each of which produced artifacts that do not satisfy it. The team must revisit Problem Definition to document the stratified sensitivity floors, return to Data Collection to rebalance the dataset with underrepresented subgroups, retrain the model in Model Development with the new data and possibly a revised loss, re-run Evaluation with stratified metrics, re-validate under production-representative conditions, and redeploy with updated monitoring thresholds. The practical consequence is that fairness and demographic constraints are far cheaper to surface before data collection begins — a one-day decision at Problem Definition costs roughly 1 engineer-day; the same decision at Monitoring costs roughly a month, and the gap widens the longer the team waits.

   Learning Objective: Apply the exponential cost model to a late-discovered demographic requirement, compute the specific multiplier, and enumerate which lifecycle stages must be re-executed.

3. Which example best illustrates the section’s idea of multi-scale feedback?

   1. Using one weekly report as the single source of truth for every operational and strategic decision.
   2. Separating workflows so short-term alerts never influence longer-term retraining plans.
   3. Combining minute-level operational fixes, weekly drift analysis, and quarterly architectural reviews to improve the same system at different timescales — each loop catches failures the others move too slowly or too quickly to see.
   4. Waiting for quarterly business reviews before responding to any model degradation, to avoid overfitting operations to short-term noise.

   Answer: The correct answer is C. The section argues that ML systems need feedback loops operating at different temporal scales because different problems become visible at different rates: operational incidents need minute-level response, drift surfaces over days to weeks, and architectural debt accumulates over quarters. Relying on a single-timescale report is too blunt — it either responds too slowly to urgent issues or too quickly to noisy strategic signals. Isolating short-term alerts from long-term retraining ignores that drift alerts should feed retraining plans. Waiting for quarterly reviews means patients are harmed while noise-aversion policies are honored.

   Learning Objective: Explain how multiple feedback timescales support both rapid correction and slower strategic adaptation and identify the failure modes of single-timescale monitoring.

4. Why can system-wide behavior in a distributed ML deployment differ from what any single clinic or component appears to show locally?

   1. Because emergent complexity can reveal global demographic or drift patterns that are invisible in isolated local monitoring — cross-site aggregation surfaces population structure that any single site’s metrics average away.
   2. Because probabilistic systems eliminate the need for cross-site aggregation once local metrics look stable.
   3. Because only deterministic failures matter at scale; probabilistic degradation averages out across enough sites.
   4. Because resource trade-offs disappear when deployments are large enough to amortize hardware costs.

   Answer: The correct answer is A. The section’s point about emergent complexity is that interactions across sites and populations can create system-level patterns no single component view reveals: a demographic subgroup underrepresented at every clinic may still be underserved in aggregate, and drift that looks noisy at one site may look like a coherent trend across a hundred. Assuming local stability guarantees global fairness or robustness ignores exactly the cross-site patterns that large deployments expose. Claiming probabilistic degradation averages out inverts the actual risk, which is that biases compound rather than cancel. Resource trade-offs do not disappear with scale; they shift in character.

   Learning Objective: Analyze why global monitoring reveals failures that no single local view makes obvious and identify the aggregation patterns that emergent complexity creates.

← Back to Questions

Self-Check: Answer

1. True or False: If a team has strong offline evaluation metrics and a tight shipping deadline, skipping shadow mode or canary validation is often a reasonable way to accelerate launch because any remaining issues are usually minor integration details.

   Answer: False. The section argues that progressive validation stages catch failure classes offline evaluation cannot see: shadow mode catches integration defects in live traffic, canary catches scaling and edge-case failures, and A/B testing catches user-facing regressions. Skipping them typically increases total time-to-production because the resulting fixes are far more expensive after launch — an integration bug caught in shadow mode costs hours; the same bug caught after 100-clinic rollout costs a coordinated rollback across every site.

   Learning Objective: Evaluate why strong offline metrics do not justify skipping progressive validation stages and identify the specific failure classes each stage is responsible for catching.

2. Which practice most clearly reflects the pitfall of treating data preparation as a one-time task?

   1. Building continuous data validation and drift checks into the production pipeline.
   2. Freezing data work after the first training set is prepared and assuming later model issues are mainly architectural, so debugging focuses on model code rather than data quality.
   3. Using monitoring feedback to trigger data-quality investigations at specific sites.
   4. Versioning datasets so regressions can be traced to changes in training inputs.

   Answer: The correct answer is B. Freezing data work assumes the training distribution is stable and assigns later degradation to model code — exactly the mental model the section warns against, because drift, equipment changes, and operator variation keep shifting the data distribution after launch. The other practices are explicit recommendations: continuous validation catches drift, site-level investigations diagnose equipment-specific regressions, and dataset versioning makes regressions tractable. Treating any of those as the pitfall inverts the section’s argument.

   Learning Objective: Diagnose workflows that incorrectly treat data preparation as complete after the first dataset, and distinguish the pitfall from the recommended continuous-validation practices.

3. Why is the belief that ‘more data always improves performance’ a fallacy in this chapter’s workflow view?

   1. Because larger datasets automatically make calibration worse.
   2. Because once a deployment paradigm is chosen, collecting new data becomes impossible.
   3. Because returns diminish sharply past sufficient coverage, and better label quality, distribution coverage, or representation of underserved subgroups often outperforms simply scaling raw volume — the DR subgroup gap is a data-quality problem, not a data-quantity one.
   4. Because model capacity never needs to increase when dataset size doubles.

   Answer: The correct answer is C. The chapter argues that data quality, balance, and relevance can matter more than raw volume once coverage is sufficient — the DR subgroup gap illustrates this: collecting more images from the same well-represented subgroup will not close the sensitivity drop on the underrepresented one. Claiming larger datasets degrade calibration is unsupported by the chapter. Asserting that paradigm choice blocks further data collection contradicts real production practice. The ‘capacity never increases’ framing is a separate claim about model scaling that this question is not about.

   Learning Objective: Evaluate when improving data quality, coverage, or subgroup representation is a better investment than simply collecting more examples, and connect the diminishing-returns argument to specific production failure modes.

← Back to Questions

Self-Check: Answer

1. Which pair of parallel pipelines does the chapter use to organize the ML workflow as a whole, and why do the alternatives fail to match the book’s structural view?

   1. A data pipeline from collection through preparation and a model-development pipeline from training through deployment, unified by continuous feedback loops — the two parallel tracks the summary returns to one final time.
   2. A training pipeline and a monitoring pipeline, with all other stages treated as implementation details of one or the other.
   3. A hardware pipeline and a software pipeline, with data folded into software.
   4. A research pipeline and a regulatory pipeline, with deployment handled separately from both.

   Answer: The correct answer is A. The summary explicitly returns to the two-pipeline picture: one pipeline prepares data, the other turns prepared data into deployed systems, and feedback arrows connect production experience back to earlier stages. Treating training and monitoring as the two pillars collapses collection, preparation, and deployment into one of them. Splitting by hardware vs. software buries data inside software and inverts the chapter’s data-centric framing. Substituting research vs. regulatory categories imports an organizational taxonomy the chapter does not use.

   Learning Objective: Identify the chapter’s two interacting pipelines and the roles each one plays in the unified lifecycle structure.

2. Explain how the chapter’s quantitative takeaways — 79 percent of survey time in data cleaning/collection, repeated iteration across stages, and \(2^{N_{\text{stage}}-1}\) cost escalation — should reshape how a team allocates engineering attention on a fresh ML project.

   Answer: The takeaways point to the same strategy: invest in data, plan for multiple passes, and surface constraints early. The CrowdFlower breakdown reports 60 percent cleaning and organizing data plus 19 percent collecting datasets, so the team should budget the majority of engineer-months for collection, labeling, validation, and preparation rather than model architecture alone. Repeated iteration means planning the project as multiple feedback-driven passes through the lifecycle rather than a single waterfall, with infrastructure (experiment tracking, automated pipelines, lineage) in place from the start. The \(2^{N_{\text{stage}}-1}\) escalation means that a one-day decision at Problem Definition avoids a much larger correction at Monitoring, so every discovered constraint should be pushed as far forward as possible — stratified thresholds, deployment paradigms, hardware limits, and privacy constraints all belong at stage 1. The system consequence is faster iteration, fewer integration failures, and better end-to-end outcomes than a model-centric plan would produce.

   Learning Objective: Analyze how the chapter’s quantitative takeaways jointly reshape planning priorities, and connect each number to a specific engineering decision (budget allocation, infrastructure investment, constraint surfacing).

3. A project manager argues that if one constraint discovery at stage 2 costs one engineer-day, then the same discovery at stage 6 should cost about four engineer-days (linear in the number of stages traversed). Using the chapter’s Constraint Propagation Principle, why is this wrong, and what is the correct estimate?

   1. The manager is right — correction cost grows linearly with the number of stages traversed, because each stage’s rework is approximately equal to the base effort.
   2. The manager is wrong — correction cost grows exponentially as \(2^{N_{\text{stage}}-1}\), so a stage-6 discovery costs roughly \(2^{6-2} = 16\times\) a stage-2 discovery, because each traversed stage produces artifacts that are invalidated and must be rebuilt on top of every prior stage’s rework.
   3. The manager is wrong — correction cost is constant regardless of when a constraint is discovered, because engineers work at the same rate in every stage.
   4. The manager is wrong — correction cost grows logarithmically with stage count, so late discovery is cheaper than early discovery once documentation is in place.

   Answer: The correct answer is B. The chapter’s principle is explicit: late discovery costs roughly \(2^{N_{\text{stage}}-1}\) times the base, because rework compounds across stages — each traversed stage produced artifacts that inherit the violation, so fixing a stage-6 discovery requires rebuilding artifacts from stages 2 through 6, not just editing one stage’s output. Between stages 2 and 6 the ratio is \(2^{6-2} = 16\times\). Linear growth treats stages as independent, which contradicts the artifact-dependency model. Constant cost ignores the compounding rework entirely. Logarithmic growth inverts the direction of the argument and would imply late discovery is preferable, which is exactly the trap the principle exists to prevent.

   Learning Objective: Contrast the Constraint Propagation Principle’s exponential cost model with linear, constant, and logarithmic alternatives, and compute the ratio between two specific stages using the \(2^{N_{\text{stage}}-1}\) formula.

← Back to Questions
