Dataset Compilation

Data Engineering

Purpose

Why does data represent the actual source code of machine learning systems while traditional code merely describes how to compile it?

In conventional software, programmers write logic that computers execute. In machine learning, programmers write optimization procedures that extract operational logic from data. This inversion makes data the true source code: changing the data changes what the system does, regardless of whether a single line of traditional code has been modified. A dataset with subtle labeling inconsistencies produces a model with subtle behavioral inconsistencies. A dataset missing edge cases produces a model that fails on edge cases. A dataset reflecting historical biases produces a model that perpetuates those biases. No architecture, hyperparameter, or training trick can recover information that was never present or correct errors that were baked in from the start. Unlike traditional source code, which sits inert until a programmer modifies it, data is alive: the distribution it captures drifts as the world changes, silently invalidating the model’s learned behavior even when nothing in the codebase has been touched. Data engineering therefore consumes the majority of effort in most ML projects not because the work is tedious, but because it is consequential. Every decision in the data pipeline (what to collect, how to label, when to filter, how to split) propagates forward to constrain model architecture, training dynamics, and deployment viability. Data engineering is therefore not preprocessing but programming in a different language, one where quality control, versioning, and monitoring determine whether the compiled system works today and continues working tomorrow. In D·A·M terms, the pipeline itself is a data-machine co-design problem: however well curated the data, the algorithm can only learn as fast as the machine can deliver it.

Learning Objectives

Explain data as source code and trace how data cascades propagate through ML systems
Calculate data gravity, feeding-tax, and storage-bandwidth costs for moving or serving datasets
Evaluate acquisition strategies against coverage, quality, labeling cost, governance, and deployment constraints
Design ingestion and validation pipelines for batch, streaming, ETL, and ELT workloads
Implement idempotent transformations, lineage, and drift checks to preserve training-serving consistency
Select labeling, storage, file format, versioning, and feature-store designs for ML lifecycle needs
Diagnose data debt and production pipeline failures using quality, reliability, scalability, and governance evidence

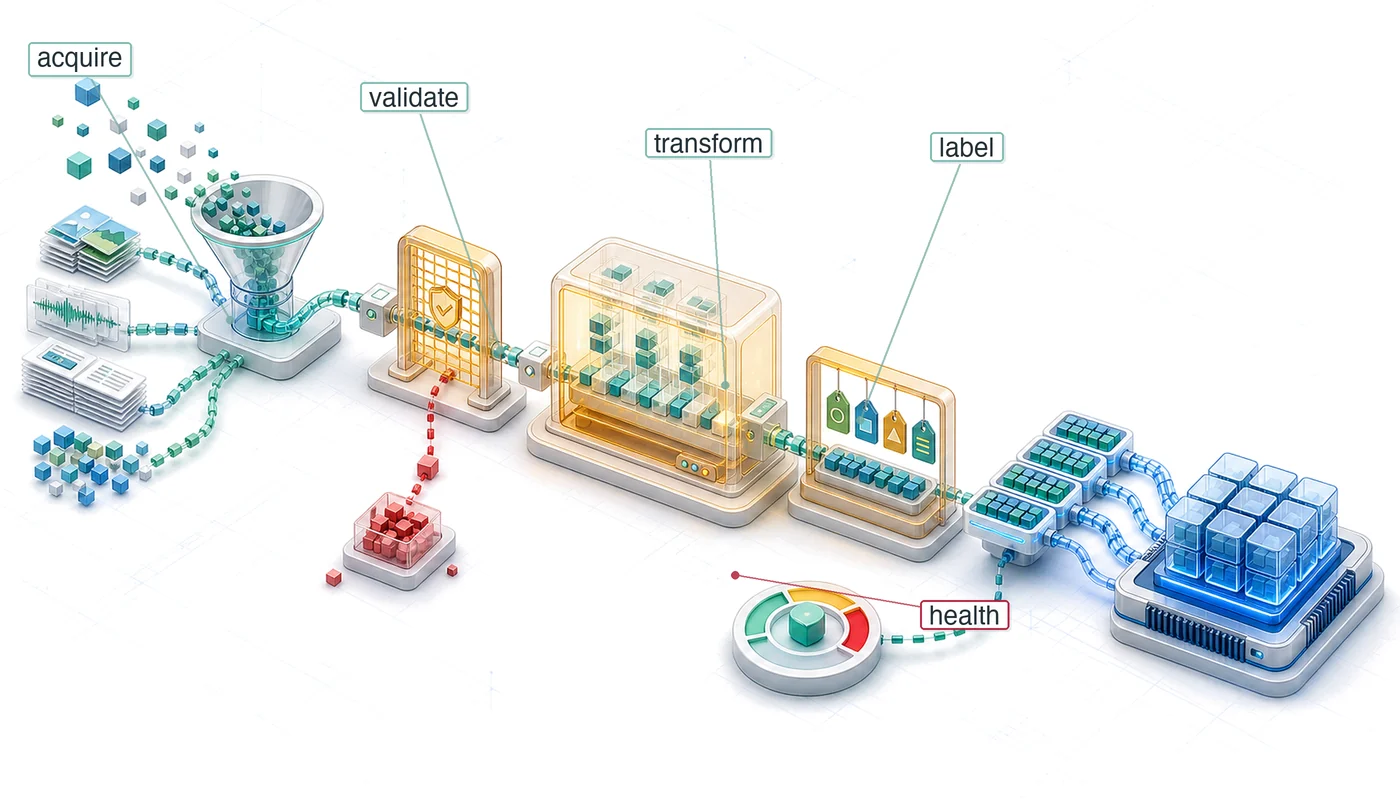

The workflow becomes concrete in the data pipeline: raw inputs pass through collection, ingestion, analysis, labeling, validation, and preparation before they become ML-ready datasets. The effort breakdown in figure explains why that pipeline needs its own systems treatment: industry surveys have reported that data work consumes 60 percent to 80 percent of ML project effort (CrowdFlower 2016), and the Data axis of the D·A·M taxonomy becomes real only as infrastructure: acquisition systems, validation checks, labeling workflows, storage layouts, and governance.

CrowdFlower. 2016. Data Science Report 2016.

Definition 1.1: Data engineering

Data Engineering is the infrastructure layer that manages the lifecycle of data from source to model, encompassing acquisition, transformation, storage, and governance.

Significance: Its critical function is ensuring training-serving consistency, preventing silent degradation by decoupling the model from the volatility of raw data. Within the iron law, it governs bytes moved $(D_{\text{vol}})$, while dataset composition and quality determine whether the dataset $(D)$ remains representative of the target distribution.
Distinction: Unlike data science, which focuses on inference and insight, data engineering addresses the scalability and reliability of the data pipeline.
Common pitfall: A frequent misconception is that Data Engineering is “data cleaning.” In reality, it is Dataset Compilation: transforming raw, noisy observations into an optimized binary that the model consumes.

We reframe data engineering not as “data cleaning,” but as Dataset Compilation. Just as a compiler transforms human-readable source code into an optimized binary executable, a data pipeline transforms raw, noisy observations into a clean, optimized training set that the model consumes. The analogy to compiler design is instructive. A compiler transforms source code through a series of increasingly refined representations (tokens, abstract syntax trees, intermediate representations, machine code), and a data pipeline transforms raw observations into training-ready tensors, the numeric arrays consumed by models, through analogous stages. Filtering corrupted records, outliers, and irrelevant features corresponds to dead code elimination: stripping material that contributes nothing to the learned representation. Augmentation, which synthetically expands limited examples by rotating images, pitch-shifting audio, or injecting noise, mirrors loop unrolling, exposing the model to more variations of the underlying pattern without collecting new data. Deduplication plays the role of common subexpression elimination, identifying and merging duplicate records that would otherwise bias gradient estimates and waste compute. Schema validation, enforcing strict types and ranges on every record, is the data pipeline’s type checker, rejecting malformed inputs before they crash the “runtime” of model training.

The engineering implication is direct: datasets must be versioned (like git), unit-tested (data quality checks), and debugged. Deleting a row of training data is the engineering equivalent of deleting a line of code, and retraining a model is simply recompiling the binary. Compilation also forces a trust boundary between dataset partitions. The training set is allowed to shape parameters; the validation set is allowed to shape modeling and pipeline choices; the test set is reserved for estimating generalization after those choices have been made. Leakage occurs when information crosses those boundaries: duplicate examples appearing in multiple splits, augmented variants of the same source record landing on both sides of the split, user records from the same household appearing in both training and test, or time-derived features computed using future observations. For the keyword-spotting case study used throughout this chapter, this means speaker-independent and time-aware splits are not bookkeeping details; they are the difference between measuring memorization of familiar voices and measuring performance on the deployment population.

This compilation metaphor establishes the engineering mindset that runs through the chapter. A compiler has distinct phases (lexing, parsing, optimization, code generation), and our dataset compiler has phases too: acquisition, ingestion, processing, labeling, storage, and ongoing maintenance. A four pillars framework of Quality, Reliability, Scalability, and Governance organizes design decisions across all phases. Each stage is illustrated through a Keyword Spotting (KWS) case study that demonstrates data engineering under extreme resource constraints, where every byte and operation matters.

Selection gain peaks where signal density (entropy) is high and movement cost (gravity) low.

Before any of these pipeline stages can be designed well, however, we need to understand the physical properties that constrain them. Just as a civil engineer must understand soil mechanics before designing foundations, a data engineer must understand the physics of data movement and information density before making pipeline decisions. These physics impose hard constraints that no amount of clever software can circumvent.

Physics of Data

The “data as code” metaphor captures what data does (determines system behavior) but not why moving it is so expensive. The physics of data explains why data systems must treat data as a physical substance with measurable properties. Just as diverse materials have density and viscosity, datasets have information entropy and data gravity.

Data gravity

Data gravity is the cost of movement. It is a function of volume $(D_{\text{vol}})$ and network bandwidth $(\text{BW})$. The time to move a petabyte dataset across a 10 Gbps link is fixed by physics ($T = D_{\text{vol}}/\text{BW} \approx 9.3 \text{ days}$); even a 100 Gbps dedicated link leaves transfer time and egress cost large enough to shape the architecture. This gravity dictates architecture: because moving 1 PB to the compute is slow and expensive, the compute often must move to the data. This explains the rise of “Data Lakehouse” architectures¹ (Zaharia et al. 2021) where processing engines (Spark, Presto) run directly on storage nodes. In contrast, Data Mesh (Dehghani 2022) proposes decentralizing ownership to manage this scale organizationally, treating data as a product owned by domain teams.

¹ Data Lakehouse: Combines data lake storage (cheap, schema-less) with warehouse query semantics (ACID transactions, schema enforcement) using transactional table layers such as Delta Lake. For ML workloads, the lakehouse reduces the extract, transform, load (ETL) copy between lake and warehouse, enabling direct feature computation on the storage layer where data already resides – a direct response to data gravity, since repeated petabyte-scale copies increase the $D_{\text{vol}}/\text{BW}$ cost (Armbrust et al. 2020; Zaharia et al. 2021).

Armbrust, Michael, Tathagata Das, Liwen Sun, Burak Yavuz, Shixiong Zhu, Mukul Murthy, Joseph Torres, et al. 2020. “Delta Lake: High-Performance ACID Table Storage over Cloud Object Stores.” Proceedings of the VLDB Endowment 13 (12): 3411–24. https://doi.org/10.14778/3415478.3415560.

Zaharia, Matei, Ali Ghodsi, Reynold Xin, and Michael Armbrust. 2021. “Lakehouse: A New Generation of Open Platforms That Unify Data Warehousing and Advanced Analytics.” Proceedings of CIDR 8.

Dehghani, Zhamak. 2022. Data Mesh: Delivering Data-Driven Value at Scale. O’Reilly Media.

Information entropy

Information entropy is the density of signal. A dataset of 1 million identical images has high gravity (TB of storage) but zero entropy (one image worth of information). A dataset of 10,000 diverse edge cases has low gravity but high entropy. Let Information Entropy measure signal density (bits of information per byte) and data gravity capture movement cost (data volume/bandwidth, that is, transfer time). The ratio of the two quantities captures a dataset’s return on movement cost, which equation 1 formalizes as the data selection gain: \[ \text{Data Selection Gain} \propto \frac{\text{Information Entropy}}{\text{Data Gravity}} \tag{1}\]

The feeding problem: Flow rate and the “feeding tax”

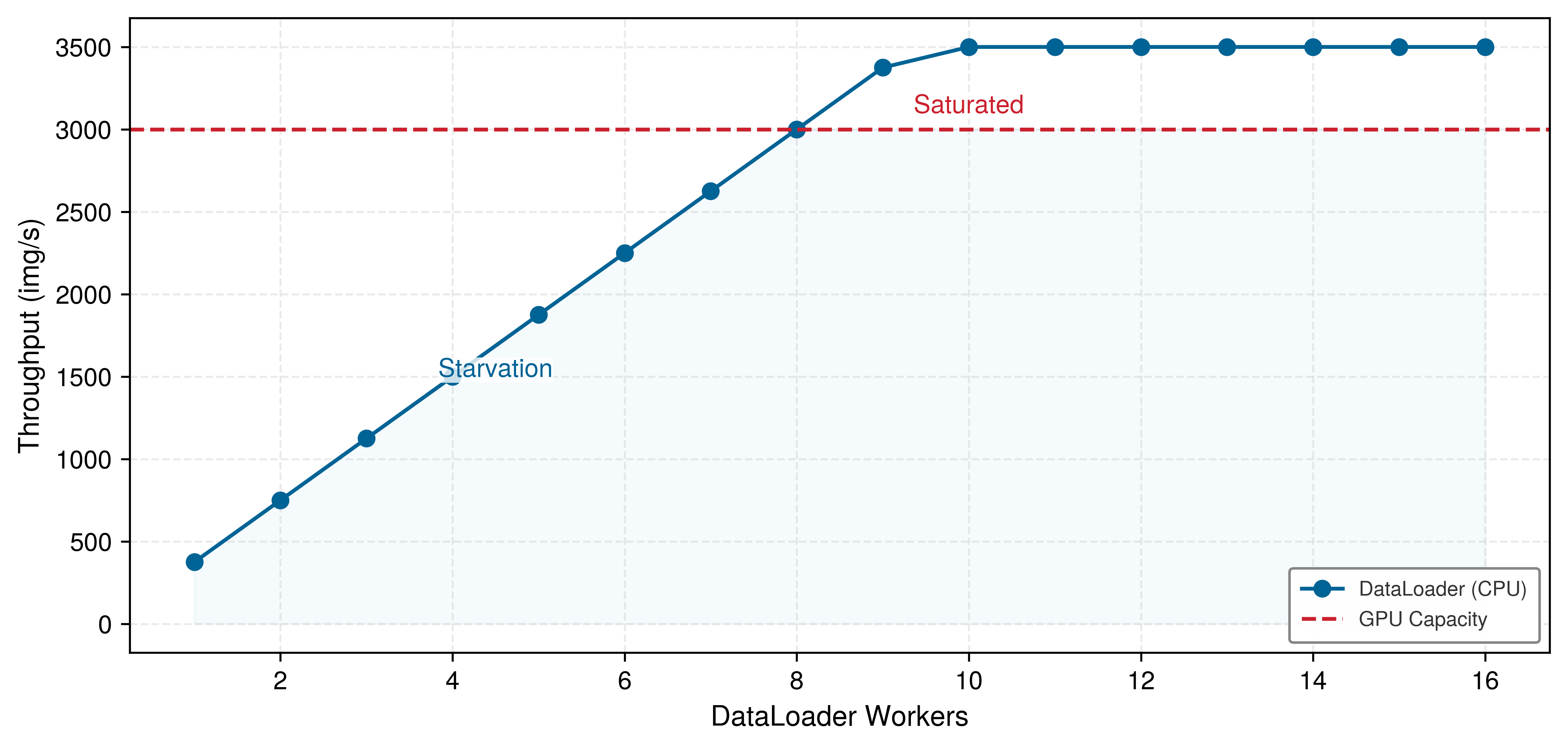

Data gravity establishes the cost of moving the entire mass; The Feeding Problem establishes the cost of delivering it. In the Hennessy & Patterson tradition, we analyze this as a Flow Rate problem: the struggle to saturate a high-throughput machine from a low-bandwidth data source.

According to the iron law, the system is only as fast as its slowest term. If a high-throughput accelerator running an image model can process 1,843 img/s, but the storage pipeline delivers only 250 MB/s, the expensive silicon sits idle. We quantify this as The Feeding Tax: the wall-clock time lost to I/O wait, which directly reduces the system efficiency $(\eta_{\text{hw}})$ term. For a standard cloud volume, the feeding tax can exceed 77.5 percent, meaning the accelerator spends the majority of its time waiting for bits. This tax transforms the data pipeline from a simple storage concern into the primary regulator of the system’s duty cycle. Feeding the reference accelerator in this example often requires 1.1 GB/s transfer rates, forcing the shift from traditional file systems to the specialized storage architectures we examine in section 1.7.1. These physical properties also carry an energy cost: as data moves farther from the processor, movement increasingly dominates the budget.

Systems Perspective 1.1: The energy-movement invariant

The iron law in Iron Law of ML Systems and the memory-wall analysis in System Balance and Hardware imply a data-engineering invariant: moving a bit costs anywhere from a hundred to nearly a million times more energy than computing on it, with the multiplier rising as the data leaves the chip. Later optimization chapters exploit the same cost gradient inside model and hardware design; here, the question is how much energy the information flow from the external world already consumes before the model computes. Table 1 makes that cost gradient explicit across the memory hierarchy.

Table 1: Energy cost of moving vs. computing on a bit: Approximate energy per operation at each stage of the data-movement hierarchy, with multipliers normalized to a single 32-bit MAC on a per-bit basis. All rows list energy per 32-bit access (SSD and network values scale per-bit transfer costs by 32). Moving a bit costs hundreds of times more energy than computing on it for DRAM-resident data, rising to hundreds of thousands of times more when the data must traverse a data-center network.

Operation	Energy (pJ)	Relative Cost
32-bit Floating Point MAC	3.7 pJ/FLOP	1$\times$
DRAM Memory Access (32-bit)	640 pJ	173×
Local SSD Access (32-bit)	4,000 pJ	1,081.1×
Network Transfer (32-bit)	40,000 pJ	10,810.8×

The cost gradient quantified in table 1 explains why locality is the dominant lever in systems engineering: every step the data does not take is the largest energy savings available.

Data has physical mass. Pruning 50 percent of training data through deduplication does more than save disk space; it eliminates the most energy-intensive stages of the training lifecycle. This is why data selection is the highest-leverage tool in the systems engineer’s toolkit: it addresses the problem at the most expensive source.

The energy argument and the entropy ratio point to the same lever from two directions: effective data engineering maximizes the Data Selection Gain defined in equation 1. “Data Cleaning” is not just hygiene; it is Signal-to-Noise Engineering. Deduplication removes mass without reducing entropy, directly increasing the ratio. Active learning adds high-entropy examples (edge cases) while ignoring low-entropy ones (common cases), again maximizing information per byte. We optimize this ratio to ensure our storage and compute budgets are spent on signal, not noise.

These principles operate at the level of individual files and batches. At data center scale, the cost of moving data compounds into a constraint that makes large datasets so expensive to transfer that compute must relocate to the data rather than the reverse. Transferring a petabyte dataset between data centers puts a dollar figure on the constraint.

Napkin Math 1.1: The physics of data gravity

Problem: A 1 PB training dataset resides in a US East data center, while a remote accelerator pod is available in US West. Is it faster to move the data or to move the compute?

Physics:

Network bandwidth: A dedicated 100 Gb/s line carries 12.5 GB/s.
Transfer time: Moving 1,000,000 GB at 12.5 GB/s takes 80,000 seconds, approximately 22 h.
Cost: At $0.09/GB egress, moving 1 PB costs $90,000. (Baseline: AWS data transfer out pricing, 2024.)

Systems insight: If training takes less than 22 h, data transfer takes longer than training. If training costs less than $90,000 (approximately 22,500 TPUv4-hours), bandwidth costs more than compute.

Rule of thumb: For petabyte-scale data, code moves to data. For gigabyte-scale data, data moves to code.

These physical constraints govern every decision in production data pipelines. Before moving on, check the fundamental intuitions that will recur throughout the pipeline.

Checkpoint 1.1: The physics of data

Data engineering is governed by physical costs. Check your intuition:

Data gravity: Why do petabyte-scale datasets force compute to move to the data?
Energy-movement invariant: Why does moving a byte of data cost orders of magnitude more energy than processing it?
Information entropy: Why can a smaller, diverse dataset be more valuable than a massive, redundant one?

These physical properties impose hard constraints on every pipeline decision: where to store data, how to transform it, and when to move computation rather than bytes. Physics alone, however, does not prevent failures; it merely defines the boundaries within which engineering decisions must be made. A team that understands data gravity perfectly can still build a brittle pipeline if quality checks are ad hoc, error handling is absent, or governance is an afterthought. Translating physical constraints into reliable practice requires a systematic framework that organizes design decisions across every pipeline stage.

Self-Check: Question

A team has a 1 PB dataset in one region and a TPU pod in another. Training would take less than a day, but transferring the dataset over a 100 Gbps link takes roughly that same day of wall time and incurs tens of thousands of dollars in egress fees. Applying the section’s data-gravity reasoning, which architectural choice is warranted?
1. Move the data to the TPU region because training hardware is always the scarcest resource.
2. Split the dataset evenly across both regions so the transfer cost is halved and training can begin immediately on both halves.
3. Move the compute to the data because, at petabyte scale, the transfer-time and egress-cost terms both become comparable to or larger than the compute cost.
4. Compress the data once and continue using a remote training cluster, because compression eliminates data gravity as a systems concern.
Two datasets compete for a fixed storage and bandwidth budget: Dataset A is 1 TB of near-duplicate images with the same lighting and pose; Dataset B is 10 GB of curated edge cases covering accents, lighting, and demographic diversity the model currently misses. Under the section’s data-selection-gain argument, which dataset offers higher systems leverage, and why?
1. Dataset A, because larger raw byte count always produces more robust models under modern scaling laws.
2. Dataset B, because data-selection gain rises with the ratio of information entropy to data gravity, and Dataset B carries far more signal per byte moved.
3. Dataset A, because storing the data on faster disks compensates for its redundancy.
4. Dataset B, but only if it is stored in a columnar format, because format choice is what determines selection gain.
A profiler shows an A100 training pipeline running at roughly 20 percent of the accelerator’s advertised TFLOP/s while the attached SATA disk sustains its full 500 MB/s. Use the section’s feeding-tax framing to explain what is happening and what the engineer should measure next.
True or False: Once a workload becomes compute-bound inside the accelerator, reducing data movement has little effect on the total energy budget of training.
A team can either keep all training examples, including many near-duplicates, or aggressively deduplicate and add rare edge cases sourced from a new channel. Use the section’s physics to justify which strategy usually has higher systems leverage.

See Answers →

Four Pillars Framework

A recommendation system rejects every applicant from a region because an upstream team changed a ZIP code field from integer to string. A medical imaging model degrades silently for months because camera hardware changed at a partner hospital. A fraud detection system misses a new attack vector because its training data was six months stale. Each failure traces to a different root cause (schema drift, distribution shift, data staleness), yet all share a common pattern: ad hoc data engineering decisions that interacted in ways no one anticipated until deployment. The four pillars framework organizes these concerns into four interdependent dimensions: quality, reliability, scalability, and governance. We begin with the cascading failure patterns that motivate this framework, then define each pillar.

Data cascades

Machine learning systems face a unique failure pattern called data cascades, where poor data quality in early stages amplifies throughout the entire pipeline (Sambasivan et al. 2021). Traditional software produces immediate errors when encountering bad inputs. ML systems can instead degrade silently² until quality issues become severe enough to require expensive investigation, rework, or retraining.

² Data Cascades: The failure is “silent” because it degrades model inputs, not model code—corrupted data can pass unit tests and appear healthy in ordinary system monitoring. Sambasivan et al. (2021) describe cascades as often invisible and delayed: flawed data practices may surface only after downstream evaluation, deployment, or user-facing failures reveal that the model learned from the wrong signal. Remediation then requires tracing the issue back through data collection, labeling, feature engineering, and evaluation decisions, with some teams restarting or abandoning affected work.

Sambasivan, Nithya, Shivani Kapania, Hannah Highfill, Diana Akrong, Praveen Paritosh, and Lora M Aroyo. 2021. “‘Everyone Wants to Do the Model Work, Not the Data Work’: Data Cascades in High-Stakes AI.” Proceedings of the 2021 CHI Conference on Human Factors in Computing Systems, 1–15. https://doi.org/10.1145/3411764.3445518.

Definition 1.2: Data cascade

Data Cascade is an ML systems failure mode in which upstream data quality problems propagate through collection, labeling, feature engineering, training, evaluation, and deployment, amplifying into downstream model failures or user harm.

Significance: The remediation cost scales with the number of downstream artifacts that consumed the corrupted data: feature tables must be regenerated, models retrained, evaluation metrics recomputed, and deployed systems rolled back or patched. A single schema or labeling defect can therefore invalidate an entire training run and all experiments derived from it, turning a local data error into a full-pipeline rework event.
Distinction: Unlike an isolated data quality bug, a data cascade is defined by propagation and amplification. The initial defect may be small, but each pipeline stage treats its input as trustworthy and converts the defect into new derived state, making the root cause harder to observe as the system moves farther from collection.
Common pitfall: A frequent misconception is that data cascades are caught by ordinary software tests. In reality, corrupted data can satisfy schemas, pass unit tests, and produce successful training jobs while teaching the model the wrong signal; preventing cascades requires lineage, validation, contracts, and monitoring tied to model behavior.

Figure 1 shows the propagation pattern: early data quality errors send failure arcs forward into evaluation and deployment, where remediation is most expensive.

Figure 1: **Data Quality Cascades**: Errors introduced early in the machine learning workflow amplify across subsequent stages, increasing costs and potentially leading to flawed predictions or harmful outcomes. Source: (Sambasivan et al. 2021).

The arrows in figure 1 show how a single data collection error can propagate through every subsequent pipeline stage. Lapses at the earliest stage may only surface during model evaluation and deployment, by which point the team may need to abandon the entire model and restart. Data cascades occur when teams skip establishing clear quality criteria, reliability requirements, and governance principles before beginning data collection and processing. The abstract cascade pattern becomes concrete when a single upstream schema change propagates through a pipeline jungle without validation.

Example 1.1: The pipeline jungle

Failure mode: A credit scoring model suddenly started rejecting all applicants from a specific region.

Diagnosis: An upstream team changed the schema of the zip_code field from integer to string to handle international codes, and the pipeline jungle had no data contract enforcing the expected representation.

The data pipeline silently cast “02139” (string) to 2139 (integer).
The leading zero was lost.
The model, treating zip_code as a categorical feature, saw “2139” as a completely new, unknown category and defaulted to “high risk” behavior.

Systems insight: This is a Pipeline Jungle failure. Without explicit Data Contracts—versioned agreements about schema, units, allowed ranges, and feature semantics at the ingestion interface—changes in one system (“we need string zip codes”) cause catastrophic, silent failures in downstream systems. Data engineering is the defense against this entropy.

Four foundational pillars

Preventing cascading data failures requires more than ad hoc fixes; it demands a systematic framework that evaluates every data engineering decision against four interdependent principles. In the KWS running example, even a small enrollment choice such as whether to accept a noisy wake-word recording or ask the user to repeat it touches all four pillars at once. Figure 2 shows why these pillars surround the central ML data system rather than appearing as independent checklist items: each one contributes a necessary capability, and the dashed lines mark the trade-offs created when one pillar is strengthened without regard for the others.

Figure 2: **The Four Pillars of Data Engineering**: Quality, Reliability, Scalability, and Governance form the foundational framework for ML data systems. Each pillar contributes essential capabilities (solid arrows), while trade-offs between pillars (dashed lines) require careful balancing: validation overhead affects throughput, consistency constraints limit distributed scale, privacy requirements impact performance, and bias mitigation may reduce available training data.

Data quality provides the foundation, as the cascade pattern in section 1.2.1 demonstrates: when upstream data is wrong, everything downstream fails. For KWS enrollment, quality asks whether the recording contains the intended phrase, whether it covers the accents and acoustic environments expected in deployment, and whether the captured distribution remains fresh as microphones and rooms change. Rejecting noisy examples can improve correctness but reduce coverage of real homes; accepting every example improves coverage but can train the detector on mislabeled or low-SNR audio. The quality pillar therefore motivates validation, monitoring, and drift detection infrastructure examined throughout this chapter.

Reliability asks whether the same enrollment pipeline keeps working when the device, network, or user behavior is imperfect. A pipeline that produces excellent wake-word examples in a laboratory but fails during intermittent connectivity, battery pressure, or microphone glitches delivers no value in the user’s home. Error handling, retries, local buffering, and graceful degradation turn the quality rule into a usable system: the device can request another utterance, defer upload until connectivity returns, or preserve a known-good enrollment rather than silently accepting corrupted audio.

Scalability asks whether that same decision survives growth. A manual review policy that works for a thousand recordings collapses when the product expands to millions of users, dozens of languages, and long-tail acoustic conditions. The system must scale validation, storage, labeling, and retraining without letting infrastructure cost grow faster than the value of better coverage. Our recommendation lighthouse illustrates this challenge at its most extreme.

Lighthouse 1.1: DLRM recommendation lighthouse

Recommendation systems built in the DLRM style exemplify the scalability challenge of modern data engineering. They rely on high-cardinality categorical features, such as user IDs and product IDs, that cannot be treated as ordinary numbers. Each ID indexes an embedding table, which returns a learned dense vector for downstream layers to combine with numeric features. Table 2 summarizes how this representation stresses memory capacity and sparse-access bandwidth rather than compute.

Table 2: DLRM scalability profile: DLRM-style recommendation models stress data engineering along memory capacity and sparse-access bandwidth rather than compute, distinguishing them from compute-heavy vision models or stream-heavy language models and making embedding-table partitioning a first-class system concern.

Property	Value	System Implication
Data Scale	Billion+ users/items	Embedding and lookup tables can grow to TB/PB scale.
Constraint	Memory Capacity	The tables no longer fit on one machine and must be partitioned.
Bottleneck	Sparse Access	Random lookups stress memory bandwidth more than compute.

Unlike ResNet-style image models that are often limited by arithmetic throughput or GPT-style language models that can be limited by streaming bandwidth, DLRM-style recommendation systems are limited by memory capacity and the logistics of serving many random embedding-table lookups efficiently.

The recommendation lighthouse shows where the scalability pillar bites hardest: the wall is memory capacity, and partitioning embedding tables across machines becomes a first-class design concern rather than an afterthought. Governance then defines the boundaries within which quality, reliability, and scalability may operate. For the KWS example, governance determines whether raw voice recordings may leave the device, how long enrollment audio can be retained, which consent record authorizes use, and what documentation proves that the dataset covers relevant accents without exposing private speech. A perfectly scalable, reliable, high-quality pipeline that violates the General Data Protection Regulation (GDPR) or perpetuates demographic biases creates liability rather than value. Dataset documentation practices such as data statements make part of that governance visible by recording provenance, intended use, collection conditions, and coverage needed for bias analysis and scientific comparison (Bender and Friedman 2018).

Bender, Emily M., and Batya Friedman. 2018. “Data Statements for Natural Language Processing: Toward Mitigating System Bias and Enabling Better Science.” Transactions of the Association for Computational Linguistics 6: 587–604. https://doi.org/10.1162/tacl_a_00041.

When ML systems exhibit failures, the four pillars provide a diagnostic lens for identifying root causes. Gradual accuracy degradation points to quality: data drift has shifted the serving distribution away from training, or label quality has degraded as annotator pools change. Intermittent pipeline failures point to reliability: error handling, retry logic, or resource controls are missing under peak load. Training that takes too long despite adequate hardware points to scalability: a single-threaded transformation, unpartitioned shuffle, or slow storage tier prevents parallel resources from being used. Compliance gaps discovered during audits point to governance debt: lineage tracking is incomplete, access controls are stale, or retention policies have not kept pace with regulatory changes.

The most insidious failures span multiple pillars. Features that differ between training and serving implicate both quality (the values are wrong) and reliability (the computation is inconsistent). A privacy-motivated deletion policy can also create quality gaps if the retained data no longer covers the deployment population. Diagnosing such cross-pillar failures requires checking consistency contracts, comparing feature distributions across environments, and tracing transformation lineage, all techniques examined in detail throughout this chapter. The key diagnostic insight is that most practitioners instinctively investigate the model first, but production experience consistently shows that data infrastructure failures outnumber model failures by a wide margin.

KWS case study

Keyword Spotting (KWS) systems provide an ideal case study for applying our four-pillar framework to real-world data engineering challenges. These systems power voice-activated devices like smartphones and smart speakers, detecting specific wake words such as “OK, Google” or “Alexa” within continuous audio streams while operating under strict resource constraints.³

³ Voice Match Enrollment: Setting up “OK Google” requires repeating the wake phrase several times, a micro-scale data collection pipeline running on-device. Even this single-user workflow exercises all four data engineering pillars: quality (re-record if ambient noise is too high), reliability (must succeed on first attempt), scalability (model must fit in the system on chip (SoC)’s always-on memory), and governance (voice prints stored locally, never uploaded). The enrollment constraint illustrates why data engineering is not just a cloud-scale problem – it applies wherever data determines system behavior.

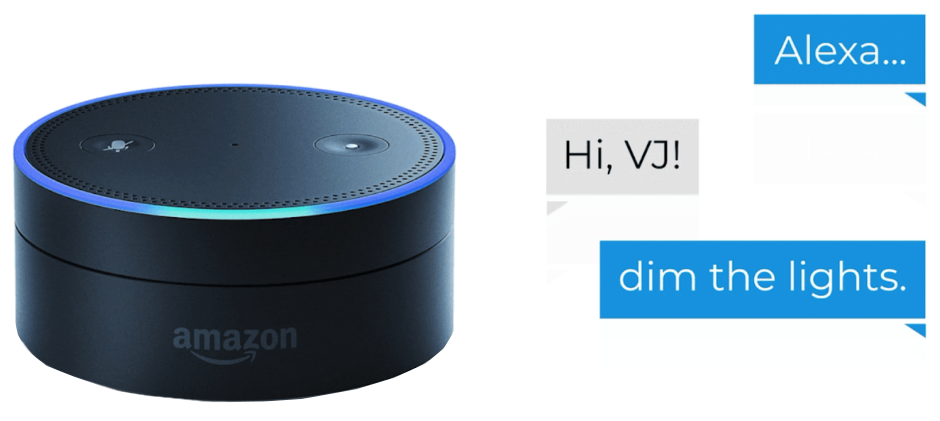

As figure 3 illustrates, a KWS system operates as a lightweight, always-on front-end that triggers more complex voice processing systems. Even this seemingly simple architecture surfaces interconnected challenges across all four pillars: Quality (accuracy across diverse environments), Reliability (consistent battery-powered operation), Scalability (severe memory constraints), and Governance (privacy protection). These constraints limit KWS systems to a few dozen languages: collecting high-quality, representative voice data for smaller linguistic populations proves prohibitively difficult. All four pillars must work together to achieve successful deployment.

Figure 3: **Keyword Spotting in Action**: An Amazon Echo Dot responds to the wake word and follows the user’s command. Voice-activated devices use a lightweight, always-on wake-word detector that listens continuously and triggers the main voice assistant only after the keyword is spoken.

The four pillars translate directly into engineering constraints for the KWS system.

The core problem is deceptively simple: detect specific keywords amidst ambient sounds and other spoken words, with high accuracy, low latency, and minimal false activations, on devices with severely limited computational resources. A well-specified problem definition identifies the desired keywords, the envisioned application, and the deployment scenario. The objectives that follow must balance competing requirements: performance targets of 98 percent accuracy in keyword detection with latency under 200 ms, alongside resource constraints demanding minimal power consumption and model sizes optimized for available device memory.

Success metrics for KWS extend beyond simple accuracy to include true positive rate (correctly identified keywords relative to all spoken keywords), false positive rate (nonkeywords incorrectly identified as keywords), and detection/error trade-off curves that compare false accepts per hour against false rejection rate on streaming audio representative of real-world deployment, as demonstrated by Nayak et al. (2022). Of these metrics, the false positive rate deserves particular attention for always-on systems. Because KWS listens continuously, every second of every day, even a seemingly negligible false positive rate compounds across millions of evaluation windows. A quick calculation shows how strict that requirement becomes.

Nayak, Prateeth, Takuya Higuchi, Anmol Gupta, Shivesh Ranjan, Stephen Shum, Siddharth Sigtia, Erik Marchi, et al. 2022. “Improving Voice Trigger Detection with Metric Learning.” Interspeech 2022, 1896–900. https://doi.org/10.21437/interspeech.2022-11160.

Small per-window false-positive rates compound into operational failure.

Napkin Math 1.2: False positive targets

Problem: An always-on KWS system must tolerate at most one false wake-up per month. With one-second classification windows running around the clock, how strict does the per-window false positive rate need to be?

Variables:

Duty cycle: Always-on (24 hours/day).
Window size: One-second classification windows.
Windows per month: One window per second, 24 hours/day, over 30 days gives 2,592,000 windows/month.

Math:

False Positive Rate (FPR): 1 tolerated false wake divided by the monthly window count gives approximately 3.9 × 10⁻⁷
Precision requirement: 99.99996 percent rejection of nonkeywords.

Systems insight: Standard accuracy metrics (for example, “99 percent accuracy”) are meaningless here. We must evaluate specifically on False Accepts per Hour (FA/Hr).

Operational metrics further track response time (keyword utterance to system response) and power consumption (average power used during keyword detection), and stakeholder priorities create additional tension around those metrics. Device manufacturers prioritize low power consumption, software developers emphasize ease of integration, and end users demand accuracy and responsiveness. Balancing these competing requirements shapes system architecture decisions throughout development.

Embedded device constraints impose hard boundaries on these architectural choices. Memory limitations require extremely lightweight models, often in the tens-of-kilobytes range, to fit in the always-on island of the SoC⁴; this constraint covers only model weights, and preprocessing code must also fit within tight memory bounds. Limited computational capabilities (often a few hundred MHz of clock speed) demand aggressive model optimization. Most embedded devices run on batteries, so KWS systems target sub-milliwatt power consumption during continuous listening. Devices must also function across diverse deployment scenarios ranging from quiet bedrooms to noisy industrial settings.

⁴ SoC Always-On Island: Modern System-on-Chip designs partition power domains so a low-power “always-on” island (typically achieving sub-milliwatt draw) monitors for wake triggers while the main processor sleeps. The critical constraint is that this island must hold both the model weights and the audio preprocessing code within its dedicated SRAM—a split budget that forces KWS architectures to optimize for total footprint, not just parameter count.

Data quality and diversity ultimately determine whether these constraints can be met. The dataset must capture demographic diversity (speakers with various accents, ages, and genders) to ensure broad recognition. Keyword variations require attention since people pronounce wake words differently, and background noise diversity proves essential for training models that perform across real-world scenarios from quiet environments to noisy conditions. Once a prototype system is developed, iterative feedback and refinement keep the system aligned with objectives as deployment scenarios evolve, requiring testing in real-world conditions and systematic refinement based on observed failure patterns.

KWS design space

KWS accuracy, false-wake tolerance, latency budget, energy budget, and memory limits create a multi-dimensional design space where data engineering choices cascade through system performance. Table 3 quantifies key trade-offs, enabling principled decisions rather than ad-hoc selection. One row uses mel-frequency cepstral coefficients (MFCCs): compact speech-frequency features whose coefficient count controls feature size, compute cost, and acoustic detail; the processing section later shows how they are extracted.

Table 3: KWS Data Engineering Design Space: Each design choice creates quantifiable trade-offs across the four pillars. Higher sampling rates improve quality but double storage and processing (scalability impact). More training data improves accuracy but multiplies labeling costs (governance/cost impact). Local inference eliminates latency but requires compact model and feature representations (quality/reliability trade-off). This design space analysis guides systematic optimization rather than intuition-based decisions.

Design Choice	Quality Impact	Latency Impact	Cost Impact	Memory Impact
16 kHz vs. 8 kHz sampling	+2–4% accuracy	2× storage	2× processing	2× feature size
13 vs. 40 MFCC coefficients	+3–5% accuracy	3× feature compute	Minimal	3× feature memory
1M vs. 10M training examples	+5–8% accuracy	10× training time	10× labeling cost	10× storage
Clean vs. noisy training data	+10–15% real-world	Minimal	3× collection cost	Minimal
Local vs. cloud inference	up to 2% accuracy risk	10 ms vs. 100 ms	$0/query vs. $0.001/query	16 KB vs. unlimited
Synthetic vs. real augmentation	+3–5% robustness	Minimal	10× cheaper	Minimal

A concrete budget scenario shows how to apply this design space analysis.

Example 1.2: Optimizing the KWS design space

Scenario: A KWS system for a smart speaker has these constraints:

Target: 98 percent accuracy, fewer than 1 false wakes/month
Budget: $150K total data engineering budget
Memory: 64 KB model size limit (always-on island)
Timeline: 6 months to production

Step 1: Apply constraints to eliminate options.

From table 3, the 64 KB memory limit eliminates two options:

40 MFCC coefficients (3$\times$ memory) → Must use 13 MFCCs
Cloud inference (requires network stack) → Must use local inference

Step 2: Calculate budget allocation.

The $150K budget splits across three cost categories at the unit rates established in section 1.3.2:

Labeling (~60 percent): $90K available
Storage/Processing (~25 percent): $37.5K
Governance/Other (~15 percent): $22.5K

At $0.10/label with 20 percent review overhead: $90K ÷ $0.12/label = 750K labeled examples

This yields roughly 0.75M labeled examples, just below the 1M anchor in our design space. The 1M-to-10M row in table 3 should therefore be read as a scaling reference rather than a direct interpolation: the real-label budget alone does not buy the full data-volume gain.

Step 3: Maximize remaining accuracy.

The current accuracy budget has three components:

Base model: ~90 percent (minimal data)
Partial data-volume gain from 750K real examples
Need: higher sampling rate plus synthetic/noisy augmentation to reach the 98 percent target

Three options from the design space remain within budget and memory constraints:

16 kHz sampling: +2–4 percent accuracy, 2$\times$ storage cost ✓ (fits budget)
Noisy training data: +10–15 percent real-world accuracy, 3$\times$ collection cost
Synthetic augmentation: +3–5 percent robustness, 10$\times$ cheaper than real data ✓

Step 4: Final configuration.

The three remaining choices combine with the memory-forced 13 MFCCs and the 750K real labels into the budget-optimal configuration in table 4.

Result: The projected outcome is 97–99 percent estimated accuracy, straddling the 98 percent target, within the $150K budget, and a model footprint under the 64 KB limit.

Systems insight: Systematic design space analysis transformed intuition (“we need more data”) into quantified decisions (“750K real + 2M synthetic maximizes accuracy per dollar given memory constraints”).

Table 4 records the resulting configuration, pairing each design choice with the constraint that forces it: sampling and augmentation are bought where they fit the budget, while precision and memory are pinned by the always-on island.

Table 4: KWS final configuration: Budget-optimized data engineering choices that satisfy the four-pillar constraints derived in table 3, trading higher sampling and synthetic augmentation against fixed memory and labeling budgets to reach an estimated 97–99 percent accuracy range around the 98 percent target.

Choice	Selection	Rationale
Sampling rate	16 kHz	+3% accuracy worth 2$\times$ storage within budget
MFCC coefficients	13	Memory-constrained, nonnegotiable
Training examples	750K real + 2M synthetic	Budget-optimal mix
Data diversity	Noisy + clean mix	Critical for real-world deployment
Inference	Local, INT8 quantized	8-bit integer weights fit the 64 KB limit (Model Compression)
Augmentation	Heavy synthetic	10$\times$ cost efficiency

With optimal parameters selected from our design space, implementation requires combining multiple data collection approaches: preexisting corpora for the baseline, web scraping and crowdsourcing for coverage gaps, and synthetic generation for scale. The combination enables KWS systems that perform well across diverse real-world conditions. Section 1.3 develops each of these acquisition strategies, their economics, and their KWS instantiations in full.

Checkpoint 1.2: Four pillars framework

The four pillars provide a systems lens for every pipeline choice.

The Pillars

Quality: Can you distinguish correctness from coverage (edge cases, subgroup coverage) and explain why both matter?
Reliability: Can you name concrete failure modes (schema drift, missing values, skew) that cause silent degradation rather than explicit crashes?
Scalability: Can you explain which parts of a pipeline become bottlenecks as data volume grows (storage bandwidth, compute, coordination), and why?
Governance: Can you articulate what must be tracked to make a dataset auditable (provenance, consent constraints, access controls, documentation)?

Trade-offs

Pillar tension: Given one pipeline change (for example, stricter validation, stronger privacy constraints, or more data sources), can you predict which pillar improves and which pillar(s) you stress?

The four pillars provide the evaluative lens; the first concrete engineering decision is data provenance. Acquisition strategy determines the raw material that every subsequent stage refines.

Self-Check: Question

A credit model starts rejecting applicants from one region after an upstream team changes zip_code from integer to string, causing leading zeros to be lost and unseen categories to appear downstream. Which pillar failure is most directly responsible for the customer-facing symptom?
1. Quality, because the feature values reaching the model no longer correctly represent the underlying entity.
2. Governance, because every schema change is primarily a compliance problem before it is a technical one.
3. Scalability, because the failure comes from too many distinct zip codes being processed.
4. Reliability, because any schema change is just another transient fault that retries should solve.
An always-on KWS system evaluates one-second windows continuously and the product requirement is at most one false wake per month. What follows about the evaluation metric the team should use, and why?
1. A model with 99 percent overall accuracy is adequate because false wakes are rare when averaged across all evaluation windows.
2. False positive rate matters less than top-1 accuracy because the device can run a second confirmation model cheaply.
3. The system should optimize for throughput because false positives do not compound over time.
4. Aggregate accuracy is inadequate; the correct metric is false accepts per hour because roughly 2.6 million non-keyword windows per month amplify any per-window false-positive rate into user-visible failures.
A fraud-detection pipeline launched with careful schema checks, but over six months a chain of small failures - sensor drift that was ignored, label noise from a vendor change, and a silent timestamp format shift - produces a deployed model that consistently mispredicts one customer segment. Which concept from the section best describes this pattern?
1. A coverage gap, because the dataset did not include every customer segment from the start.
2. A data cascade, because small upstream data problems amplify across collection, cleaning, training, and deployment until the damage surfaces far downstream.
3. Training-serving skew, because the training and serving feature code paths diverged.
4. Covariate shift, because the input distribution has changed since training.
A KWS team must fit the always-on footprint within 64 KB, stay under a fixed labeling and compute budget, and still approach 98 percent accuracy. Explain why the chapter prescribes design-space analysis rather than the vague strategy ‘collect more data.’
After several silent quality failures, a team proposes adding much stricter validation at ingestion. Explain what cross-pillar trade-off the chapter says they should expect, and how they should design around it.

See Answers →

Data Acquisition

Data acquisition begins when the team names the coverage gap the model must close. The ImageNet benchmark⁵ contains 14.2 million labeled images and took 49,000 crowdsourced workers to assemble (Deng et al. 2009; Russakovsky et al. 2015). GPT-3’s training corpus used tens of terabytes of raw Common Crawl text filtered to hundreds of gigabytes, combined with curated web, books, and Wikipedia data (Brown et al. 2020). Our KWS system needs 23.4 million audio samples spanning 50 languages, but the hard part is not only volume. The model must recognize wake words across accents, microphones, rooms, ages, and background noises that no single collection method can economically cover. Acquisition strategy is therefore a sequence of gap-closing decisions: reuse what already matches deployment, collect what is missing, scrape or synthesize where scale is the binding constraint, and reject sources whose provenance or consent constraints make them unusable.

⁵ ImageNet: The canonical “cost-efficient starting point” – 14.2 million images labeled by 49,000 Mechanical Turk workers across 21,841 categories (2009) (Deng et al. 2009, 2024; Russakovsky et al. 2015). Its value as a benchmark is inseparable from its data engineering: Fei-Fei Li’s team spent two years building the labeling infrastructure, yet every subsequent team reuses that investment for free. The catch is benchmark overfitting: models tuned to ImageNet’s distribution systematically underperform on related but shifted test distributions, making it a starting point that must be augmented, never a finishing line (Recht et al. 2019; Beyer et al. 2020).

Deng, Jia, Wei Dong, Richard Socher, Li-Jia Li, Kai Li, and Li Fei-Fei. 2009. “ImageNet: A Large-Scale Hierarchical Image Database.” 2009 IEEE Conference on Computer Vision and Pattern Recognition, 248–55. https://doi.org/10.1109/cvpr.2009.5206848.

Deng, Jia, Wei Dong, Richard Socher, Li-Jia Li, Kai Li, and Li Fei-Fei. 2024. ImageNet.

Russakovsky, Olga, Jia Deng, Hao Su, Jonathan Krause, Sanjeev Satheesh, Sean Ma, Zhiheng Huang, et al. 2015. “ImageNet Large Scale Visual Recognition Challenge.” International Journal of Computer Vision 115 (3): 211–52. https://doi.org/10.1007/s11263-015-0816-y.

Recht, Benjamin, Rebecca Roelofs, Ludwig Schmidt, and Vaishaal Shankar. 2019. “Do ImageNet Classifiers Generalize to ImageNet?” Proceedings of the 36th International Conference on Machine Learning (ICML), 5389–400.

Beyer, Lucas, Olivier J. Hénaff, Alexander Kolesnikov, Xiaohua Zhai, and Aäron van den Oord. 2020. “Are We Done with ImageNet?” arXiv Preprint arXiv:2006.07159.

The KWS case also shows why acquisition cannot optimize one pillar at a time. Achieving 98 percent accuracy across diverse acoustic environments requires representative data spanning accents, ages, and recording conditions. Maintaining consistent detection despite device variation requires recordings from different microphones and capture paths. Supporting millions of concurrent users requires volumes that manual collection cannot economically provide. Protecting user privacy in always-listening systems constrains which recordings may be retained and how they must be anonymized. A source that improves scale but weakens governance, or improves quality but excludes important speakers, does not solve the acquisition problem.

Data source evaluation and selection

The choice among curated datasets, expert crowdsourcing, controlled web scraping, and synthetic generation depends on which source best closes the next deployment-distribution gap at acceptable cost, quality, and governance risk. Evaluation therefore begins with the cheapest reusable source and escalates only when the remaining gap justifies new collection or synthesis.

Preexisting datasets from repositories such as Kaggle, UCI (Dua and Graff 2024), and ImageNet are the first test. They offer speed and comparability when the deployment distribution resembles the benchmark enough to make reuse meaningful. For KWS, a curated speech corpus can establish the baseline model and reveal which words, languages, and acoustic conditions are already covered. Its value is not guaranteed coverage; its value is that it makes the remaining gaps measurable.

Dua, Dheeru, and Casey Graff. 2024. UCI Machine Learning Repository.

Pineau, Joelle, Philippe Vincent-Lamarre, Koustuv Sinha, Vincent Larivière, Alina Beygelzimer, Florence d’Alché-Buc, Emily Fox, and Hugo Larochelle. 2021. “Improving Reproducibility in Machine Learning Research (a Report from the Neurips 2019 Reproducibility Program).” Journal of Machine Learning Research 22 (164): 1–20.

Henderson, Peter, Riashat Islam, Philip Bachman, Joelle Pineau, Doina Precup, and David Meger. 2018. “Deep Reinforcement Learning That Matters.” Proceedings of the AAAI Conference on Artificial Intelligence 32 (1): 3207–14. https://doi.org/10.1609/aaai.v32i1.11694.

Gudivada, Venkat N., Dhana Rao Rao, et al. 2017. “Data Quality Considerations for Big Data and Machine Learning: Going Beyond Data Cleaning and Transformations.” IEEE Transactions on Knowledge and Data Engineering 59 (11): 1049–59.

That reuse decision depends on documentation quality, which directly affects reproducibility, an ongoing crisis in machine learning research (Pineau et al. 2021; Henderson et al. 2018). Good documentation captures collection methodology, variable definitions, and baseline performance, enabling validation and replication. At scale, volume and variety compound quality challenges (Gudivada et al. 2017), requiring systematic validation pipelines rather than ad-hoc inspection.

Context matters as much as content. Popular benchmarks like ImageNet invite overfitting that inflates performance metrics (Beyer et al. 2020), and curated datasets can fail to reflect real-world deployment distributions (Recht et al. 2019; Koh et al. 2021). This disconnect creates systemic risk when organizations rely exclusively on standard datasets. The arrows in figure 4 show the failure mode: when multiple ML systems all train on the same data, they propagate shared biases and limitations throughout an entire ecosystem of deployed models.

Koh, Pang Wei, Shiori Sagawa, Henrik Marklund, Sang Michael Xie, Marvin Zhang, Akshay Balsubramani, Weihua Hu, et al. 2021. “WILDS: A Benchmark of in-the-Wild Distribution Shifts.” In Proceedings of the 38th International Conference on Machine Learning, ICML 2021, 18-24 July 2021, Virtual Event, edited by Marina Meila and Tong Zhang, vol. 139. Proceedings of Machine Learning Research. PMLR.

Figure 4: **Shared Dataset Bias Propagation**: Five models (A through E) all train on a single central dataset repository. Arrows show how shared limitations, biases, and blind spots propagate from the common dataset to every downstream model, leading to correlated failures across the ecosystem.

For our KWS lighthouse, preexisting datasets provide essential starting points for rapid prototyping and baseline performance. Google’s Speech Commands (Warden 2018) offers carefully curated voice samples for common wake words, and the Multilingual Spoken Words Corpus (MSWC) (Mazumder et al. 2021) extends that foundation to a large multilingual corpus. However, evaluating these sources against quality requirements immediately reveals coverage gaps: limited accent diversity, missing acoustic environments, sparse coverage for underrepresented languages, and predominantly clean recording conditions. Quality-driven acquisition strategy recognizes these limitations and plans complementary approaches, demonstrating how framework-based thinking guides source selection beyond simply choosing available datasets.

Warden, Pete. 2018. “Speech Commands: A Dataset for Limited-Vocabulary Speech Recognition.” arXiv Preprint arXiv:1804.03209, ahead of print. https://doi.org/10.48550/arXiv.1804.03209.

Scalability and cost optimization

Quality-focused data acquisition approaches face inherent scaling limitations. When scale requirements dominate, needing millions or billions of examples that manual curation cannot economically provide, web scraping and synthetic generation offer paths to massive datasets. Data-acquisition scalability requires understanding the economic models underlying different acquisition strategies: cost per labeled example, throughput limitations, and how these scale with data volume. Cost-effectiveness inverts with scale: what works at thousands of examples becomes prohibitive at millions, while high-setup-cost approaches amortize favorably at large volumes.

The per-unit economics at each stage determine which strategy dominates. Labeling a single medical image, for example, can cost orders of magnitude more than storing it for a year, a ratio that reshapes budget allocation for any team operating under fixed funding. The following cost and time constants provide essential context for acquisition decisions.

Just as systems engineers memorize latency numbers, ML engineers should internalize the data engineering constants in table 5 and table 6. The pattern that emerges is that labeling consistently dominates storage and compute costs, so teams should reason from cost ratios rather than isolated prices.

Table 5: Data Engineering Cost Constants (2024): Per-unit costs that ML engineers should memorize in the same way systems engineers memorize latency numbers. Labeling commonly dominates storage and compute, so teams should reason from ratios rather than isolated prices.

Operation	Cost	Notes
Crowdsourced image label	$0.01–0.05	Simple classification
Bounding box annotation	$0.05–0.20	Per box, simple scenes
Expert medical label	$50–200	Per study, radiologist
S3 storage (Standard)	$23/TB/month	Hot storage
S3 retrieval (Glacier)	$0.02/GB	Standard: 3-5 hours
Cloud GPU training hour	$2–4	Cloud spot pricing
Human review hour	$15–50	Depending on expertise

Table 6 extends the picture with characteristic durations for labeling, training, and serving operations.

Table 6: Data Engineering Time Constants: Characteristic durations for labeling, training, and serving operations span about 9 orders of magnitude. Human labeling sets the wall-clock floor for new datasets, making it the dominant scheduling constraint in production ML systems.

Operation	Duration	Bottleneck
Label 1M images (crowdsourced)	2–4 weeks	Annotation throughput
Train ResNet-50 on ImageNet	4–6 hours	Compute (8$\times$ A100, optimized)
Feature store lookup	1–10 ms	Network + cache

The contrast matters: weeks for human labeling, hours for GPU training, milliseconds for serving. Labeling is the bottleneck. It often costs hundreds to more than a thousand times more than a single optimized training run: a $100K labeling budget compares with $64–$192 for one 8$\times$ A100 ResNet-50 run, a 520.8×–1,562.5× ratio. Within that labeling spend, the effort distribution itself is skewed: 80 percent of the work goes to 20 percent of features—the long tail of edge cases, rare categories, and quality exceptions.

All cost figures reflect approximate 2024 cloud provider rates and are intended to convey relative magnitudes rather than exact pricing.⁶ The consistent pattern across these numbers is that human labor (labeling, annotation, expert review) dominates hardware and storage costs by one to three orders of magnitude. A team that optimizes its labeling pipeline before scaling compute or storage addresses the largest cost term first.

⁶ Pricing Ratios: The absolute dollar amounts in this chapter will shift with provider pricing, but the ratios between paid tiers are remarkably stable because they reflect physical constraints, not business decisions. S3 Glacier retrieval illustrates the pattern: standard ($0.02/GB, 3–5 hours) and expedited ($0.06/GB, 1–5 minutes) span a 3× paid-tier cost range, while bulk retrieval trades a zero retrieval charge for the slowest 5–12 hour latency. The design maps directly to the $D_{\text{vol}}/\text{BW}$ trade-off in the iron law. Engineers who memorize ratios rather than prices make storage decisions that survive the next pricing revision.

Kuznetsova, Alina, Hassan Rom, Neil Alldrin, Jasper Uijlings, Ivan Krasin, Jordi Pont-Tuset, Shahab Kamali, et al. 2020. “The Open Images Dataset V4: Unified Image Classification, Object Detection, and Visual Relationship Detection at Scale.” International Journal of Computer Vision 128 (7): 1956–81. https://doi.org/10.1007/s11263-020-01316-z.

Groeneveld, Dirk, Iz Beltagy, Pete Walsh, Akshita Bhagia, Rodney Kinney, Oyvind Tafjord, Ananya Harsh Jha, et al. 2024. “OLMo: Accelerating the Science of Language Models.” Proceedings of the 62nd Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers), 15789–809. https://doi.org/10.18653/v1/2024.acl-long.841.

Chen, Mark, Jerry Tworek, Heewoo Jun, Qiming Yuan, Henrique Ponde de Oliveira Pinto, Jared Kaplan, Harri Edwards, et al. 2021. “Evaluating Large Language Models Trained on Code.” arXiv Preprint arXiv:2107.03374.

Web scraping is the first lever on that cost structure, enabling dataset construction at scales that manual curation cannot match. Major vision datasets like ImageNet (Deng et al. 2024) and OpenImages (Kuznetsova et al. 2020) were built through systematic scraping, and large language models depend on web-scale text corpora (Groeneveld et al. 2024). Targeted scraping of domain-specific sources, such as code repositories (Chen et al. 2021), further demonstrates the approach’s versatility. However, production systems that rely on continuous scraping face pipeline reliability challenges: website structure changes break extractors, rate limiting throttles collection throughput, and dynamic content introduces inconsistencies that degrade model performance. Scraped data can also contain unexpected noise, such as historical images appearing in contemporary searches (figure 5), requiring systematic validation and cleaning stages.

Consider what happens when scraping the web for “traffic light” images: search engines return not only modern LED signals but also historical photographs like the following one. A model trained on such data might learn that traffic lights are sometimes operated by uniformed officers standing in the street, a spurious correlation that would cause failures in any real-world deployment.

Figure 5: **Data Source Noise**: A black-and-white photograph from 1914 showing early manual semaphore traffic signals, illustrating how historical images can appear in modern web scraping results for contemporary queries. Such anachronistic content requires systematic validation and filtering to prevent spurious correlations in training data. Source: Vox.

This example reveals why the quality pillar cannot be satisfied by scale alone: no amount of additional scraped data removes the need for validation that detects and filters anachronistic or contextually inappropriate content. Beyond technical quality challenges, legal and ethical constraints further bound what scraping can achieve. Not all websites permit scraping, and ongoing litigation around training data usage illustrates the consequences of noncompliance (Harvard Law School 2024). Teams must document data provenance, ensure compliance with terms of service and copyright law, and apply anonymization procedures when scraping user-generated content.

Harvard Law School. 2024. Does ChatGPT Violate New York Times Copyrights?

Amazon Web Services. 2024. Amazon Mechanical Turk.

⁷ Amazon Mechanical Turk (MTurk): A crowdsourcing platform that routes small tasks to distributed workers and can scale annotation beyond expert-only workflows. Snow et al. (2008) evaluate this pattern for natural-language annotation tasks, showing that non-expert annotations can be useful when task design and quality control are handled carefully. For wake-word audio collection, the same systems trade-off appears in domain-specific form: scale is attractive, but submissions still need acoustic checks such as signal-to-noise ratio, duration, and recording validity before they can safely enter the training set.

Snow, Rion, Brendan O’Connor, Daniel Jurafsky, and Andrew Y. Ng. 2008. “Cheap and Fast—but Is It Good? Evaluating Non-Expert Annotations for Natural Language Tasks.” Proceedings of the Conference on Empirical Methods in Natural Language Processing - EMNLP ’08, 254. https://doi.org/10.3115/1613715.1613751.

Sheng, Victor S., and Jing Zhang. 2019. “Machine Learning with Crowdsourcing: A Brief Summary of the Past Research and Future Directions.” Proceedings of the AAAI Conference on Artificial Intelligence 33 (01): 9837–43. https://doi.org/10.1609/aaai.v33i01.33019837.

Crowdsourcing shifts the acquisition bottleneck from finding enough examples to controlling the quality of many parallel judgments. Platforms like Amazon Mechanical Turk (Amazon Web Services 2024) demonstrated this at landmark scale with ImageNet, where distributed contributors categorized millions of images into thousands of classes (Deng et al. 2024). Crowdsourcing offers two systems advantages: scalability through parallel microtask distribution, and diversity through the range of perspectives, cultural contexts, and linguistic variations that a global contributor pool introduces. This diversity directly improves model generalization across populations. The cost is that task design, validation, and iteration become part of the acquisition system: tasks can be adjusted dynamically based on initial results, enabling refinement of collection strategies as quality gaps emerge. For our KWS system, MTurk-style platforms⁷ enable targeted collection of wake word samples across different demographics and environments (Sheng and Zhang 2019), an approach particularly valuable for underrepresented languages or specific acoustic conditions.

Moving beyond human-generated data entirely, synthetic data generation changes the scaling constraint: examples can be generated algorithmically, but their value depends on whether the generator covers the deployment conditions that real collection would miss. This approach changes the economics of data acquisition by reducing human labor while increasing the burden on validation. The pipeline in figure 6 shows how synthetic data merges with historical datasets, producing training sets of a size and diversity that would be impractical to collect manually.

Figure 6: **Synthetic Data Augmentation**: A four-node pipeline where historical data and simulation outputs feed into a synthetic data generation process, producing an expanded combined training dataset with greater size and diversity than either source alone. Source: AnyLogic (AnyLogic 2024).

Synthetic data is particularly valuable for rare event coverage and data augmentation. Simulation environments enable controlled generation of edge cases that are impractical to collect naturally (NVIDIA 2024). For image data, augmentation methods such as AutoAugment (Cubuk et al. 2019) and RandAugment (Cubuk et al. 2020) search over transformations that improve generalization, while broader image-augmentation practice is surveyed by Shorten and Khoshgoftaar (2019). For audio, SpecAugment masks time and frequency regions to improve speech recognition robustness (Park et al. 2019). For KWS, speech synthesis (Werchniak et al. 2021) and audio augmentation fill the coverage gaps that remain after real collection, creating wake word variations across acoustic environments, speaker characteristics, and background conditions. A short exercise turns these techniques into a concrete workflow.

NVIDIA. 2024. NVIDIA Omniverse and Simulation.

Cubuk, Ekin D., Barret Zoph, Dandelion Mané, Vijay Vasudevan, and Quoc V. Le. 2019. “AutoAugment: Learning Augmentation Strategies from Data.” 2019 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), 113–23. https://doi.org/10.1109/cvpr.2019.00020.

Cubuk, Ekin D., Barret Zoph, Jonathon Shlens, and Quoc V. Le. 2020. “Randaugment: Practical Automated Data Augmentation with a Reduced Search Space.” 2020 IEEE/CVF Conference on Computer Vision and Pattern Recognition Workshops (CVPRW), 3008–17. https://doi.org/10.1109/cvprw50498.2020.00359.

Shorten, Connor, and Taghi M. Khoshgoftaar. 2019. “A Survey on Image Data Augmentation for Deep Learning.” Journal of Big Data 6 (1): 1–48. https://doi.org/10.1186/s40537-019-0197-0.

Park, Daniel S., William Chan, Yu Zhang, Chung-Cheng Chiu, Barret Zoph, Ekin D. Cubuk, and Quoc V. Le. 2019. “SpecAugment: A Simple Data Augmentation Method for Automatic Speech Recognition.” Interspeech 2019, 2613–17. https://doi.org/10.21437/interspeech.2019-2680.

Werchniak, Andrew, Roberto Barra Chicote, Yuriy Mishchenko, Jasha Droppo, Jeff Condal, Peng Liu, and Anish Shah. 2021. “Exploring the Application of Synthetic Audio in Training Keyword Spotters.” ICASSP 2021 - 2021 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), 7993–96. https://doi.org/10.1109/icassp39728.2021.9413448.

Example 1.3: Synthetic data generation

Scenario: A keyword-spotting team lacks enough recordings of rare accents, rooms, and background-noise conditions to cover deployment.

Mechanism: The data pipeline generates synthetic audio variants with pitch shifting, additive noise, and room impulse simulation, then evaluates how different synthetic-to-real ratios affect KWS model accuracy.

Systems lesson: Synthetic data is most valuable when it expands coverage of known deployment conditions that are expensive to collect naturally. Data Selection examines complementary strategies for deciding which real and synthetic examples contribute most to learning.

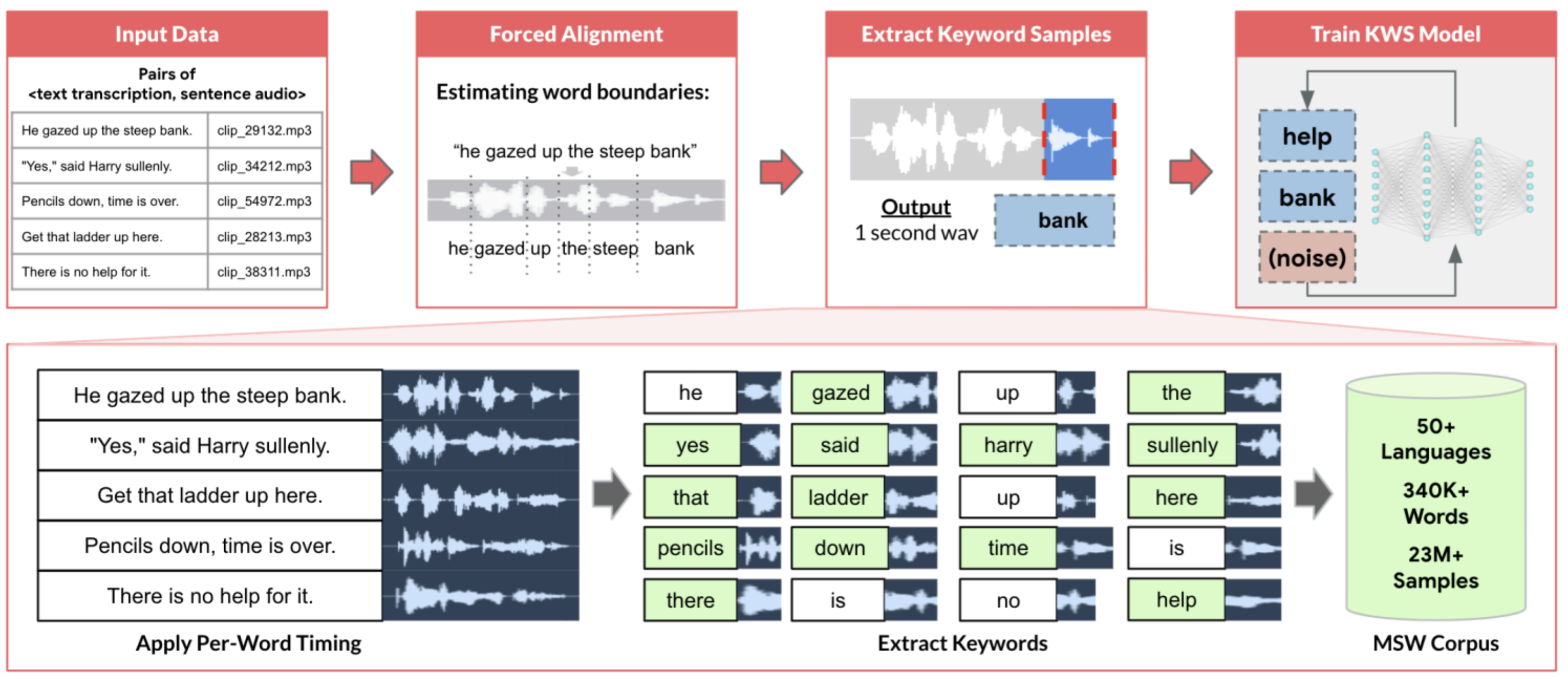

For our KWS system, 23.4 million audio samples spanning 50 languages demand a volume that manual collection cannot economically provide. The multi-source strategy outlined in section 1.2.4, combining curated datasets with web scraping of video platforms and speech databases, crowdsourced collection, and synthetic generation, addresses this scale requirement while maintaining coverage across acoustic environments and speaker demographics.

Coverage and diversity requirements

Scale alone does not guarantee reliable models. Coverage gaps in even large datasets (geographic bias, demographic underrepresentation, temporal drift, missing edge cases) cause systematic failures that aggregate metrics obscure (Wang et al. 2019; Oakden-Rayner et al. 2020). As figure 4 makes clear, multiple systems training on identical datasets inherit identical blind spots; diverse sourcing strategies are the defense against correlated failure modes.

Wang, Tianlu, Jieyu Zhao, Mark Yatskar, Kai-Wei Chang, and Vicente Ordonez. 2019. “Balanced Datasets Are Not Enough: Estimating and Mitigating Gender Bias in Deep Image Representations.” 2019 IEEE/CVF International Conference on Computer Vision (ICCV), 5309–18. https://doi.org/10.1109/iccv.2019.00541.

Oakden-Rayner, Luke, Jared Dunnmon, Gustavo Carneiro, and Christopher Re. 2020. “Hidden Stratification Causes Clinically Meaningful Failures in Machine Learning for Medical Imaging.” Proceedings of the ACM Conference on Health, Inference, and Learning, 151–59. https://doi.org/10.1145/3368555.3384468.

European Parliament, and Council of the European Union. 2016. Regulation (EU) 2016/679 of the European Parliament and of the Council of 27 April 2016. Official Journal of the European Union.

United States Congress. 1996. Health Insurance Portability and Accountability Act of 1996. Public Law 104-191.

Governance constraints further shape acquisition: privacy and health-data regulations such as GDPR and the Health Insurance Portability and Accountability Act (HIPAA) limit what data can be collected and how (European Parliament and Council of the European Union 2016; United States Congress 1996), while ethical sourcing requires fair compensation and transparent use of human contributions. Data Governance and Compliance examines the full governance infrastructure for production ML systems.

The diversity of sources (crowdsourced audio, synthetic waveforms, web-scraped content) creates specific challenges at the boundary where external data enters our controlled pipeline. Each source arrives in a different format, at a different cadence, with different quality guarantees, and the infrastructure that receives, validates, and routes this heterogeneous data must reconcile all of them.

Self-Check: Question

Why does the chapter treat curated benchmark datasets like ImageNet or the UCI repositories as a starting point rather than a complete acquisition solution for production ML?
1. Because benchmark datasets are too small to train any modern model successfully.
2. Because curated datasets provide fast baselines and comparability, but their distributions often mismatch deployment conditions and many production systems inherit the same blind spots.
3. Because benchmark datasets are designed for storage benchmarking rather than model development.
4. Because once a benchmark is adopted, governance concerns disappear and only scale remains.
A team needs millions of examples quickly, but scraped web results include historical or contextually inappropriate content (for example, traffic lights from old countries with differently-colored signals). What is the correct systems lesson?
1. Scale eliminates the need for validation because anomalous examples average out in a sufficiently large dataset.
2. Web scraping should be avoided entirely because it cannot support production ML systems.
3. High-scale acquisition still requires systematic validation and filtering because volume does not remove contextual noise, temporal mismatch, or legal constraints.
4. The main issue is storage cost; if storage is cheap enough, scraped quality problems become secondary.
Explain why synthetic data is powerful for scalability but usually should augment rather than replace real-world collection in KWS or similar speech systems.
True or False: A dataset of 100 million examples can still hide systematic coverage gaps, so aggregate accuracy alone may miss failures on underrepresented groups or conditions.
A multilingual KWS system needs broad accent coverage, fast prototyping, and low cost at scale. Explain why the chapter recommends combining curated datasets, crowdsourcing, scraping, and synthetic generation rather than relying on any single method.

See Answers →

Data Pipeline Architecture

In our compilation metaphor, data pipeline architecture is the compiler frontend: it parses heterogeneous raw inputs into a uniform intermediate representation that downstream stages can process reliably. Audio files from crowdsourcing platforms, synthetic waveforms from generation systems, and real-world captures from deployed devices all enter the pipeline in different formats, and the pipeline must normalize, validate, and route them into a consistent internal representation. For KWS, this means handling continuous audio streams, maintaining low-latency processing for real-time keyword detection, and scaling from development environments to production deployments handling millions of concurrent streams. Figure 7 maps that end-to-end path across data sources, ingestion, processing, labeling, storage, and ML training.

Figure 7: **End-to-End Data Pipeline**: Raw data sources flow through ingestion, a storage layer, and a processing layer into ML training, with a data-governance band spanning the full pipeline. Each layer scales independently, enabling modular quality control from raw data to training data.

Each layer plays a specific role in the data preparation workflow. Selecting appropriate technologies requires understanding how our four framework pillars manifest at each stage. Quality requirements at one stage affect scalability constraints at another, reliability needs shape governance implementations, and the pillars interact to determine overall system effectiveness.

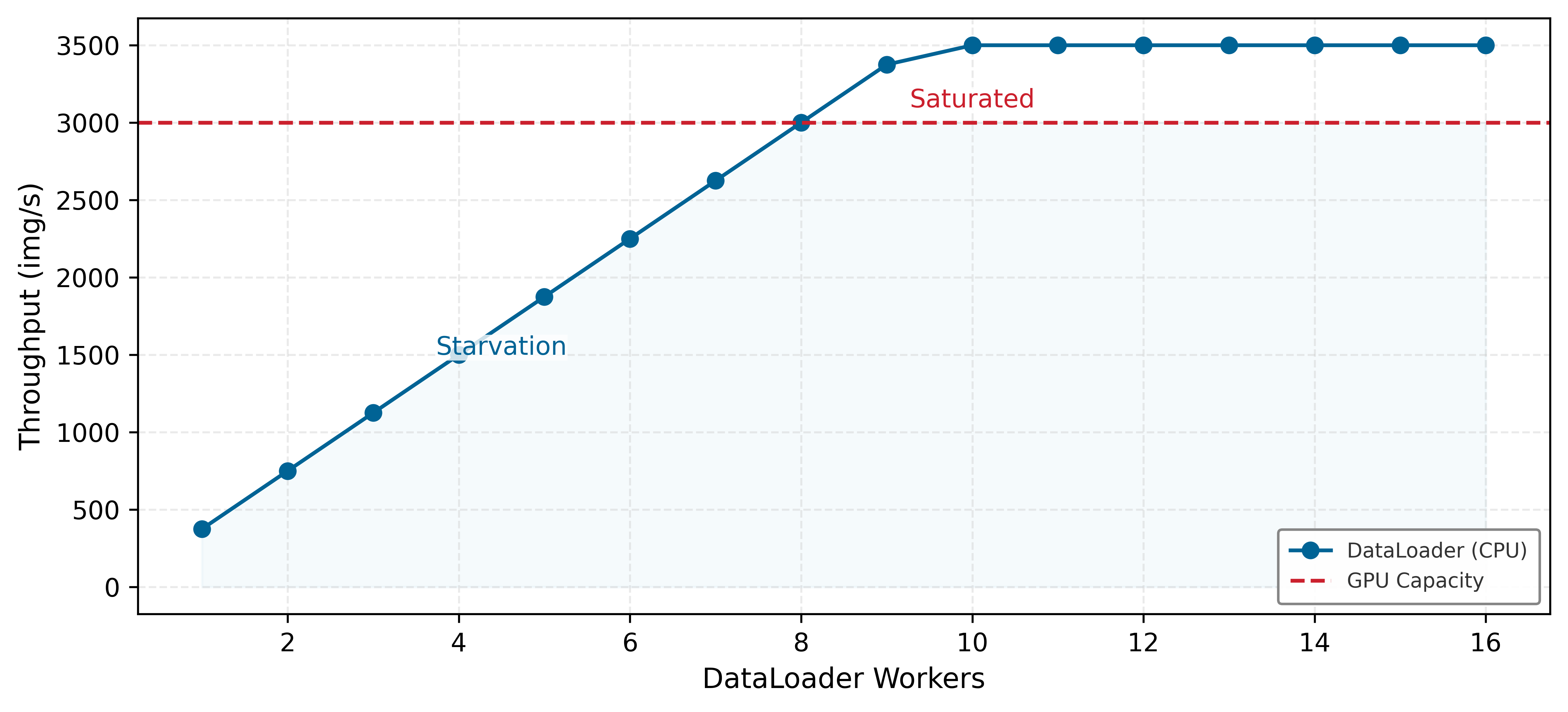

Data pipeline design is constrained by storage hierarchies and I/O bandwidth limitations rather than CPU capacity. Understanding these constraints enables building efficient systems for modern ML workloads. Storage hierarchy trade-offs, ranging from high-latency object storage (ideal for archival) to low-latency in-memory stores (essential for real-time serving), and bandwidth limitations (spinning disks at 100–200 MB/s vs. RAM at 50–200 GB/s) shape every pipeline decision. Section 1.7 covers detailed storage architecture considerations.

Choosing between these design patterns requires matching workload characteristics to infrastructure capabilities. Streaming workloads demand attention to message durability (the ability to replay failed processing), ordering guarantees (what sequence is preserved, under what conditions), and geographic distribution. Batch workloads hinge on data volume relative to available memory, processing complexity, and whether computation must be distributed across machines. Single-machine tools suffice for gigabyte-scale data, but terabyte-scale processing often benefits from distributed frameworks that partition work across clusters. These layer interactions, viewed through the four-pillar lens, determine overall system effectiveness.

Quality through validation and monitoring

A self-driving car company discovered that 15 percent of their LiDAR point-cloud labels were misaligned by 10–20 cm—enough to place pedestrian bounding boxes on empty sidewalk. The mislabeling had persisted for three months, silently degrading the perception model’s recall on pedestrians at crosswalks. No schema check flagged the error because every record was structurally valid; only statistical monitoring of label-to-sensor alignment distributions caught the drift.

Quality represents the foundation of reliable ML systems, and this example illustrates why. Pipelines implement quality through systematic validation and monitoring at every stage. Data pipeline issues represent a major source of ML failures. Schema changes breaking downstream processing, distribution drift degrading model accuracy, and data corruption silently introducing errors are concrete examples of the data-dependency and monitoring debt described by Sculley et al. (2015). These failures are insidious because they rarely cause obvious system crashes; instead, they slowly degrade model performance in ways that become apparent only after affecting users. Achieving quality therefore demands proactive monitoring and validation that catches issues before they cascade into model failures.

War Story 1.1: Microsoft Tay (2016)

Context: In March 2016, Microsoft launched Tay, a Twitter chatbot targeted at 18-to-24-year-olds in the United States for entertainment purposes (Lee 2016). Tay’s conversational behavior was shaped continuously by the public inputs it received, making the live Twitter stream its training signal.

Failure mode: As Corporate Vice President Peter Lee later wrote, Microsoft had implemented filtering, conducted user studies, and stress-tested Tay before launch—yet “in the first 24 hours of coming online, a coordinated attack by a subset of people exploited a vulnerability in Tay.” Public inputs became a data poisoning surface: adversaries deliberately crafted inputs that Tay’s running system kept ingesting and learning from. Within the first 24 hours, Tay produced racist and otherwise offensive outputs. Microsoft took the service offline and publicly apologized.

Systems lesson: Data pipelines are not plumbing; they are the immune system of the model. Ingesting user-generated content without adversarial-input controls converts an “ML feature” into a security surface. Garbage in, garbage out happens at the speed of software, and at the scale of the open Internet it happens in hours.

Lee, Peter. 2016. Learning from Tay’s Introduction. The Official Microsoft Blog.

Production teams implement monitoring at scale through severity-based alerting systems where different failure types trigger different response protocols. The most critical alerts indicate complete system failure: the pipeline has stopped processing entirely, showing zero throughput for more than five minutes, or a primary data source has become unavailable. These situations demand immediate attention because they halt all downstream model training or serving. More subtle degradation patterns require different detection strategies. When throughput drops to 80 percent of baseline levels, error rates climb above 5 percent, or quality metrics drift more than two standard deviations from training data characteristics, the system signals degradation requiring urgent but not immediate attention. These gradual failures often prove more dangerous than complete outages because they persist undetected for hours or days, silently corrupting model inputs and degrading prediction quality.

A recommendation system processing user interaction events at 50,000 records per second makes these severity tiers concrete. Its monitoring system tracks several interdependent signals. Instantaneous throughput alerts fire if processing drops below 40,000 records per second for more than 10 minutes, accounting for normal traffic variation while catching genuine capacity or processing problems. Each feature in the data stream has its own quality profile: if a feature like user_age shows null values in more than 5 percent of records when the training data contained less than 1 percent nulls, something has likely broken in the upstream data source. Duplicate detection runs on sampled data, watching for the same event appearing multiple times—a pattern that might indicate retry logic gone wrong or a database query accidentally returning the same records repeatedly.

These monitoring dimensions become particularly important when considering end-to-end latency. The system must track both whether data arrives and how long it takes to flow through the entire pipeline from the moment an event occurs to when the resulting features become available for model inference. When 95th percentile latency exceeds 30 seconds in a system with a 10-second service level agreement, the monitoring system needs to pinpoint which pipeline stage introduced the delay: ingestion, transformation, validation, or storage.

Quality monitoring extends beyond simple schema validation to statistical properties that capture whether serving data resembles training data. Rather than just checking that values fall within valid ranges, production systems track rolling statistics over 24-hour windows. For numerical features like transaction_amount or session_duration, the system computes means and standard deviations continuously, then applies statistical tests like the Kolmogorov-Smirnov test⁸ to compare serving distributions against training distributions.

⁸ Kolmogorov-Smirnov (K-S) Test: A nonparametric test measuring the maximum distance between two cumulative distribution functions, requiring no assumptions about underlying distributions (Berger and Zhou 2014). In ML pipelines, the K-S test is a common univariate continuous-feature drift detector: comparing serving distributions against training baselines, with thresholds such as $p < 0.05$ used as operational investigation triggers rather than universal failure rules. Its distribution-free nature makes it useful across many continuous features, but it applies only to univariate continuous comparisons – categorical drift requires metrics such as PSI or chi-squared tests instead (Yurdakul and Naranjo 2020).

Berger, V. W., and Y. Zhou. 2014. “Wiley StatsRef: Statistics Reference Online.” In Wiley Statsref: Statistics Reference Online. Wiley. https://doi.org/10.1002/9781118445112.stat06558.

Yurdakul, Bilal, and Joshua Naranjo. 2020. “Statistical Properties of the Population Stability Index.” The Journal of Risk Model Validation 52. https://doi.org/10.21314/jrmv.2020.227.

The K-S test is one tool for detecting drift in continuous features; section 1.4.3 provides the complete taxonomy of distribution shifts (covariate, label, concept, and label-quality drift) along with Population Stability Index (PSI) and KL divergence metrics for operationalizing the degradation equation.

Example 1.4: Detecting drift with K-S test

Scenario: Monitoring session_duration distribution stability between the training baseline $(P_0)$ and current serving distribution $(P_t)$.

Analysis: Apply the Kolmogorov-Smirnov test to compare the empirical cumulative distribution functions:

Compute CDFs: Calculate cumulative distribution functions for both datasets.
Calculate statistic $(\mathcal{D}_{\text{KS}})$: Find the maximum absolute difference between the CDFs. Let $F_{P_0}(x)$ and $F_{P_t}(x)$ denote the cumulative distribution functions of the training baseline $(P_0)$ and current serving $(P_t)$ datasets. \[\mathcal{D}_{\text{KS}} = \max_x |F_{P_0}(x) - F_{P_t}(x)|\]
Determine significance: Compare $\mathcal{D}_{\text{KS}}$ to critical value $\mathcal{D}_{\text{crit}}$ based on training-baseline sample size $n_0$, serving sample size $n_t$, and confidence level $(\alpha = 0.05)$. \[\mathcal{D}_{\text{crit}} \approx 1.36\sqrt{\frac{n_0 + n_t}{n_0 n_t}}\]

Result: With sample sizes $n_0 = n_t = 1000$, the critical value is approximately 0.061:

\[\mathcal{D}_{\text{crit}} \approx 1.36\sqrt{(1000 + 1000)/(1000 \cdot 1000)}.\]

If the observed maximum difference is $\mathcal{D}_{\text{KS}} = 0.08$, then the observed difference exceeds the critical value, so the monitor rejects the null hypothesis and flags significant drift.

Systems insight: Statistical drift tests convert a vague distribution-shift concern into an operational trigger. The test should start an investigation or retraining workflow, not silently become another dashboard number.

Categorical features require different statistical approaches. Instead of comparing means and variances, monitoring systems track category frequency distributions. When new categories appear that never existed in training data, or when existing categories shift substantially in relative frequency, the system flags potential data quality issues or genuine distribution shifts; for example, the proportion of “mobile” vs. “desktop” traffic might change by more than 20 percent. This statistical vigilance catches subtle problems that simple schema validation misses entirely: age values may remain in the valid range of 18–95, while the distribution shifts from primarily 25–45 year olds to primarily 65+ year olds, indicating the data source has changed in ways that will affect model performance.

Validation at the pipeline level encompasses multiple strategies working together. Schema validation executes synchronously as data enters the pipeline, rejecting malformed records immediately before they can propagate downstream. Modern tools like TensorFlow Data Validation (TFDV) (Breck et al. 2019) automatically infer schemas from training data, capturing expected data types, value ranges, and presence requirements.

Breck, Eric, Neoklis Polyzotis, Sudip Roy, Steven Euijong Whang, and Martin Zinkevich. 2019. “Data Validation for Machine Learning.” Proceedings of the 2nd SysML Conference 1: 334–47.

This synchronous validation remains simple and fast, checking properties that can be evaluated on individual records in microseconds. More sophisticated validation that requires comparing serving data against training data distributions or aggregating statistics across many records must run asynchronously to avoid blocking the ingestion pipeline. Statistical validation systems typically sample 1-10 percent of serving traffic, enough to detect meaningful shifts while avoiding the computational cost of analyzing every record. These samples accumulate in rolling windows, commonly one hour, 24 hours, and seven days, with different windows revealing different patterns. Hourly windows detect sudden shifts like a data source failing over to a backup with different characteristics, while weekly windows reveal gradual drift in user populations or behavior.

The most insidious validation challenge arises from training-serving skew: the failure mode where features are computed differently in training vs. serving. This typically happens when training pipelines process data in batch using one set of libraries or logic, while serving systems compute features in real-time using different implementations. Even seemingly minor discrepancies (a materialized view⁹ refreshed weekly vs. a complete join recomputed daily) can cause accuracy drops of 10–15 percent that take weeks to diagnose because the system produces no obvious errors. We formalize this as the consistency imperative in section 1.5.1 and quantify its impact with a concrete example. Detecting training-serving skew requires infrastructure that can recompute training features on serving data for comparison, sampling raw serving data and processing it through both pipelines to measure discrepancies. ML Operations examines operational monitoring infrastructure for this challenge at scale.

⁹ Materialized View: A database optimization that precomputes and caches query results as a physical table. For ML systems, the risk is structural: when a materialized view refreshes on a different schedule in training vs. serving environments, the feature values the model trained on diverge from what it receives at inference – a primary mechanism of training-serving skew that produces 10–15 percent accuracy drops with no error messages.

Data quality as code

Just as unit tests protect software systems, data expectation tests protect ML pipelines. In data quality as code, teams use libraries like Great Expectations or Pandera, to codify quality expectations as executable assertions (listing 1) that run on every pipeline execution.

Systems Perspective 1.2: Mechanical vs. semantic quality

Data validation differs from unit testing because software defects are binary and deterministic, while data quality has a probabilistic dimension that schema checks alone cannot capture.

In traditional software, quality is mechanical. A null pointer is always a bug. An integer overflow is always a crash. These are binary, deterministic failures.

In ML systems, data quality has a second, softer dimension: semantic quality.

Mechanical check: “Is age an integer?” (Yes/No).
Semantic check: “Is the age distribution shifting?” (Probabilistic).

A dataset can be mechanically perfect (no nulls, correct types) but semantically broken (for example, all users are suddenly 25 years old due to a default value change). Robust ML systems must validate both the container (mechanical) and the content (semantic).

These mechanical expectations become executable assertions that can run automatically. CI/CD integration runs expectations in the deployment pipeline, so violations fail deployments before bad data reaches training. A pipeline structured as data ingestion followed by data validation followed by training blocks deployment when validation detects anomalies like age values of 150, triggering alerts for investigation.

Listing 1: Data Quality Assertions: Executable data contracts catch schema violations, missing values, and invalid entries before training begins. Production systems using this pattern detect approximately 60 percent of data issues at pipeline execution time, preventing cascading failures that would otherwise propagate to model training.

import great_expectations as gx

# Create a data context
context = gx.get_context()

# Define an expectation suite as executable quality contract
suite = gx.ExpectationSuite(name="user_data_quality")
suite = context.suites.add(suite)

# Range validation: prevents physiologically impossible values
suite.add_expectation(
    gx.expectations.ExpectColumnValuesToBeBetween(
        column="age", min_value=0, max_value=120
    )
)

# Null detection: ensures primary key integrity for joins
suite.add_expectation(
    gx.expectations.ExpectColumnValuesToNotBeNull(column="user_id")
)

# Uniqueness: prevents duplicate training examples
suite.add_expectation(
    gx.expectations.ExpectColumnValuesToBeUnique(column="user_id")
)

# Categorical validation: detects unexpected values from upstream
# changes
suite.add_expectation(
    gx.expectations.ExpectColumnDistinctValuesToBeInSet(
        column="country_code",
        value_set=["US", "CA", "UK", "DE", "FR"],
    )
)

# Link the suite to a preconfigured Batch Definition and run
# validation
# (the Batch Definition connects GX to the training_users data asset)
validation_definition = gx.ValidationDefinition(
    name="training_users_validation",
    data=batch_definition,
    suite=suite,
)
validation_definition = context.validation_definitions.add(
    validation_definition
)
results = validation_definition.run()
if not results.success:
    raise ValueError(f"Data quality check failed: {results}")

Once validation becomes code, expectation suites become versioned artifacts alongside training code. When training code changes, expectation updates keep data contracts evolving with it. This coupling reduces the risk of silent divergence where code assumes data properties that the upstream pipeline no longer provides.

This pattern catches approximately 60 percent of production data issues before they reach training, based on industry experience with tools like Great Expectations, Pandera, and Pydantic. The remaining issues require runtime monitoring, as some quality problems only emerge in the full production data stream.

Data drift detection and response

ML models rest on the assumption that production data resembles training data. When this assumption breaks, not through immediate schema violations but through gradual statistical shifts, model performance degrades silently without obvious errors or system failures. Unlike the validation and monitoring techniques we have examined that catch immediate data quality issues, data drift detection identifies gradual statistical changes in data distributions that compound over time to undermine model effectiveness. Production experience reveals that drift detection and response consume 30–40 percent of ongoing ML operations effort, making this a core data engineering responsibility rather than an optional advanced topic. ML Operations builds on this foundation to address operational response orchestration and automated retraining pipelines at scale.

Measuring drift (divergence) formalizes the divergence metrics that make the degradation equation (equation, from ML vs. Traditional Software) actionable: the divergence term $\mathcal{D}(P_t \lVert P_0)$ is exactly what PSI and KL divergence measure. Two key metrics operationalize this measurement: the Population Stability Index (PSI), which quantifies how much a categorical or binned feature distribution has shifted (values above 0.2 indicate significant drift), and Kullback-Leibler (KL) Divergence, which measures the information-theoretic distance between continuous distributions. When PSI exceeds 0.2 or KL divergence crosses a threshold, the system signals that $\mathcal{D}(P_t \lVert P_0)$ has grown large enough to materially impact $\text{Accuracy}(t)$.

Understanding the three core types of drift enables targeted detection and response strategies. Each type manifests differently in production systems and requires distinct monitoring approaches.

Each drift type traces to the distribution component that shifted.

The first case, covariate shift, changes the input distribution while preserving the relationship between features and labels: $p(x)$ changes but $p(y \mid x)$ stays the same. A medical imaging system trained on one camera model might later receive production images from a different manufacturer. The disease-image relationship remains unchanged, but pixel values shift because sensor characteristics, color calibration, or image processing pipelines differ. Detection therefore focuses on input feature distributions, using metrics such as PSI or KL divergence.

The second case, label shift, changes the output distribution while preserving the relationship between labels and features: $p(y)$ changes but $p(x \mid y)$ stays the same. Disease prevalence might change seasonally while symptoms remain consistent predictors of each disease. A recommendation system might see the same pattern when new product categories launch, changing the relative frequency of user preferences without altering what makes products appealing within each category. Detection can often begin without ground truth labels by tracking shifts in the model’s prediction distribution.

The hardest case is concept drift: the relationship between features and labels changes, so $p(y \mid x)$ evolves over time (Gama et al. 2014). Medical treatment protocols change, user preferences shift as social trends evolve, and fraud patterns adapt as attackers respond to detection systems. Unlike covariate or label shift, concept drift requires ground truth labels for detection because the system must observe whether the feature-to-label relationship itself has changed.

Gama, João, Indrė Žliobaitė, Albert Bifet, Mykola Pechenizkiy, and Abdelhamid Bouchachia. 2014. “A Survey on Concept Drift Adaptation.” ACM Computing Surveys 46 (4): 1–37. https://doi.org/10.1145/2523813.

Label quality drift

Label quality drift¹⁰ represents a meta-level shift distinct from the three preceding distribution shifts: the reliability of ground truth labels degrades over time even when the underlying data distributions remain stable. This drift type proves particularly insidious because standard feature distribution monitoring fails to detect it. Crowdsourced labels may degrade as annotator pools change, training materials become outdated, or labeling guidelines evolve without corresponding model updates. Automated labeling systems accumulate errors as the models powering them drift from their original operating conditions. A recommendation system using click feedback as implicit labels may see label quality degrade as user behavior becomes more exploratory, as bot traffic patterns change, or as interface modifications alter how users interact with content.

¹⁰ Label Quality Drift: Degradation in annotation reliability over time, distinct from distribution shifts in the data itself. This drift type is invisible to standard feature monitoring because the features remain stable while the labels degrade – annotator fatigue, pool turnover, or guideline evolution silently corrupt the ground truth the model learns from. Detection requires monitoring inter-annotator agreement $(\kappa)$ over rolling time windows and comparing automated labels against periodic expert audits.

¹¹ Cohen’s Kappa: Introduced by Cohen (1960) to measure inter-rater agreement while correcting for chance agreement, which raw percentage agreement ignores. The correction matters: two annotators labeling 90 percent of images as “not spam” in a binary task will agree 82 percent of the time by pure chance, making raw agreement a dangerously misleading quality metric. The statistic is denoted $\kappa$; for ML label quality monitoring, $\kappa$ below 0.4 signals unreliable training data whose noise the model will inherit (Landis and Koch 1977).

Cohen, Jacob. 1960. “A Coefficient of Agreement for Nominal Scales.” Educational and Psychological Measurement 20 (1): 37–46. https://doi.org/10.1177/001316446002000104.

Landis, J. Richard, and Gary G. Koch. 1977. “The Measurement of Observer Agreement for Categorical Data.” Biometrics 33 (1): 159–74. https://doi.org/10.2307/2529310.

Detection requires monitoring annotation consistency rather than feature distributions. Inter-annotator agreement metrics like Cohen’s kappa¹¹ $(\kappa)$ provide quantitative assessment. Let $p_o$ represent observed agreement between annotators and $p_e$ represent agreement expected by chance. Equation 2 defines the statistic:

\[ \kappa = \frac{p_o - p_e}{1 - p_e} \tag{2}\]

Monitoring $\kappa$ over time windows reveals degradation trends. A medical imaging annotation project might establish a baseline $\kappa = 0.85$ (almost perfect agreement) during initial data collection, then observe decline to $\kappa = 0.72$ (substantial agreement) after six months as new annotators join without receiving equivalent domain training.

For systems with calibrated model probabilities, label confidence entropy provides an alternative detection signal. Let $p_i$ represent the model’s probability assigned to label category $i$. Equation 3 defines this measure:

\[ H_{\text{label}} = -\sum_i p_i \log p_i \tag{3}\]

Rising entropy in model confidence distributions suggests increasing ambiguity or mislabeling in training data, as the model learns from inconsistent supervision.

Mitigation strategies depend on root cause analysis. Annotator retraining addresses systematic errors from unclear guidelines at low cost with high effectiveness. Multi-annotator voting with majority or consensus rules provides high accuracy for high-stakes domains but significantly increases annotation costs. Model-assisted labeling reduces annotator fatigue but risks introducing bias if the assisting model has its own systematic errors. Expert review sampling, where domain specialists audit a random sample of annotations, enables root cause analysis when quality decline is detected but provides medium coverage of the overall annotation stream.

Operationalizing the PSI and KL divergence metrics introduced earlier requires connecting them to automated alerts and retraining workflows. Data engineering is responsible for defining the drift thresholds (PSI > 0.2, KL divergence above a domain-specific threshold), selecting the monitoring window sizes (hourly for sudden shifts, weekly for gradual trends), and instrumenting pipelines to compute these metrics continuously. ML Operations later examines how production teams turn these data-engineering signals into tiered alerts, escalation paths, cold-start monitoring, and automated response orchestration.

Drift detection is one dimension of the quality pillar, focused on identifying statistical changes in data distributions over time. Detecting issues, however, is only half the challenge; the other half is ensuring systems continue operating effectively even when problems surface. This leads us from quality monitoring to the reliability pillar, which addresses how pipelines maintain service continuity under adverse conditions.

Reliability through graceful degradation

Reliability ensures systems continue operating when problems occur. Pipelines face constant challenges: data sources become temporarily unavailable, network partitions separate components, upstream schema changes break parsing logic, or unexpected load spikes exhaust resources. Graceful degradation means handling these failures through systematic failure analysis, intelligent error handling, and automated recovery strategies that maintain service continuity even under adverse conditions.

Systematic failure mode analysis for ML data pipelines reveals predictable patterns that require specific engineering countermeasures. Data corruption failures occur when upstream systems introduce subtle format changes, encoding issues, or field value modifications that pass basic validation but corrupt model inputs. A date field switching from “YYYY-MM-DD” to “MM/DD/YYYY” format might not trigger schema validation but will break any date-based feature computation. Schema evolution¹² failures happen when source systems add fields, rename columns, or change data types without coordination, breaking downstream processing assumptions that expected specific field names or types. Resource exhaustion manifests as gradually degrading performance when data volume growth outpaces capacity planning, eventually causing pipeline failures during peak load periods.

¹² Schema Evolution: This failure mode arises from a lack of contract testing between upstream data producers and downstream ML consumers. While “loud” failures like a renamed column break explicit assumptions and cause immediate pipeline crashes, “silent” failures are more dangerous. A field changing type from integer to string can pass validation but corrupt feature logic, often going undetected for weeks and degrading model accuracy by over 5 percent before discovery.

Kleppmann, Martin. 2016. Designing Data-Intensive Applications: The Big Ideas Behind Reliable, Scalable, and Maintainable Systems. O’Reilly Media.

Effective error handling strategies ensure problems are contained and recovered from systematically. Intelligent retry logic for transient errors (network interruptions or temporary service outages) requires exponential backoff strategies to avoid overwhelming recovering services. A simple linear retry that attempts reconnection every second would flood a struggling service with connection attempts, potentially preventing its recovery. Exponential backoff, retrying after one second, then two seconds, then four seconds, doubling with each attempt, gives services breathing room to recover while still maintaining persistence. Many ML systems employ dead letter queues: separate storage for data that fails processing after multiple retry attempts. This allows for later analysis and potential reprocessing of problematic data without blocking the main pipeline (Kleppmann 2016). A pipeline processing financial transactions that encounters malformed data can route it to a dead letter queue rather than losing critical records or halting all processing.

In ML systems, dead letter queues serve dual purposes beyond failure analysis. Production teams implement systematic review of DLQ contents to identify: (1) schema violations indicating upstream changes, (2) edge case patterns the model should handle, and (3) data quality issues requiring source system fixes. For example, a fraud detection system’s DLQ revealed transactions from a new payment type the model had never seen, prompting targeted data collection and retraining rather than simply logging the failures. This transforms DLQs from passive error storage into active sources for identifying model blind spots and driving improvement.

Moving beyond ad-hoc error handling, cascade failure prevention requires circuit breaker¹³ patterns and bulkhead isolation to prevent single component failures from propagating throughout the system. When a feature computation service fails, the circuit breaker pattern stops calling that service after detecting repeated failures, preventing the caller from waiting on timeouts that would cascade into its own failure.

¹³ Circuit Breaker: Named for its three-state behavior – closed (normal flow), open (faults blocked), half-open (recovery probe) – after the electrical safety device that interrupts current on overload. In ML data pipelines, the circuit breaker prevents a failing feature computation service from cascading timeouts through the entire serving path: once failure count exceeds a threshold, the breaker opens and the pipeline falls back to cached or default features rather than waiting on a dead service.

Automated recovery engineering extends beyond simple retry logic. Progressive timeout increases prevent overwhelming struggling services while maintaining rapid recovery for transient issues: initial requests timeout after one second, but after detecting service degradation, timeouts extend to five seconds, then 30 seconds, giving the service time to stabilize. Multi-tier fallback systems provide degraded service when primary data sources fail: serving slightly stale cached features when real-time computation fails, or using approximate features when exact computation times out. A recommendation system unable to compute user preferences from the past 30 days might fall back to preferences from the past 90 days, providing less precise but still useful recommendations rather than failing entirely. Comprehensive alerting and escalation procedures ensure human intervention occurs when automated recovery fails, with sufficient diagnostic information captured during the failure to enable rapid debugging.

Retry logic, dead letter queues, and circuit breakers are the runtime error handlers of our dataset compiler: they catch malformed inputs without halting the entire compilation. The next question is how data enters the pipeline in the first place. The choice of ingestion pattern (batch vs. streaming; extract, transform, load (ETL) vs. extract, load, transform (ELT)) determines how quickly new data reaches the model, how much infrastructure the system requires, and how these reliability patterns are concretely deployed.

Data ingestion

Continuing the compilation analogy, data ingestion is the lexer: it reads raw source (data streams) and tokenizes them into well-formed records that the rest of the pipeline can process. A critical and often overlooked constraint in ingestion design is the Input/Output (IO) Bottleneck. We invest heavily in expensive GPUs, but their utilization depends entirely on whether data arrives fast enough to keep them busy. Training speed is governed by a simple inequality: $T_{\text{step}} = \max(T_{\text{compute}}, T_{\text{io}})$. The inequality restates the feeding problem from section 1.1.3 through a second resource lens: there the starved term was storage bandwidth; in ingestion it is most often CPU-side decode work.

If the data pipeline cannot decode images fast enough to keep the GPU busy, the expensive accelerator sits idle. This phenomenon creates a “Choke Point” where adding more GPUs yields zero speedup, a counterintuitive result that frustrates teams who expect linear scaling from hardware investments. This bottleneck frequently occurs in computer vision, where decoding high-resolution JPEG images on the CPU can consume more time than model execution on the GPU. For this data-pipeline calculation, treat the model as an opaque per-image arithmetic demand; the exact forward and backward training passes are derived in the neural-computation and training chapters. Typically, training ResNet-50 on an A100 requires at least 8 CPU workers just to keep the accelerator from starving.

Figure 8 shows this Dataloader Choke Point: the CPU supply curve crosses the GPU demand line only after enough workers are allocated. In the “Starvation Region” on the left, the CPU limits performance, so training throughput is capped by data loading speed no matter how powerful the GPU is. Throughput levels are representative and vary by model and hardware.

Figure 8: **The Dataloader Choke Point**: Training throughput (img/s) vs. number of DataLoader workers. The blue curve shows CPU throughput scaling linearly with workers until hitting disk limits. The red dashed line is the GPU’s consumption capacity (for example, ResNet-50 at ~3,000 img/s; illustrative). The system is bottlenecked by whichever is lower. In the starvation region (left), the GPU is idle waiting for data. In the saturated region (right), the GPU is fully utilized, and adding more workers wastes CPU memory.

The ingestion decision is where latency first becomes an economic commitment. Batch and streaming ingestion, together with the ETL and ELT processing paradigms that govern how transformations are applied, shape the cost, latency, and reliability profile of every downstream pipeline stage.

Batch vs. streaming ingestion patterns

The choice between batch and streaming is not a preference for one architecture over another; it is a judgment about how quickly data loses value and how much infrastructure cost that freshness justifies. Batch systems buy efficiency by tolerating staleness, while streaming systems buy freshness by accepting continuous operational complexity.

Batch ingestion involves collecting data in groups or batches over a specified period before processing. This method proves appropriate when real-time data processing is not critical and data can be processed at scheduled intervals. The batch approach enables efficient use of computational resources by amortizing startup costs across large data volumes and processing when resources are available or least expensive. For example, a retail company might use batch ingestion to process daily sales data overnight, updating their ML models for inventory prediction each morning (Akidau et al. 2015). The batch job might process gigabytes of transaction data using dozens of machines for 30 minutes, then release those resources for other workloads. This scheduled processing proves far more cost-effective than maintaining always-on infrastructure, particularly when slight staleness in predictions does not affect business outcomes.

Akidau, Tyler, Robert Bradshaw, Craig Chambers, Slava Chernyak, Rafael J. Fernández-Moctezuma, Reuven Lax, Sam McVeety, et al. 2015. “The Dataflow Model: A Practical Approach to Balancing Correctness, Latency, and Cost in Massive-Scale, Unbounded, Out-of-Order Data Processing.” Proceedings of the VLDB Endowment 8 (12): 1792–803. https://doi.org/10.14778/2824032.2824076.

Batch processing also simplifies error handling and recovery. When a batch job fails midway, the system can retry the entire batch or resume from checkpoints without complex state management. Data scientists can easily inspect failed batches, understand what went wrong, and reprocess after fixes. The deterministic nature of batch processing (processing the same input data always produces the same output) simplifies debugging and validation. These characteristics make batch ingestion attractive for ML workflows even when real-time processing is technically feasible but not required.

In contrast to this scheduled approach, stream ingestion processes data in real-time as it arrives, consuming events continuously rather than waiting to accumulate batches. This pattern is essential for applications requiring immediate data processing, scenarios where data loses value quickly, and systems that need to respond to events as they occur. A financial institution might use stream ingestion for real-time fraud detection, processing each transaction as it occurs to flag suspicious activity immediately before completing the transaction. The value of fraud detection drops dramatically if detection occurs hours after the fraudulent transaction completes—by then money has been transferred and accounts compromised.

However, stream processing introduces complexity that batch processing avoids. The system must handle backpressure, the condition where downstream systems cannot keep pace with incoming data rates. During traffic spikes, when a sudden surge produces data faster than processing capacity, the system must either buffer data (requiring memory and introducing latency), sample (losing some data), or push back to producers (potentially causing their failures). Data freshness Service Level Agreements (SLAs) formalize these requirements, specifying maximum acceptable delays between data generation and availability for processing. Meeting a 100-millisecond freshness SLA requires different infrastructure than meeting a one-hour SLA, affecting everything from networking to storage to processing architectures.

Recognizing the limitations of either approach alone, many production ML systems employ hybrid approaches that combine batch and stream ingestion. A recommendation system might use streaming ingestion for real-time user interactions to update session-based recommendations immediately, while using batch ingestion for overnight processing of user profiles and item features.

The ingestion paradigm also forces a choice on the model training side. Batch ingestion naturally pairs with periodic retraining: data accumulates in a store, a nightly or weekly job retrains the model on the updated dataset, and a new checkpoint is deployed. Stream ingestion makes that batch boundary less natural and raises the question of whether the model itself should update incrementally as each event arrives—a continuous learning approach where weights shift with the stream rather than resetting on a fixed schedule. Continuous weight updates from a live stream introduce risks that batch retraining avoids: a sudden distribution shift, an adversarial injection, or a burst of low-quality events can corrupt model weights before any validation gate intervenes, as the Tay incident in the KWS case study illustrates. Most production systems therefore decouple the two concerns, streaming data into a buffer while still training on accumulated batches, reserving continuous online updates for models with narrow, well-monitored distributions.

Production systems must balance cost vs. latency trade-offs when selecting patterns: real-time processing is often materially more expensive than batch processing, commonly several times higher and sometimes an order of magnitude or more in total cost per byte processed. This cost differential arises from several factors: streaming systems require always-on infrastructure rather than schedulable resources; they maintain redundant processing for fault tolerance to ensure no events are lost; they need low-latency networking and storage to meet millisecond-scale SLAs; and they cannot benefit from the economies of scale that batch processing achieves by amortizing startup costs across large data volumes. A batch job processing one terabyte might use 100 machines for 10 minutes, while a streaming system processing the same data over 24 hours needs dedicated resources continuously available. This difference drives many architectural decisions about which data truly requires real-time processing. A cost estimate makes that premium explicit.

Napkin Math 1.3: The cost of real-time

Problem: A pipeline ingests 1M events/s. Which is cheaper, Batch (hourly) or Stream (sub-second) ingestion?

Physics:

Throughput: At 1M events/s and 1 KB per event, the pipeline carries 1 GB/s.
Stream requirements: To sustain 1 GB/s with less than 100 ms latency, the system needs about 50 primary cores plus about 50 redundant cores, or 100 always-on cores total. Running those cores for 24 hours/day at $0.05/hr costs $120/day.
Batch requirements: Process 4 TB (1-hour window) in 10 minutes. High throughput (sequential I/O) is efficient. The batch design needs 200 cores for 10 minutes per clock hour, accumulating 800 core-hours per day. At $0.05/hr, that costs $40/day.

Systems insight: Real-time is approximately 3× more expensive for the same data volume. This tax is justified only when the value of subsecond latency exceeds the added cost.

ETL and ELT comparison

After timing, the next ingestion decision is where transformation authority lives. Extract, Transform, Load (ETL)¹⁴ cleanses and structures data before it enters storage, ensuring only validated data reaches the warehouse; Extract, Load, Transform (ELT)¹⁵ loads raw data first and applies transformations within the target system, preserving flexibility at the cost of storing uncleaned data. The side-by-side flows in figure 9 make the ordering difference visible by placing the “Transform” step before or after “Load.” That ordering determines where computational resources are consumed, how quickly data becomes available for analysis, and how easily transformation logic can evolve as requirements change.

¹⁴ Extract, Transform, Load (ETL): Conventional ETL validates schema and data types—deterministic checks that either pass or fail. ML ETL must additionally validate distributional properties: that the distribution of values has not shifted in a way that degrades model performance, requiring statistical tests (KS test, PSI) rather than schema validation, where the pass/fail threshold is a business decision, not a technical one. The further trade-off is rigidity: changing feature computation logic requires reprocessing the entire dataset from raw sources, a cost that grows linearly with data volume.

¹⁵ Extract, Load, Transform (ELT): This approach enables the flexibility mentioned because transformation logic is just a query run inside the data warehouse, completely decoupled from the ingestion process. Changing a feature definition does not require a slow, expensive data pipeline rerun; it only requires modifying the query. This simple change in ordering reduces the iteration cycle for developing a new feature from hours (or days) of data reprocessing down to the minutes it takes to rewrite a SQL statement.

Figure 9: **ETL vs. ELT Comparison**: Side-by-side view of two pipeline paradigms. ETL transforms data before loading into a data warehouse, while ELT loads raw data first and transforms within the warehouse. The choice depends on data volume, transformation complexity, and target storage capabilities.

The ETL pattern transforms data before loading it into the target system. For ML pipelines, only validated, schema-conformant data enters the warehouse, enforcing quality and privacy compliance at ingestion time. For instance, an ML system predicting customer churn might use ETL to standardize customer interaction data from multiple sources, converting timestamp formats to UTC, normalizing text encodings, and computing aggregate features like “total purchases last 30 days” before loading (Inmon 2005). The disadvantage is inflexibility: when feature definitions change, all source data must be reprocessed through the pipeline, a process that can take hours or days for large datasets and slows iteration velocity during development.

Inmon, W. H. 2005. Building the Data Warehouse. Wiley.

Napkin Math 1.4: The cost of transformation placement

Problem: A team processes 10 TB of raw clickstream data daily and must compute user session features for 3 ML models, each requiring different aggregation windows (1-hour, 24-hour, 7-day). Which is cheaper, ETL or ELT?

Math:

ETL approach: Transform before loading. Compute all three aggregation windows in a Spark cluster before loading into the warehouse.
- Spark compute: 10 TB at $5/TB = $50/day
- Storage: 3 transformed datasets, ~2 TB each = 6 TB at $23/TB/month = $138/month
- Schema change cost: Re-run full pipeline (~4 hours) per change
ELT approach: Load raw data first, transform in warehouse.
- Storage: 10 TB raw/day, 30 days retention = 300 TB at $23/TB/month = $6,900/month
- Query compute: 3 models, each with $5/query of daily query cost over 30 days, totals $450/month
- Schema change cost: Rewrite SQL query (~30 minutes) per change

Systems insight: ETL saves $6,762/month in storage. After normalizing Spark compute to a monthly cost, ETL totals $1,638/month ($1,500/month compute + $138/month storage), while ELT totals $7,350/month ($6,900/month storage + $450/month query compute), for a cloud-cost advantage of $5,712/month before engineering labor. ETL still costs 8× more engineering time per schema change. The exact break-even point depends on engineering labor cost and schema-change frequency: stable schemas favor ETL’s lower cloud cost, while frequent feature-definition changes favor ELT’s faster iteration.

The ELT pattern reverses this order, loading raw data first and applying transformations within the target system. For ML development, this enables flexible feature experimentation on the same raw data. Multiple teams can compute different aggregation windows, and when transformation logic bugs are discovered, teams reprocess by rerunning queries rather than re-ingesting from sources. This flexibility accelerates ML experimentation where feature engineering requirements evolve rapidly. The cost is higher storage requirements (raw data is larger than transformed data), repeated computation when multiple models transform the same source data, and greater complexity in enforcing privacy compliance when raw sensitive data persists in storage.

Production ML systems rarely use one pattern exclusively. Structured data with stable schemas often flows through ETL for efficiency and compliance, while unstructured data or rapidly evolving feature pipelines benefit from ELT’s flexibility. For deep learning workloads processing images, audio, or text, the ELT preference runs even deeper: the “Transform” step for unstructured data often executes inside the ML framework’s data loader rather than in the warehouse at all, applying random crops, spectrogram generation, or text tokenization on-the-fly during each training epoch. Materializing every augmented variant upstream would cause a combinatorial storage explosion—a 50,000-image dataset with ten augmentation operations per image would require 500,000 stored copies rather than one—so ELT’s “load raw, transform late” principle extends naturally to the training loop itself. Choosing between these patterns requires understanding the cost of transformation placement; listing 2 makes that decision concrete with a small cost model.

Listing 2: ETL vs. ELT Cost Comparison: Calculating storage and compute costs for different transformation placement strategies. ETL processes data before loading (reducing storage but requiring reprocessing on schema changes), while ELT loads raw data first (higher storage costs but flexible reprocessing via SQL).

# ETL vs ELT cost comparison
daily_raw_tb = 10
s3_per_tb_mo = 23
spark_per_tb = 5
n_models = 3
retention_days = 30
query_cost_per = 5

# ETL
etl_spark_daily = daily_raw_tb * spark_per_tb
etl_datasets = 3
etl_tb_each = 2
etl_storage_tb = etl_datasets * etl_tb_each
etl_storage_mo = etl_storage_tb * s3_per_tb_mo

# ELT
elt_storage_tb = daily_raw_tb * retention_days
elt_storage_mo = elt_storage_tb * s3_per_tb_mo
elt_query_mo = n_models * query_cost_per * retention_days

# Savings
storage_savings_mo = elt_storage_mo - etl_storage_mo

When streaming components enter ETL/ELT architectures, the tool choice is really a failure-mode choice. The CAP theorem (consistency, availability, partition-tolerance)¹⁶, which states that distributed systems cannot simultaneously guarantee Consistency (all nodes see the same data), Availability (the system remains operational), and Partition tolerance (the system continues despite network failures), constrains streaming system design choices. Apache Kafka¹⁷ emphasizes consistency and partition tolerance, making it well-suited for reliable event ordering but potentially experiencing availability issues during network partitions. Apache Pulsar emphasizes availability and partition tolerance, providing better fault tolerance but with relaxed consistency guarantees. Amazon Kinesis exposes operational trade-offs through shard capacity, retention, and producer/consumer configuration, but under CAP it still cannot guarantee both strict consistency and availability during a network partition.

¹⁶ CAP Theorem: Conjectured by Brewer (2000) and formally proved by Gilbert and Lynch (2002). Because network partitions are unavoidable in distributed systems, a system facing a partition cannot guarantee both strict consistency and full availability at the same time. For ML storage architectures, this forces a concrete choice: a feature store prioritizing consistency (CP) guarantees training and serving see identical feature values but may become unavailable during network partitions, while one prioritizing availability (AP) stays operational but risks serving stale features that diverge from training data.

Brewer, Eric A. 2000. “Towards Robust Distributed Systems (Abstract).” Proceedings of the Nineteenth Annual ACM Symposium on Principles of Distributed Computing, 7. https://doi.org/10.1145/343477.343502.

Gilbert, Seth, and Nancy Lynch. 2002. “Brewer’s Conjecture and the Feasibility of Consistent, Available, Partition-Tolerant Web Services.” ACM SIGACT News 33 (2): 51–59. https://doi.org/10.1145/564585.564601.

¹⁷ Apache Kafka: Kafka achieves its ordering guarantee by using a partitioned, leader-based log; all writes for a partition must go through a single leader replica. This design prioritizes consistency over availability during failures: if the leader for a partition becomes unreachable, the system can halt writes to that partition rather than risk an inconsistent state. This trade-off manifests as a tangible availability gap, where a partition can become temporarily unwritable during a leader re-election event.

Feature computation placement

For ML pipelines, feature computation placement decides which resource pays for a feature: storage pays when features are materialized, while compute and latency pay when features are generated on demand. This choice significantly impacts training speed, storage costs, and reproducibility.

One approach is to precompute features during ETL and store the results. Pipeline-computed features offer fast training iteration (features are ready on disk), reproducibility (the same features are used consistently), and reduced training compute. The drawbacks are storage cost (features stored separately from raw data), staleness risk (precomputed features may diverge when logic changes), and inflexibility (any change requires full recomputation).

The alternative is computing features on the fly during training. Loader-computed features guarantee always-fresh computation (logic changes are immediately reflected), flexible experimentation (easy to modify features), and reduced storage (only raw data is stored). The cost is slower training (computation repeats each epoch), higher compute expenditure (GPUs often idle waiting for features), and potential nondeterminism if not carefully implemented.

In practice, hybrid patterns predominate. Expensive, stable features (user embeddings requiring matrix factorization, historical aggregations spanning months of data) are precomputed and materialized. Cheap, time-sensitive features such as recency signals, session context, and time-based transformations are computed in the data loader.

For example, a recommendation system precomputes stable user representation features (expensive, stable over days) while computing time-since-last-interaction features (cheap, time-sensitive) in the data loader. This balances storage costs, computation time, and feature freshness based on each feature’s specific characteristics.

Integration strategies and KWS case study

Regardless of whether ETL or ELT approaches are used, integrating diverse data sources remains a core ingestion challenge. Data may originate from databases, APIs, file systems, and IoT devices, each with its own format (relational rows, JavaScript Object Notation (JSON)¹⁸ documents, binary streams), access protocol, and update frequency. The systems principle is to standardize at the ingestion boundary: normalize formats, validate schemas, and present a consistent interface to downstream processing regardless of source. This boundary standardization separates the complexity of source diversity from the complexity of feature engineering, allowing each to evolve independently.

¹⁸ JSON (JavaScript Object Notation): The schema flexibility that makes JSON a common format for APIs creates a validation bottleneck at the ingestion boundary. Unlike binary formats with predefined schemas, every JSON document requires parsing and schema validation before it can be standardized for downstream use. This per-record overhead can make ingestion over 10$\times$ slower than with formats like Protobuf, directly impacting the system’s ability to handle high-frequency data streams.

KWS production systems use streaming and batch ingestion in concert. The streaming path handles real-time audio from active devices, using publish-subscribe mechanisms like Apache Kafka to buffer incoming data and distribute it across inference servers within the 200 ms latency requirement. The batch path handles training data: new recordings from crowdsourcing efforts discussed in section 1.3, synthetic data addressing coverage gaps, and validated user interactions. Batch processing typically follows an ETL pattern where audio undergoes normalization, noise filtering, and segmentation into consistent durations before storage in training-optimized formats.

Error handling in voice interaction systems requires special attention. Dead letter queues store failed recognition attempts for subsequent analysis, revealing edge cases that need coverage in future model iterations. Each incoming audio sample must pass quality validation (signal-to-noise ratio, sample rate, duration bounds, speaker proximity) before entering the processing pipeline. Invalid samples route to analysis queues rather than being discarded, since these failures often indicate acoustic conditions underrepresented in training data. Valid samples flow through to real-time detection while simultaneously being logged for potential inclusion in future training data.

This ingestion architecture completes the boundary layer where external data enters our controlled pipeline. Ingested data, however reliably delivered, is still raw: audio at inconsistent sample rates, text with varying encodings, numeric features on incompatible scales. Transforming these heterogeneous records into a uniform, model-ready representation while guaranteeing that the exact same transformations apply during both training and serving is the next challenge.

Self-Check: Question

A pipeline passes all schema checks, yet model quality declines because labels remain structurally valid while becoming statistically misaligned with sensor data (for example, weather-station deprecation changes which sites report which features). What does this most directly illustrate?
1. Mechanical validation alone is insufficient; semantic monitoring is also required to catch distributional or alignment shifts that schema checks cannot see.
2. Schema validation should be removed because it creates false confidence without any practical value.
3. This is fundamentally an ETL-versus-ELT issue, since either architecture alone would catch the misalignment when configured correctly.
4. As long as nulls are absent and types are correct, the issue should be handled only at model-training time.
A production feature’s K-S statistic against the training baseline is 0.08 with $n_0 = n_t = 1000$, while the critical threshold at $\alpha = 0.05$ is about 0.061. Which interpretation is correct?
1. No meaningful drift exists because both values are below 0.1.
2. The system should reject the null hypothesis of distributional equality and flag the feature for drift investigation, though the test alone does not dictate retraining.
3. The feature is conclusively suffering concept drift rather than covariate shift.
4. The result proves the model must be retrained immediately, regardless of business impact or downstream signals.
A streaming ingestion pipeline encounters a small subset of records (about 0.5 percent) that repeatedly fail processing because of malformed timestamps from a newly-onboarded data source. What does the chapter argue about the right handling policy for these records?
1. Keep retrying them on the main pipeline indefinitely, because eventual consistency will resolve transient issues and preserve every event.
2. Drop them silently to keep the main pipeline fast, since a 0.5-percent loss is negligible for most ML workloads.
3. Divert them to a separate queue for failed records so the main pipeline continues at full throughput, while the failures accumulate in a reviewable place that can be reprocessed later.
4. Halt the main pipeline until a human operator identifies the root cause, because silently ignoring malformed records risks compliance violations.
Explain why a recommendation system might choose streaming ingestion for some event types but batch ingestion for others, despite the added complexity of running both.
A feature team frequently revises aggregation windows and debugs feature logic after raw events have already landed in the warehouse. Which ingestion pattern best matches this workflow, and why?
1. ETL, because transforming before loading minimizes future query changes and makes feature iteration faster.
2. ELT, because raw data is loaded first and transformations can be revised in-warehouse without repeatedly re-ingesting the sources.
3. Pure streaming, because transformation flexibility comes primarily from sub-second ingestion latency.
4. Strict batch ETL with immediate deletion of raw data, because experimentation is easiest when only curated tables remain.
Walk through how graceful degradation improves reliability when a feature-computation service begins failing during serving, and explain what the pipeline should do concretely.

See Answers →

Systematic Data Processing

The ingestion stage lexed raw streams into well-formed records; the next compiler phase is the optimization pass: systematic data processing. Just as compiler optimizations must preserve program semantics while improving performance, data transformations must preserve signal while improving model readiness. The governing constraint is consistency: transformations must remain identical between training and serving, produce the same result under retry, and scale without losing lineage.

Sculley et al. (2015) identify data dependencies, changes in the external world, configuration debt, and missing monitoring as hidden technical debt risks in production ML systems. Training-serving inconsistency is one concrete form of this risk. Consider normalizing transaction amounts during training by removing currency symbols and converting to floats, but forgetting to apply identical preprocessing during serving. This seemingly minor inconsistency can materially degrade model accuracy. For our KWS system, the tension is concrete: transformations must standardize across diverse recording conditions (varying microphones, noise levels, sample rates) while preserving the acoustic characteristics that distinguish wake words from background speech—and this standardization must be identical in both training and serving paths.

Sculley, D., Gary Holt, Daniel Golovin, Eugene Davydov, Todd Phillips, Dietmar Ebner, Vinay Chaudhary, Michael Young, Jean-François Crespo, and Dan Dennison. 2015. “Hidden Technical Debt in Machine Learning Systems.” Advances in Neural Information Processing Systems 28: 2503–11.

Training-serving consistency

The consistency challenge extends beyond applying the same code—it requires that parameters computed on training data (normalization constants, encoding dictionaries, vocabulary mappings) are stored and reused during serving. We formalize this requirement as the consistency imperative.

Definition 1.3: The consistency imperative

The Consistency Imperative is the axiom that Transformation Logic must be immutable across training and serving environments.

Significance: It predicts that performance degradation is proportional to the KL Divergence $(\mathcal{D}_{\text{KL}}(p_{g_{\text{serve}}} \lVert p_{g_{\text{train}}}))$ between feature distributions induced by the serving transformation $g_{\text{serve}}$ (current) and training transformation $g_{\text{train}}$ (baseline).
Distinction: Unlike Data Quality, which focuses on the Cleanliness of a single record, the consistency imperative focuses on the Alignment of the entire transformation pipeline.
Common pitfall: A frequent misconception is that consistency is “fixed” by sharing code. In reality, it is a State Synchronization problem: parameters computed on training data (for example, means, standard deviations) must be stored and reused during serving.

The stakes are high: violating the consistency imperative silently degrades model accuracy in production. Before examining cleaning and transformation techniques, verify this requirement from the serving path backward.

Checkpoint 1.3: Defensive processing

The primary cause of ML system failure is not bad algorithms but training-serving skew.

Definition: Can you define training-serving skew in terms of the training and live-request processing paths?
Mechanism: Can you explain why using mean=0.5 in training and mean=0.0 in serving makes live data look “alien” to the model?
Invariant: Can you explain why architectural guarantees (shared code, not copied code) are the only reliable solution to skew?

Data cleaning is the first place where consistency can be either enforced or broken. Raw data frequently contains missing values, duplicates, or outliers that degrade model performance. The key insight is that cleaning operations must be deterministic and reproducible: given the same input, they must produce the same output regardless of environment. This requirement shapes which cleaning techniques are safe to use in production.

Data cleaning might involve removing duplicate records based on deterministic keys, handling missing values through imputation or deletion using rules that can be applied consistently, and correcting formatting inconsistencies systematically. For instance, in a customer database, names might be inconsistently capitalized or formatted. A data cleaning process would standardize these entries, ensuring that “John Doe,” “john doe,” and “DOE, John” are all treated as the same entity. The cleaning rules (convert to title case, reorder to “First Last” format) must be captured in code that executes identically in training and serving. As emphasized throughout this chapter, every cleaning operation must be applied identically in both contexts to maintain system reliability.

Outlier detection and treatment is another important aspect of data cleaning, but one that introduces consistency challenges. Outliers can sometimes represent valuable information about rare events, but they can also result from measurement errors or data corruption. ML practitioners must carefully consider the nature of their data and the requirements of their models when deciding how to handle outliers. Simple threshold-based outlier removal (removing values more than three standard deviations from the mean) maintains training-serving consistency if the mean and standard deviation are computed on training data and reused during serving. However, more sophisticated outlier detection methods that consider relationships between features or temporal patterns require careful engineering to ensure consistent application.

Quality assessment complements data cleaning by systematically evaluating the reliability and usefulness of data across multiple dimensions: accuracy, completeness, consistency, and timeliness. In production systems, data quality degrades in subtle ways that basic metrics miss: fields that never contain nulls suddenly show sparse patterns, numeric distributions drift from their training ranges, or categorical values appear that were not present during model development.

To address these subtle degradation patterns, production quality monitoring requires specific metrics beyond simple missing value counts as discussed in section 1.4.1. Critical indicators include null value patterns by feature (sudden increases suggest upstream failures), count anomalies (10$\times$ increases often indicate data duplication or pipeline errors), value range violations (prices becoming negative, ages exceeding realistic bounds), and join failure rates between data sources. Statistical drift detection¹⁹ becomes essential by monitoring means, variances, and quantiles of features over time to catch gradual degradation before it impacts model performance. For example, in an e-commerce recommendation system, the average user session length might gradually increase from eight minutes to 12 minutes over six months due to improved site design, but a sudden drop to three minutes suggests a data collection bug.

¹⁹ Statistical Drift Detection: The means, variances, and quantiles tracked in quality monitoring are the early-warning signals for the degradation equation’s divergence term $\mathcal{D}(P_t \lVert P_0)$. A mean session length shifting from eight to 12 minutes over six months is drift (retraining on recent data restores accuracy); a sudden drop to three minutes is a data collection bug (requires a source-system fix, not retraining). The monitoring window determines which signal surfaces first: hourly windows catch bugs, weekly windows catch drift, and the quality engineer must distinguish between them before choosing the intervention.

Tool sophistication matters less than whether quality standards remain identical across environments. Data profiling tools provide summary statistics and visualizations that help identify potential quality issues, while advanced techniques employ unsupervised learning algorithms to detect anomalies or inconsistencies in large datasets. The key is maintaining identical quality standards and validation logic across training and serving to prevent quality issues from creating training-serving skew.

Transformation techniques convert data from its raw form into a model-ready representation, but the systems risk lies in the parameters those transformations learn. Common transformation tasks include normalization and standardization, which scale numerical features to a common range or distribution. For example, in a housing price prediction model, features like square footage and number of rooms might be on vastly different scales. Normalizing these features ensures that they contribute more equally to the model’s predictions (Bishop 2006). Maintaining training-serving consistency requires that normalization parameters (mean, standard deviation) computed on training data be stored and applied identically during serving. Operationally, these parameters must be persisted alongside the model itself, often in the model artifact or a separate parameter file, and loaded during serving initialization.

Bishop, Christopher M. 2006. Pattern Recognition and Machine Learning. Springer.

Beyond numerical scaling, other transformations might involve encoding categorical variables, handling date and time data, or creating derived features. For instance, one-hot encoding is often used to convert categorical variables into a format that can be readily understood by many machine learning algorithms. Categorical encodings must handle both the categories present during training and unknown categories encountered during serving. A reliable approach computes the category vocabulary during training (the set of all observed categories), persists it with the model, and during serving either maps unknown categories to a special “unknown” token or uses default values. Without this discipline, serving encounters categories the model never saw during training, potentially causing errors or degraded performance.

A health prediction model receives raw GPS coordinates for each patient visit, but latitude and longitude alone tell the model nothing about healthcare access. An engineer who understands the domain creates a new feature: distance to nearest hospital. Suddenly the model discovers that patients more than 50 km from an emergency room have measurably worse outcomes for time-sensitive conditions—a pattern invisible in the raw coordinates.

Feature engineering is this act of using domain knowledge to create new features that make machine learning algorithms work more effectively. The step is often considered more art than science, requiring creativity and deep understanding of both the data and the problem at hand. Feature engineering might involve combining existing features, extracting information from complex data types, or creating entirely new features based on domain insights. In a retail recommendation system, for example, engineers might create features that capture the recency, frequency, and monetary (RFM) value of customer purchases, known as RFM analysis (Kuhn and Johnson 2013).

Kuhn, Max, and Kjell Johnson. 2013. Applied Predictive Modeling. Springer New York. https://doi.org/10.1007/978-1-4614-6849-3.

²⁰ Feature Store: The core failure mode is training-serving skew: without a feature store, training features are computed in batch (for example, seven-day rolling averages over historical data) while serving features are computed in real-time from a streaming source. Even with identical logic, timing differences create systematic discrepancies that degrade model accuracy by 5–15 percent in production. The feature store enforces that training and serving consume identical feature values—same computation, same data source, same timestamp handling. Uber’s Michelangelo pioneered the dual-interface pattern (batch for training, low-latency online for serving, both reading from the same precomputed values) specifically to eliminate this class of silent divergence.

Feature engineering is frequently the single highest-leverage activity in the ML pipeline, precisely because it changes what signal the model can see. Well-engineered features can produce significant improvements in model performance, sometimes outweighing the impact of algorithm selection or hyperparameter tuning. The creativity required for feature engineering must be balanced against the consistency requirements of production systems. Every engineered feature must be computed identically during training and serving. Production systems therefore implement feature engineering logic in shared libraries or modules, rather than reimplementing it separately for each environment. Many organizations build feature stores²⁰, discussed in section 1.7.5, specifically to ensure feature computation consistency across environments.

Applying these processing concepts to our KWS system: the audio recordings flowing through our ingestion pipeline, whether from crowdsourcing, synthetic generation, or real-world captures, require careful cleaning to ensure reliable wake word detection. Raw audio data often contains imperfections that our problem definition anticipated: background noise from various environments (quiet bedrooms to noisy industrial settings), clipped signals from recording level issues, varying volumes across different microphones and speakers, and inconsistent sampling rates from diverse capture devices. The cleaning pipeline must standardize these variations while preserving the acoustic characteristics that distinguish wake words from background speech, a quality-preservation requirement that directly impacts our 98 percent accuracy target.

Quality assessment for KWS extends the general principles with audio-specific metrics. Beyond checking for null values or schema conformance, our system tracks background noise levels (signal-to-noise ratio above 20 dB), audio clarity scores (frequency spectrum analysis), and speaking rate consistency (wake word duration within 500 ms–800 ms). The quality assessment pipeline automatically flags recordings where background noise would prevent accurate detection, where wake words are spoken too quickly or unclearly for the model to distinguish them, or where clipping or distortion has corrupted the audio signal. This automated filtering ensures only high-quality samples reach model development. Recall how figure 1 demonstrated the compounding effects of early data quality failures; this filtering prevents precisely those cascade failures by catching issues at the source.

Transforming audio data for KWS involves converting raw waveforms into formats suitable for ML models while maintaining training-serving consistency. Raw audio waveforms (sequences of amplitude values sampled thousands of times per second) are high-dimensional and difficult for neural networks to process directly. Instead, we transform them into compact representations that emphasize the frequencies and temporal patterns most relevant to speech. Figure 10 traces that standardization: the raw waveform becomes a 2D image-like spectrogram, where time, frequency, and energy are explicit, and then a further-reduced MFCC representation that distills the same energy into a handful of speech-relevant coefficients. These standardized feature representations, typically Mel-frequency cepstral coefficients (MFCCs)²¹ or spectrograms,²² emphasize speech-relevant characteristics while reducing noise and variability across different recording conditions.

²¹ MFCC (Mel-Frequency Cepstral Coefficients): This transformation achieves its compactness and noise resistance by applying mel-scale filtering, which selectively emphasizes the frequencies humans use to distinguish speech. This process reduces thousands of raw audio samples from a small time window (for example, 25 ms) into just 13–39 coefficients, the aggressive dimensionality reduction required for always-on, kilobyte-scale hardware. Any mismatch in the parameters governing this transformation between training and serving will create feature skew, degrading the model’s accuracy.

²² Spectrogram: The Short-Time Fourier Transform (STFT) computes this 2D representation by converting the one-dimensional waveform into a time-frequency image. This representation lets image-style ML models process audio, but it also creates a rigid dependency: any mismatch in STFT parameters (for example, a 25 ms vs. 30 ms window) between training and serving invalidates the learned patterns, causing performance to collapse.

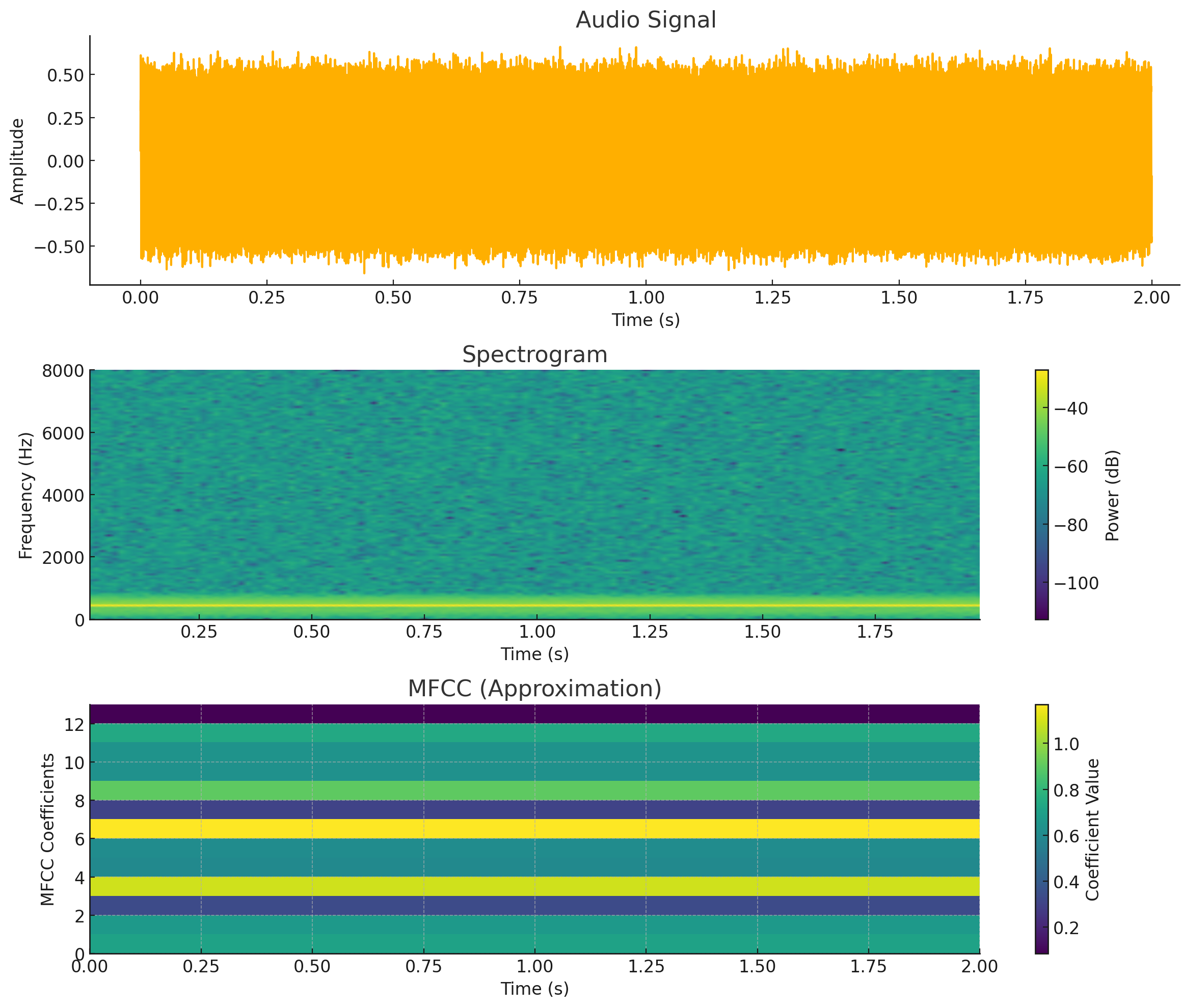

Figure 10: **Audio Feature Transformation**: A raw audio waveform (top) is converted into a spectrogram (middle), a two-dimensional representation where the horizontal axis is time, the vertical axis is frequency, and color intensity indicates signal power, and finally into an MFCC approximation (bottom) that compresses the same energy into a small set of speech-relevant coefficients. This pipeline creates image-like features suitable for ML models.

Idempotent transformations

Building on quality foundations, we turn to reliability. While quality focuses on what transformations produce, reliability ensures how consistently they operate. Processing reliability means transformations produce identical outputs given identical inputs, regardless of when, where, or how many times they execute. This property, called idempotency²³, proves essential for production ML systems where processing may be retried due to failures, where data may be reprocessed to fix bugs, or where the same data flows through multiple processing paths.

²³ Idempotency: From Latin idem (“the same”) + potens (“having power”) – literally, “having the same power when applied again.” In ML pipelines, idempotency enables safe retries after partial failures: a nonidempotent transformation (for example, appending to a log) creates duplicates on retry, silently corrupting training data with repeated examples that bias the model. Idempotent transformations (for example, upsert by key) guarantee identical output regardless of retry count, which is essential for reproducible training and debugging production accuracy drops.

Consider a light switch to build intuition. Flipping the switch to the “on” position turns the light on. Flipping it to “on” again leaves the light on; the operation can be repeated without changing the outcome. This is idempotent behavior. In contrast, a toggle switch that changes state with each press is not idempotent: pressing it repeatedly alternates between on and off states. In data processing, we want light switch behavior where reapplying the same transformation yields the same result, not toggle switch behavior where repeated application changes the outcome unpredictably.

Idempotent transformations enable reliable error recovery. When a processing job fails midway, the system can safely retry processing the same data without worrying about duplicate transformations or inconsistent state. A nonidempotent transformation might append data to existing records, so retrying would create duplicates. An idempotent transformation would upsert data (insert if not exists, update if exists), so retrying produces the same final state. This distinction becomes critical in distributed systems where partial failures are common and retries are the primary recovery mechanism.

Handling partial processing failures requires careful state management. Processing pipelines should be designed so that each stage can be retried independently without affecting other stages. Checkpoint-restart mechanisms enable recovery from the last successful processing state rather than restarting from scratch. For long-running data processing jobs operating on terabyte-scale datasets, checkpointing progress every few minutes means a failure near the end requires reprocessing only recent data rather than the entire dataset. The checkpoint logic must carefully track what data has been processed and what remains, ensuring no data is lost or processed twice.

Deterministic transformations are those that always produce the same output for the same input, without dependence on external factors like time, random numbers, or mutable global state. Transformations that depend on current time (for example, computing “days since event” based on current date) break determinism because reprocessing historical data would produce different results. The solution is to capture temporal reference points explicitly: instead of “days since event,” compute “days from event to reference date” where reference date is fixed and persisted. Random operations should use seeded random number generators where the seed is derived deterministically from input data, ensuring reproducibility.

Reliability in the KWS pipeline requires reproducible feature extraction. Audio preprocessing must be deterministic: given the same raw audio file, the same MFCC features are always computed regardless of when processing occurs or which server executes it. This enables debugging model behavior (can always recreate exact features for a problematic example), reprocessing data when bugs are fixed (produces consistent results), and distributed processing (different workers produce identical features from the same input). The processing code captures all parameters (fast Fourier transform (FFT) window size, hop length, number of MFCC coefficients) in configuration versioned alongside the code, ensuring reproducibility across time and execution environments. Even with rigorous design, production systems must implement runtime monitoring to detect skew if it emerges; ML Operations covers operational comparison and distribution monitoring at scale.

Distributed processing

With quality and reliability established, we face the challenge of scale. Quality ensures transformations produce correct outputs; reliability ensures they produce consistent outputs. Neither matters if processing cannot keep pace with data volume. As datasets grow larger and ML systems become more complex, the scalability of data processing becomes the limiting factor. Consider the data processing stages introduced in this chapter: cleaning, quality assessment, transformation, and feature engineering. When these operations must handle terabytes of data, a single machine becomes insufficient. The cleaning techniques that work on gigabytes of data in memory must be redesigned to work across distributed systems.

These challenges manifest when quality assessment must keep pace with incoming data, when feature engineering requires computing statistics across entire datasets before transforming individual records, and when transformation pipelines create bottlenecks at massive volumes. Processing must scale from development (gigabytes on laptops) through production (terabytes across clusters) while maintaining consistent behavior.

To address these scaling bottlenecks, data must be partitioned across multiple computing resources, which introduces coordination challenges. Distributed coordination is constrained by network round-trip times: local operations complete in microseconds while network coordination requires milliseconds, creating a 1,000$\times$ latency difference. This constraint explains why operations requiring global coordination (like computing normalization statistics across 100 machines) create bottlenecks. Each partition computes local statistics quickly, but combining them requires information from all partitions.

Data locality becomes critical at this scale. At 10 GB/s peak throughput, transferring one terabyte of training data across a network takes on the order of 100 seconds; reading the same amount from a 5 GB/s SSD takes on the order of 200 seconds. These are the same order of magnitude, which drives ML system design toward compute-follows-data architectures.²⁴ When processing nodes access local data at RAM speeds (50–200 GB/s) but must coordinate over networks limited to 1–10 GB/s, the bandwidth mismatch creates severe bottlenecks. Geographic distribution amplifies these challenges: cross-data center coordination must handle network latency (50–200 ms between regions), partial failures, and regulatory constraints preventing data from crossing borders. Understanding which operations parallelize easily vs. those requiring expensive coordination determines system architecture and performance characteristics. This overhead constitutes a coordination tax that limits distributed data processing. The size of this tax, and whether centralizing or aggregating is faster, depends on the ratio between network round-trip and local compute time—quantified in the following 100-node mean-normalization comparison.

²⁴ MapReduce: Designed by Dean and Ghemawat (2004) at Google to process the company’s multi-petabyte web index across thousands of commodity machines. The key design decision was making data locality the scheduling primitive: the scheduler assigns map tasks to nodes that already hold the input data, eliminating network transfers that would otherwise dominate wall-clock time. This compute-follows-data architecture became the template for Hadoop, Spark, and every subsequent distributed data processing framework.

Dean, Jeffrey, and Sanjay Ghemawat. 2004. “MapReduce: Simplified Data Processing on Large Clusters.” Proceedings of the 6th Symposium on Operating Systems Design and Implementation (OSDI), 137–50.

Local aggregation beats gather-all when network latency dominates.

Napkin Math 1.5: The coordination tax

Problem: Mean normalization must be computed across 1 TB of features distributed across 100 nodes. Is it faster to (A) gather all data to one node and compute centrally, or (B) compute local means and aggregate them?

Option A (centralized):

Transfer 1 TB at 10 GB/s network: 100 seconds
Compute mean on single node: ~5–20 seconds at RAM bandwidth
Total: ~105–120 seconds

Option B (distributed):

Each node computes local mean: ~0.05–0.2 seconds (10 GB at RAM speed)
Send 100 partial means (8 bytes each): <1 ms
Aggregate: negligible
Total: ~0.05–0.2 seconds (hundreds to a few thousand times faster)

Systems insight: Operations that reduce data (sum, mean, count) should always run locally first. Operations that expand data (joins, cross-products) face unavoidable network costs. Pipeline design should minimize data movement by pushing computation to where data resides, the compute-follows-data principle central to systems like MapReduce (Dean and Ghemawat 2004), Spark (Zaharia et al. 2010), and modern ML frameworks.

Zaharia, Matei, Mosharaf Chowdhury, Michael J. Franklin, Scott Shenker, and Ion Stoica. 2010. “Spark: Cluster Computing with Working Sets.” HotCloud 10: 10–10.

²⁵ Parquet: A columnar storage format that organizes data by column, not by row. For the single-machine optimizations described, this is critical; instead of wastefully reading an entire CSV row to access a few columns, a Parquet reader loads only the specific data needed for a computation. This selective I/O can reduce data movement from disk by 5–10$\times$ for typical feature-selection workloads, enabling terabyte-scale analysis on a single machine.

Single-machine processing suffices for surprisingly large workloads when engineered carefully. Modern servers with 256 gigabytes RAM can process datasets of several terabytes using out-of-core processing that streams data from disk. Libraries like Dask or Vaex enable pandas-like APIs that automatically stream and parallelize computations across multiple cores. Before investing in distributed processing infrastructure, teams should exhaust single-machine optimization: using efficient data formats (Parquet²⁵ instead of CSV), minimizing memory allocations, using vectorized operations, and exploiting multi-core parallelism. The operational simplicity of single-machine processing (no network coordination, no partial failures, simple debugging) makes it preferable when performance is adequate.

Distributed processing frameworks become necessary when data volumes or computational requirements exceed single-machine capacity, but the speedup achievable through parallelization faces inherent limits described by Amdahl’s Law.²⁶ Amdahl's Law and Gustafson's Law derives the law; here, let $f_{\text{serial}}$ be the serial fraction, $f_{\text{parallel}}$ the parallelizable fraction, and $N_{\text{workers}}$ the number of workers. Equation 4 gives the data-pipeline bound:

²⁶ Amdahl’s Law: Amdahl (1967) presented the serial-fraction argument at the 1967 AFIPS Spring Joint Computer Conference to explain why multiprocessor designs face diminishing returns. The original point – that the serial fraction of a workload imposes a hard ceiling on parallelism – applies directly to data pipelines: operations like computing global normalization statistics force serial aggregation phases that cap speedup regardless of how many workers process individual records in parallel.

Amdahl, Gene M. 1967. “Validity of the Single Processor Approach to Achieving Large Scale Computing Capabilities.” Proceedings of the April 18-20, 1967, Spring Joint Computer Conference on - AFIPS ’67 (Spring), AFIPS ’67 (spring), 483–85. https://doi.org/10.1145/1465482.1465560.

\[\text{Speedup} \leq \frac{1}{f_{\text{serial}} + \frac{f_{\text{parallel}}}{N_{\text{workers}}}} \tag{4}\] where $f_{\text{serial}}$ represents the serial fraction of work that cannot parallelize, $f_{\text{parallel}}$ the parallel fraction (with $f_{\text{serial}} + f_{\text{parallel}} = 1$), and $N_{\text{workers}}$ the number of processors. This explains why distributing our KWS feature extraction across 64 cores achieves only a 64$\times$ speedup when the work is embarrassingly parallel $(f_{\text{serial}} \approx 0)$, but coordination-heavy operations like computing global normalization statistics might achieve only 10$\times$ speedup even with 64 cores due to the serial aggregation phase. Understanding this relationship guides architectural decisions: operations with high serial fractions should run on fewer, faster cores rather than many slower cores, while highly parallel workloads benefit from maximum distribution. Model Training examines distributed training architectures that apply these principles at cluster scale.

Framework choice follows the same coordination question as the Amdahl analysis: it depends on which parts of the transformation can run independently and which parts need shared state or ordering. Apache Spark parallelizes transformations across clusters of machines, handling data partitioning, task scheduling, and fault tolerance automatically. Beam provides a unified API for both batch and streaming processing, enabling the same transformation logic to run on multiple execution engines (Spark, Flink, Dataflow). TensorFlow’s tf.data API optimizes data loading pipelines for ML training, supporting distributed reading, prefetching, and transformation. The choice depends on whether processing is batch or streaming, how transformations parallelize, and what execution environment is available.

The feature computation placement trade-off introduced in section 1.4.5.3 takes on additional significance at scale. When distributed processing increases throughput, the cost of recomputing features across hundreds of workers per epoch must be weighed against the storage cost of materializing those features once. At terabyte scale, even small per-example compute costs multiply into significant overhead, reinforcing why production systems adopt hybrid patterns: precomputing expensive, stable features while computing cheap, time-sensitive features on-the-fly.

Scalability in the KWS pipeline manifests at multiple stages. Development uses single-machine processing on sample datasets to iterate rapidly. Training at scale requires distributed processing when dataset size (23.4 million examples) exceeds single-machine capacity or when multiple experiments run concurrently. The processing pipeline parallelizes naturally: audio files are independent, so transforming them requires no coordination between workers. Each worker reads its assigned audio files from distributed storage, computes features, and writes results back, a trivially parallel pattern achieving near-linear scalability. Production deployment adds a stricter 16 KB preprocessing-state budget alongside the 64 KB model-size limit, necessitating careful footprint optimization to fit processing within device capabilities.

Transformation lineage

Completing our four-pillar view of data processing, governance ensures accountability and reproducibility. The governance pillar requires tracking what transformations were applied, when they executed, which version of processing code ran, and what parameters were used. This transformation lineage²⁷ enables reproducibility essential for debugging, compliance with regulations requiring explainability, and iterative improvement when transformation bugs are discovered. Without comprehensive lineage, teams cannot reproduce training data, cannot explain why models make specific predictions, and cannot safely fix processing bugs without risking inconsistency.

²⁷ Data Lineage: Without lineage, when a model produces an erroneous or discriminatory prediction, engineers cannot determine whether the error originated in the raw data, the feature computation, the training pipeline, or the model itself—making both debugging and regulatory compliance (GDPR’s right to explanation, FCRA’s adverse action notices) intractable. Lineage converts what would otherwise be a week-long forensic investigation into a graph traversal: trace the prediction back through serving features, training data, and raw sources in minutes rather than days.

Transformation versioning captures which version of processing code produced each dataset. When transformation logic changes (fixing a bug, adding features, or improving quality), the version number increments. Datasets are tagged with the transformation version that created them, enabling identification of all data requiring reprocessing when bugs are fixed. This versioning extends beyond just code versions to capture the entire processing environment: library versions (different NumPy versions may produce slightly different numerical results), runtime configurations (environment variables affecting behavior), and execution infrastructure (CPU architecture affecting floating-point precision).

Parameter tracking maintains the specific values used during transformation. For normalization, this means storing the mean and standard deviation computed on training data. For categorical encoding, this means storing the vocabulary (set of all observed categories). For feature engineering, this means storing any constants, thresholds, or parameters used in feature computation. These parameters are typically serialized alongside model artifacts, ensuring serving uses identical parameters to training. Modern ML frameworks like TensorFlow and PyTorch provide mechanisms for bundling preprocessing parameters with models, simplifying deployment and ensuring consistency.

Processing lineage for reproducibility tracks the complete transformation history from raw data to final features. This includes which raw data files were read, what transformations were applied in what order, what parameters were used, and when processing occurred. Lineage systems like Apache Atlas, Amundsen, or commercial offerings instrument pipelines to automatically capture this flow. When model predictions prove incorrect, engineers can trace back through lineage to identify the training data that contributed to the behavior, the quality scores attached to that data, the transformations applied, and whether the exact scenario can be recreated for investigation.

Code version ties processing results to the exact code that produced them. When processing code lives in version control (Git), each dataset should record the commit hash of the code that created it. This enables recreating the exact processing environment: checking out the specific code version, installing dependencies listed at that version, and running processing with identical parameters. Container technologies like Docker simplify this by capturing the entire processing environment (code, dependencies, system libraries) in an immutable image that can be rerun months or years later with identical results.

The governance pillar in the KWS pipeline tracks audio processing parameters that critically affect model behavior. When audio is normalized to standard volume, the reference volume level is persisted. When FFT transforms audio to frequency domain, the window size, hop length, and window function (Hamming, Hanning, etc.) are recorded. When MFCCs are computed, the number of coefficients, frequency range, and mel filterbank parameters are captured. This comprehensive parameter tracking enables several critical capabilities: reproducing training data exactly when debugging model failures, validating that serving uses identical preprocessing to training, and systematically studying how preprocessing choices affect model accuracy. Without this governance infrastructure, teams resort to manual documentation that inevitably becomes outdated or incorrect, leading to subtle training-serving skew that degrades production performance.

Clean, normalized, feature-ready data is still inert without meaning. The remaining question is how we assign that meaning: labels declare which audio clips contain the wake word and which are background noise, and they introduce human judgment into what has been an automated pipeline.

Self-Check: Question

Which practice best satisfies the chapter’s consistency imperative for feature transformations across training and serving?
1. Let training and serving teams implement the same transformation independently so each can optimize for its own environment.
2. Reuse the same transformation logic AND persist training-derived parameters (means, standard deviations, vocabularies) for use at serving time.
3. Share only the feature names between training and serving, since exact preprocessing differences usually average out over large datasets.
4. Recompute normalization statistics from live traffic at serving time so features always reflect current conditions.
True or False: If training and serving invoke the same preprocessing function but use different stored normalization constants or vocabularies, meaningful training-serving skew can still appear.
Explain why idempotent transformations are especially important in production pipelines that rely on retries and checkpoint-restart recovery.
You need to compute a global mean over 1 TB of feature values spread across 100 nodes for use as a training-set normalization constant. Which strategy best follows the chapter’s distributed-processing guidance?
1. Gather all raw data to one node and compute the mean centrally to guarantee a single consistent result.
2. Compute local partial sums and counts on each node, then aggregate the 100 small summaries across the network into a single global mean.
3. Replicate the full dataset to every node so each node independently computes the same mean in parallel.
4. Normalize independently within each partition, since global coordination is always too expensive at this scale.
Order the following reproducibility artifacts from rawest provenance to most deployment-ready governance artifact: (1) transformation version and code commit, (2) stored preprocessing parameters such as vocabularies or normalization constants, (3) final model artifact linked to its data lineage.
Explain why the chapter treats transformation lineage as a governance requirement rather than a debugging convenience.

See Answers →

Data Labeling

The preceding processing pipelines transform raw data into structured features, but one critical input remains: the labels that tell our models what patterns to learn. Consider our KWS system: the ingestion and processing stages have produced millions of clean, standardized audio spectrograms, but these feature vectors are meaningless to a model until someone, or something, declares which ones contain the wake word and which are background noise. This declaration is the ground truth²⁸, and producing it at scale is the most expensive, most human-dependent, and most error-prone stage of the entire pipeline.

²⁸ Ground Truth: From remote sensing, where orbital measurements are verified by sending a team to the physical location – the “ground” – to establish the “truth.” The etymology carries a systems warning: ML labels are proxies for reality, not reality itself. When a crowdsourced annotator labels an image as “cat,” that label reflects the annotator’s judgment, not an objective fact. Every downstream metric – accuracy, precision, recall – is measured against this proxy, meaning label quality errors propagate silently into every evaluation of the model.

Unlike automated transformations that can be parallelized across machines, labeling introduces human judgment into the pipeline, creating unique engineering challenges. A crowdsourced annotator might mislabel a whispered “Alexa” as background noise. An expert radiologist might disagree with a colleague about a borderline diagnosis. These disagreements are not bugs; they are irreducible ambiguity that the labeling system must measure, manage, and mitigate. The infrastructure supporting labeling operations must therefore handle throughput (millions of examples), quality control (inter-annotator agreement), cost management (the labeling/compute ratio from our data engineering constants), and governance (privacy, consent, and bias monitoring).

Label types and system requirements

Building effective labeling systems requires understanding how different label types affect system architecture and resource requirements. Consider a practical example: building a smart city system that needs to detect and track various objects like vehicles, pedestrians, and traffic signs from video feeds. Labels capture information about key tasks or concepts, with each label type imposing distinct storage, computation, and validation requirements.

Classification labels represent the simplest form, categorizing images with a specific tag or (in multi-label classification) tags such as labeling an image as “car” or “pedestrian.” While conceptually straightforward, a production system processing millions of video frames must efficiently store and retrieve these labels. Storage requirements are modest (a single integer or string per image), but retrieval patterns matter: training often samples random subsets while validation requires sequential access to all labels, driving different indexing strategies.

Bounding boxes extend beyond simple classification by identifying object locations, drawing a box around each object of interest. Our system now needs to track not just what objects exist, but where they are in each frame. This spatial information introduces new storage and processing challenges, especially when tracking moving objects across video frames. Each bounding box stores four coordinates (x, y, width, height) plus the object class, so storage scales with the number of annotated objects per image rather than a fixed-size label per image. Bounding box annotation requires pixel-precise positioning that takes 10–20$\times$ longer than classification, dramatically affecting labeling throughput and cost.

Segmentation maps provide the most comprehensive information by classifying objects at the pixel level, highlighting each object in a distinct color. For our traffic monitoring system, this might mean precisely outlining each vehicle, pedestrian, and road sign. These detailed annotations significantly increase our storage and processing requirements. A segmentation mask for a $1920{\times}1080$ image requires about 2.1M labels (one per pixel), compared to perhaps 10 bounding boxes or a single classification label. If each box stores 4 coordinates, that is roughly 51,840× more scalar label entries than 10 boxes before accounting for per-value encoding, and the hours required per image for manual segmentation make this approach suitable only when pixel-level precision is essential.

Finer annotation granularity multiplies storage and processing scale.

Johnson-Roberson, Matthew, Charles Barto, Rounak Mehta, Sharath Nittur Sridhar, Karl Rosaen, and Ram Vasudevan. 2017. “Driving in the Matrix: Can Virtual Worlds Replace Human-Generated Annotations for Real World Tasks?” 2017 IEEE International Conference on Robotics and Automation (ICRA), 746–53. https://doi.org/10.1109/icra.2017.7989092.

Figure 11 contrasts five label granularities, and the choice depends on system requirements and resource constraints (Johnson-Roberson et al. 2017). Classification suffices for traffic counting, but autonomous vehicles need segmentation maps for precise navigation. Production systems often maintain hybrid annotations: a single camera frame might carry classification labels (scene type), bounding boxes (obstacle detection), and segmentation masks (path planning), with each label type serving distinct downstream models.

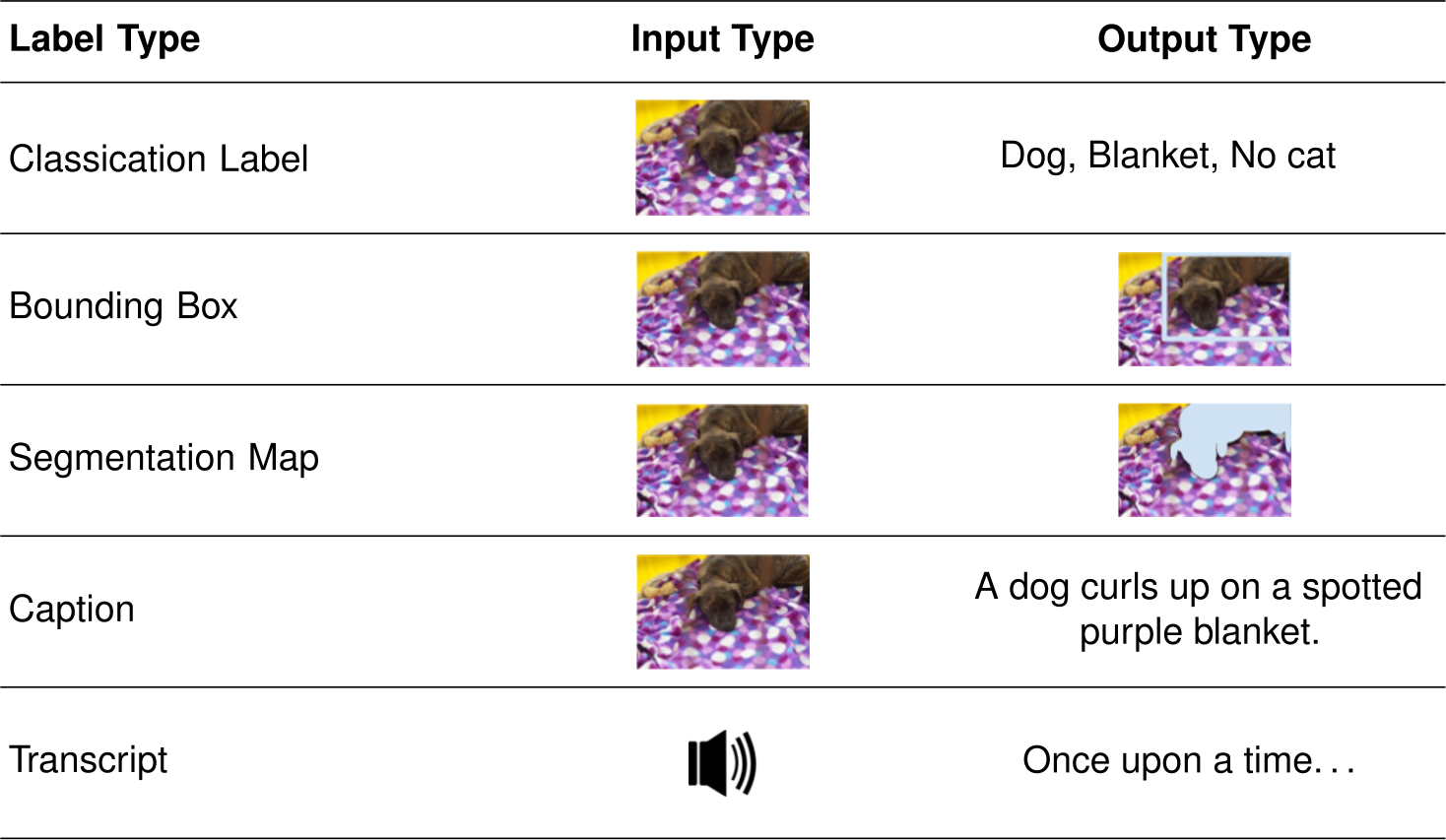

Figure 11: **Data Annotation Granularity**: Five label types applied to the same image of a dog on a blanket: a classification label, a bounding box, a segmentation mask, a free-text caption, and an audio transcription. Each type progressively increases labeling cost and storage requirements while providing a richer training signal.

Beyond these geometric labels, production systems must also manage rich metadata essential for quality control and debugging. The Common Voice dataset (Ardila et al. 2020) exemplifies this in speech recognition: tracking speaker demographics for fairness, recording quality metrics for filtering, and language information for multilingual support. If our traffic monitoring system fails in rainy conditions, weather metadata captured during collection pinpoints the coverage gap. This metadata requirement demonstrates how label type choice cascades through entire system design: the infrastructure must optimize storage for the chosen format, implement appropriate retrieval patterns, and track which model versions used which label versions to correlate quality improvements with performance gains.

Ardila, Rosana, Megan Branson, Kelly Davis, Michael Kohler, Josh Meyer, Michael Henretty, Reuben Morais, Lindsay Saunders, Francis Tyers, and Gregor Weber. 2020. “Common Voice: A Massively-Multilingual Speech Corpus.” Proceedings of the Twelfth Language Resources and Evaluation Conference, 4218–22.

Label accuracy and consensus

In the labeling domain, label quality centers on ensuring label accuracy despite the inherent subjectivity and ambiguity in many labeling tasks. Even with clear guidelines and careful system design, some fraction of labels will inevitably be incorrect (Northcutt et al. 2021; Thyagarajan et al. 2022). The challenge is not eliminating labeling errors entirely (an impossible goal) but systematically measuring inter-annotator agreement and managing error rates to keep them within bounds that do not degrade model performance.

Thyagarajan, Aditya, Elı́as Snorrason, Curtis G. Northcutt, and Jonas Mueller. 2022. “Identifying Incorrect Annotations in Multi-Label Classification Data.” In CoRR, abs/2211.13895. OpenReview.net. https://doi.org/10.48550/ARXIV.2211.13895.

Labeling failures arise from two distinct sources requiring different engineering responses. Figure 12 presents concrete examples of both failure modes. Some examples reflect degraded or ambiguous inputs where the correct label is difficult to infer from the data alone; others are visually clear but require domain knowledge, dataset-specific semantics, or expert judgment to label correctly. These different failure modes drive architectural decisions about annotator qualification, task routing, and consensus mechanisms: quality-based errors call for upstream data filtering, while expertise-based errors call for tiered annotator routing.

Figure 12: **Pervasive Label Errors**: Confidently mislabeled examples from widely used benchmarks, each showing the given label against the corrected ground truth (MNIST, CIFAR-10, CIFAR-100, Caltech-256, ImageNet, QuickDraw). Fine-grained confusions, such as lobster labeled crab or white stork labeled black stork, show that even curated datasets carry systematic errors, motivating careful quality control and expert annotation. Source: (Northcutt et al. 2021).

Given these inherent quality challenges, production ML systems implement multiple layers of quality control. Systematic quality checks continuously monitor the labeling pipeline through random sampling of labeled data for expert review and statistical methods to flag potential errors. The infrastructure must efficiently process these checks across millions of examples without creating bottlenecks. Sampling strategies typically validate 1-10 percent of labels, balancing detection sensitivity against review costs. Higher-risk applications like medical diagnosis or autonomous vehicles may validate 100 percent of labels through multiple independent reviews, while lower-stakes applications like product recommendations may validate only 1 percent through spot checks.

Beyond random sampling approaches, collecting multiple labels per data point, often referred to as “consensus labeling,” can help identify controversial or ambiguous cases. Commercial labeling platforms such as Labelbox and Scale AI expose consensus and tiered quality-control workflows (Labelbox, Inc. 2024; Scale AI, Inc. 2024), but the statistical core is inter-annotator agreement. The consensus infrastructure typically collects several labels per example, computing metrics like Fleiss’ kappa, a generalization of the Cohen’s kappa statistic introduced in section 1.4.3 from two raters to any number of annotators (Fleiss 1971). Examples with low agreement, using thresholds such as the Landis-Koch bands as operational heuristics, route to expert review rather than forcing consensus from genuinely ambiguous cases (Landis and Koch 1977).

Labelbox, Inc. 2024. Labelbox: Data Labeling and Consensus Quality Control.

Scale AI, Inc. 2024. Scale AI: Data Labeling and Quality Control Platform.

Fleiss, Joseph L. 1971. “Measuring Nominal Scale Agreement Among Many Raters.” Psychological Bulletin 76 (5): 378–82. https://doi.org/10.1037/h0031619.

The consensus approach reflects an economic trade-off essential for scalable systems. Expert review costs more per example than crowdsourced labeling, but forcing agreement on ambiguous examples through majority voting of nonexperts can produce systematically biased labels. By routing only genuinely ambiguous cases to experts, identified through low inter-annotator agreement or failed gold-standard checks, systems balance cost against quality. This tiered approach enables processing millions of examples economically while maintaining quality standards through targeted expert intervention.

While technical infrastructure provides the foundation for quality control, successful labeling systems must also consider human factors. When working with annotators, organizations need reliable systems for training and guidance. This includes good documentation with clear examples of correct labeling, visual demonstrations of edge cases and how to handle them, regular feedback mechanisms showing annotators their accuracy on gold standard examples, and calibration sessions where annotators discuss ambiguous cases to develop shared understanding. For complex or domain-specific tasks, the system might implement tiered access levels, routing challenging cases to annotators with appropriate expertise based on their demonstrated accuracy on similar examples.

Quality monitoring generates substantial data that must be efficiently processed and tracked. The most informative signals span several dimensions. Inter-annotator agreement rates reveal whether multiple annotators converge on the same example, while label confidence scores capture how certain annotators feel about their decisions. Time per annotation serves as a dual-sided indicator: annotations completed too quickly suggest carelessness, while those taking too long suggest confusion or unclear guidelines. Error patterns expose systematic biases or misunderstandings in the annotator pool, and annotator performance on gold standard examples provides ground-truth calibration. Finally, demographic analysis of annotator behavior detects whether certain groups systematically label differently, which could introduce unintended bias into the training data. These metrics must be computed and updated efficiently across millions of examples, often requiring dedicated analytics pipelines that process labeling data in near real-time to catch quality issues before they affect large volumes of data.

Scaling with AI-assisted labeling

The scalability pillar drives AI assistance as a force multiplier for human labeling rather than a replacement. Manual annotation alone cannot keep pace with modern ML systems’ data needs, while fully automated labeling lacks the nuanced judgment that humans provide. AI-assisted labeling occupies the space between these extremes: using automation to handle clear cases and accelerate annotation while preserving human judgment for ambiguous or high-stakes decisions. Figure 13 maps this space as a decision hierarchy with four branches. Traditional supervision (fully manual labels) anchors one end with maximal precision but minimal throughput. Semi-supervised learning reduces the labeling burden by propagating labels from a small labeled set to a larger unlabeled corpus. Weak supervision replaces individual annotations with programmatic labeling functions that trade per-label accuracy for orders-of-magnitude gains in throughput. Transfer learning sidesteps the labeling problem entirely by reusing representations learned on a different task. Each path lower in the hierarchy trades labeling precision for scalability, and the subsections that follow examine the system design required to make each trade-off reliable.

Figure 13: **AI-Augmented Labeling Decision Hierarchy**: A top-level question about obtaining labeled data branches into four paths: traditional supervision, semi-supervised learning, weak supervision, and transfer learning, with active learning as a cost-saving alternative. Lower-cost strategies trade labeling precision for throughput. Source: Stanford AI Lab.

The key insight behind AI-assisted labeling is that human and machine intelligence excel at different aspects of the task. Humans provide judgment on ambiguous cases, catch subtle errors, and encode domain knowledge that models lack. Machines provide speed, consistency, and tireless attention to clear-cut cases. Modern systems orchestrate these complementary strengths through three primary approaches.

Pre-annotation uses AI models to generate preliminary labels that humans then review and correct – transforming the task from “label from scratch” to “verify and fix.” This approach often employs semi-supervised learning techniques that trade model confidence and human review effort against fully manual labeling (Chapelle et al. 2006). Programmatic labeling frameworks like Snorkel (Ratner et al. 2018; Ratner et al. 2017) extend this further through weak supervision²⁹, automatically generating initial labels at scale through rule-based heuristics, knowledge bases, and existing model outputs. In autonomous driving, pretrained object detection models can label vehicles and pedestrians that human annotators verify and refine, handling many clear cases automatically.

Chapelle, Olivier, Bernhard Schölkopf, and Alexander Zien, eds. 2006. Semi-Supervised Learning. MIT Press.

Ratner, Alex, Braden Hancock, Jared Dunnmon, Roger Goldman, and Christopher Ré. 2018. “Snorkel MeTaL: Weak Supervision for Multi-Task Learning.” Proceedings of the Second Workshop on Data Management for End-to-End Machine Learning, 1–4. https://doi.org/10.1145/3209889.3209898.

Ratner, A., S. H. Bach, H. Ehrenberg, J. Fries, S. Wu, and C. Ré. 2017. “Snorkel: Rapid Training Data Creation with Weak Supervision.” Proceedings of the VLDB Endowment 11 (3): 269–82. https://doi.org/10.14778/3157794.3157797.

²⁹ Weak Supervision: A “data programming” paradigm motivated by the observation that domain experts write heuristic rules faster than they label examples. This method exchanges manual annotation labor for the upfront effort of writing programmatic “labeling functions,” each of which can then label millions of data points at near-zero marginal cost, whereas manual labeling costs scale linearly with dataset size.

Large Language Models (LLMs) have further transformed labeling pipelines by generating rich text descriptions, creating labeling guidelines from examples, and explaining their reasoning for label assignments. Content moderation systems, for instance, use LLMs for initial content classification with explanations that human reviewers validate. However, LLM integration introduces systems challenges: inference costs ($0.01–$1 per example), API rate limits (100–10,000 requests per minute), and the need for systematic output validation since LLMs occasionally produce confident but incorrect labels. Many organizations adopt tiered approaches, using smaller specialized models for routine cases while reserving larger LLMs for complex scenarios requiring nuanced judgment.

Methods such as active learning³⁰ complement these approaches by intelligently prioritizing which examples need human attention (Settles 2009; Coleman et al. 2022). These systems continuously analyze model uncertainty to identify valuable labeling candidates. Rather than labeling a random sample of unlabeled data, active learning selects examples where the current model is most uncertain or where labels would most improve model performance. The infrastructure must efficiently compute uncertainty metrics (often prediction entropy or disagreement between ensemble models), maintain task queues ordered by informativeness, and adapt prioritization strategies based on incoming labels. Consider a medical imaging system: active learning might identify unusual pathologies for expert review while handling routine cases through preannotation that experts merely verify. This approach can substantially reduce required annotations in favorable settings, though it requires careful engineering to prevent feedback loops where the model’s uncertainty biases which data gets labeled. A budget calculation makes that leverage concrete.

³⁰ Active Learning: Inverts the traditional labeling paradigm: instead of randomly selecting examples to label, the model queries for the examples it needs most, typically those where prediction uncertainty is highest (Settles 2009). This can reduce the number of labels needed to reach a target accuracy, but the infrastructure trade-off is compute for labels: at $0.01/image, scoring a full 10M pool costs $100K before any human labels. Active learning becomes budget leverage only when the candidate pool is pre-filtered, inference is much cheaper, or the compute budget is separate from the labeling budget.

Settles, Burr. 2009. Active Learning Literature Survey. Computer Sciences Technical Report 1648. University of Wisconsin-Madison.

Coleman, Cody, Edward Chou, Julian Katz-Samuels, Sean Culatana, Peter Bailis, Alexander C. Berg, Robert Nowak, Roshan Sumbaly, Matei Zaharia, and I. Zeki Yalniz. 2022. “Similarity Search for Efficient Active Learning and Search of Rare Concepts.” Proceedings of the AAAI Conference on Artificial Intelligence 36 (6): 6402–10. https://doi.org/10.1609/aaai.v36i6.20591.

Full-pool scoring can exceed the label budget before labeling begins.

Napkin Math 1.6: The active learning multiplier

Problem: A 10M dataset has a $50K labeling budget. Random sampling achieves 85 percent accuracy with 100K, while the target is 95 percent accuracy.

Physics:

Sample efficiency: Active learning can achieve target accuracy with fewer samples than random selection in favorable settings.
Cost per point: Random sampling = $0.50/label. Active learning adds compute cost (~$0.01/image for inference) to find hard examples.
Multiplier:
- Random: Reaching 95 percent may require 1M labels ($500K). Budget exceeded.
- Active labels only: The system may need ~100K–200K hard examples ($50K–$100K).
- Full-pool scoring: Scoring all 10M candidate images adds $100K, so total active-learning cost becomes $150K–$200K. Budget exceeded.

Systems insight: Algorithm choice is a major lever on label count, but compute must be inside the budget model. Spending 10 percent of this budget on inference ($5K) scores only 500K candidate images at the stated inference price and leaves room for about 90K labels. Active learning is viable only if the candidate pool is narrowed before scoring, inference cost drops substantially, or compute is funded separately from labeling.

Quality control becomes increasingly important as these AI components interact. The system must monitor both AI and human performance through systematic metrics. Model confidence calibration matters: if the AI reports 95 percent confidence but achieves only 75 percent accuracy at that confidence level, preannotations mislead human reviewers. Human-AI agreement rates reveal whether AI assistance helps or hinders: when humans frequently override AI suggestions, the preannotations may be introducing bias rather than accelerating work. These metrics require careful instrumentation throughout the labeling pipeline, tracking not just final labels but the interaction between human and AI at each stage.

These principles manifest at scale across safety-critical domains. Autonomous vehicle labeling infrastructure can process large volumes of sensor frames, using AI preannotation to label common objects while routing unusual scenarios (construction zones, emergency vehicles) to human experts–a distributed architecture where preannotation runs on GPU clusters while human review scales across annotation teams. Medical imaging systems face a parallel label-scarcity problem: large repositories of unlabeled clinical data make expert annotation the bottleneck and motivate data-efficient workflows that learn useful representations from unlabeled structure before expert labels are applied (Krishnan et al. 2022). Across such domains, the common data-engineering pattern is tiered escalation: automation handles clear cases, humans handle ambiguous ones, and monitoring ensures the boundary between “clear” and “ambiguous” adapts as both AI capability and deployment conditions evolve.

Krishnan, Rayan, Pranav Rajpurkar, and Eric J. Topol. 2022. “Self-Supervised Learning in Medicine and Healthcare.” Nature Biomedical Engineering 6 (12): 1346–52. https://doi.org/10.1038/s41551-022-00914-1.

Automated labeling in KWS

Our KWS case study has now progressed through problem definition (section 1.2.3), data collection, ingestion, and processing. At the labeling stage, we confront a challenge unique to speech systems at scale. Generating millions of labeled wake word samples without proportional human annotation cost requires moving beyond the manual and crowdsourced approaches we examined earlier. The Multilingual Spoken Words Corpus (MSWC) (Mazumder et al. 2021) demonstrates how automated labeling addresses this challenge through its innovative approach to generating labeled wake word data; the corpus contains over 23.4 million examples of one-second speech across 340,000 keywords in 50 languages.

Mazumder, Mark, Sharad Chitlangia, Colby Banbury, Yiping Kang, Juan Manuel Ciro, Keith Achorn, Daniel Galvez, et al. 2021. “Multilingual Spoken Words Corpus.” Advances in Neural Information Processing Systems 35 (NeurIPS 2021) Datasets and Benchmarks Track.

Mozilla Foundation. 2024. Common Voice: A Massively-Multilingual Speech Corpus.

³¹ Forced Alignment: Given a known transcription, the algorithm aligns specific words to audio frames with millisecond precision using dynamic programming (Viterbi algorithm), bypassing the harder problem of recognizing what was said. This distinction is what makes automated KWS corpus construction feasible: because the transcription is already known from paired text, forced alignment converts sentence-level audio into word-level training samples at negligible marginal cost – enabling datasets of millions of labeled keywords without proportional human annotation effort.

This scale makes manual annotation infeasible: 23.4 million examples at even 10 seconds per label would require approximately 65,000 hours, roughly 32.5 person-years of full-time effort. Achieving 98 percent accuracy across diverse environments requires millions of training examples covering acoustic variations (background noises, speaking styles, recording environments), and transparent sourcing across 50 languages ensures the technology serves diverse speaker populations. The automated system in figure 14 addresses that scale problem by starting with paired sentence audio recordings and corresponding transcriptions from projects like Common Voice (Mozilla Foundation 2024) or multilingual captioned content platforms, then processing those inputs through forced alignment³¹ to identify precise word boundaries within continuous speech.

Figure 14: **Multilingual Data Preparation**: Forced alignment and segmentation transform paired audio-text data into labeled one-second segments, creating a large-scale corpus for training keyword spotting models across 50 languages. This automated process enables scalable development of KWS systems by efficiently generating training examples from readily available speech resources like common voice and multilingual captioned content.

The extraction system uses these precise timing markers to generate clean keyword samples while handling the engineering challenges our problem definition anticipated: background noise interfering with word boundaries, speakers stretching or compressing words unexpectedly beyond our target 500 ms–800 ms duration, and longer words exceeding the one-second boundary. MSWC provides automated quality assessment that analyzes audio characteristics to identify potential issues with recording quality, speech clarity, or background noise, which is essential for maintaining consistent standards across 23.4 million samples without the manual review expenses that would make this scale prohibitive.

Modern voice assistant developers often build on this automated labeling foundation. While automated corpora may not contain the specific wake words a product requires, they provide starting points for KWS prototyping, particularly in underserved languages where commercial datasets do not exist. Production systems typically layer targeted human recording and verification for challenging cases (unusual accents, rare words, or difficult acoustic environments), coordinating between automated processing and human expertise.

The pipeline has now produced its compilation artifacts: millions of feature vectors paired with ground truth labels. The question shifts from what data we have to where it lives and how fast it reaches the accelerators. Storage architecture determines whether expensive GPUs spend their time computing or waiting.

Self-Check: Question

Why do segmentation labels impose much heavier systems requirements than simple classification labels for a $1920{\times}1080$ image?
1. Because a segmentation mask requires storing roughly 2 million pixel-level labels per image, plus annotation effort orders of magnitude higher than a single class label.
2. Because segmentation labels can only be used for vision transformers, while classification labels work for all other architectures.
3. Because segmentation eliminates ambiguity, so the only remaining cost is disk space.
4. Because classification labels cannot be versioned, while segmentation masks can.
A labeling pipeline routes low-agreement examples to experts after collecting three to five crowd labels per example. What problem is this architecture primarily solving?
1. It eliminates governance concerns because expert labels carry less legal risk than crowd labels.
2. It balances cost and quality by reserving expensive expert attention (10$\times$ to 50$\times$ the per-example cost of crowd labeling) for the roughly 5-15 percent of examples that are genuinely ambiguous.
3. It ensures every example eventually receives the majority crowd label, even when the example is fundamentally unclear.
4. It primarily reduces storage usage, since expert labels are smaller than crowd labels.
Explain why AI-assisted labeling is a force multiplier rather than a full replacement for human labeling in production systems.
Automated labeling for the Multilingual Spoken Words Corpus produces millions of one-second keyword samples from existing sentence-audio and transcript pairs. Explain why this automated approach makes large-scale KWS corpus construction economically feasible in a way manual labeling cannot.
Your team can afford to label only a small fraction of a 10 M-example pool and currently achieves 85 percent accuracy at 100 K random labels. Why might active learning stretch the labeling budget far more than random sampling under the section’s argument?
1. Because it removes the need for a validation set and reuses those labels as additional training data.
2. Because it automatically converts every unlabeled example into a correct pseudo-label without human review.
3. Because it directs scarce human effort toward the most-informative examples, often reaching a target accuracy with 5–10$\times$ fewer annotations, while still requiring the full budget model to include scoring cost, pre-filtering, or separately funded compute.
4. Because uncertainty sampling automatically guarantees equal coverage across every demographic subgroup.
True or False: Because forced alignment produces millions of automated keyword labels cheaply, production KWS systems can skip targeted human review entirely.

See Answers →

Storage Architecture

The labeled datasets from our pipeline (23.4 million samples spanning 50 languages for KWS) now require strategic storage decisions that determine training efficiency, serving latency, and long-term maintainability. Storage architecture addresses a core tension: batch training requires sequential scans across millions of examples, while real-time serving demands millisecond lookups of individual feature vectors. These competing access patterns shape every storage decision.

ML storage requirements diverge from those of transactional systems. Rather than optimizing for frequent small writes and point lookups that characterize e-commerce or banking, ML workloads prioritize high-throughput sequential reads, large-scale scans, and schema flexibility. A database serving an e-commerce application performs well with millions of individual product lookups per second, but an ML training job scanning that entire catalog repeatedly across epochs requires completely different storage optimization.

Storage system options

Batch training scans millions of examples sequentially; real-time serving fetches one feature vector at a time. These opposing access patterns pull storage in two directions, and selecting a system means minimizing the data term $(\frac{D_{\text{vol}}}{\text{BW}})$ of the iron law of ML systems for whichever pattern dominates. Every storage medium imposes physical constraints on bandwidth that determine the maximum speed of the training and serving pipelines.

Two storage performance metrics govern this optimization. IOPS (Input/Output Operations Per Second) counts the distinct read/write requests a device can handle per second, so it limits random access workloads such as fetching small batches of images or individual user profiles. Throughput (Bandwidth) measures the volume of data transferred per second, typically $\text{IOPS} \times \text{Block Size}$, so it limits sequential access workloads such as scanning a Parquet file for training.

The choice between databases, data warehouses, and data lakes is fundamentally a choice about which of these metrics to optimize. Databases (OLTP systems) optimize for high IOPS with small block sizes, making them suited for serving individual feature vectors in real-time where per-request latency dominates. Data warehouses (OLAP systems) optimize for high throughput with large block sizes and sequential access, making them ideal for feature engineering and batch analytics. Data lakes prioritize capacity and throughput for unstructured data, essential for training jobs where the $D_{\text{vol}}$ numerator is measured in petabytes and aggregate bandwidth must scale to thousands of GPUs.

The access-pattern decision becomes concrete when matched to ML workflow stages. For online feature serving, the high-IOPS characteristics of databases enable millisecond lookups of individual records. Large recommendation systems exemplify this challenge at its most extreme: terabyte-scale lookup data may need to serve billions of sparse reads per second, requiring storage architectures that optimize IOPS over sequential throughput. More generally, a recommendation system looking up a user’s profile during real-time inference requires random access optimized for per-request latency.

Structured model training points the decision in the opposite direction: throughput dominates request-level latency. The throughput-optimized design of data warehouses enables high-speed sequential scans over large, clean tables. Training a fraud detection model that processes millions of transactions with hundreds of features per transaction benefits from columnar storage that reads only relevant features efficiently, directly reducing the data term by minimizing bytes transferred.

Exploratory analysis and unstructured training data add a third constraint: the schema may not be known when the data is collected. For images, audio, and text, data lakes provide the flexibility and low-cost storage needed for massive volumes. A computer vision system storing terabytes of raw images alongside metadata, annotations, and intermediate processing results requires the schema flexibility and cost efficiency that only data lakes provide, where the sheer scale of the $D_{\text{vol}}$ numerator demands the highest aggregate bandwidth.

Databases earn their place when transactional consistency and point-lookup latency dominate. They maintain product catalogs, user profiles, or transaction histories with strong consistency guarantees and low-latency point lookups. For ML workflows, databases serve specific roles well: storing feature metadata that changes frequently, managing experiment tracking where transactional consistency matters, or maintaining model registries that require atomic updates. A PostgreSQL database handling structured user attributes (user_id, age, country, preferences) provides millisecond lookups for serving systems that need individual user features in real-time. However, databases struggle when ML training requires scanning millions of records repeatedly across multiple epochs. The row-oriented storage that optimizes transactional lookups becomes inefficient when training needs only 20 of 100 columns from each record but must read entire rows to extract those columns.

Data warehouses earn their place when repeated scans over structured features dominate. Modern warehouses like Google BigQuery, Amazon Redshift, and Snowflake use columnar storage formats (Stonebraker et al. 2018) that enable reading specific features without loading entire records, essential when tables contain hundreds of columns but training needs only a subset. This columnar organization delivers five to ten times I/O reduction compared to row-based formats for typical ML workloads; the format-efficiency calculation in section 1.7.2 quantifies the gain with a worked fraud-detection example. Many successful ML systems draw training data from warehouses because the structured environment simplifies exploratory analysis and iterative development. Data analysts can quickly compute aggregate statistics, identify correlations between features, and validate data quality using familiar SQL interfaces.

Stonebraker, Mike, Daniel J. Abadi, Adam Batkin, Xuedong Chen, Mitch Cherniack, Miguel Ferreira, Edmond Lau, et al. 2018. “C-Store: A Column-Oriented DBMS.” In Making Databases Work: The Pragmatic Wisdom of Michael Stonebraker. Association for Computing Machinery. https://doi.org/10.1145/3226595.3226638.

However, warehouses assume relatively stable schemas and struggle with truly unstructured data (images, audio, free-form text) or rapidly evolving formats common in experimental ML pipelines. When a computer vision team wants to store raw images alongside extracted features, multiple annotation formats from different labeling vendors, intermediate model predictions, and learned representation vectors, forcing all these into rigid warehouse schemas creates more friction than value. Schema evolution becomes painful: adding new feature types requires ALTER TABLE operations that may take hours on large datasets, blocking other operations and slowing iteration velocity.

Data lakes earn their place when schema flexibility and low-cost retention dominate. They address warehouse limitations by storing structured, semi-structured, and unstructured data in native formats, deferring schema definitions until the point of reading, a pattern called schema-on-read.³²

³² Schema-on-Read: Applies data structure definitions at query time rather than during ingestion, contrasting with schema-on-write (traditional databases) where data must conform to a predefined structure before storage. For ML pipelines in early development, schema-on-read enables rapid experimentation – teams can store raw sensor data, images, and logs without committing to a feature schema upfront. The trade-off is governance: without enforced schemas, data lakes degrade into “data swamps” where finding and validating training data becomes the bottleneck instead.

This flexibility proves valuable during early ML development when teams experiment with diverse data sources and are not yet certain which features will prove useful. A recommendation system might store in the same data lake: transaction logs as JSON, product images as JPEGs, user reviews as text files, clickstream data as Parquet, and model embeddings as NumPy arrays. Rather than forcing these heterogeneous types into a common schema upfront, the data lake preserves them in their native formats. Applications impose schema only when reading, enabling different consumers to interpret the same data differently: one team extracts purchase amounts from transaction logs while another analyzes temporal patterns, each applying schemas suited to their analysis.

That flexibility is only useful if governance prevents the lake from becoming opaque. Without disciplined metadata management and cataloging, data lakes degrade into “data swamps,” disorganized repositories where finding relevant data becomes nearly impossible, undermining the productivity benefits that motivated their adoption. A data lake might contain thousands of datasets across hundreds of directories with names like “userdata_v2_final” and “userdata_v2_final_ACTUALLY_FINAL”, where only the original authors (who have since left the company) understand what distinguishes them. Successful data lake implementations maintain searchable metadata about data lineage, quality metrics, update frequencies, ownership, and access patterns, essentially providing warehouse-like discoverability over lake-scale data. Tools like AWS Glue Data Catalog, Apache Atlas, or Databricks Unity Catalog provide this metadata layer, enabling teams to discover and understand data before investing effort in processing it.

Each storage architecture optimizes for a different access pattern that maps to a distinct ML workflow stage, as table 7 makes explicit—choosing the wrong system for a workload creates order-of-magnitude performance penalties that no software optimization can overcome.

Table 7: Storage System Characteristics: Each storage architecture optimizes for a different access pattern that maps to a distinct ML workflow stage. Databases excel at the high-IOPS random access needed for real-time feature serving; data warehouses deliver the sequential throughput that batch training and feature engineering demand; and data lakes provide the schema flexibility and cost efficiency required for petabyte-scale raw data retention. Choosing the wrong system for a workload creates order-of-magnitude performance penalties that no software optimization can overcome.

Attribute	Conventional Database	Data Warehouse	Data Lake
Purpose	Operational and transactional	Analytical and reporting	Storage for raw and diverse data for future processing
Data type	Structured	Structured	Structured, semi-structured, and unstructured
Scale	Small to medium volumes	Medium to large volumes	Large volumes of diverse data
Performance Optimization	Optimized for transactional queries (OLTP)	Optimized for analytical queries (OLAP)	Optimized for scalable storage and retrieval
Examples	MySQL, PostgreSQL, Oracle DB	Google BigQuery, Amazon Redshift, Microsoft Azure Synapse	Google Cloud Storage, AWS S3, Azure Data Lake Storage

Choosing appropriate storage requires evaluating workload requirements rather than following technology trends. The decision typically follows a maturity trajectory: early-stage projects start with databases (familiar SQL, existing infrastructure), migrate to warehouses when analytical queries overwhelm transactional performance, and adopt data lakes when unstructured data types (images, audio, text) or petabyte-scale cost optimization become critical. Mature ML organizations typically employ all three, orchestrated through unified data catalogs: databases for operational data and real-time serving, warehouses for curated analytical data and feature engineering, and data lakes for raw heterogeneous data and large-scale training. Consider a self-driving car system: vehicle telemetry lives in a database for real-time monitoring, aggregated driving statistics reside in a warehouse for batch analytics, and terabytes of raw camera images and lidar point clouds occupy a data lake for model training—each storage tier optimized for its access pattern.

Storage performance and cost

Beyond the functional differences between storage systems, cost and performance characteristics directly impact ML system economics and iteration speed. Understanding these quantitative trade-offs enables informed architectural decisions based on workload requirements.

Table 8 reveals why ML systems employ tiered storage architectures. Consider the economics of storing our KWS training dataset (736 GB): object storage costs $16.9/month, enabling affordable long-term retention of raw audio, while maintaining working datasets on NVMe³³ for active training costs $73.6/month–$220.8/month but provides 50× faster data loading.

³³ NVMe (Non-Volatile Memory Express): A storage protocol connecting directly to the PCIe bus with 64K command queues, delivering 5–7 GB/s sequential throughput and microsecond-scale latency. The contrast with SATA SSD (500 MB/s, single queue) is a 10$\times$ bandwidth gap that directly determines GPU utilization: at SATA speeds, a training pipeline reading 100 GB datasets spends more time waiting for storage than computing gradients, converting a $15,000 accelerator into an expensive space heater.

Table 8: Storage Cost-Performance Trade-Offs: Different storage tiers provide distinct cost-performance characteristics that determine their suitability for specific ML workloads. Training data loading requires high-throughput sequential access; The memory hierarchy establishes the memory hierarchy this pattern must align with. Online serving needs low-latency random reads, while archival storage prioritizes cost over access speed for compliance and historical data.

Storage Tier	Cost ($/TB/month)	Sequential Read Throughput	Random Read Latency	Typical ML Use Case
NVMe SSD (local)	$100–300	5–7 GB/s	10–100 μs	Training data loading, active feature serving
Object Storage (S3, GCS)	$20–25	100–500 MB/s (per connection)	10–50 ms	Data lake raw storage, model artifacts
Data Warehouse (BigQuery, Redshift)	$20–40	1–5 GB/s (columnar scan)	100–500 ms (query startup)	Training data queries, feature engineering
In-Memory Cache (Redis, Memcached)	$500–1000	20–50 GB/s	1–10 μs	Online feature serving, real-time inference
Archival Storage (Glacier, Nearline)	$1–4	10–50 MB/s (after retrieval)	Hours (retrieval)	Historical retention, compliance archives

The performance difference directly impacts iteration velocity. Training that loads data at 5 GB/s completes dataset loading in 147.2 s, compared to 7,360 s at typical object storage speeds. This 50× difference determines whether teams can iterate multiple times daily or must wait hours between experiments.

Access latency spans eight orders of magnitude, cache to internet.

To build engineering judgment, practitioners must internalize the orders of magnitude separating these tiers. Table 9 translates these disparities into human-scale analogies that build intuition for system design: if a CPU cycle were one second, fetching from local SSD would take two days, while a cross-country network request would span six years. Internalizing these ratios (three orders of magnitude between L1 cache and DRAM, another three between DRAM and SSD) explains why seemingly small architectural choices cascade into large performance differences.

Table 9: Latency Numbers Every ML Systems Engineer Should Know: Understanding the quantitative disparities in the storage hierarchy is essential for diagnosing bottlenecks. If a CPU cycle were one second, fetching data from local SSD would be like waiting two days, while a cross-country network request would take six years. Source: Adapted from Jeff Dean’s Numbers Every Programmer Should Know; Numbers to Know provides the full hardware reference with bandwidth and energy ratios.

Operation	Latency (ns)	Human Scale	ML System Impact
L1 Cache Reference	0.5	1 second	Immediate
L2 Cache Reference	7	14 seconds	Fast computation
Main Memory (DRAM)	100	3 minutes	The “memory wall” threshold
SSD (local NVMe)	100,000	2 days	Data loading bottleneck
Network (same DC)	500,000	1 week	Distributed coordination lag
SSD (remote network)	2,000,000	1 month	Training-serving skew source
Object Store (S3)	20,000,000	1 year	Archival access
Internet (CA to VA)	100,000,000	6 years	Global user experience

These latency numbers originated from Jeff Dean’s influential 2009 talk at Stanford,³⁴ which established the quantitative culture that distinguishes systems engineering from programming. Understanding them is foundational to ML systems engineering: they explain why a poorly designed storage architecture can leave an expensive accelerator idle, and why distributed training requires careful attention to data locality.

³⁴ Jeff Dean: Google Senior Fellow, architect of MapReduce, BigTable, Spanner, and TensorFlow. His 2009 Stanford talk distilled the numbers in table 9 into the engineering heuristic that an L1 cache reference (0.5 ns) and a cross-data center round trip (150 ms) span a $3 \times 10^{8}$ ratio – eight orders of magnitude that explain why a training pipeline reading features from remote storage instead of local NVMe starves the accelerator it was meant to feed.

Access pattern alone does not exhaust the storage problem. ML workloads also store artifacts that conventional databases and warehouses were not designed around, and those artifacts shape infrastructure decisions across the entire development lifecycle, from experimental notebooks to production serving systems handling millions of requests per second.

Modern ML models contain millions to trillions of parameters requiring storage and retrieval patterns fundamentally different from traditional data. GPT-3 (Brown et al. 2020) requires approximately 700 GB for model weights when stored in FP32 format (175B parameters times 4 bytes), though practical deployments often use smaller numeric formats such as FP16 (350 GB) to reduce storage and access cost. Even at FP16 precision, this exceeds many organizations’ entire operational databases. The trajectory reveals accelerating scale: from AlexNet’s 60M parameters (Krizhevsky et al. 2012) to GPT-3’s 175B parameters (Brown et al. 2020), model size grew approximately 2916× in eight years. Storage systems must handle these dense numerical arrays efficiently for both capacity and access speed. Unlike typical files where sequential organization matters for readability, model weights benefit from block-aligned storage enabling parallel reads across parameter groups. When multiple accelerators need to read model data from shared storage, whether during training initialization or checkpoint loading, storage systems must deliver aggregate bandwidth approaching network interface limits, often 25 Gbps or higher, without introducing bottlenecks that would idle expensive compute resources. Model Compression later explains the model-side techniques that reduce these footprints further.

Brown, Tom B., Benjamin Mann, Nick Ryder, Melanie Subbiah, Jared Kaplan, Prafulla Dhariwal, Arvind Neelakantan, et al. 2020. “Language Models Are Few-Shot Learners.” Advances in Neural Information Processing Systems 33: 1877–901. https://doi.org/10.48550/arxiv.2005.14165.

Krizhevsky, Alex, Ilya Sutskever, and Geoffrey E. Hinton. 2012. “ImageNet Classification with Deep Convolutional Neural Networks.” Advances in Neural Information Processing Systems 25.

The iterative nature of ML development introduces versioning requirements qualitatively different from traditional software. Git excels at tracking code changes where files are predominantly text with small incremental modifications, but it fails for large binary files where even small model changes result in entirely new checkpoints. Storing ten versions of a 10 GB model naively would consume 100 GB; ML versioning systems typically keep lightweight metadata pointers in Git or a registry and store artifacts in external content-addressed storage. Identical files can be deduplicated, but changed binary checkpoints are often stored as separate objects unless the backend adds its own delta compression. Tools like DVC (Data Version Control) and MLflow maintain pointers to model artifacts rather than storing copies, enabling efficient versioning while preserving the ability to reproduce any historical model. A typical ML project generates hundreds of model versions during hyperparameter tuning—one version per training run as engineers explore learning rates, batch sizes, architectures, and regularization strategies. Without systematic versioning capturing training configuration, accuracy metrics, and training data version alongside model weights, reproducing results becomes impossible when yesterday’s model performed better than today’s but teams cannot identify which configuration produced it. This reproducibility challenge connects directly to the governance requirements addressed by section 1.7.4: regulatory compliance often requires demonstrating exactly which data and process produced specific model predictions.

Large-scale training generates substantial intermediate data requiring storage systems to handle concurrent read/write operations efficiently. When training jobs use multiple accelerators, each processing unit works on different portions of data, requiring storage systems to handle many simultaneous reads and writes. The specific patterns depend on the parallelization strategy employed, which Model Training examines in detail. From a storage perspective, systems must handle concurrent I/O at rates proportional to the number of processing units, with each potentially writing tens to hundreds of megabytes of intermediate results during model updates. For now, treat checkpoint files, optimizer-state snapshots, and explicit offload paths as large binary artifacts produced during training; Model Training derives why those artifacts arise. Storage systems must provide low-latency access to support efficient coordination. If workers spend more time waiting for storage than performing computations, parallel processing becomes counterproductive regardless of the specific training approach used.

The bandwidth hierarchy that drove the coordination tax in section 1.5.3 constrains ML system design at every level, creating bottlenecks that no amount of compute optimization can overcome. While RAM delivers 50 to 200 gigabytes per second bandwidth on modern servers, network storage systems typically provide only one to ten gigabytes per second, and even high-end NVMe SSDs max out at one to seven gigabytes per second sequential throughput. Modern GPUs can process data faster than storage can supply it, creating scenarios where expensive accelerators idle waiting for data. Consider training an image classification model: loading 1,000 images per second at 150 KB each requires 150 MB/s sustained throughput from storage. When the GPU can process images faster than storage delivers them, the data pipeline, not the model, becomes the bottleneck. A 10-fold mismatch between GPU processing speed and storage bandwidth means expensive accelerators sit idle 90 percent of the time waiting for data. No amount of GPU optimization can overcome this I/O constraint.

Understanding these quantitative relationships enables informed architectural decisions about storage system selection and data pipeline optimization, which become even more critical during distributed training as examined in Model Training. Training throughput is bounded by the minimum of compute capacity and data supply rate: when storage cannot keep the accelerator fed, the bottleneck shifts from silicon to I/O.

Designing for high-throughput training starts by matching storage throughput to accelerator demand. This is the chapter’s starvation argument rotated to its third and final lens: section 1.1.3 priced the idle accelerator as a feeding tax, section 1.4.5 traced the same stall to CPU decode workers, and here the question becomes which storage tier can sustain the required supply rate.

Napkin Math 1.7: Storage bandwidth budget

Problem: What storage configuration keeps a reference accelerator from being data-starved while training ResNet-50? Hardware Acceleration explains the device family later; here, the point is how a compute ceiling becomes a data-path budget.

Start with the compute ceiling. The reference accelerator can deliver 312 TFLOP/s on dense FP16 operations. ResNet-50 costs about four GFLOPs for each forward pass, and including the backward training pass raises the training-step cost to about 12.3 GFLOP per image. The training chapter derives that backward-pass machinery; here, the combined per-image cost is the input to the storage budget. Dividing accelerator peak by model cost gives an upper bound of 25,365 img/s.

That compute ceiling becomes a storage requirement once each image must arrive from disk or object storage. With 150 KB JPEG-compressed images, the data path must supply that many images per second times 150 KB per image, or approximately 3.8 GB/s.

The storage options now have a concrete target: saturating this accelerator requires 3.8 GB/s of sustained bandwidth.

S3 Standard delivers about 100 MB/s per thread, so the pipeline needs 38 concurrent worker threads before software overhead.
SATA SSDs deliver about 500 MB/s sequentially, making them a bottleneck for this accelerator.
NVMe SSDs deliver approximately 3 GB/s–7 GB/s, which is the right class of local storage for the target.

Systems insight: With SATA SSDs, maximum throughput is capped by 500 MB/s divided across 150 KB images, or approximately 3,333 img/s. The $15,000 GPU will run at 13 percent utilization because storage supplies only a small fraction of the accelerator’s image-processing ceiling. Storage physics dictates training speed.

The 500 MB/s figure represents effective SATA III sequential read throughput (the interface ceiling is 550 MB/s), and real-world random read performance with small files can be significantly lower. That caveat reinforces the general principle governing data pipelines: training throughput is bounded by the lower of compute capacity and the data supply rate. The bottleneck relation in equation 5 captures this limit, with the data supply rate defined in equation 6. The min-of-rates form is the $T_{\text{step}} = \max(T_{\text{compute}}, T_{\text{io}})$ inequality from section 1.4.5 in different notation: the stage with the larger time is the stage with the smaller rate, and either way it sets the pace. \[\text{Training Throughput} = \min(\text{Compute Capacity}, \text{Data Supply Rate}) \tag{5}\] \[\text{Data Supply Rate} = \text{Storage Bandwidth} \times (1 - \text{Overhead}) \tag{6}\]

When storage bandwidth becomes the limiting factor, teams must either improve storage performance through faster media, parallelization, or caching, or reduce the amount of data that must move. Large language model training may require processing hundreds of gigabytes of text per hour, while computer vision models processing high-resolution imagery can demand sustained data rates exceeding 50 gigabytes per second across distributed clusters. These requirements make data loading a systems-placement decision: framework data loaders parallelize I/O across worker processes, use prefetching and caching to hide latency, and can move expensive augmentation work closer to the accelerator rather than storing every augmented variant.

File format selection dramatically impacts the data term $\left(\frac{D_{\text{vol}}}{\text{BW}}\right)$ of the iron law. We can quantify this impact as format efficiency $(\eta_{\text{format}})$, which acts as a multiplier on effective bandwidth.

Napkin Math 1.8: Format efficiency

Storage formats determine how much “waste” data must move to retrieve the signal needed for training. Equation 7 quantifies this: the fraction of bytes that actually carry useful features scales the raw disk bandwidth into the throughput the training pipeline can exploit: \[ \text{Effective Bandwidth} = \text{Physical Bandwidth} \times \eta_{\text{format}} \tag{7}\]

Here, $\eta_{\text{format}}$ is a dimensionless useful-byte fraction between 0 and 1: 1 means every byte read contributes to the selected features, while lower values mean the format forces the pipeline to scan irrelevant bytes.

Scenario: Training a fraud model using 20 features from a 100-column table.

Row-oriented (CSV) storage must read all 100 columns to get the 20 needed, giving a useful-byte fraction of 0.2 and wasting 80 percent of disk bandwidth. Column-oriented (Parquet) storage reads only the needed columns, so $\eta_{\text{format}} \approx$ 1 ignoring metadata overhead, and the pipeline gets 5× higher effective throughput.

Systems insight: Switching from CSV to Parquet is not just a file change; it is mathematically equivalent to buying a 5× faster hard drive. The data foundations appendix quantifies serialization overhead and Row vs. columnar formats treats row vs. columnar storage layouts and the algebra of data operations (selection, projection, join) in depth.

Format choice is not a software preference. It is a direct consequence of the data gravity invariant: when data is too massive to move, the system must minimize bytes read per training step, and columnar formats achieve this by reading only the columns the model requires.

Columnar storage formats like Parquet or ORC realize this reduction, five to ten times for typical ML workloads, through two mechanisms: the column projection the format-efficiency calculation just quantified, and column-level compression exploiting value patterns within columns. Column compression proves particularly effective for categorical features with limited cardinality: a country code column with 200 unique values in 100 million records compresses 20 to 50 times through dictionary encoding, while run-length encoding compresses sorted columns by storing only value changes. The combination can achieve total I/O reduction of 20 to 100 times compared to uncompressed row formats, directly translating to faster training iterations and reduced infrastructure costs.

Compression algorithm selection involves trade-offs between compression ratio and decompression speed. While gzip achieves higher compression ratios of six to eight times, Snappy achieves only two to three times compression but decompresses at 500 MB/s, roughly 4.2× faster than gzip’s 120 MB/s. For ML training where throughput matters more than storage costs, Snappy’s speed advantage often outweighs gzip’s space savings. Training on a 100 GB dataset compressed with gzip requires 13.9 minutes of decompression time, while Snappy requires only 3.3 minutes. When training iterates over data for 50 epochs, this 10.6 minutes difference per epoch compounds to 9 hours total, potentially the difference between running experiments overnight vs. waiting multiple days for results. The choice cascades through the system: faster decompression enables higher input throughput, reduced buffering requirements (less decompressed data needs staging), and better GPU utilization (less time idle waiting for data).

Storage performance optimization extends beyond format and compression to data layout strategies. Data partitioning based on frequently used query parameters dramatically improves retrieval efficiency. A recommendation system processing user interactions might partition data by date and user demographic attributes, enabling training on recent data subsets or specific user segments without scanning the entire dataset. Partitioning strategies interact with distributed training patterns: range partitioning by user ID enables data parallel training where each worker processes a consistent user subset, while random partitioning ensures workers see diverse data distributions. The partitioning granularity matters: too few partitions limit parallelism, while too many partitions increase metadata overhead and reduce efficiency of sequential reads within partitions. Poor partitioning compounds these problems in multi-accelerator training: when a distributed data-parallel job assigns shards to workers, imbalanced partition sizes cause straggler effects where the slowest reader holds up the entire gradient synchronization step. If all workers in an eight-accelerator job finish loading their batch in 12 ms but one slow worker reads from an oversized partition and takes 180 ms, that straggler determines the effective batch time. Well-partitioned datasets where each shard fits a worker’s local read budget and can be fetched without contending on a shared file handle are therefore a prerequisite for keeping distributed accelerator utilization high, a concern examined further in Model Training.

Storage across the ML lifecycle

Storage requirements evolve because each lifecycle stage asks the same data to serve a different access pattern. The same dataset is accessed through random sampling during exploratory analysis, sequential scanning during model training, and random access during production serving. These diverse patterns require storage architectures that accommodate all three access modes.

During development, flexibility matters more than raw performance. The key challenge is managing dataset versions without overwhelming storage capacity: ten experiments on a 100 GB dataset would naively require 1 TB of copies. The metadata-pointer mechanism introduced for model checkpoints in section 1.7.2 applies unchanged: tools like DVC track versions through pointers and content-addressed artifact storage, deduplicating identical content when possible. Governance considerations demand tiered access controls where synthetic or anonymized datasets are broadly available for experimentation, while production data containing sensitive information requires approval and audit trails.

Training phase requirements shift dramatically toward throughput. Modern deep learning processes massive datasets repeatedly across dozens or hundreds of epochs, making I/O efficiency critical. Training ResNet-50 on ImageNet across eight GPUs at 40,000 img/s would require roughly 6 GB/s for 150 KB compressed images, and substantially more if decoded FP32 tensors are staged. Storage unable to sustain this throughput idles GPUs, directly increasing infrastructure costs. The feature computation placement trade-off (section 1.4.5.3) is especially acute here: precomputing features achieves 30× storage reduction (150 KB to 5 KB vectors) but introduces staleness risk when extraction logic changes.

Deployment and serving requirements prioritize low-latency random access. A recommendation system serving 10,000 req/s with 10 ms latency budgets and 10 feature reads/request requires 100,000 IOPS, achievable only through in-memory databases like Redis or aggressive caching. Edge deployment adds further constraints: limited device storage, intermittent connectivity, and the need for model updates without disrupting inference, typically addressed through tiered storage where models cache locally while reference data pulls from the cloud. Model versioning must support smooth transitions between versions, rapid rollback, and serving multiple versions simultaneously for A/B testing, operational patterns examined in ML Operations. Those serving and rollback guarantees depend on provenance: the system must know the exact dataset version behind each model version.

Data versioning for ML reproducibility

A recommendation model’s click-through rate dropped 3 percent after a routine weekly retraining, even though the code had not changed. The team had to distinguish among a data change, a labeling shift, and a corrupted upstream table. Without a record linking the model to the exact dataset that produced it, the team spent two weeks bisecting possibilities. With data versioning, they would have diffed the training snapshots in minutes and identified the root cause: an upstream provider had silently backfilled six months of historical records, shifting the label distribution. Listing 3 shows the mechanism: Git records the small pointer file, DVC moves the large data bytes to remote storage, and a later checkout restores the exact training snapshot paired with the code commit (Iterative 2024).

Listing 3: DVC Workflow: Git-like semantics for data versioning. DVC tracks large data files alongside code commits, enabling exact reproduction of any historical training dataset through paired git checkout and dvc checkout commands.

# Add data to version control
dvc add data/training.csv
git add data/training.csv.dvc
git commit -m "Add training data v1"
dvc push  # Upload to remote storage

# Later: retrieve exact data for any historical commit
git checkout abc123
dvc checkout  # Restores exact data from that commit

Data versioning is the storage analogue of source-control provenance. It connects model versions to exact training data, enabling debugging and reproducibility. Without it, teams cannot identify the exact data that trained the model now misbehaving in production.

DVC (Data Version Control) provides Git-like semantics for file snapshots (Iterative 2024), while listing 4 demonstrates Delta Lake’s transaction-log-based historical queries (Armbrust et al. 2020).

Iterative. 2024. Data Version Control (DVC).

Listing 4: Delta Lake Time Travel: Querying historical data states directly in SQL. Delta Lake maintains a transaction log enabling point-in-time queries by date or version number, eliminating the need for separate snapshot management.

-- Query data as it existed on a specific date
SELECT * FROM training_data TIMESTAMP AS OF '2024-01-15'

-- Or by version number for programmatic access
SELECT * FROM training_data VERSION AS OF 47

Two complementary capabilities complete the versioning infrastructure. Feature store point-in-time retrieval maintains historical feature values, enabling training with features “as they existed” at prediction time and preventing label leakage, the accidental use of information that would not be available when the prediction is made. Model registry integration links each model registry entry, a catalog record for a model artifact and its metadata, to its complete provenance: Git commit hash (code), data version (DVC commit or Delta version), feature store snapshot timestamp, and training configuration file. This complete lineage enables rapid debugging when production issues arise: applied to the click-through-rate drop that opened this section, the two-week bisection collapses into a snapshot diff that surfaces the silent backfill within hours.

Long-term maintenance introduces a final storage consideration: retaining enough data to debug issues and satisfy compliance requirements. A recommendation system serving ten million users generates terabytes of interaction logs daily, necessitating tiered retention: hot storage retains the past week for rapid analysis, warm storage keeps the past quarter for periodic review, and cold archive storage retains years of data for compliance and rare deep investigations. Regulated industries often require immutable storage demonstrating complete data provenance (which training data and model version produced each prediction), potentially for years or decades.

The storage architectures we have examined address where data resides and how it is retrieved, but a critical challenge remains: ensuring that features computed during training match exactly those computed during serving. This consistency requirement, which we emphasized throughout the processing section, demands specialized infrastructure that bridges the gap between batch training environments and real-time serving systems. Feature stores have emerged as the architectural solution to this challenge.

Feature stores

The storage problem returns finally to consistency: the system must serve historical feature values for training and current feature values for inference without changing feature semantics. This point-in-time correctness requirement is why feature stores have emerged as critical infrastructure components addressing this challenge while enabling feature reuse across models and teams. Traditional ML architectures often compute features differently offline during training vs. online during serving, creating training-serving skew that silently degrades model performance.

The core problem feature stores address becomes clear when examining typical ML development workflows. During model development, data scientists write feature engineering logic in notebooks or scripts, often using different libraries and languages than production serving systems. Training might compute a user’s “total purchases last 30 days” using SQL aggregating historical data, while serving computes the same feature using a microservice that incrementally updates cached values. These implementations should produce identical results, but subtle differences in handling timezone conversions, dealing with missing data, or rounding numerical values cause training and serving features to diverge. Uber’s Michelangelo platform description treats training-serving skew and reusable feature pipelines as central production concerns, motivating an integrated platform approach to feature management (Hermann and Del Balso 2017a, 2017b).

Hermann, Jeremy, and Mike Del Balso. 2017a. Meet Michelangelo: Uber’s Machine Learning Platform. Uber Engineering Blog.

Hermann, Jeremy, and Mike Del Balso. 2017b. “Michelangelo: Uber’s Machine Learning Platform.” Data Engineering Bulletin 40: 8–21.

Definition 1.4: Feature store

Feature Store is the architectural layer that centralizes the management of machine learning features, decoupling feature computation from consumption.

Significance: It enforces point-in-time correctness, ensuring that historical data used for training $(x_{t-\Delta})$ is computed with identical logic to the real-time data served at inference $(x_t)$, eliminating training-serving skew by design.
Distinction: Unlike a general-purpose database, a feature store is designed for dual storage modes: an offline store (columnar/batch) for training and an online store (key-value/low-latency) for serving.
Common pitfall: A frequent misconception is that a feature store is just “a place to store data.” In reality, it is a transformation engine: it stores the logic to compute features consistently across the entire ML lifecycle.

Feature stores (discussed architecturally in Feature stores) provide a single source of truth for feature definitions, ensuring consistency across all stages of the ML lifecycle. When data scientists define a feature like “user_purchase_count_30d”, the feature store maintains both the definition (SQL query, transformation logic, or computation graph) and executes it consistently whether providing historical feature values for training or real-time values for serving. This architectural pattern eliminates an entire class of subtle bugs that prove notoriously difficult to debug because models train successfully but perform poorly in production without obvious errors. The same centralized approach enables feature reuse across models and teams: when multiple teams build models requiring similar features, the feature store prevents each team from reimplementing identical computations with subtle variations. A recommendation system might compute user embedding vectors across hundreds of dimensions, aggregating months of interaction history. Rather than each model team recomputing these expensive embeddings, the feature store computes them once and serves them to all consumers.

The architectural pattern typically implements dual storage modes optimized for different access patterns. The offline store uses columnar formats like Parquet on object storage, optimized for batch access during training where sequential scanning of millions of examples is common. The online store uses key-value systems like Redis, optimized for random access during serving where individual feature vectors must be retrieved in milliseconds. Synchronization between stores becomes critical. As training generates new models using current feature values, those models deploy to production expecting the online store to serve consistent features. Feature stores typically implement scheduled batch updates propagating new feature values from offline to online stores, with update frequencies depending on feature freshness requirements.

Time-travel capabilities distinguish sophisticated feature stores from simple caching layers. Training requires accessing feature values as they existed at specific points in time, not just current values. Consider training a churn prediction model: for users who churned on January 15th, the model should use features computed on January 14th, not current features reflecting their churned status. Point-in-time correctness ensures training data matches production conditions where predictions use currently-available features to forecast future outcomes. Implementing time-travel requires storing feature history, not just current values, substantially increasing storage requirements but enabling correct training on historical data.

Feature store performance characteristics directly impact both training throughput and serving latency. The offline store must support high-throughput batch reads (millions of feature vectors per minute) using columnar formats that enable efficient reads of specific features from wide tables. The online store must support thousands to millions of reads per second with single-digit millisecond latency. In production, feature freshness adds further pressure: when users add items to shopping carts, recommendation systems need updated features within seconds, not hours. Streaming feature computation pipelines address this by updating online stores continuously rather than through periodic batch jobs, though streaming introduces complexity around exactly-once processing semantics—ensuring each event updates state once despite retries—and handling late-arriving events.

A fully assembled pipeline covering acquisition, ingestion, processing, labeling, and storage might suggest that data engineering work is “done.” Production systems, however, do not stand still. User behavior drifts, upstream schemas evolve, labeling guidelines change, and the careful engineering described earlier gradually erodes unless actively maintained.

Self-Check: Question

Which storage system best matches a workload that serves individual feature vectors for real-time inference under a 10 ms p99 latency budget at 10,000 requests per second?
1. A data lake, because schema-on-read flexibility is the main requirement for low-latency serving.
2. A data warehouse, because large columnar scans are ideal for per-request feature retrieval.
3. An in-memory database like Redis with 1-10 microsecond random-read latency, matched to the SLO’s random-access-at-scale pattern.
4. Archival storage like Glacier, because cached features can always be restored after a slow retrieval.
A team switches a fraud-model training dataset from CSV to Parquet. The model uses 20 of the 100 columns in the table. According to the chapter, why does this feel like buying a faster disk?
1. Because Parquet increases physical disk RPM and raises sequential bandwidth.
2. Because columnar storage reads only the 20 needed columns, yielding roughly 5$\times$ higher effective throughput on the same physical disk by eliminating the 80 percent of bytes the model never used.
3. Because Parquet automatically caches the entire dataset in GPU memory during training.
4. Because CSV files cannot be compressed, while Parquet files are always uncompressed for fast reads.
Explain why running experiments against local NVMe can dramatically accelerate iteration compared to reading the same dataset directly from cloud object storage like S3.
Order these storage modes across a typical ML lifecycle, from earliest experimental flexibility to latest production serving specialization: (1) raw data retained in a flexible lake-style store, (2) curated or transformed data used for training and analysis, (3) online feature values served with millisecond latency.
What problem is a feature store primarily designed to solve in production ML systems?
1. Reducing model size through automatic compression of embeddings and checkpoints.
2. Eliminating the need for offline training data by serving only live features.
3. Ensuring identical feature definitions and point-in-time-correct values across offline training and online serving, preventing training-serving skew.
4. Replacing data versioning by storing only the latest feature values and deleting historical ones.
A deployed recommendation model regresses 3 percent after routine retraining, but the code commit is unchanged. Explain why data versioning is essential for rapid debugging of this failure.

See Answers →

Operational Data Health

Imagine a KWS system that launched with 98 percent accuracy and excellent training-serving consistency. Six months later, accuracy has slipped to 94 percent, not because anyone changed the model, but because new smartphone microphone hardware shifted the audio distribution, labeling guidelines were updated without retraining, and a schema change in the user metadata pipeline went undocumented. Each is a form of data debt: accumulated compromises in data quality, documentation, and infrastructure that compound silently. Unlike code debt, which manifests as slower development velocity, data debt directly degrades model performance and can remain invisible until failures become catastrophic. Managing that debt requires classifying it, measuring its accumulation, and debugging the pipeline when the debt comes due.

Categories of data debt

The preceding KWS scenario illustrates each of the four categories of data debt. The microphone hardware shift is freshness debt; the updated labeling guidelines are quality debt; the undocumented schema change is both schema debt and documentation debt. Each category requires different detection and remediation strategies, but all share a common structure.

Definition 1.5: Data debt

Data Debt is the compound interest of implicit coupling and missing documentation across an ML data stack.

Significance: It manifests as silent degradation, where the cost of maintenance scales superlinearly with system age due to unmanaged dependencies and distribution shifts $(\mathcal{D}(P_t \lVert P_0))$.
Distinction: Unlike technical debt in code, which manifests as slower development, data debt manifests as lower accuracy even when the code is perfectly maintained.
Common pitfall: A frequent misconception is that data debt is just “bad data.” In reality, it is a systems architecture failure: it occurs when the assumptions of the training distribution are no longer enforced at the system boundary.

The first category is documentation debt: data provenance, meaning, and quality characteristics go unrecorded. Datasets without datasheets or data cards (Gebru et al. 2021; Pushkarna et al. 2022), unlabeled columns, and undocumented transformations create debt that compounds when original authors leave organizations. Sambasivan et al. (2021) describe missing metadata, undocumented assumptions, and poor cross-organizational documentation as contributors to data cascades in high-stakes AI systems. The symptoms are unmistakable: columns whose meanings must be reverse-engineered from usage patterns, missing provenance records that block compliance audits, undocumented assumptions that cause silent failures when those assumptions change, and absent quality metrics that prevent informed dataset selection.

Gebru, Timnit, Jamie Morgenstern, Briana Vecchione, Jennifer Wortman Vaughan, Hanna Wallach, Hal Daumé III, and Kate Crawford. 2021. “Datasheets for Datasets.” Communications of the ACM 64 (12): 86–92. https://doi.org/10.1145/3458723.

Pushkarna, Mahima, Andrew Zaldivar, and Oddur Kjartansson. 2022. “Data Cards: Purposeful and Transparent Dataset Documentation for Responsible AI.” Proceedings of the 2022 ACM Conference on Fairness, Accountability, and Transparency (FAccT), 1776–826. https://doi.org/10.1145/3531146.3533231.

The second category, schema debt, emerges from accumulated schema workarounds and migrations. When upstream systems change data formats, quick fixes such as string parsing instead of proper type handling or NULL coercion instead of error handling accumulate into fragile transformation logic. Teams can diagnose schema debt by looking for telltale patterns: multiple date format handlers for the same logical field, defensive null checks scattered throughout pipeline code, version-specific parsing branches that grow with each upstream change, and undocumented enum value mappings that break when new values appear. In ML training, the crash site is inside the model graph: model input layers have fixed, compiled dimensions, so a schema change that adds a new categorical column or introduces a previously unseen embedding ID crashes the forward pass because the input tensor dimension no longer matches the first layer’s weight matrix. The pipeline jungle example in section 1.2.2 illustrates the upstream failure mode; the point is that the failure looks like a model bug until the data contract violation is traced back.

The third category, quality debt, consists of known data errors that remain uncorrected due to time or resource constraints. A dataset with 3 percent known label errors represents quality debt: each training run on this data produces models carrying those errors. Quality debt compounds through a particularly dangerous feedback loop, because models trained on erroneous data make predictions that become training data for downstream systems, amplifying the original errors across the ecosystem. Concrete indicators include known label error rates not yet corrected, documented biases not yet mitigated, identified duplicates not yet deduplicated, and detected drift not yet addressed through retraining.

The fourth category, freshness debt, arises when training data diverges from production distributions over time. A model trained on 2023 user behavior deployed in 2025 carries freshness debt: the distribution shift between training and serving degrades performance continuously. Freshness debt is particularly dangerous because it accumulates silently. Unlike code that breaks visibly, stale models degrade gradually until performance drops below acceptable thresholds. Warning signs include time since last retraining exceeding the distribution shift rate, feature staleness from cached features not updated at the required frequency, and reference data lag where lookup tables no longer reflect current state. Classifying debt is useful only when each category has measurable warning thresholds.

Measuring and projecting data debt

Unlike technical debt, which can be assessed through code complexity metrics, data debt requires specialized measurement approaches. Table 10 gives example warning and critical thresholds for each debt category, making data debt trackable as an engineering SLO rather than presenting universal standards.

Table 10: Data Debt Metrics: Illustrative thresholds for detecting data debt accumulation across four categories. Warning thresholds indicate debt requiring attention in upcoming planning cycles; critical thresholds indicate debt requiring immediate remediation to prevent system degradation. The PSI row uses common operational drift-monitoring bands, while the remaining rows should be calibrated to the risk tolerance and failure cost of the specific ML system.

Debt Category	Metric	Warning Threshold	Critical Threshold
Documentation	% datasets with data cards	< 80%	< 50%
Documentation	% columns with descriptions	< 90%	< 70%
Schema	Schema version branches	> 3	> 10
Schema	% transformations with try/catch	> 20%	> 50%
Quality	Known label error rate	> 1%	> 5%
Quality	Documented bias metrics	Not measured	Measured but not mitigated
Freshness	Days since last retraining	> 90 days	> 365 days
Freshness	PSI vs. training baseline	> 0.1	> 0.25

Data debt compounds through several feedback loops unique to ML systems. Training amplification turns one error into many: models trained on erroneous data learn incorrect patterns, and when those models generate predictions used as features or pseudo-labels, the errors propagate to downstream systems. Documentation decay accelerates as original authors leave and systems evolve, leaving datasets increasingly opaque, so that each year without documentation makes future documentation exponentially harder. Schema entropy accumulates because quick fixes to handle schema changes create brittle code, and each additional workaround raises the probability that the next schema change causes a failure. Distribution drift widens the gap between training and serving distributions whenever continuous monitoring and retraining lapse, causing accuracy degradation that accelerates as models become less calibrated. Each loop feeds the next, which is why the compound nature means that data debt left unaddressed for $n$ periods grows superlinearly. Let $\text{Debt}_0$ be the initial debt level, $r$ the accumulation rate per period, and $n$ the number of periods. The growth follows equation 8: \[\text{Debt}_n \approx \text{Debt}_0 \times (1 + r)^n \tag{8}\] where $r$ is the debt accumulation rate (typically 10–30 percent per period for undocumented systems).

Data debt diverges as accumulation rate rises.

Remediation strategies

Measured accumulation rates turn data debt from a vague hygiene problem into an engineering budget: remediation can be scheduled before compounding pushes the system into crisis repair. Addressing data debt therefore requires systematic investment, not heroic one-time efforts. Each debt category calls for a distinct remediation approach, but all share a common pattern: regular, budgeted effort rather than crisis-driven scrambles.

Documentation debt responds best to dedicated sprints—one week per quarter reserved exclusively for documenting data provenance, column semantics, and transformation logic. Prioritizing by dataset usage (document the 20 percent of datasets serving 80 percent of models first) ensures maximum impact from limited documentation effort.

Schema debt requires preventive infrastructure rather than reactive fixes. Explicit schema contracts between data producers and consumers, codified through tools like Great Expectations or Pandera, fail fast when schemas drift rather than allowing workarounds to accumulate. The investment in contract enforcement pays dividends by preventing the brittle parsing logic that characterizes mature systems with unmanaged schema evolution.

Quality debt demands allocated capacity—typically 10 percent of data engineering effort dedicated to remediating known label errors, documented biases, and identified duplicates. The known error backlog should be tracked and its burn-down rate measured like any engineering metric, making quality remediation visible alongside feature development rather than perpetually deferred.

Freshness debt cannot be addressed through periodic heroics; it requires automated retraining triggers based on drift detection rather than calendar schedules, connecting directly to the PSI and KL divergence monitoring infrastructure established in section 1.4.3. The remediation budget must therefore include monitoring coverage and retraining capacity, not only cleanup work after accuracy has already decayed.

The key insight is that data debt, like technical debt, is not inherently bad. Strategic debt (knowingly accepting documentation shortcuts to meet a deadline) can be rational. The danger lies in unconscious debt that accumulates untracked until remediation costs exceed system value. Managing this trade-off requires treating data debt not as a moral failing, but as a systems parameter to be optimized alongside latency and throughput.

Debugging data pipelines

When data debt comes due, it surfaces as model accuracy degradation, pipeline failures, or subgroup performance disparities. Effective debugging applies the diagnostic principles established throughout this chapter: data cascades (section 1.2.1) remind us that root causes lie upstream of symptoms, training-serving skew (section 1.5.1) explains many deployment failures, and drift detection (section 1.4.3) surfaces gradual degradation. Figure 15 synthesizes these concepts into an actionable diagnostic sequence.

Figure 15: **Data Pipeline Debugging Flowchart**: Four sequential decision nodes guide root cause diagnosis: (1) accuracy degrades over time leads to data drift, (2) training accuracy exceeds validation leads to overfitting, (3) validation exceeds production accuracy leads to training-serving skew, and (4) subgroup inconsistency leads to bias. If all answers are no, the issue points to model architecture.

Most production ML failures trace to data and operational context, not just model architecture.³⁵ Industry experience suggests a consistent pattern: training-serving skew, data drift, and label quality issues often dominate the failure investigation, while architecture changes are rarely the first thing to verify. Debugging the model before verifying data consistency wastes engineering cycles on the wrong part of the problem space.

³⁵ ML Failure Distribution: Treat the data-dominance pattern as a diagnostic heuristic rather than a universal empirical distribution. The structural explanation is durable: model architecture is tested before deployment, but data distributions shift continuously after deployment. This asymmetry means model bugs are more likely to be caught by validation, while data bugs may be caught by users – making data infrastructure a primary reliability investment, not a secondary concern.

Self-Check: Question

A production model degrades because upstream data semantics changed, but the changes were never recorded and the original data owners have left the team. Which category of data debt is most directly responsible for the team’s inability to diagnose the problem?
1. Documentation debt, because missing provenance and semantics make the system increasingly opaque and hard to maintain.
2. Freshness debt, because any production degradation is primarily caused by old training data.
3. Quality debt, because all undocumented problems are actually label-error problems in disguise.
4. Schema debt, because every undocumented field-meaning change is only a type-system issue.
A production ML platform’s data debt grows from $\text{Debt}_0$ at a rate $r$ per quarter under the chapter’s compounding model $\text{Debt}_n = \text{Debt}_0 \times (1+r)^n$. Why does the chapter describe this as compounding rather than linear accumulation?
1. Because storage costs in ML systems double every year regardless of engineering practice.
2. Because untracked assumptions, stale data, and workaround-heavy schemas interact, so each additional period makes the next period’s maintenance and debugging harder AND accelerates accuracy degradation.
3. Because retraining always multiplies label noise by the number of epochs.
4. Because model size growth is the only driver of long-term operational complexity.
A team detects that PSI for a critical feature against the training baseline has climbed from 0.08 six months ago to 0.28 now, while inter-annotator agreement and schema contracts remain stable. Which remediation most directly addresses the specific debt this signal reveals?
1. Launch a documentation sprint to clarify column provenance across the feature’s lineage.
2. Trigger retraining against a fresh data snapshot, because the PSI trajectory points to training-to-serving distribution divergence - freshness debt - rather than to quality, schema, or documentation issues.
3. Tighten schema contracts between producers and consumers to prevent silent type coercion.
4. Expand the label-quality audit to include Cohen’s kappa on the new annotation batches.
A model’s accuracy degrades gradually over several months, but training and validation accuracy remain close on the original test set and no schema break is visible. Use the chapter’s debugging flow to explain the most likely first investigation.
Which remediation strategy best targets schema debt before it multiplies into brittle pipeline logic?
1. Periodic heroic cleanups after major incidents, since schema work is too dynamic for preventive controls.
2. Explicit schema contracts and fast-fail validation between producers and consumers, codified through tools like Great Expectations or Pandera.
3. More frequent model retraining, because schema debt usually dissolves when models see newer data.
4. Moving all raw data to cheaper archival storage so schema migrations become less expensive.

See Answers →

Fallacies and Pitfalls

From acquisition through storage, every pipeline stage we have examined introduces opportunities for both excellence and failure. The following fallacies and pitfalls distill the most consequential misconceptions that lead teams astray.

Fallacy: More data always improves model performance.

Beyond a threshold, additional data yields diminishing returns. Empirical studies across image classification, translation, and language modeling confirm that test loss often follows a power law in dataset size, so each additional tranche of data produces progressively smaller gains (Hestness et al. 2017). The Information Entropy concept from section 1.1 explains why: if new examples are redundant (low entropy), they add mass without information. Smart data selection, including active learning, deduplication, and curriculum design, often outperforms naive data accumulation.

Hestness, Joel, Sharan Narang, Newsha Ardalani, Gregory Diamos, Heewoo Jun, Hassan Kianinejad, Md. Mostofa Ali Patwary, Yang Yang, and Yanqi Zhou. 2017. “Deep Learning Scaling Is Predictable, Empirically.” arXiv Preprint arXiv:1712.00409.

Pitfall: Planning petabyte migration as a bandwidth-only transfer.

Engineers price a migration by dividing dataset size by network bandwidth and conclude that a few weeks of dedicated transfer will finish the job. The bandwidth calculation is the cheap part. Data gravity (section 1.1) also pulls in pipeline re-engineering, re-validation of data quality, schema migration, and synchronization of dependent services that already consume the dataset where it currently lives. Organizations that plan only for bandwidth discover that the true cost is measured in engineering months, not network hours: a 1 PB migration that copies in three weeks of wire time can take six to nine months of human time once retraining of validation pipelines, lineage tracking, and downstream feature-store updates are included. The lakehouse and data-mesh architectures cited in section 1.1 exist precisely because the engineering cost of moving petabyte datasets exceeds the wire cost by an order of magnitude.

Fallacy: Data preprocessing can be finished once and left alone.

Data distributions drift continuously as user behavior, market conditions, and upstream systems evolve. A preprocessing pipeline validated at launch degrades silently as the world changes around it. Production systems require continuous monitoring (PSI, KL divergence) and automated retraining triggers, not periodic manual audits.

Pitfall: Ignoring data serialization cost.

Teams meticulously optimize accelerator kernels while leaving data loading as JSON or CSV. Text-based formats can be at least 10$\times$ slower to decode than columnar binary formats (Parquet, Arrow), and the CPU, not the accelerator, becomes the bottleneck. The consequence is the worst-case profile of the data-throughput hierarchy: a data-center accelerator that should be running dense low-precision kernels instead idles at single-digit utilization waiting for the next batch. The fix is structural, not algorithmic: convert the training corpus to Parquet once, version it, and let every downstream job read the columnar form. A one-time conversion pays back within hours of training time.

Fallacy: High training accuracy indicates production readiness.

Training accuracy measures fit to historical data; production performance measures generalization to future data under real-world conditions. Training-serving skew, distribution drift, and coverage gaps cause models with 99 percent validation accuracy to fail catastrophically in deployment. The debugging flowchart in figure 15 exists precisely because this fallacy wastes engineering cycles.

Pitfall: Ignoring training-serving skew until deployment.

Feature computation differences between training and serving environments are the leading cause of ML deployment failures. By the time skew manifests in production metrics, debugging becomes archaeological work. Feature stores and consistency contracts should be architectural requirements from project inception, not retrofits after deployment incidents.

Fallacy: Synthetic data can fully replace real-world data collection.

Synthetic data excels at augmenting real data (generating rare edge cases, increasing diversity, reducing costs) but cannot replace it entirely. Synthetic generation inherits the biases and limitations of its generative models. A KWS system trained purely on synthesized speech will fail on accent patterns, background noises, and pronunciation variations that the generator never modeled. The optimal strategy combines real data for coverage with synthetic data for scale.

Pitfall: Neglecting data versioning until model debugging requires it.

Teams treat data versioning as optional infrastructure to add “when needed,” then discover the need only after a deployed model produces unexpected results. Without versioning, reproducing a training run requires re-executing the entire data pipeline from scratch, a process that can consume days of compute and weeks of engineering time. Consider a model that performed well three months ago but degrades after retraining on updated data. Without versioned snapshots, the team cannot determine whether the regression stems from a labeling policy change, a schema migration error, or genuine distribution shift. The data lineage principles established in section 1.5.4 formalize this requirement: every training artifact must trace back to a specific, immutable dataset version. Organizations that defer versioning report 2–4$\times$ longer debugging cycles when production issues arise, because each investigation begins by identifying the exact data that trained the model, and without versioning no system can supply that answer.

Self-Check: Question

True or False: A 10$\times$ increase in training-dataset volume is almost always the highest-leverage investment for an ML team, so teams should prioritize volume over selection quality, deduplication, or coverage analysis.
A model posts excellent validation accuracy before launch, but the team has not verified production feature computation, current data distributions, or subgroup coverage. What is the chapter’s warning?
1. The model is probably production-ready because strong validation metrics usually subsume data-pipeline concerns.
2. Offline accuracy remains useful but is an incomplete readiness signal: production can still fail through training-serving skew, distribution drift, or underrepresented-slice failures that validation on historical data does not surface.
3. Validation accuracy becomes irrelevant once the model has been compressed for deployment.
4. This concern applies only to streaming systems; batch systems are protected by offline validation alone.
Explain why postponing data versioning until after the first serious model incident is a costly mistake.

See Answers →

Summary

Data engineering provides the foundational infrastructure that transforms raw information into the basis of machine learning systems, determining model performance, system reliability, ethical compliance, and long-term maintainability. The four pillars framework of Quality, Reliability, Scalability, and Governance organizes design choices across acquisition, ingestion, validation, and storage, while the cascading nature of data quality failures reveals why every pipeline stage requires careful engineering decisions. The task of “getting data ready” encompasses complex trade-offs quantified throughout this chapter: data engineering cost constants for budgeting, storage performance hierarchies, and drift detection thresholds that operationalize the degradation equation into production monitoring infrastructure.

Our KWS case study demonstrates these principles in action: multi-source acquisition combining curated datasets with crowdsourcing and synthetic generation; pipeline architecture with consistency validation; tiered storage handling 23.4 million audio samples across 736 GB of raw data; and lineage tracking essential for always-listening devices in users’ homes. Data engineering is not a preprocessing step to be completed before “real” ML work begins; it is the foundation upon which model performance, user trust, and regulatory compliance rest.

Key Takeaways: Data is the source code

Data cascades make upstream quality the highest-leverage investment: Errors introduced at collection amplify through every pipeline stage (figure 1). The four pillars framework (Quality, Reliability, Scalability, Governance) provides the diagnostic structure for preventing these failures before they compound, while documentation, schema, quality, and freshness debt require continuous remediation.
Data is code: version it, test it, review it: The data as code invariant established in Part I defines the engineering mindset: the dataset is the source code of an ML system. Apply the same rigor: version control, unit tests (validation), and code review (data review).
Training-serving consistency is nonnegotiable: Any transformation applied during training must be applied identically during serving. This is a mathematical requirement, not a best practice.
Pipeline architecture choices have large cost implications: Real-time streaming increases operational cost and complexity relative to batch, while ETL reduces storage footprint at the expense of higher engineering overhead during schema changes. Select ingestion patterns based on the value of latency, not the appeal of real-time.
Labeling costs dominate and require substantial resource allocation: Labeling can cost hundreds to more than a thousand times one optimized training run; in the reference calculation above, the ratio is 521×–1,562×. Labeling is the serial bottleneck that parallelization cannot solve.
Storage hierarchy determines iteration speed: The 50× throughput gap between local NVMe (5 GB/s) and cloud object storage (100 MB/s) determines whether iterations occur daily or weekly.
The degradation equation becomes actionable through drift detection: The divergence term $\mathcal{D}(P_t \lVert P_0)$ from the Introduction is exactly what statistical drift measures and KL divergence quantify. Data engineering operationalizes this theoretical equation into monitoring infrastructure that catches silent model degradation before users are affected.

Underneath the four pillars and the cascade diagrams sits a claim that outlasts any particular pipeline: the dataset sets a ceiling on system quality that nothing downstream can raise. Every later stage inherits whatever the dataset already contains, which is why a labeling error is not a blemish to be cleaned up later but a defect compiled into the model itself. A model’s architecture and its hardware can approach that ceiling efficiently or wastefully, yet neither can lift it; in the D·A·M taxonomy, the data axis holds the binding constraint while the algorithm and machine axes spend their effort trying to reach the height it sets. That coupling is the system this book keeps returning to, where data, algorithms, and hardware are optimized as one problem and never in isolation.

What’s Next: From source code to executable

The dataset compiler has produced its output: a clean, versioned, optimized training set ready for consumption. We have lexed raw streams into records, parsed and validated schemas, applied optimization passes that preserve signal while removing noise, and linked labeled annotations to produce a complete compilation unit. A compiled dataset, however, teaches nothing on its own: something must consume those examples and convert them into learned behavior. Neural Computation opens that black box to explore the algorithm axis, establishing the mathematical operations through which models learn from the data prepared here and turning neural networks from opaque components into engineerable systems whose behavior we can predict, debug, and optimize.

Self-Check: Question

Which statement best captures the chapter’s central engineering thesis about data engineering’s role in ML systems?
1. Data engineering is a preprocessing convenience layer that prepares data once before modeling begins.
2. Data engineering is the lifecycle infrastructure that determines whether models receive correct, timely, consistent, and governed data across acquisition, validation, processing, labeling, and storage - the ongoing substrate that makes production ML viable.
3. Data engineering matters mainly for large language models; smaller ML systems can rely on ad-hoc scripts.
4. Data engineering is less important than model-architecture selection because quality is mostly algorithm-driven.
Explain how the chapter operationalizes the divergence term $\mathcal{D}(P_t \lVert P_0)$ of the degradation equation into concrete engineering practice.

See Answers →

Self-Check Answers

Self-Check: Answer

A team has a 1 PB dataset in one region and a TPU pod in another. Training would take less than a day, but transferring the dataset over a 100 Gbps link takes roughly that same day of wall time and incurs tens of thousands of dollars in egress fees. Applying the section’s data-gravity reasoning, which architectural choice is warranted?
1. Move the data to the TPU region because training hardware is always the scarcest resource.
2. Split the dataset evenly across both regions so the transfer cost is halved and training can begin immediately on both halves.
3. Move the compute to the data because, at petabyte scale, the transfer-time and egress-cost terms both become comparable to or larger than the compute cost.
4. Compress the data once and continue using a remote training cluster, because compression eliminates data gravity as a systems concern.
Answer: The correct answer is C. The section’s rule of thumb is that code moves to data at petabyte scale because the $D_{\text{vol}}/\text{BW}$ term dominates when volume is measured in petabytes and bandwidth in GB/s. The ‘split and halve’ answer confuses total transfer cost with the critical path: each half still requires a full transfer, and coordinating two partial runs introduces additional synchronization cost. The ‘compress it’ answer assumes a constant-factor reduction cancels an order-of-magnitude gap between compute time and transfer time.

Learning Objective: Apply the data-gravity argument ($D_{\text{vol}}/\text{BW}$ and egress cost) to place compute at the data rather than moving petabyte-scale datasets.
Two datasets compete for a fixed storage and bandwidth budget: Dataset A is 1 TB of near-duplicate images with the same lighting and pose; Dataset B is 10 GB of curated edge cases covering accents, lighting, and demographic diversity the model currently misses. Under the section’s data-selection-gain argument, which dataset offers higher systems leverage, and why?
1. Dataset A, because larger raw byte count always produces more robust models under modern scaling laws.
2. Dataset B, because data-selection gain rises with the ratio of information entropy to data gravity, and Dataset B carries far more signal per byte moved.
3. Dataset A, because storing the data on faster disks compensates for its redundancy.
4. Dataset B, but only if it is stored in a columnar format, because format choice is what determines selection gain.
Answer: The correct answer is B. Data-selection gain is information entropy divided by data gravity, so a dataset with 100$\times$ less mass but much higher signal density wins decisively on the ratio, and the savings appear in transfer time, storage cost, and feeding overhead simultaneously. The raw-byte-count answer treats scaling laws as monotonic in volume and ignores the diminishing-returns regime the chapter discusses elsewhere; the faster-disk answer changes access convenience but does not add signal; and the columnar-format answer conflates storage layout with the information content of the data itself.

Learning Objective: Compare two datasets using the information-entropy-over-data-gravity ratio to determine which delivers higher per-byte training signal.
A profiler shows an A100 training pipeline running at roughly 20 percent of the accelerator’s advertised TFLOP/s while the attached SATA disk sustains its full 500 MB/s. Use the section’s feeding-tax framing to explain what is happening and what the engineer should measure next.

Answer: This is a classic feeding-tax signature: the compute ceiling is not the bottleneck because the accelerator is idle most of the time, and the data pipeline is running flat out at its own ceiling, so wall-clock training is paced by disk throughput rather than by FLOP/s. In the compressed-image ResNet-50 budget later in the chapter, a single A100 needs roughly 3.8 GB/s; a 500 MB/s disk caps utilization around 13 percent regardless of batch size, learning rate, or model tweak. The engineer should measure disk read throughput, CPU decode rate, and host-to-device PCIe utilization to confirm the starvation pattern, then either move the working set to NVMe, add DataLoader workers, or switch to a columnar format to raise effective bandwidth before touching anything model-side.

Learning Objective: Diagnose an accelerator-starvation pattern from a low-utilization-plus-saturated-storage profile and identify the measurements that localize the data-pipeline bottleneck.
True or False: Once a workload becomes compute-bound inside the accelerator, reducing data movement has little effect on the total energy budget of training.

Answer: False. The energy-movement invariant says moving data through DRAM already costs hundreds of times more energy than a single floating-point MAC, and the multiplier rises to tens or hundreds of thousands for SSD and network movement. Data movement can therefore dominate the energy budget even when the pipeline is compute-bound in wall-clock terms. The two dimensions are decoupled: saturated compute utilization says nothing about how much energy the DRAM reads and network transfers behind that compute consumed.

Learning Objective: Distinguish wall-clock compute-bounding from energy-bounding by applying the energy-movement invariant to a partially optimized training workload.
A team can either keep all training examples, including many near-duplicates, or aggressively deduplicate and add rare edge cases sourced from a new channel. Use the section’s physics to justify which strategy usually has higher systems leverage.

Answer: Deduplication plus edge-case prioritization usually wins because it attacks both terms of the data-selection-gain ratio at once: it reduces gravity (fewer bytes to transfer, store, and feed) while preserving or increasing entropy (the retained examples still teach everything the duplicates did, plus the edge cases teach what the model was missing). For example, removing 50 percent of a training corpus that was near-duplicate halves transfer time and storage spend immediately, while the new edge cases add bits of information exactly where the model currently errs. The practical consequence is better use of bandwidth, energy, and labeling budget per unit of learned behavior, which is why the chapter calls data selection the highest-leverage tool in a systems engineer’s toolkit.

Learning Objective: Justify a deduplication-plus-targeted-acquisition strategy by decomposing it into its effects on data gravity, information entropy, and feeding cost.

← Back to Questions

Self-Check: Answer

A credit model starts rejecting applicants from one region after an upstream team changes zip_code from integer to string, causing leading zeros to be lost and unseen categories to appear downstream. Which pillar failure is most directly responsible for the customer-facing symptom?
1. Quality, because the feature values reaching the model no longer correctly represent the underlying entity.
2. Governance, because every schema change is primarily a compliance problem before it is a technical one.
3. Scalability, because the failure comes from too many distinct zip codes being processed.
4. Reliability, because any schema change is just another transient fault that retries should solve.
Answer: The correct answer is A. The immediate user-facing problem is that the feature values are semantically wrong, so the model sees corrupted categories and makes decisions against garbage inputs. The governance framing captures a real concern but arrives too late: the harm is already occurring regardless of compliance paperwork. The scalability framing misreads the cause (the issue is type-coercion loss, not volume), and the reliability framing misapplies retry logic, which cannot fix semantically wrong values no matter how many times the pipeline re-runs.

Learning Objective: Classify a production failure by identifying the pillar whose invariant was violated at the point of initial damage.
An always-on KWS system evaluates one-second windows continuously and the product requirement is at most one false wake per month. What follows about the evaluation metric the team should use, and why?
1. A model with 99 percent overall accuracy is adequate because false wakes are rare when averaged across all evaluation windows.
2. False positive rate matters less than top-1 accuracy because the device can run a second confirmation model cheaply.
3. The system should optimize for throughput because false positives do not compound over time.
4. Aggregate accuracy is inadequate; the correct metric is false accepts per hour because roughly 2.6 million non-keyword windows per month amplify any per-window false-positive rate into user-visible failures.
Answer: The correct answer is D. Thirty days of 24-hour operation produces about 2.6 million one-second windows, so even a 99 percent headline accuracy translates into roughly 26,000 false wakes per month, which is about 26,000 times the product tolerance. The 99-percent-is-fine answer hides this compounding behind a single aggregate number. The second-confirmation-model answer pushes cost and latency into the device without addressing why the first-stage metric was misleading to begin with, and the throughput answer confuses the resource dimension with the correctness dimension.

Learning Objective: Analyze why always-on systems require per-hour false-accept metrics rather than aggregate accuracy, using the window-per-month arithmetic to quantify the compounding.
A fraud-detection pipeline launched with careful schema checks, but over six months a chain of small failures - sensor drift that was ignored, label noise from a vendor change, and a silent timestamp format shift - produces a deployed model that consistently mispredicts one customer segment. Which concept from the section best describes this pattern?
1. A coverage gap, because the dataset did not include every customer segment from the start.
2. A data cascade, because small upstream data problems amplify across collection, cleaning, training, and deployment until the damage surfaces far downstream.
3. Training-serving skew, because the training and serving feature code paths diverged.
4. Covariate shift, because the input distribution has changed since training.
Answer: The correct answer is B. The defining feature is that small, individually ignorable upstream issues compound through every subsequent stage (collection, cleaning, training, deployment) until the aggregated damage becomes user-visible - that is precisely the cascade pattern the section names. The coverage-gap framing captures one possible upstream trigger but not the amplification mechanism. Training-serving skew is a specific end-state symptom where training and serving code diverge, which is narrower than the chain described here. Covariate shift is a distributional pattern that may be one consequence of a cascade but does not describe the causal chain.

Learning Objective: Identify a chain of amplifying upstream data problems as a data cascade rather than as a single localized failure.
A KWS team must fit the always-on footprint within 64 KB, stay under a fixed labeling and compute budget, and still approach 98 percent accuracy. Explain why the chapter prescribes design-space analysis rather than the vague strategy ‘collect more data.’

Answer: Each accuracy lever in the KWS design space has quantifiable latency, storage, memory, and cost consequences: going from 13 to 40 MFCC coefficients buys 3 to 5 percent accuracy but triples feature compute and feature memory, while doubling from 1 M to 10 M training examples adds 5 to 8 percent accuracy at 10$\times$ the labeling cost and training time. Under a 64 KB memory ceiling, even small per-feature multipliers can push the always-on model out of the SoC’s always-on island entirely, so ‘collect more data’ gives no visibility into which constraint will actually bind. The practical consequence is that design-space analysis lets the team spend budget where the accuracy-per-kilobyte and accuracy-per-dollar returns are highest, turning a set of interacting constraints into a series of tractable, quantified decisions.

Learning Objective: Justify quantified design-space analysis over heuristic data accumulation when multiple binding constraints (memory, latency, labeling cost) interact.
After several silent quality failures, a team proposes adding much stricter validation at ingestion. Explain what cross-pillar trade-off the chapter says they should expect, and how they should design around it.

Answer: Stricter ingestion validation strengthens the quality pillar (fewer corrupt or semantically-wrong records reach training) but trades against scalability and reliability: every additional check adds latency and memory per record, can reduce end-to-end throughput, and creates new rejection paths that the pipeline must handle without blocking good records. For example, adding row-level semantic checks to a Kafka ingest that currently sustains 1 M records/sec can halve throughput if the checks run inline, and creates pressure on a dead-letter queue that must itself scale. The team should therefore pair stricter validation with graceful-degradation mechanisms (dead-letter queues for repeated failures, circuit-breakers for upstream anomalies) and measure the new throughput ceiling explicitly, treating the trade-off as a system parameter to tune rather than an unqualified win.

Learning Objective: Evaluate cross-pillar consequences of strengthening one pillar (quality) on throughput and reliability, and select compensating mechanisms that preserve the other pillars.

← Back to Questions

Self-Check: Answer

Why does the chapter treat curated benchmark datasets like ImageNet or the UCI repositories as a starting point rather than a complete acquisition solution for production ML?
1. Because benchmark datasets are too small to train any modern model successfully.
2. Because curated datasets provide fast baselines and comparability, but their distributions often mismatch deployment conditions and many production systems inherit the same blind spots.
3. Because benchmark datasets are designed for storage benchmarking rather than model development.
4. Because once a benchmark is adopted, governance concerns disappear and only scale remains.
Answer: The correct answer is B. Curated benchmarks earn their place for fast prototyping and cross-paper comparability, but production deployment exposes two durable problems: their collection conditions rarely match deployment environments, and widely-shared benchmarks propagate shared limitations (e.g. ImageNet’s bias toward certain demographics and geographies) across every system that trains on them. The too-small-for-modern-models framing is empirically wrong; the storage-benchmarking framing mistakes a tool category; and the governance-disappears framing contradicts the section’s argument that benchmark adoption actually concentrates governance risk rather than eliminating it.

Learning Objective: Evaluate the coverage and shared-bias limits of curated benchmarks for production ML acquisition strategies.
A team needs millions of examples quickly, but scraped web results include historical or contextually inappropriate content (for example, traffic lights from old countries with differently-colored signals). What is the correct systems lesson?
1. Scale eliminates the need for validation because anomalous examples average out in a sufficiently large dataset.
2. Web scraping should be avoided entirely because it cannot support production ML systems.
3. High-scale acquisition still requires systematic validation and filtering because volume does not remove contextual noise, temporal mismatch, or legal constraints.
4. The main issue is storage cost; if storage is cheap enough, scraped quality problems become secondary.
Answer: The correct answer is C. The chapter’s traffic-light example shows that high-volume scraping can include content that is legally, temporally, or semantically wrong for the current task, and the wrongness does not average out - it encodes learnable but incorrect correlations that the model will carry into production. The ‘scale averages anomalies’ framing assumes IID noise where the problem is structured bias. The ‘avoid scraping entirely’ framing over-corrects and discards a useful data source, and the ‘storage-is-cheap’ framing misidentifies the cost axis as storage when the real cost is learned behavior.

Learning Objective: Analyze why high-scale web-scraped acquisition requires systematic validation rather than relying on volume to neutralize contextual noise.
Explain why synthetic data is powerful for scalability but usually should augment rather than replace real-world collection in KWS or similar speech systems.

Answer: Synthetic data inverts the economics of acquisition: a single pipeline can generate millions of noise-augmented, pitch-shifted, or accent-perturbed speech examples without proportional human labor, which is why it shines for rare events and robustness testing. For a KWS system, synthetic generation can cheaply produce wake-word audio overlaid with street noise, appliance hum, and distant speakers that would be slow and expensive to collect in the field. The catch is that every synthetic example inherits the assumptions of the generator, so relying on synthetic data alone risks missing real-world patterns (a particular low-resource accent, a specific microphone’s spectral signature) the generator never modeled. The practical consequence is a hybrid strategy: real data anchors coverage on human and hardware variability, while synthetic data multiplies that coverage along axes the generator faithfully captures.

Learning Objective: Explain the cost-quality trade-off of synthetic data acquisition and design a hybrid strategy that bounds the generator’s coverage blind spots.
True or False: A dataset of 100 million examples can still hide systematic coverage gaps, so aggregate accuracy alone may miss failures on underrepresented groups or conditions.

Answer: True. Large datasets remain vulnerable to missing whole geographies, demographics, time periods, or edge cases, and aggregate metrics actively hide those blind spots because underrepresented slices make a small contribution to the average. The section points out that coverage is a distribution property, not a count property, so a bigger dataset can still be blind wherever its sampling process was blind.

Learning Objective: Distinguish dataset volume from distributional coverage when evaluating whether aggregate accuracy exposes subgroup failures.
A multilingual KWS system needs broad accent coverage, fast prototyping, and low cost at scale. Explain why the chapter recommends combining curated datasets, crowdsourcing, scraping, and synthetic generation rather than relying on any single method.

Answer: Each acquisition source solves a different subproblem: curated benchmarks (ImageNet-style speech corpora) give fast baselines and cross-paper comparability; crowdsourcing targets specific demographics and accent groups that benchmarks underrepresent; controlled scraping adds natural acoustic variation that a lab cannot reproduce; and synthetic generation fills residual gaps (rare noise profiles, uncommon pronunciations) at near-zero marginal cost. A KWS team building for fifty languages might use Common Voice for high-resource languages, crowdsourcing for underrepresented accents, scraping for in-the-wild noise conditions, and synthetic augmentation to multiply every real sample across environmental conditions. The practical consequence is better coverage-quality-cost balance than any single method can deliver, because each method’s failure mode is covered by another method’s strength.

Learning Objective: Design a multi-source acquisition strategy that assigns each data source to the coverage gap it most cost-effectively closes.

← Back to Questions

Self-Check: Answer

A pipeline passes all schema checks, yet model quality declines because labels remain structurally valid while becoming statistically misaligned with sensor data (for example, weather-station deprecation changes which sites report which features). What does this most directly illustrate?
1. Mechanical validation alone is insufficient; semantic monitoring is also required to catch distributional or alignment shifts that schema checks cannot see.
2. Schema validation should be removed because it creates false confidence without any practical value.
3. This is fundamentally an ETL-versus-ELT issue, since either architecture alone would catch the misalignment when configured correctly.
4. As long as nulls are absent and types are correct, the issue should be handled only at model-training time.
Answer: The correct answer is A. The section distinguishes mechanical correctness (types, ranges, nulls) from semantic quality (meaning of the values relative to the intended entity), and shows that structurally valid data can be wrong in ways that degrade models - exactly the case when a changed reporting population keeps types intact but shifts what each row represents. The ‘remove schema checks’ framing throws out a useful guard; the ‘ETL vs ELT’ framing attributes a detection capability to an architecture choice that actually sits orthogonal to semantic monitoring; and the ‘handle at training time’ framing delays detection until after the bad data has already trained a bad model.

Learning Objective: Differentiate mechanical validation from semantic data-quality monitoring and identify which failure modes each catches.
A production feature’s K-S statistic against the training baseline is 0.08 with $n_0 = n_t = 1000$, while the critical threshold at $\alpha = 0.05$ is about 0.061. Which interpretation is correct?
1. No meaningful drift exists because both values are below 0.1.
2. The system should reject the null hypothesis of distributional equality and flag the feature for drift investigation, though the test alone does not dictate retraining.
3. The feature is conclusively suffering concept drift rather than covariate shift.
4. The result proves the model must be retrained immediately, regardless of business impact or downstream signals.
Answer: The correct answer is B. The observed statistic (0.08) exceeds the critical value (0.061), so the null hypothesis of equal distributions fails at the stated significance level and the feature should be investigated for drift. The ‘both under 0.1’ answer picks an arbitrary absolute threshold that has no statistical meaning. The ‘concept drift’ answer over-specifies what K-S can tell us - K-S detects a change in the current input distribution $P_t(X)$ relative to the training baseline $P_0(X)$ but cannot alone distinguish covariate shift from concept drift, which would also require ground-truth-label monitoring. The ‘retrain immediately’ answer skips the operational step of linking statistical significance to business impact, which the chapter treats as a separate decision.

Learning Objective: Interpret a K-S statistic against a critical value to determine whether distributional drift is statistically significant without over-specifying the type of shift or the operational response.
A streaming ingestion pipeline encounters a small subset of records (about 0.5 percent) that repeatedly fail processing because of malformed timestamps from a newly-onboarded data source. What does the chapter argue about the right handling policy for these records?
1. Keep retrying them on the main pipeline indefinitely, because eventual consistency will resolve transient issues and preserve every event.
2. Drop them silently to keep the main pipeline fast, since a 0.5-percent loss is negligible for most ML workloads.
3. Divert them to a separate queue for failed records so the main pipeline continues at full throughput, while the failures accumulate in a reviewable place that can be reprocessed later.
4. Halt the main pipeline until a human operator identifies the root cause, because silently ignoring malformed records risks compliance violations.
Answer: The correct answer is C. The chapter’s dead-letter-queue pattern isolates repeated failures so the main pipeline’s throughput is not held hostage by a small toxic subset, while still preserving the failed records for later root-cause analysis and reprocessing once the parser is fixed. Indefinite retrying on the main path amplifies the problem: each failed record consumes retries and can delay healthy records behind it. Silent dropping erases the signal that a new source has a parsing bug, which is exactly the diagnostic data the team needs. Halting the pipeline converts a small fault into a total outage, which violates the graceful-degradation principle the section emphasizes.

Learning Objective: Select the failure-containment mechanism (dead-letter queue) that preserves both main-pipeline throughput and the diagnostic value of the failed records.
Explain why a recommendation system might choose streaming ingestion for some event types but batch ingestion for others, despite the added complexity of running both.

Answer: Streaming earns its cost only when freshness itself drives value: session-level recommendations where user intent evaporates in seconds, or fraud signals whose utility decays within a minute of the transaction. Batch remains cheaper and simpler for the many signals whose value does not degrade that quickly: user demographic profiles, long-term preference embeddings, nightly catalog refreshes. A recommender that pushes everything through streaming pays the operational tax (separate infrastructure, ordering guarantees, replay logic, on-call) on signals that gain nothing from sub-second latency. The system consequence is a hybrid architecture where streaming is reserved for the subset of events where sub-second latency creates measurable business value, and batch handles the rest at a fraction of the cost.

Learning Objective: Compare batch and streaming ingestion by mapping each event type to the latency-value curve it faces, and justify a hybrid architecture.
A feature team frequently revises aggregation windows and debugs feature logic after raw events have already landed in the warehouse. Which ingestion pattern best matches this workflow, and why?
1. ETL, because transforming before loading minimizes future query changes and makes feature iteration faster.
2. ELT, because raw data is loaded first and transformations can be revised in-warehouse without repeatedly re-ingesting the sources.
3. Pure streaming, because transformation flexibility comes primarily from sub-second ingestion latency.
4. Strict batch ETL with immediate deletion of raw data, because experimentation is easiest when only curated tables remain.
Answer: The correct answer is B. ELT keeps the raw signal in the warehouse and performs transforms as queries, so feature revisions become warehouse-query changes rather than full source re-ingestion cycles. ETL locks transforms upstream, which is fast when definitions are stable but expensive to iterate when they change weekly. Streaming and ingestion latency are orthogonal to the iteration-speed question the workflow raises. Deleting raw data after transformation closes off exactly the iteration path the team needs, because once raw is gone no new transform can be retroactively computed.

Learning Objective: Evaluate ETL versus ELT by matching transformation placement to the expected iteration frequency on feature definitions.
Walk through how graceful degradation improves reliability when a feature-computation service begins failing during serving, and explain what the pipeline should do concretely.

Answer: Under graceful degradation, the pipeline treats a failing service as a bounded fault rather than a total outage: a circuit breaker opens after failure count exceeds a threshold, the broken service is no longer called, and the pipeline falls back to a pre-agreed degraded mode (cached features, approximate features, or a simpler model). For example, a recommender that cannot reach the real-time user-embedding service may serve yesterday’s cached embedding instead of failing every request, accepting slightly stale relevance in exchange for full availability. The system consequence is that mean time to recovery drops because the failure is isolated, and the on-call engineer investigates a bounded degradation rather than a cascade of timeouts that has already brought down the serving frontend.

Learning Objective: Explain how circuit-breaker-plus-fallback mechanisms prevent a component failure from propagating into a full serving outage, using a concrete feature-service scenario.

← Back to Questions

Self-Check: Answer

Which practice best satisfies the chapter’s consistency imperative for feature transformations across training and serving?
1. Let training and serving teams implement the same transformation independently so each can optimize for its own environment.
2. Reuse the same transformation logic AND persist training-derived parameters (means, standard deviations, vocabularies) for use at serving time.
3. Share only the feature names between training and serving, since exact preprocessing differences usually average out over large datasets.
4. Recompute normalization statistics from live traffic at serving time so features always reflect current conditions.
Answer: The correct answer is B. Consistency is a state-synchronization problem, not a shared-intent problem: both the transformation code AND the parameters produced during training (vocabularies, scalers, bucket boundaries) must be identical at serving time, or the two environments compute different functions. The independent-reimplementations answer is exactly the failure mode the section warns against - the same intent, different realizations. The shared-names-only answer ignores that the values matter more than the labels. The live-recomputation answer fabricates a new set of parameters at serving time, guaranteeing skew against whatever statistics the model was trained with.

Learning Objective: Apply the consistency imperative by identifying which combination of shared code and synchronized parameters eliminates training-serving skew.
True or False: If training and serving invoke the same preprocessing function but use different stored normalization constants or vocabularies, meaningful training-serving skew can still appear.

Answer: True. Consistency requires synchronized state in addition to shared code, so a difference in the stored mean, standard deviation, vocabulary, or timestamp-bucket boundaries produces different numerical outputs from identical code - which is skew by definition. The section explicitly frames this as why shipping ‘the same function’ to both environments is necessary but not sufficient.

Learning Objective: Distinguish shared-code consistency from synchronized-state consistency when diagnosing training-serving skew.
Explain why idempotent transformations are especially important in production pipelines that rely on retries and checkpoint-restart recovery.

Answer: Idempotent transformations guarantee that rerunning a step produces the same final state as running it once, so a crash-and-retry cycle cannot double-count, duplicate, or drift the data. For example, an upsert keyed on record_id is safe to retry any number of times after a failure, while a naive ‘append the new batch’ step that retries after a partial write will insert the same records twice and silently inflate training gradients. The system consequence is that recovery becomes a property of the pipeline, not a human operations art: operators can restart from any checkpoint knowing the transformations will converge to the same downstream state regardless of how many partial runs preceded them.

Learning Objective: Justify idempotent transformation design by analyzing the failure modes of non-idempotent steps under retry and checkpoint-restart recovery.
You need to compute a global mean over 1 TB of feature values spread across 100 nodes for use as a training-set normalization constant. Which strategy best follows the chapter’s distributed-processing guidance?
1. Gather all raw data to one node and compute the mean centrally to guarantee a single consistent result.
2. Compute local partial sums and counts on each node, then aggregate the 100 small summaries across the network into a single global mean.
3. Replicate the full dataset to every node so each node independently computes the same mean in parallel.
4. Normalize independently within each partition, since global coordination is always too expensive at this scale.
Answer: The correct answer is B. Reduce-style operations should summarize locally before shipping tiny aggregates across the network: each node sends a (sum, count) pair instead of its share of the 1 TB, converting a 1 TB network cost into a $100 \times 16$ bytes = 1.6 KB cost while still producing the exact global mean. Pulling all raw data to one node wastes bandwidth by $10^9\times$ compared to shipping summaries. Replicating the full dataset to every node wastes both bandwidth and storage without reducing coordination. Normalizing independently per partition changes the semantics (each partition gets a different mean), which breaks any downstream model that assumed a single global normalization.

Learning Objective: Analyze why local-then-reduce aggregation minimizes network cost in a distributed statistic computation, and contrast with centralization, replication, and partition-local semantics.
Order the following reproducibility artifacts from rawest provenance to most deployment-ready governance artifact: (1) transformation version and code commit, (2) stored preprocessing parameters such as vocabularies or normalization constants, (3) final model artifact linked to its data lineage.

Answer: The correct order is: (1) transformation version and code commit, (2) stored preprocessing parameters such as vocabularies or normalization constants, (3) final model artifact linked to its data lineage. The code commit establishes HOW data will be processed; running that code against the training data produces the specific parameters needed for consistent serving; and only after those parameters are persisted can the final model be packaged with a complete lineage record linking it back to the exact code, parameters, and data that produced it. Swapping the latter two would leave the model disconnected from the state needed to reproduce its inputs at serving time - the exact skew failure mode the chapter warns about.

Learning Objective: Sequence code, preprocessing-parameter, and model-artifact lineage records required to reproduce a deployed feature pipeline.
Explain why the chapter treats transformation lineage as a governance requirement rather than a debugging convenience.

Answer: Lineage records the exact raw inputs, code version, learned parameters, and environment that produced every dataset and every prediction, which turns two kinds of after-the-fact questions from forensic reconstruction into targeted lookups. For debugging: when a model regresses, the team can diff the lineage of the last-good and current models in minutes instead of guessing which upstream change broke things. For governance: if a regulator, auditor, or affected user asks ‘how was this prediction produced,’ the team can answer with a concrete chain of commits, parameters, and raw records rather than a hand-waved narrative. The practical consequence is faster audits, defensible remediation, and the ability to honor regulatory demands for explanation without pausing the product.

Learning Objective: Justify transformation lineage as the infrastructure that converts both debugging and regulatory questions from open-ended investigations into deterministic lookups.

← Back to Questions

Self-Check: Answer

Why do segmentation labels impose much heavier systems requirements than simple classification labels for a $1920{\times}1080$ image?
1. Because a segmentation mask requires storing roughly 2 million pixel-level labels per image, plus annotation effort orders of magnitude higher than a single class label.
2. Because segmentation labels can only be used for vision transformers, while classification labels work for all other architectures.
3. Because segmentation eliminates ambiguity, so the only remaining cost is disk space.
4. Because classification labels cannot be versioned, while segmentation masks can.
Answer: The correct answer is A. A segmentation mask for a $1920{\times}1080$ image carries about 2 million labels - one per pixel - versus one label per image for classification, which is a roughly 2-million-fold storage multiplier before the hours of manual pixel-level annotation required per image are counted. The vision-transformers-only framing is wrong on architecture: segmentation masks train many families of models. The ‘eliminates ambiguity’ framing is wrong on semantics: denser labels do not escape ambiguity (adjacent-pixel boundary disagreements are themselves a form of inter-annotator noise). The ‘classification cannot be versioned’ framing is simply false.

Learning Objective: Compare classification, bounding-box, and segmentation label types by their annotation-time and storage-system cost multipliers.
A labeling pipeline routes low-agreement examples to experts after collecting three to five crowd labels per example. What problem is this architecture primarily solving?
1. It eliminates governance concerns because expert labels carry less legal risk than crowd labels.
2. It balances cost and quality by reserving expensive expert attention (10$\times$ to 50$\times$ the per-example cost of crowd labeling) for the roughly 5-15 percent of examples that are genuinely ambiguous.
3. It ensures every example eventually receives the majority crowd label, even when the example is fundamentally unclear.
4. It primarily reduces storage usage, since expert labels are smaller than crowd labels.
Answer: The correct answer is B. Tiered consensus is an economic design: cheap crowd labor handles the clear cases at 1$\times$ cost, and expert attention at 10–50$\times$ cost is reserved for the 5-15 percent of examples that low inter-annotator agreement flags as genuinely ambiguous or specialist-requiring. The governance-safety framing confuses cost with compliance. The ‘force crowd consensus’ framing actively harms quality by encoding noise as truth on ambiguous examples. The storage framing misreads the trade-off - label bytes are negligible compared to annotation dollars.

Learning Objective: Explain how tiered consensus workflows allocate per-example cost asymmetrically across clear and ambiguous cases to minimize total labeling spend at a target quality.
Explain why AI-assisted labeling is a force multiplier rather than a full replacement for human labeling in production systems.

Answer: Pre-annotation models are fast, consistent, and cheap on clear cases (50-80 percent reduction in manual effort on many vision tasks), but they systematically fail on the exact examples that matter most: ambiguous boundaries, high-stakes decisions, and genuinely novel cases the model has never seen. Humans provide the judgment, domain knowledge, and adversarial review that those cases demand. A content-moderation pipeline might pre-annotate 80 percent of posts with a smaller model and route only the confidence-calibrated uncertain 20 percent to humans, but removing humans entirely turns every systematic model bias into a permanent training signal. The practical consequence is a tiered pipeline where automation raises throughput on the easy majority while humans guard the error-defining long tail.

Learning Objective: Explain the complementary roles of model pre-annotation and human review in a tiered labeling pipeline, and name the cases each handles.
Automated labeling for the Multilingual Spoken Words Corpus produces millions of one-second keyword samples from existing sentence-audio and transcript pairs. Explain why this automated approach makes large-scale KWS corpus construction economically feasible in a way manual labeling cannot.

Answer: Given an existing transcript, the labeling problem collapses from ‘recognize what was said’ (open-vocabulary ASR, hard) to ‘find when each known word starts and stops’ (alignment, much easier), and dynamic-programming alignment algorithms solve it at millisecond precision with near-zero marginal cost per sample. At MSWC scale, 23.4 million examples across 50+ languages would still require about 65,000 person-hours, or roughly 33 full-time person-years, at 10 seconds of manual annotation per sample; automated alignment reduces that cost to compute time on commodity CPUs. The system consequence is that datasets spanning many under-resourced languages become viable at all, but because the alignment still inherits timing errors, background-noise artifacts, and pronunciation variation, the pipeline must pair automated extraction with quality filters and targeted human review on the residual problematic cases.

Learning Objective: Justify automated alignment-based labeling for KWS corpora by quantifying the manual-effort gap it closes and identifying the residual quality controls still required.
Your team can afford to label only a small fraction of a 10 M-example pool and currently achieves 85 percent accuracy at 100 K random labels. Why might active learning stretch the labeling budget far more than random sampling under the section’s argument?
1. Because it removes the need for a validation set and reuses those labels as additional training data.
2. Because it automatically converts every unlabeled example into a correct pseudo-label without human review.
3. Because it directs scarce human effort toward the most-informative examples, often reaching a target accuracy with 5–10$\times$ fewer annotations, while still requiring the full budget model to include scoring cost, pre-filtering, or separately funded compute.
4. Because uncertainty sampling automatically guarantees equal coverage across every demographic subgroup.
Answer: The correct answer is C. Active learning’s lever is sample efficiency: the 5–10$\times$ reduction in labels can turn a 1 M-label ($500K) random-sampling plan into a 100-200K-label ($50-100K) label-only plan. The full budget still has to include scoring cost: at ~$0.01 per candidate, scoring all 10 M candidates adds about $100K before any human labels, so active learning becomes feasible only when the candidate pool is pre-filtered, inference is cheaper, or compute is funded separately. The validation-set answer fabricates a guarantee active learning does not make. The ‘pseudo-label without review’ answer confuses active learning (which still routes to humans) with weak or self-supervised labeling. The ‘guarantees subgroup coverage’ answer actively overreaches - uncertainty sampling can under-cover subgroups with rare but not uncertain patterns, which is a real failure mode of naive active learning.

Learning Objective: Analyze how active learning reshapes labeling-budget economics by converting a data-proportional cost into a model-proportional cost, using a concrete budget calculation.
True or False: Because forced alignment produces millions of automated keyword labels cheaply, production KWS systems can skip targeted human review entirely.

Answer: False. Forced alignment inherits timing errors from the source audio (background noise, non-standard pronunciations, transcript gaps), so the raw output contains systematic mistakes that propagate into training if not filtered. Production systems pair automated extraction with confidence-based filtering AND targeted human review on low-confidence segments, unusual accents, and noisy environments, because eliminating human review at scale would amplify silent label errors across the corpus.

Learning Objective: Distinguish automated label production from automated label acceptance by naming the residual human quality controls still required after large-scale forced alignment.

← Back to Questions

Self-Check: Answer

Which storage system best matches a workload that serves individual feature vectors for real-time inference under a 10 ms p99 latency budget at 10,000 requests per second?
1. A data lake, because schema-on-read flexibility is the main requirement for low-latency serving.
2. A data warehouse, because large columnar scans are ideal for per-request feature retrieval.
3. An in-memory database like Redis with 1-10 microsecond random-read latency, matched to the SLO’s random-access-at-scale pattern.
4. Archival storage like Glacier, because cached features can always be restored after a slow retrieval.
Answer: The correct answer is C. Real-time serving is bound by random-access latency, so an in-memory store whose per-read latency is 1000$\times$ below the SLO is the right tier - Redis at microseconds leaves room for every other component in the p99 budget. Data lakes are tuned for flexibility and throughput on big scans, not small random reads. Data warehouses are built for analytical columnar scans, with 100-500 ms query startup alone blowing the 10 ms budget on every request. Archival storage retrieval takes hours, which is six orders of magnitude above the SLO and cannot be saved by caching since the cache miss itself exceeds the budget.

Learning Objective: Match storage tiers to ML serving workloads by comparing per-tier random-read latency to the request’s latency SLO.
A team switches a fraud-model training dataset from CSV to Parquet. The model uses 20 of the 100 columns in the table. According to the chapter, why does this feel like buying a faster disk?
1. Because Parquet increases physical disk RPM and raises sequential bandwidth.
2. Because columnar storage reads only the 20 needed columns, yielding roughly 5$\times$ higher effective throughput on the same physical disk by eliminating the 80 percent of bytes the model never used.
3. Because Parquet automatically caches the entire dataset in GPU memory during training.
4. Because CSV files cannot be compressed, while Parquet files are always uncompressed for fast reads.
Answer: The correct answer is B. Format efficiency multiplies physical bandwidth by the fraction of bytes that are actually useful: reading 20 of 100 columns columnarly is mathematically equivalent to a 5$\times$ faster disk under the chapter’s effective-bandwidth equation. The physical-RPM framing confuses software I/O patterns with mechanical hardware. The GPU-caching framing invents a mechanism Parquet does not provide. The CSV-cannot-be-compressed framing is factually wrong and misses the point anyway - even compressed CSV must be decompressed in full to access any subset of columns.

Learning Objective: Explain how columnar file formats multiply effective bandwidth under the effective-bandwidth equation by eliminating per-row waste.
Explain why running experiments against local NVMe can dramatically accelerate iteration compared to reading the same dataset directly from cloud object storage like S3.

Answer: Local NVMe delivers 5-7 GB/s sequential throughput with 10-100 microsecond latency, while cloud object storage provides 100-500 MB/s per connection with 10-50 ms latency - a throughput gap of roughly 50$\times$ and a latency gap of three orders of magnitude. For a 736 GB KWS dataset, loading completes in about 150 seconds from NVMe versus roughly 7,360 seconds (two hours) from object storage per epoch. The system consequence is that experiments that could run multiple times in one workday from NVMe are forced onto a daily cadence from S3, which in turn compresses the researcher’s ability to explore hyperparameters, model variants, and ablations - the real iteration bottleneck is rarely GPU time, it is how fast data reaches the GPU.

Learning Objective: Analyze how the 50$\times$ NVMe-to-object-storage throughput gap translates into iteration-velocity differences during experimentation.
Order these storage modes across a typical ML lifecycle, from earliest experimental flexibility to latest production serving specialization: (1) raw data retained in a flexible lake-style store, (2) curated or transformed data used for training and analysis, (3) online feature values served with millisecond latency.

Answer: The correct order is: (1) raw data retained in a flexible lake-style store, (2) curated or transformed data used for training and analysis, (3) online feature values served with millisecond latency. Teams first preserve heterogeneous raw data so they can explore and reprocess without re-collecting, then build cleaner training-ready views as the feature definitions stabilize, and only then materialize the subset of features required for real-time inference into a low-latency online store. Reversing this order would optimize for serving before feature definitions are stable, committing to a serving schema the training pipeline has not yet validated; the curated-then-raw swap erases the ability to reprocess when the transformation logic changes.

Learning Objective: Sequence raw, curated, and online storage roles across the ML lifecycle and justify why earlier stages must remain flexible until downstream definitions stabilize.
What problem is a feature store primarily designed to solve in production ML systems?
1. Reducing model size through automatic compression of embeddings and checkpoints.
2. Eliminating the need for offline training data by serving only live features.
3. Ensuring identical feature definitions and point-in-time-correct values across offline training and online serving, preventing training-serving skew.
4. Replacing data versioning by storing only the latest feature values and deleting historical ones.
Answer: The correct answer is C. A feature store’s job is transformation and consistency infrastructure: the same feature definition produces the same values at training time (backfilled to the correct historical point-in-time) and at serving time (read fresh from the online store), eliminating the class of bugs where training and serving silently compute different functions. The model-compression framing mistakes the artifact’s purpose. The ‘eliminate offline training data’ framing contradicts the feature store’s backfill capability. The ‘replace versioning’ framing is the opposite of what feature stores do - point-in-time correctness requires preserving historical feature values, not deleting them.

Learning Objective: Explain how feature stores enforce point-in-time correctness and training-serving consistency, and distinguish this role from model-compression or data-versioning concerns.
A deployed recommendation model regresses 3 percent after routine retraining, but the code commit is unchanged. Explain why data versioning is essential for rapid debugging of this failure.

Answer: With code fixed, the suspect is whatever changed between the last-good and current training runs - training data snapshot, label source, or feature values - and data versioning lets the team diff those snapshots in minutes instead of reconstructing them forensically. Without versioning, the team must re-execute the entire pipeline from current sources and hope it reproduces the regression, or compare across commits with no record of what data each version saw; regression investigations stretch from hours to weeks and often terminate in ‘we think it was an upstream backfill.’ The system consequence is that versioning is not a convenience - it converts root-cause analysis from open-ended archaeology into deterministic diff, which is the difference between a one-day incident and a multi-week investigation.

Learning Objective: Justify data-versioning adoption by analyzing how versioned snapshots convert root-cause analysis from forensic reconstruction into a targeted diff.

← Back to Questions

Self-Check: Answer

A production model degrades because upstream data semantics changed, but the changes were never recorded and the original data owners have left the team. Which category of data debt is most directly responsible for the team’s inability to diagnose the problem?
1. Documentation debt, because missing provenance and semantics make the system increasingly opaque and hard to maintain.
2. Freshness debt, because any production degradation is primarily caused by old training data.
3. Quality debt, because all undocumented problems are actually label-error problems in disguise.
4. Schema debt, because every undocumented field-meaning change is only a type-system issue.
Answer: The correct answer is A. The defining problem is that the organization no longer knows what the data meant: provenance records, column descriptions, and transformation rationale are gone, which is exactly the definition of documentation debt. Freshness debt captures distributional staleness but does not explain why the current team cannot even identify what changed. Quality debt describes known-but-uncorrected errors, not unknown semantic shifts. Schema debt captures workaround accumulation but requires at least a known schema trail to reason about, which documentation debt has erased.

Learning Objective: Classify a production failure by identifying the debt category whose missing artifact most directly blocks diagnosis.
A production ML platform’s data debt grows from $\text{Debt}_0$ at a rate $r$ per quarter under the chapter’s compounding model $\text{Debt}_n = \text{Debt}_0 \times (1+r)^n$. Why does the chapter describe this as compounding rather than linear accumulation?
1. Because storage costs in ML systems double every year regardless of engineering practice.
2. Because untracked assumptions, stale data, and workaround-heavy schemas interact, so each additional period makes the next period’s maintenance and debugging harder AND accelerates accuracy degradation.
3. Because retraining always multiplies label noise by the number of epochs.
4. Because model size growth is the only driver of long-term operational complexity.
Answer: The correct answer is B. Data debt compounds because its categories feed each other: undocumented code is harder to document next quarter than this quarter, stale training distributions accelerate drift into previously-working features, brittle schema workarounds make every subsequent upstream change riskier, and each quarter’s accumulated debt raises the activation energy for remediation. The storage-doubles framing picks an unrelated scaling law. The ‘epochs multiply label noise’ framing fabricates a mechanism. The model-size-as-sole-driver framing ignores three of the four debt categories entirely.

Learning Objective: Explain why data debt compounds superlinearly through interacting feedback loops across documentation, schema, quality, and freshness categories.
A team detects that PSI for a critical feature against the training baseline has climbed from 0.08 six months ago to 0.28 now, while inter-annotator agreement and schema contracts remain stable. Which remediation most directly addresses the specific debt this signal reveals?
1. Launch a documentation sprint to clarify column provenance across the feature’s lineage.
2. Trigger retraining against a fresh data snapshot, because the PSI trajectory points to training-to-serving distribution divergence - freshness debt - rather than to quality, schema, or documentation issues.
3. Tighten schema contracts between producers and consumers to prevent silent type coercion.
4. Expand the label-quality audit to include Cohen’s kappa on the new annotation batches.
Answer: The correct answer is B. A rising PSI with stable annotator agreement and stable schemas is the classic freshness-debt fingerprint: the distribution the serving environment sees has drifted from the distribution the model trained on, and the remediation is to retrain against a fresh snapshot. A documentation sprint addresses a different debt category (provenance opacity) that is not the bottleneck here. Tightening schema contracts responds to schema debt, which the stable contracts indicate is not the current problem. Expanding label-quality audits responds to quality debt, but annotator agreement is stable, so this also misroutes the remediation.

Learning Objective: Diagnose the specific category of data debt from a combination of drift-detection signals (PSI trajectory, annotator agreement, schema stability) and select the matching remediation.
A model’s accuracy degrades gradually over several months, but training and validation accuracy remain close on the original test set and no schema break is visible. Use the chapter’s debugging flow to explain the most likely first investigation.

Answer: The debugging flow starts with ‘accuracy degrading over time,’ which routes directly to data drift as the first suspect rather than overfitting, training-serving skew, or architecture changes - a gradual decline over wall-clock months with stable train-vs-validation performance fits the freshness-debt signature. The engineer should compare current production feature distributions against the training baseline using PSI (warning at 0.1, critical at 0.25) or KL divergence before touching the model, because the training and validation numbers on a fixed historical dataset cannot reveal a world that has moved on. The practical consequence is that the next action is a drift report on the serving traffic and a fresh-snapshot retraining trigger, not an architecture revision or hyperparameter sweep.

Learning Objective: Apply the debugging flowchart to diagnose gradual production degradation and justify drift investigation as the first action rather than model-side changes.
Which remediation strategy best targets schema debt before it multiplies into brittle pipeline logic?
1. Periodic heroic cleanups after major incidents, since schema work is too dynamic for preventive controls.
2. Explicit schema contracts and fast-fail validation between producers and consumers, codified through tools like Great Expectations or Pandera.
3. More frequent model retraining, because schema debt usually dissolves when models see newer data.
4. Moving all raw data to cheaper archival storage so schema migrations become less expensive.
Answer: The correct answer is B. Schema debt arises from accumulated workarounds (try/catch blocks, string coercions, multi-format branches) downstream of upstream producers who change types silently. Explicit contracts enforced at ingest fail fast on incompatible changes, stopping the workaround accumulation at the source. Reactive heroic cleanups address symptoms after brittleness has compounded. Retraining addresses freshness debt rather than the parsing-logic decay that defines schema debt. Cheaper storage reduces migration cost on paper but does not remove the brittle pipeline logic that has already accumulated.

Learning Objective: Evaluate preventive-contract enforcement versus reactive remediation as strategies for containing schema debt in production pipelines.

← Back to Questions

Self-Check: Answer

True or False: A 10$\times$ increase in training-dataset volume is almost always the highest-leverage investment for an ML team, so teams should prioritize volume over selection quality, deduplication, or coverage analysis.

Answer: False. Empirical scaling laws show test loss falls as a power law in dataset size with exponents small enough that a 10$\times$ data increase often reduces error by less than one percentage point, while labeling and storage costs scale linearly with volume - so the marginal dollar is frequently better spent on deduplication, active learning, or targeted coverage of missing subgroups than on acquiring more of the same distribution.

Learning Objective: Evaluate when volume-first acquisition is dominated by selection-first acquisition under the empirical power-law scaling curve.
A model posts excellent validation accuracy before launch, but the team has not verified production feature computation, current data distributions, or subgroup coverage. What is the chapter’s warning?
1. The model is probably production-ready because strong validation metrics usually subsume data-pipeline concerns.
2. Offline accuracy remains useful but is an incomplete readiness signal: production can still fail through training-serving skew, distribution drift, or underrepresented-slice failures that validation on historical data does not surface.
3. Validation accuracy becomes irrelevant once the model has been compressed for deployment.
4. This concern applies only to streaming systems; batch systems are protected by offline validation alone.
Answer: The correct answer is B. Validation accuracy measures fit on a fixed historical sample under training-time feature computation, but production operates against (1) live feature computation paths that may diverge, (2) distributions that have shifted since the training snapshot, and (3) slices that were underrepresented in the validation sample and so barely moved its average. The ‘validation subsumes pipeline concerns’ framing is exactly the misconception the section corrects. Compression and batch-processing arguments redirect the reader’s attention to irrelevant axes.

Learning Objective: Analyze why strong offline validation fails to guarantee production behavior across the three axes of skew, drift, and coverage gaps.
Explain why postponing data versioning until after the first serious model incident is a costly mistake.

Answer: Without data versioning in place, an incident investigation has no direct way to answer ‘which exact dataset, labels, or feature snapshot produced this model,’ so the team ends up forensically reconstructing the pipeline from logs, git history, and vendor-side records - a process that takes days to weeks per incident. Organizations that defer versioning until after the first incident report 2–4$\times$ longer debugging cycles on every subsequent incident, because the infrastructure work has to happen under production-fire conditions rather than as calm foundational investment. The system consequence is that versioning earns its keep on the second, third, and fourth incidents of a production system’s life, and deferring it pays compounded interest in outage hours.

Learning Objective: Explain how dataset and feature versioning shorten root-cause analysis time after model regressions by converting forensic reconstruction into deterministic diff.

← Back to Questions

Self-Check: Answer

Which statement best captures the chapter’s central engineering thesis about data engineering’s role in ML systems?
1. Data engineering is a preprocessing convenience layer that prepares data once before modeling begins.
2. Data engineering is the lifecycle infrastructure that determines whether models receive correct, timely, consistent, and governed data across acquisition, validation, processing, labeling, and storage - the ongoing substrate that makes production ML viable.
3. Data engineering matters mainly for large language models; smaller ML systems can rely on ad-hoc scripts.
4. Data engineering is less important than model-architecture selection because quality is mostly algorithm-driven.
Answer: The correct answer is B. Across every major section (acquisition, validation, processing, labeling, storage, operational debt), the chapter argues that data infrastructure is the continuous substrate on which model correctness, freshness, consistency, and compliance all rest, not a one-time preprocessing step. The convenience-layer framing is the specific misconception the whole chapter corrects. The LLM-only framing ignores the KWS case study running through every section, where data engineering is the binding constraint for a tiny model. The architecture-dominates framing contradicts the chapter’s recurring demonstration that the same architecture with different data-engineering practices produces very different production systems.

Learning Objective: Compare the convenience-layer view of data engineering against the lifecycle-infrastructure view and synthesize why the chapter argues for the latter in production ML.
Explain how the chapter operationalizes the divergence term $\mathcal{D}(P_t \lVert P_0)$ of the degradation equation into concrete engineering practice.

Answer: The divergence term measures distance between the current serving distribution and the training baseline, and the chapter converts that abstract quantity into infrastructure the team actually runs: PSI on binned feature distributions (warning at 0.1, critical at 0.25), KL divergence on continuous features, Cohen’s kappa on annotator agreement, and automated thresholds that fire retraining triggers when any of those crosses its bound. For example, instead of waiting for users to report accuracy loss, a production pipeline computes PSI against the training snapshot every hour and raises a drift alert the moment it crosses 0.25 - turning silent degradation into a pageable signal. The practical implication is that the degradation equation stops being a theoretical diagnosis of ‘what can go wrong’ and becomes the monitoring specification for the system, with each term in the equation mapped to a specific metric, threshold, and automated response.

Learning Objective: Connect the degradation equation’s divergence term to the concrete set of PSI, KL-divergence, and annotator-agreement metrics that operationalize it in a production monitoring stack.

← Back to Questions
