Introduction

The Arduino Nicla Vision (sometimes called NiclaV) is a development board that includes two processors that can run tasks in parallel. It is part of a family of development boards with the same form factor but designed for specific tasks, such as the Nicla Sense ME and the Nicla Voice. The Niclas can efficiently run processes created with TensorFlow Lite. For example, one of the cores of the NiclaV runs a computer vision algorithm on the fly (inference), while the other executes low-level operations like controlling a motor and communicating or acting as a user interface. The onboard wireless module allows the management of WiFi and Bluetooth Low Energy (BLE) connectivity simultaneously.

Hardware

Two Parallel Cores

The central processor is the dual-core STM32H747, including a Cortex M7 at 480 MHz and a Cortex M4 at 240 MHz. The two cores communicate via a Remote Procedure Call mechanism that seamlessly allows calling functions on the other processor. Both processors share all the on-chip peripherals and can run:

  • Arduino sketches on top of the Arm Mbed OS

  • Native Mbed applications

  • MicroPython / JavaScript via an interpreter

  • TensorFlow Lite

Memory

Memory is crucial for embedded machine learning projects. The NiclaV board can host up to 16 MB of QSPI Flash for storage. However, it is essential to consider that the MCU SRAM is the one to be used with machine learning inferences; the STM32H747 is only 1MB, shared by both processors. This MCU also has incorporated 2MB of FLASH, mainly for code storage.

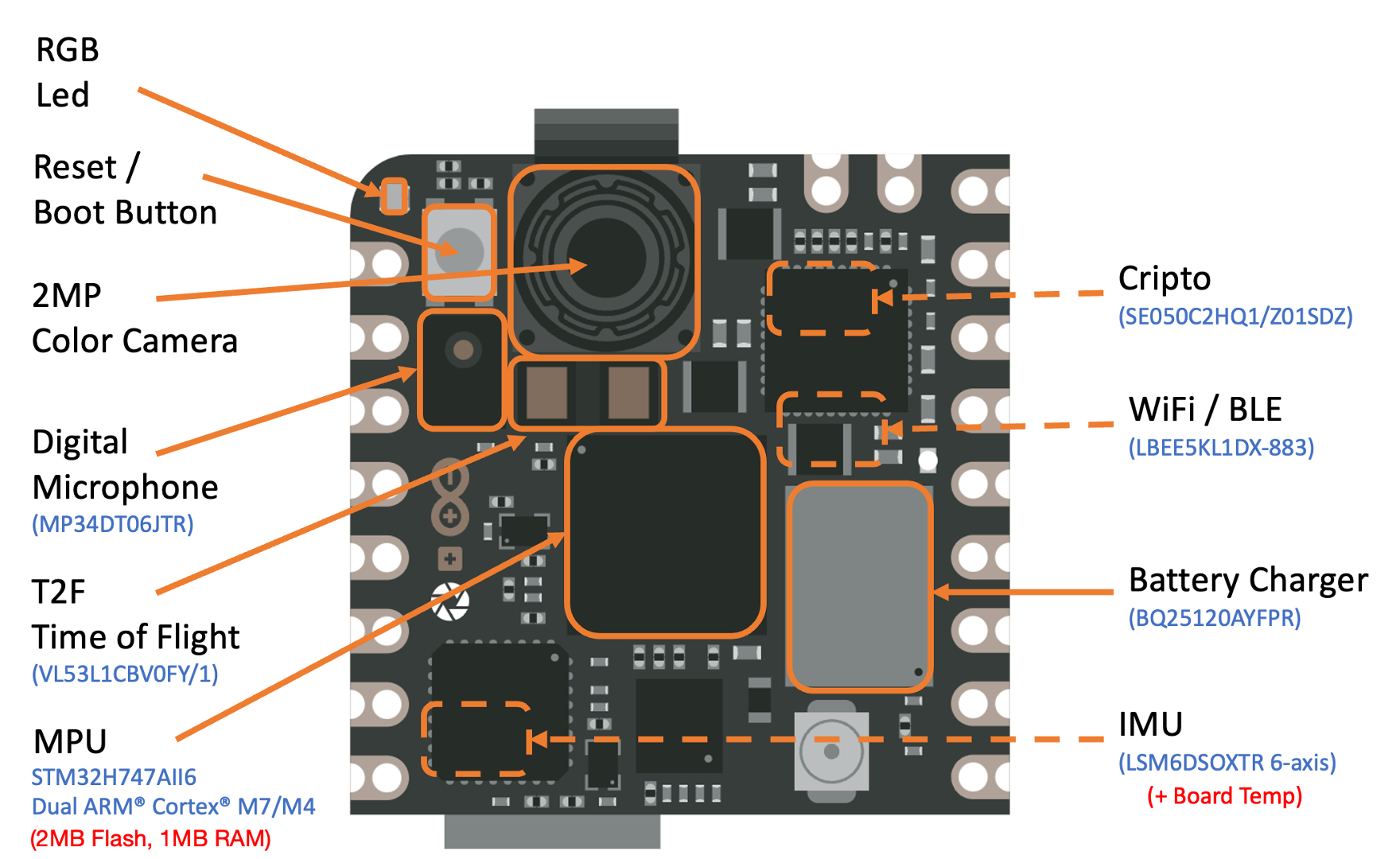

Sensors

  • Camera: A GC2145 2 MP Color CMOS Camera.

  • Microphone: The MP34DT05 is an ultra-compact, low-power, omnidirectional, digital MEMS microphone built with a capacitive sensing element and the IC interface.

  • 6-Axis IMU: 3D gyroscope and 3D accelerometer data from the LSM6DSOX 6-axis IMU.

  • Time of Flight Sensor: The VL53L1CBV0FY Time-of-Flight sensor adds accurate and low power-ranging capabilities to the Nicla Vision. The invisible near-infrared VCSEL laser (including the analog driver) is encapsulated with receiving optics in an all-in-one small module below the camera.

Arduino IDE Installation

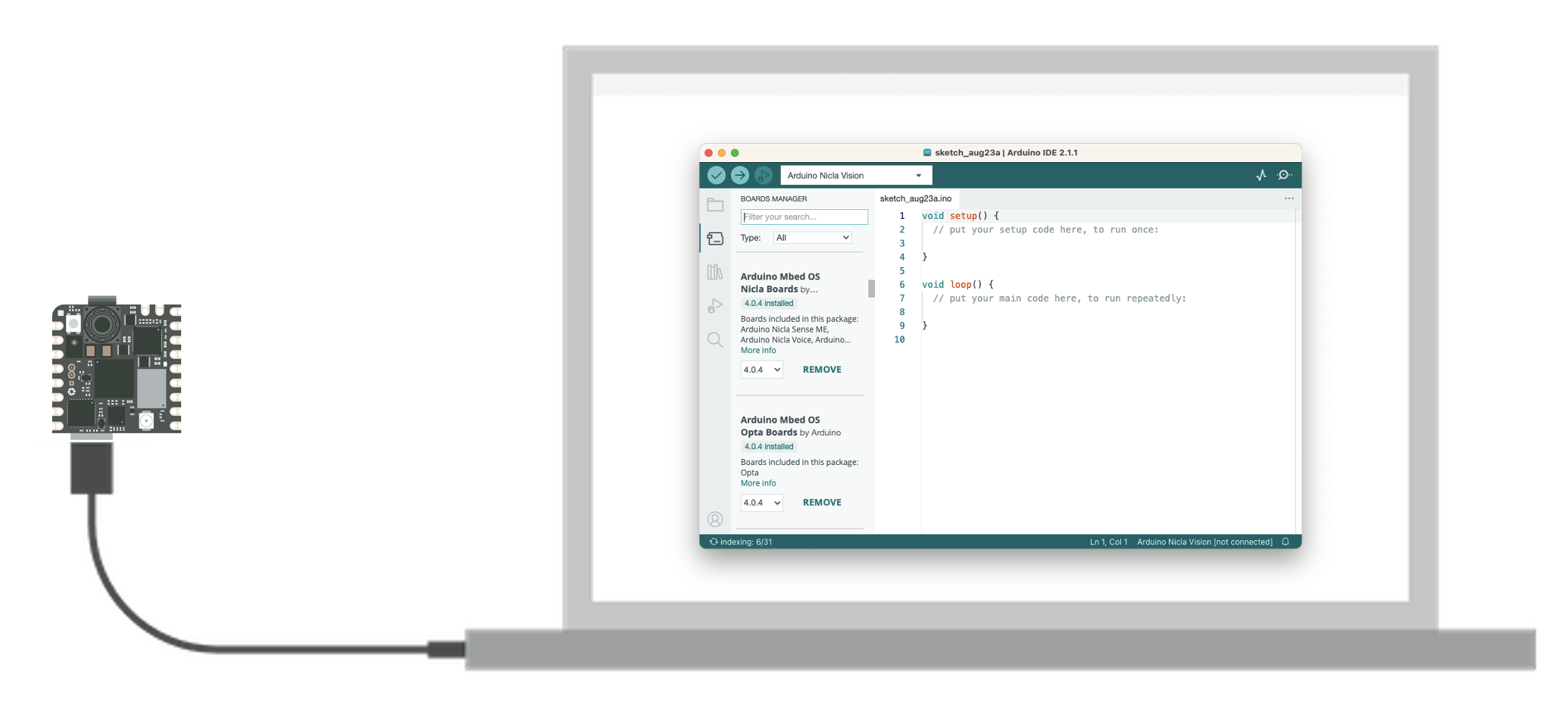

Start connecting the board (microUSB) to your computer:

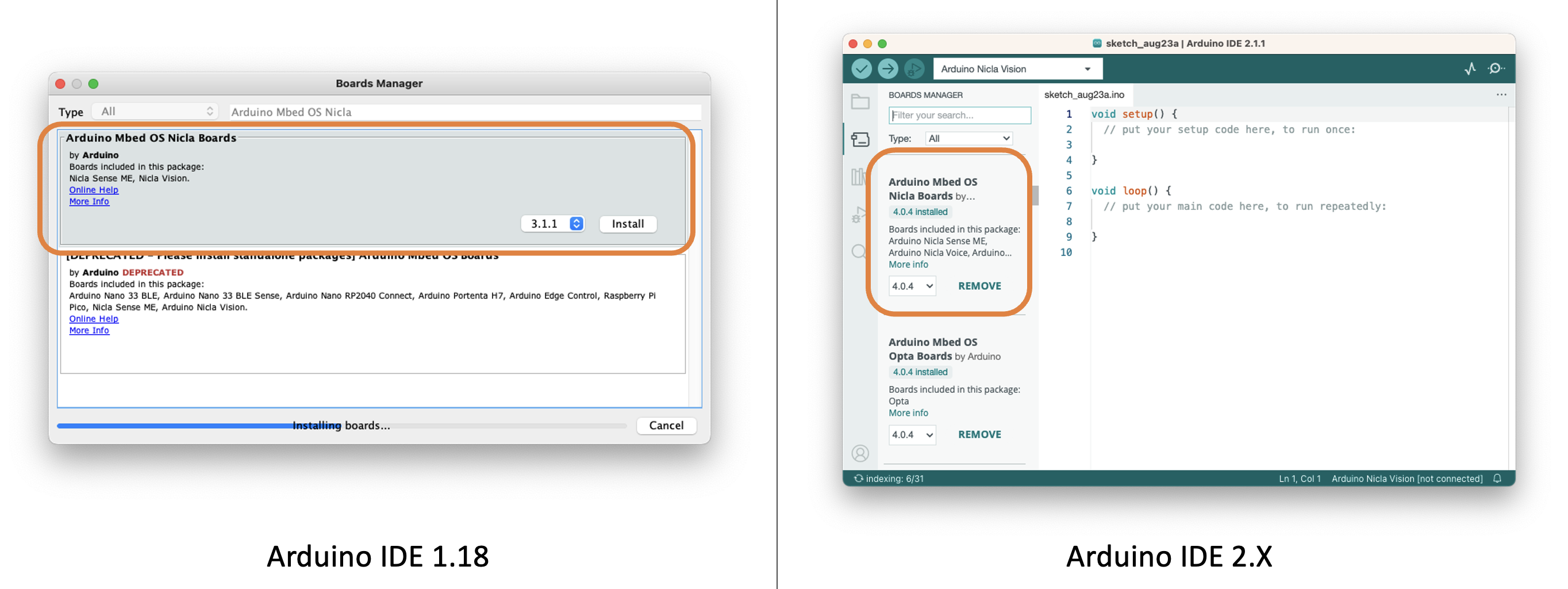

Install the Mbed OS core for Nicla boards in the Arduino IDE. Having the IDE open, navigate to Tools > Board > Board Manager, look for Arduino Nicla Vision on the search window, and install the board.

Next, go to Tools > Board > Arduino Mbed OS Nicla Boards and select Arduino Nicla Vision. Having your board connected to the USB, you should see the Nicla on Port and select it.

Open the Blink sketch on Examples/Basic and run it using the IDE Upload button. You should see the Built-in LED (green RGB) blinking, which means the Nicla board is correctly installed and functional!

Testing the Microphone

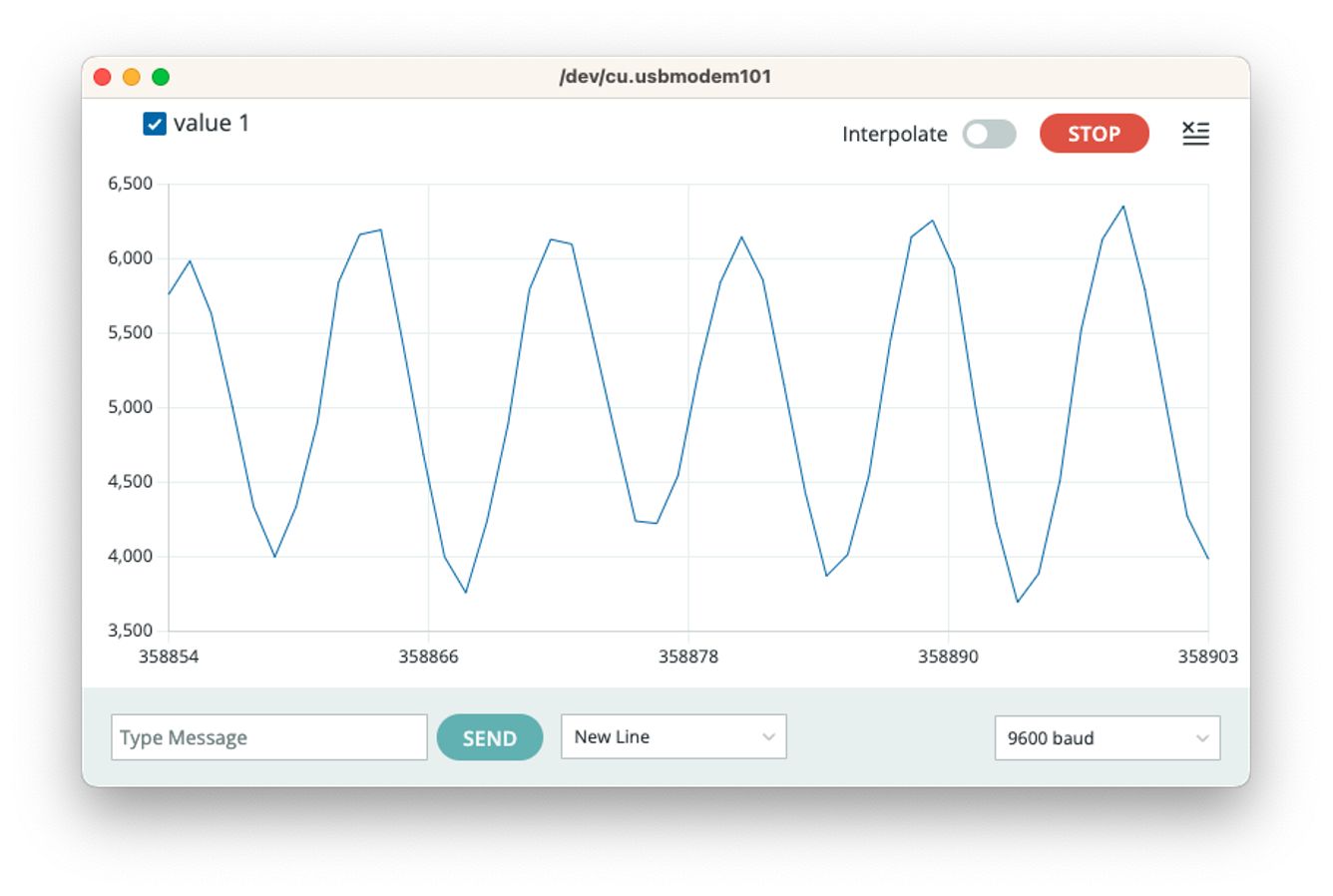

On Arduino IDE, go to Examples > PDM > PDMSerialPlotter, open and run the sketch. Open the Plotter and see the audio representation from the microphone:

Vary the frequency of the sound you generate and confirm that the mic is working correctly.

Testing the IMU

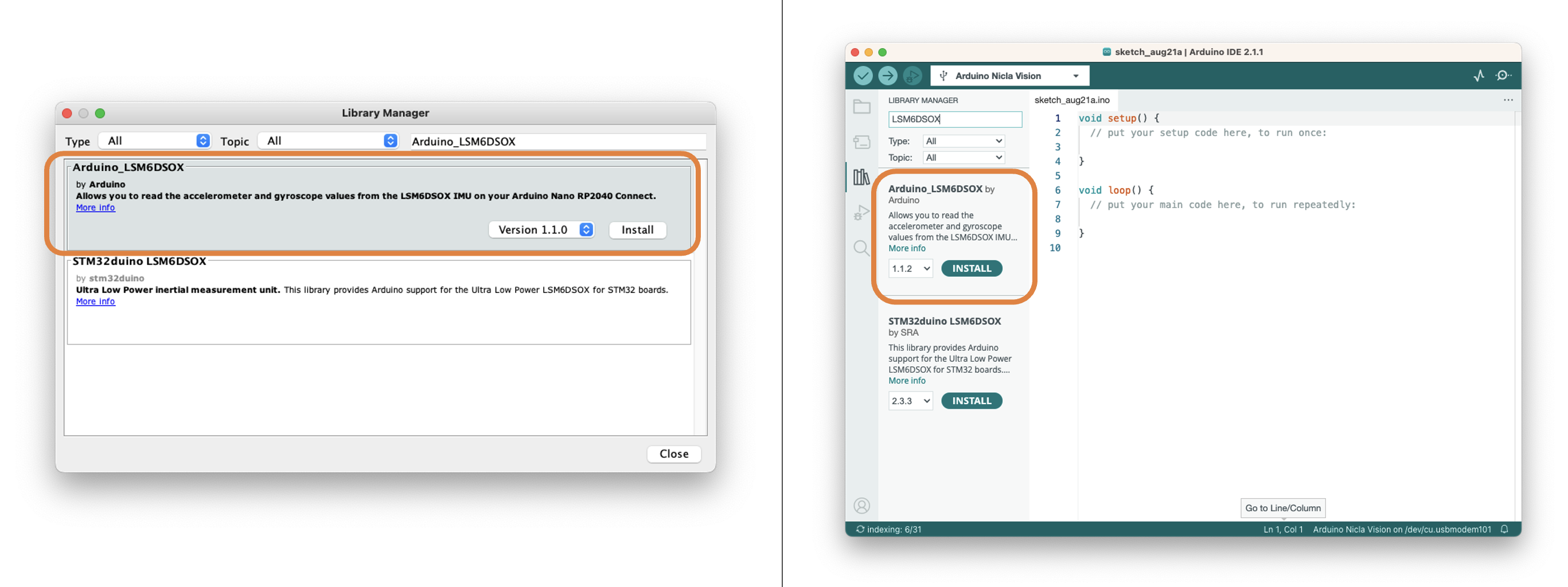

Before testing the IMU, it will be necessary to install the LSM6DSOX library. For that, go to Library Manager and look for LSM6DSOX. Install the library provided by Arduino:

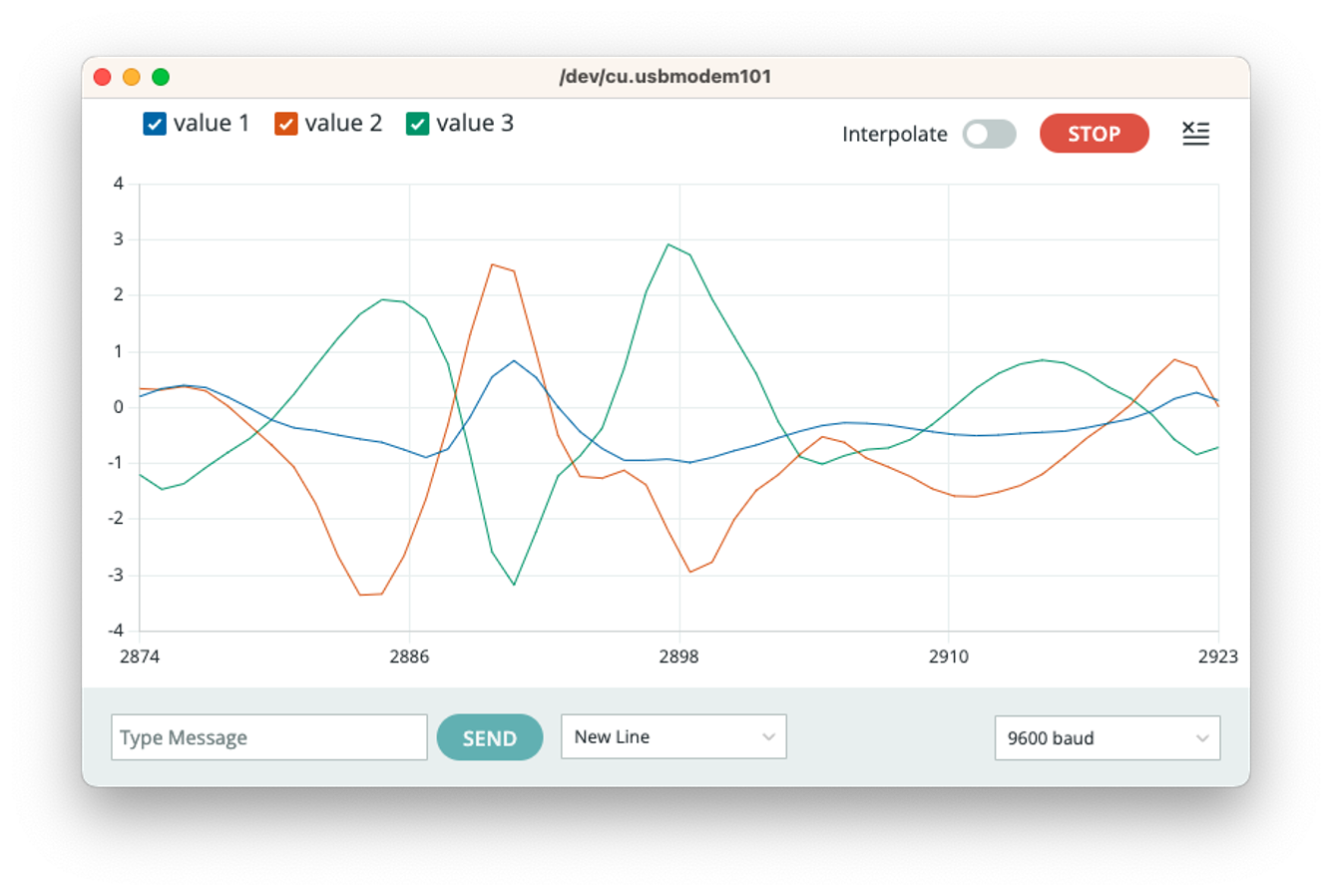

Next, go to Examples > Arduino_LSM6DSOX > SimpleAccelerometer and run the accelerometer test (you can also run Gyro and board temperature):

Testing the ToF (Time of Flight) Sensor

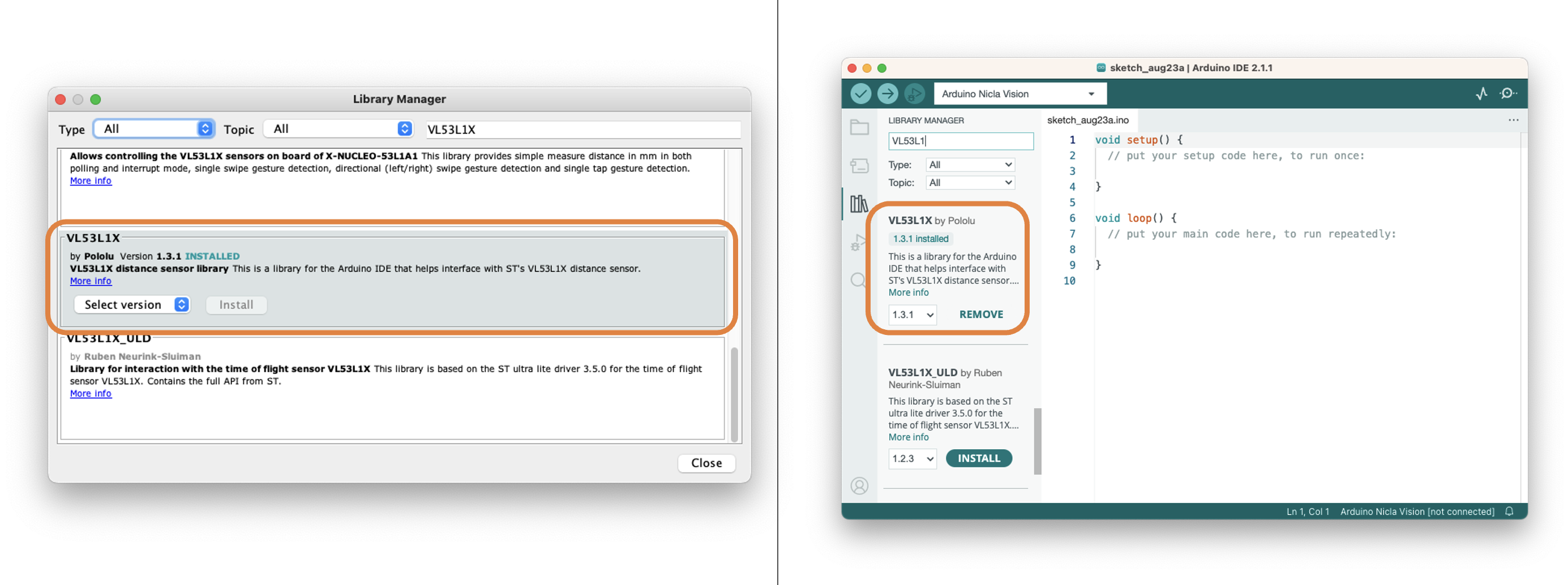

As we did with IMU, it is necessary to install the VL53L1X ToF library. For that, go to Library Manager and look for VL53L1X. Install the library provided by Pololu:

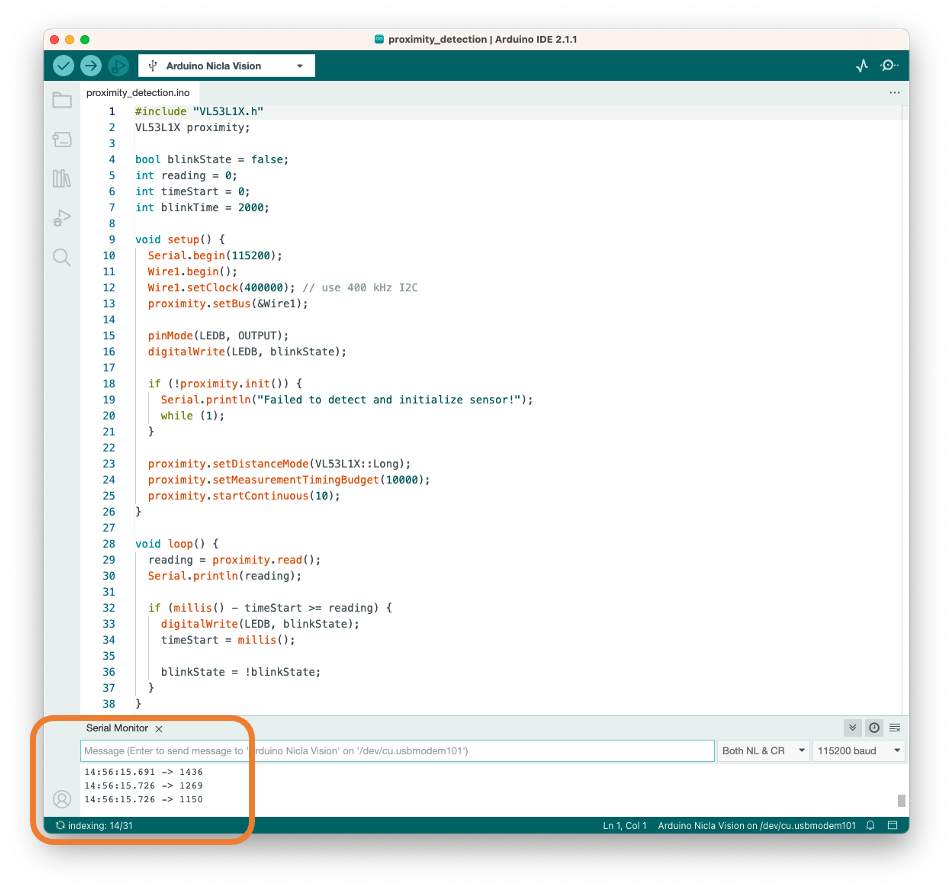

Next, run the sketch proximity_detection.ino:

On the Serial Monitor, you will see the distance from the camera to an object in front of it (max of 4m).

Testing the Camera

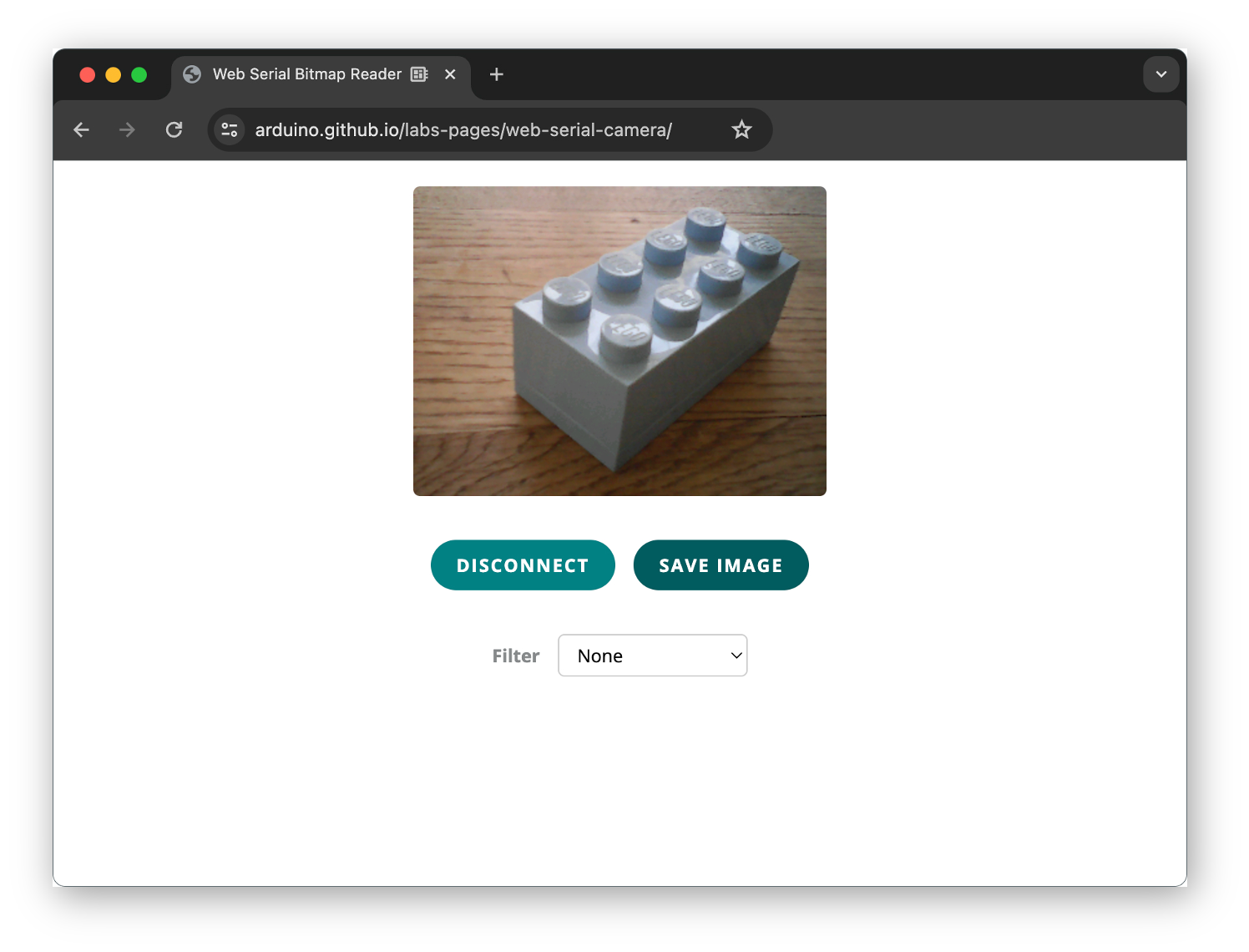

We can also test the camera using, for example, the code provided on Examples > Camera > CameraCaptureRawBytes. We cannot see the image directly, but it is possible to get the raw image data generated by the camera.

Anyway, the best test with the camera is to see a live image. For that, we will use another IDE, the OpenMV.

Installing the OpenMV IDE

OpenMV IDE is the premier integrated development environment with OpenMV Cameras like the one on the Nicla Vision. It features a powerful text editor, debug terminal, and frame buffer viewer with a histogram display. We will use MicroPython to program the camera.

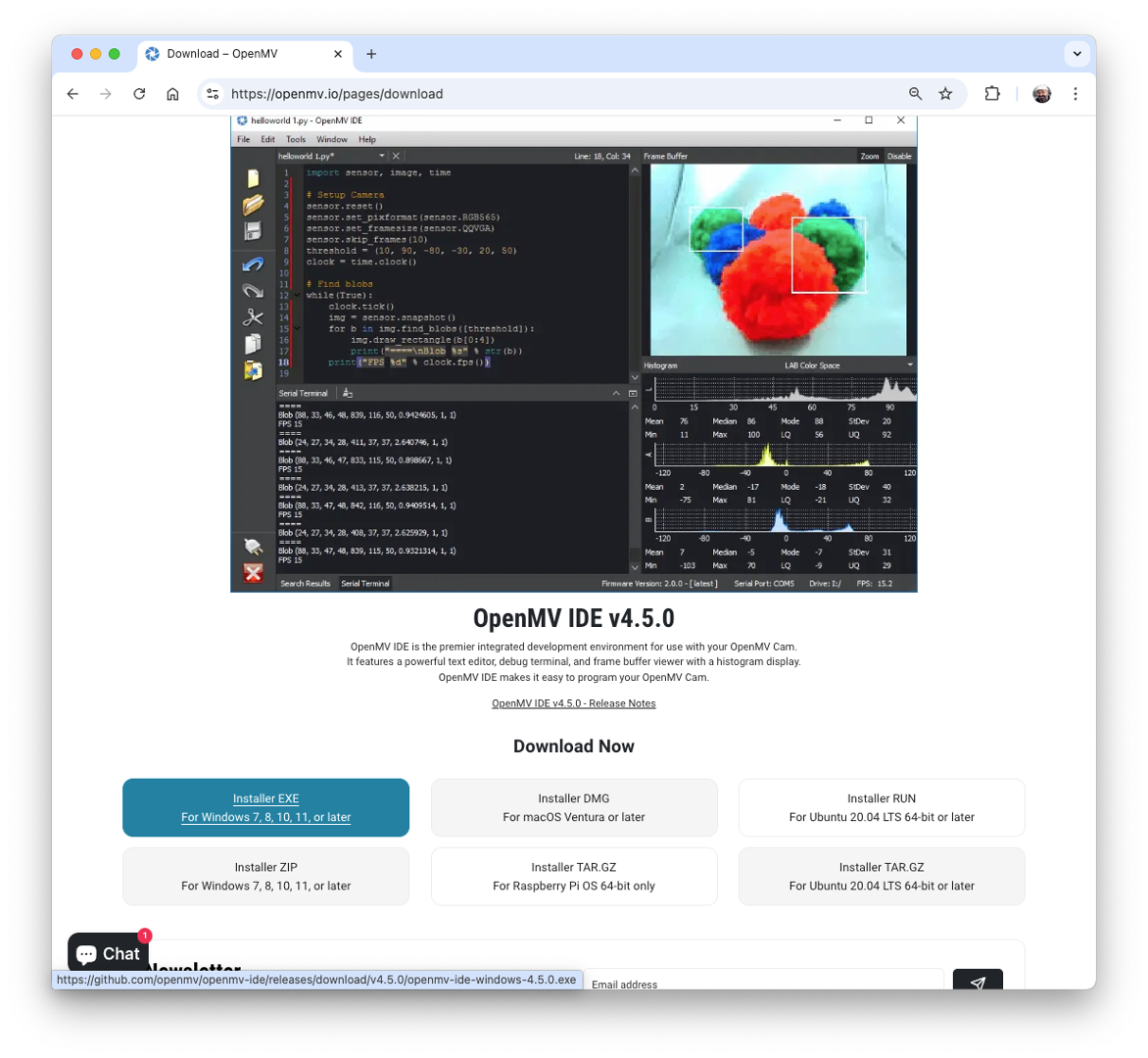

Go to the OpenMV IDE page, download the correct version for your Operating System, and follow the instructions for its installation on your computer.

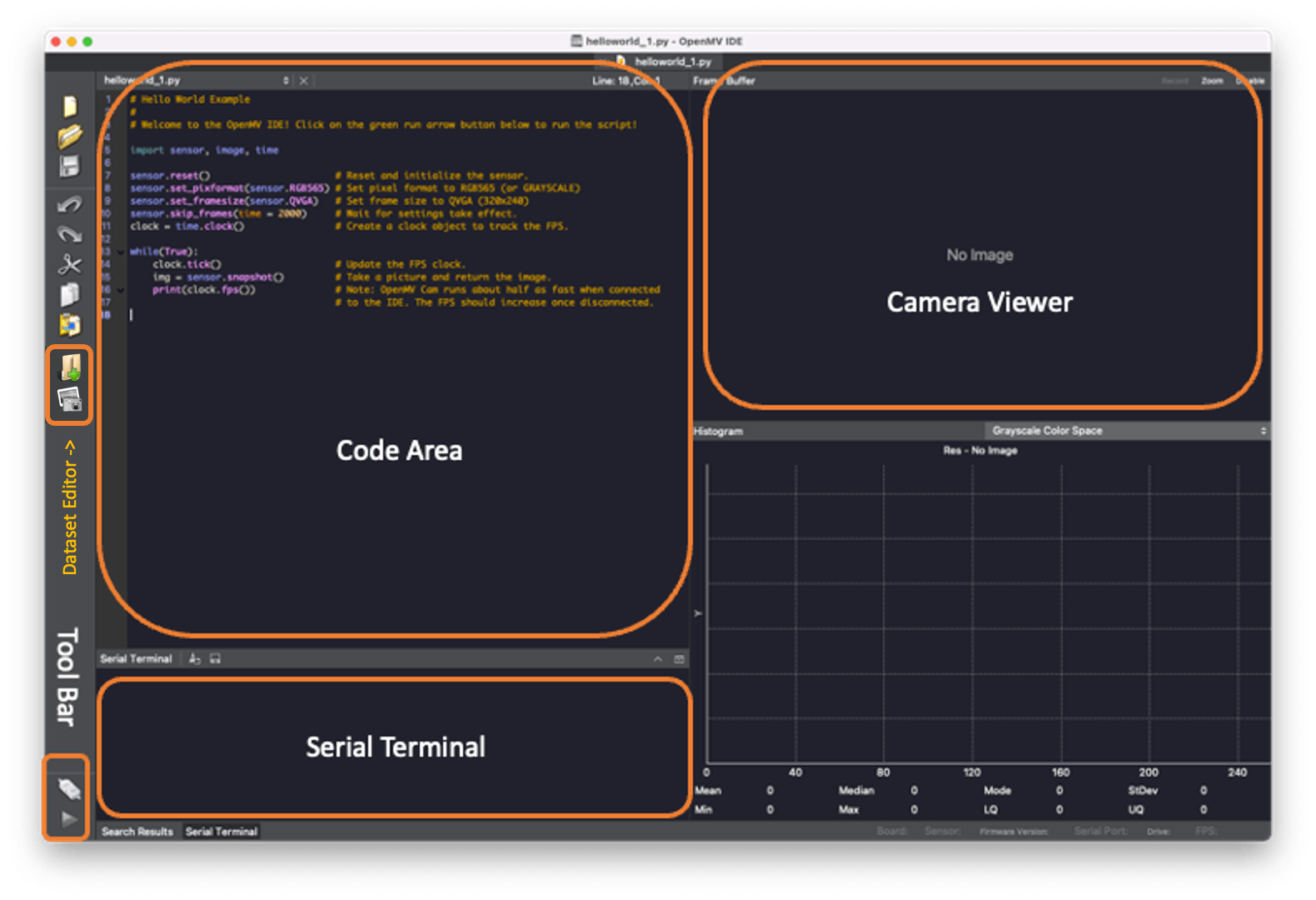

The IDE should open, defaulting to the helloworld_1.py code on its Code Area. If not, you can open it from Files > Examples > HelloWord > helloword.py

Any messages sent through a serial connection (using print() or error messages) will be displayed on the Serial Terminal during run time. The image captured by a camera will be displayed in the Camera Viewer Area (or Frame Buffer) and in the Histogram area, immediately below the Camera Viewer.

Before connecting the Nicla to the OpenMV IDE, ensure you have the latest bootloader version. Go to your Arduino IDE, select the Nicla board, and open the sketch on Examples > STM_32H747_System STM32H747_manageBootloader. Upload the code to your board. The Serial Monitor will guide you.

After updating the bootloader, put the Nicla Vision in bootloader mode by double-pressing the reset button on the board. The built-in green LED will start fading in and out. Now return to the OpenMV IDE and click on the connect icon (Left ToolBar):

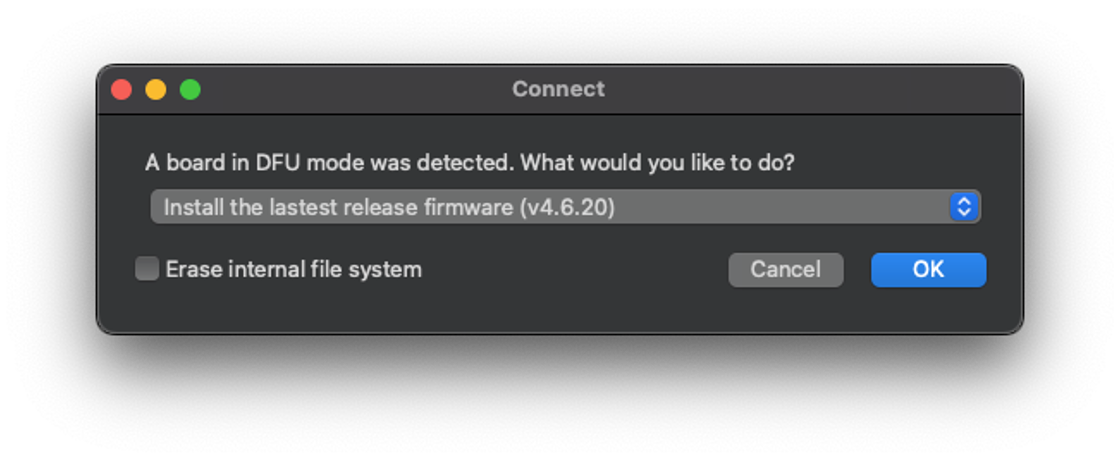

A pop-up will tell you that a board in DFU mode was detected and ask how you would like to proceed. First, select Install the latest release firmware (vX.Y.Z). This action will install the latest OpenMV firmware on the Nicla Vision.

You can leave the option Erase internal file system unselected and click [OK].

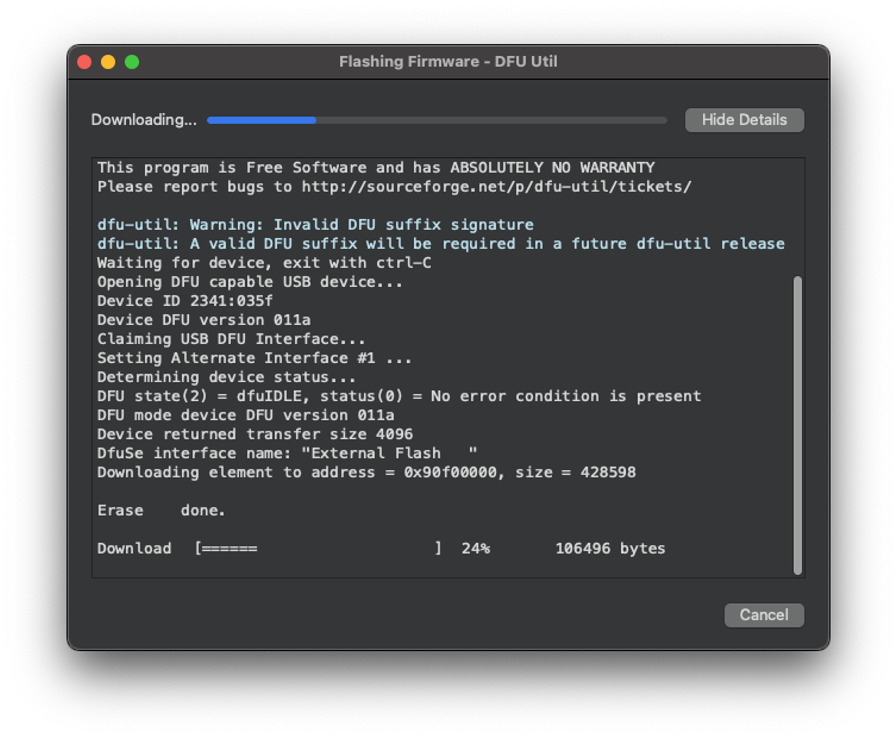

Nicla’s green LED will start flashing while the OpenMV firmware is uploaded to the board, and a terminal window will then open, showing the flashing progress.

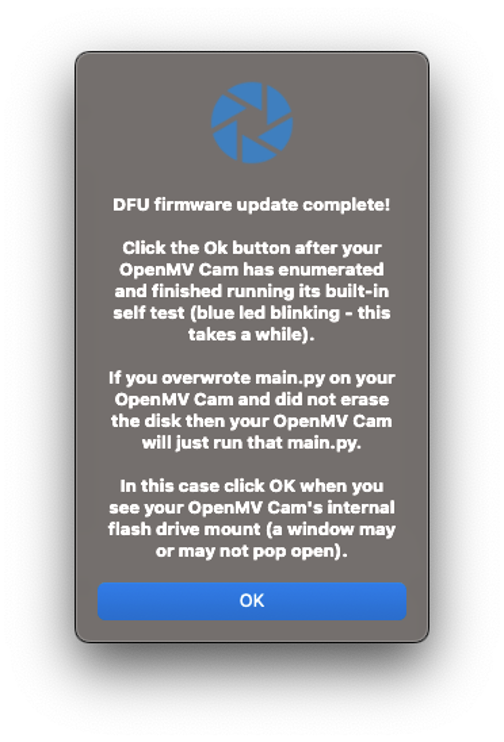

Wait until the green LED stops flashing and fading. When the process ends, you will see a message saying, “DFU firmware update complete!”. Press [OK].

A green play button appears when the Nicla Vison connects to the Tool Bar.

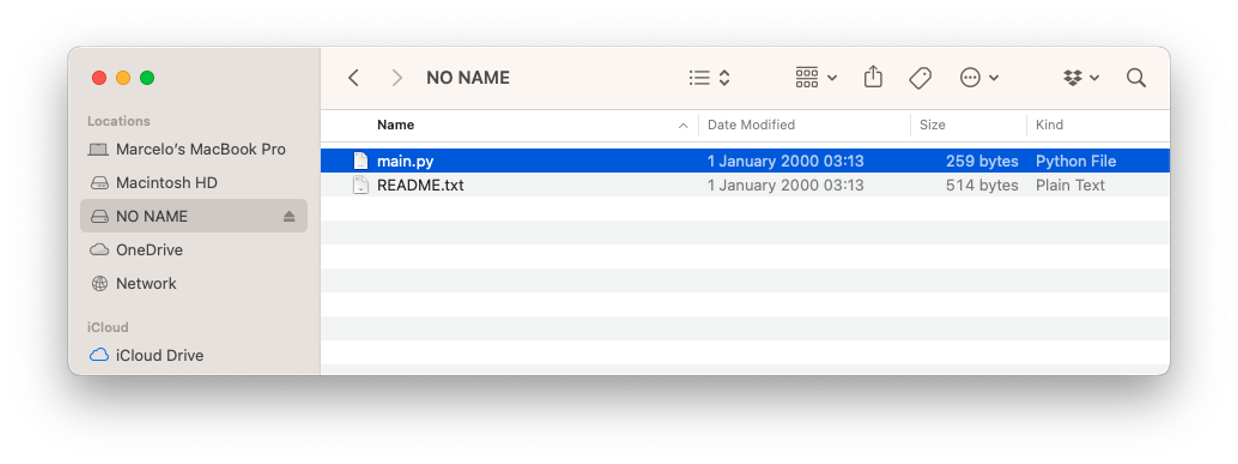

Also, note that a drive named “NO NAME” will appear on your computer.:

Every time you press the [RESET] button on the board, it automatically executes the main.py script stored on it. You can load the main.py code on the IDE (File > Open File...).

This code is the “Blink” code, confirming that the HW is OK.

For testing the camera, let’s run helloword_1.py. For that, select the script on File > Examples > HelloWorld > helloword.py,

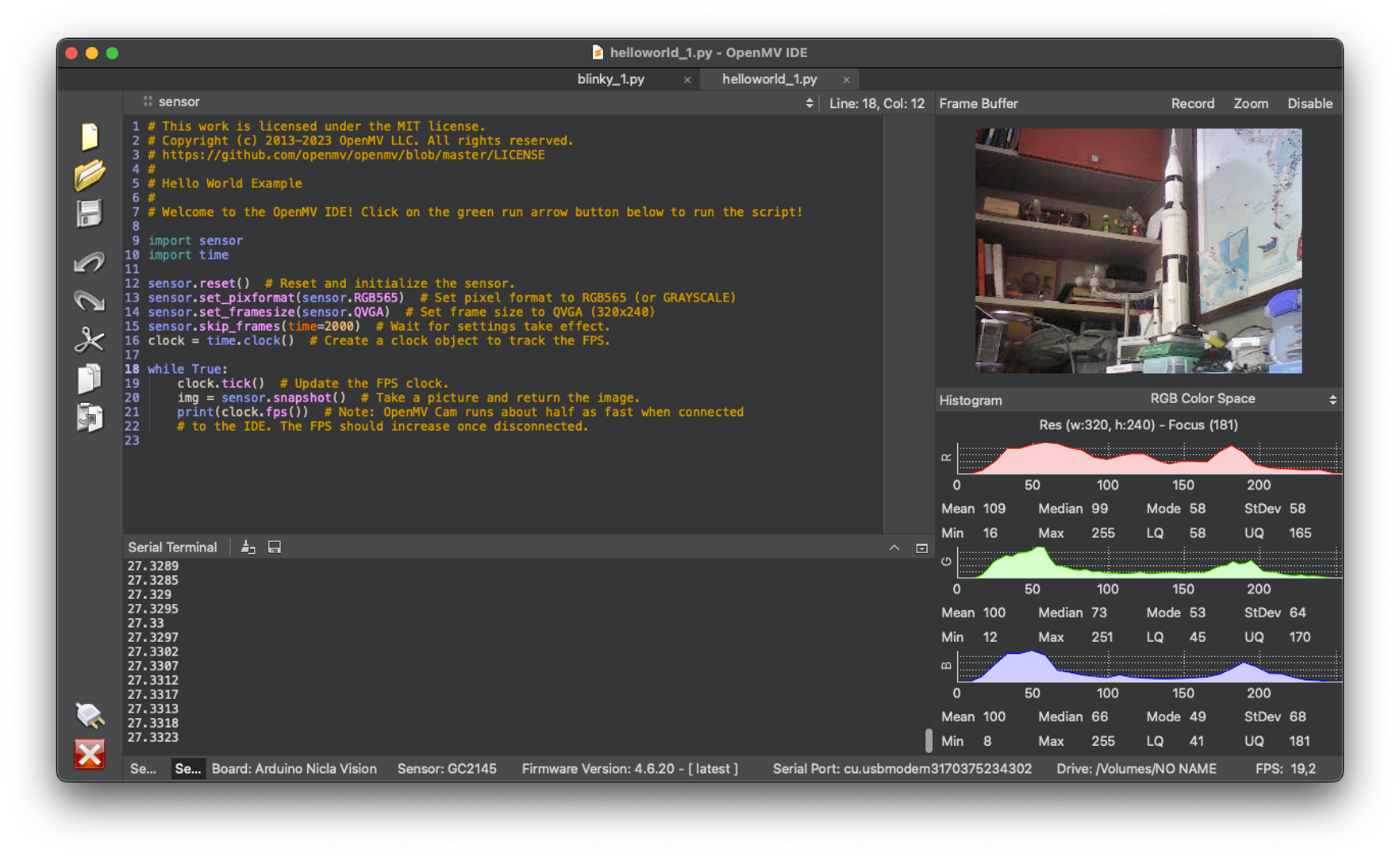

When clicking the green play button, the MicroPython script (hellowolrd.py) on the Code Area will be uploaded and run on the Nicla Vision. On-Camera Viewer, you will start to see the video streaming. The Serial Monitor will show us the FPS (Frames per second), which should be around 14fps.

Here is the helloworld.py script:

# Hello World Example 2
#
# Welcome to the OpenMV IDE! Click on the green run arrow button below to run the script!

import sensor, image, time

sensor.reset()                      # Reset and initialize the sensor.
sensor.set_pixformat(sensor.RGB565) # Set pixel format to RGB565 (or GRAYSCALE)
sensor.set_framesize(sensor.QVGA)   # Set frame size to QVGA (320x240)
sensor.skip_frames(time = 2000)     # Wait for settings take effect.
clock = time.clock()                # Create a clock object to track the FPS.

while(True):
    clock.tick()                    # Update the FPS clock.
    img = sensor.snapshot()         # Take a picture and return the image.
    print(clock.fps())

In GitHub, you can find the Python scripts used here.

The code can be split into two parts:

  • Setup: Where the libraries are imported, initialized and the variables are defined and initiated.

  • Loop: (while loop) part of the code that runs continually. The image (img variable) is captured (one frame). Each of those frames can be used for inference in Machine Learning Applications.

To interrupt the program execution, press the red [X] button.

Note: OpenMV Cam runs about half as fast when connected to the IDE. The FPS should increase once disconnected.

In the GitHub, You can find other Python scripts. Try to test the onboard sensors.

Connecting the Nicla Vision to Edge Impulse Studio

We will need the Edge Impulse Studio later in other exercises. Edge Impulse is a leading development platform for machine learning on edge devices.

Edge Impulse officially supports the Nicla Vision. So, for starting, please create a new project on the Studio and connect the Nicla to it. For that, follow the steps:

  • Download the most updated EI Firmware and unzip it.

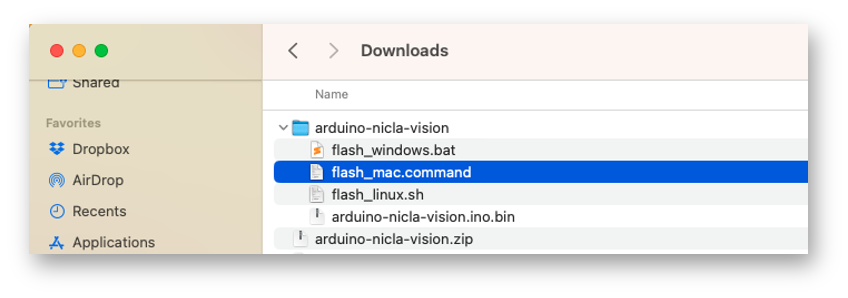

  • Open the zip file on your computer and select the uploader corresponding to your OS:

  • Put the Nicla-Vision on Boot Mode, pressing the reset button twice.

  • Execute the specific batch code for your OS for uploading the binary arduino-nicla-vision.bin to your board.

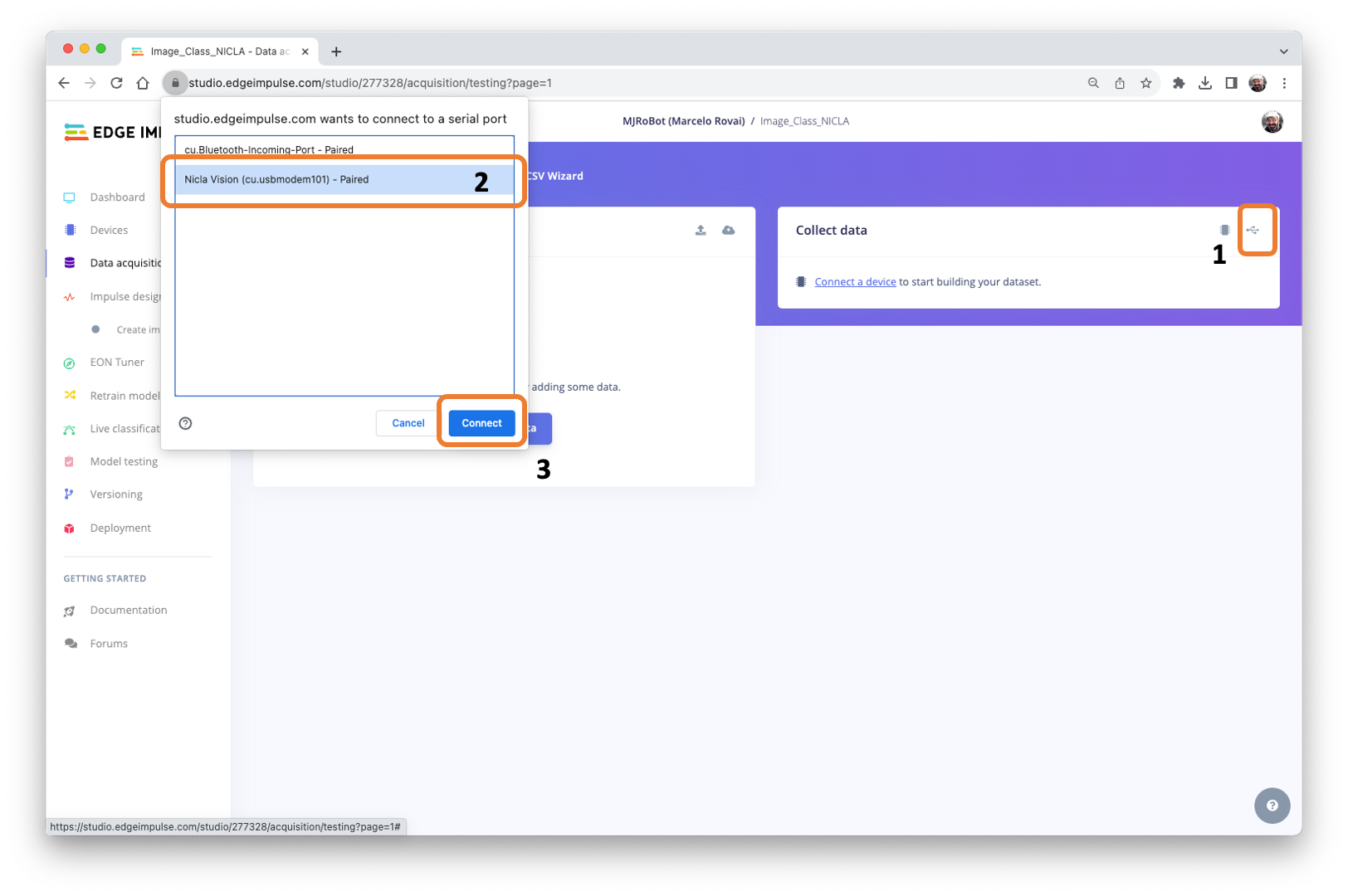

Go to your project on the Studio, and on the Data Acquisition tab, select WebUSB (1). A window will pop up; choose the option that shows that the Nicla is paired (2) and press [Connect] (3).

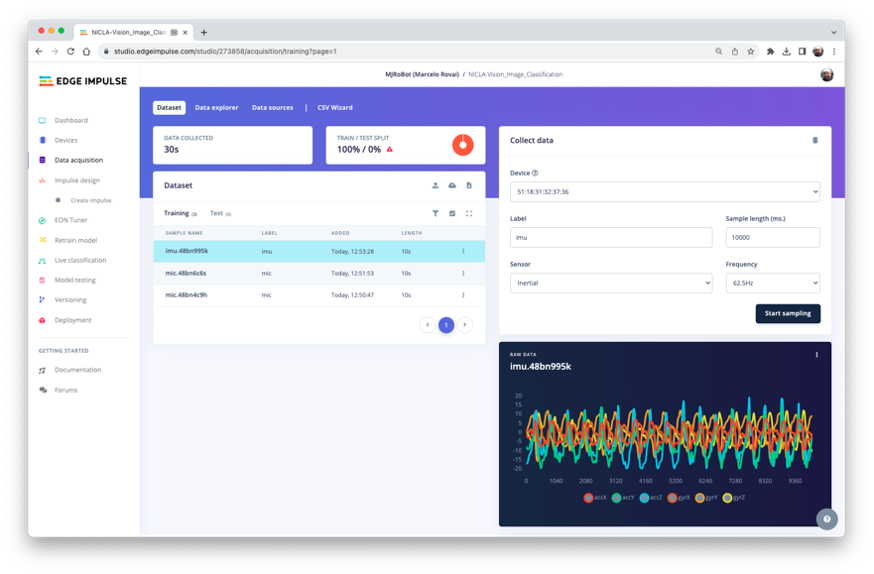

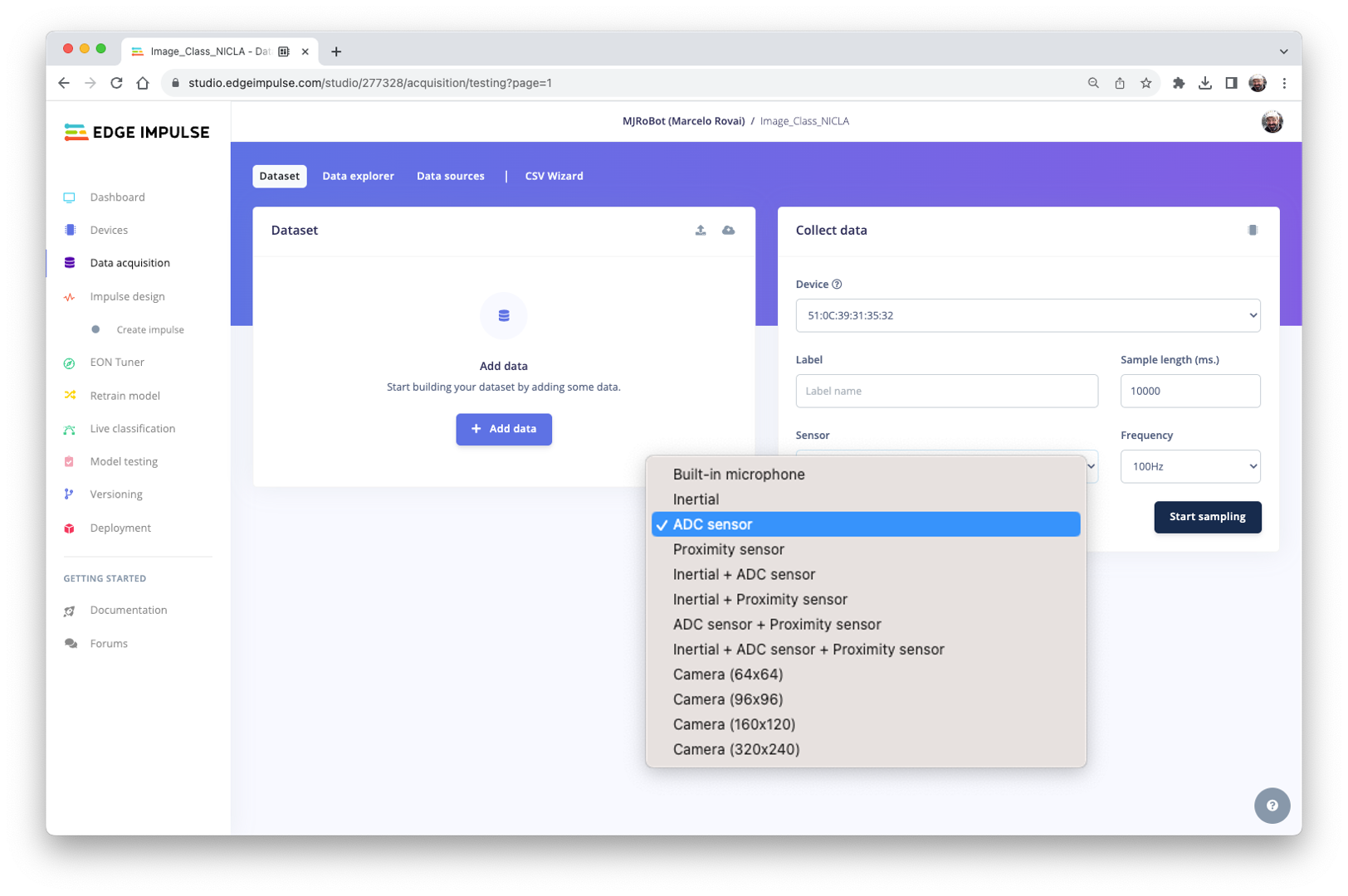

In the Collect Data section on the Data Acquisition tab, you can choose which sensor data to pick.

For example. IMU data:

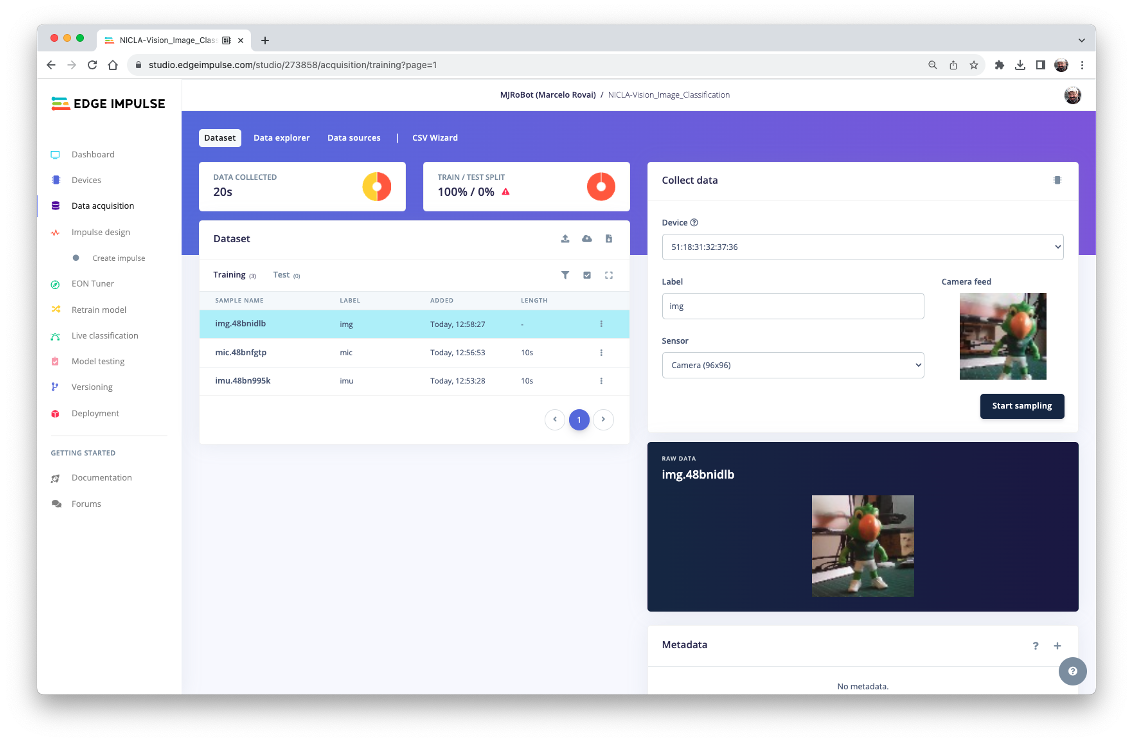

Or Image (Camera):

And so on. You can also test an external sensor connected to the ADC (Nicla pin 0) and the other onboard sensors, such as the microphone and the ToF.

Expanding the Nicla Vision Board (optional)

A last item to be explored is that sometimes, during prototyping, it is essential to experiment with external sensors and devices, and an excellent expansion to the Nicla is the Arduino MKR Connector Carrier (Grove compatible).

The shield has 14 Grove connectors: five single analog inputs (A0-A5), one double analog input (A5/A6), five single digital I/Os (D0-D4), one double digital I/O (D5/D6), one I2C (TWI), and one UART (Serial). All connectors are 5V compatible.

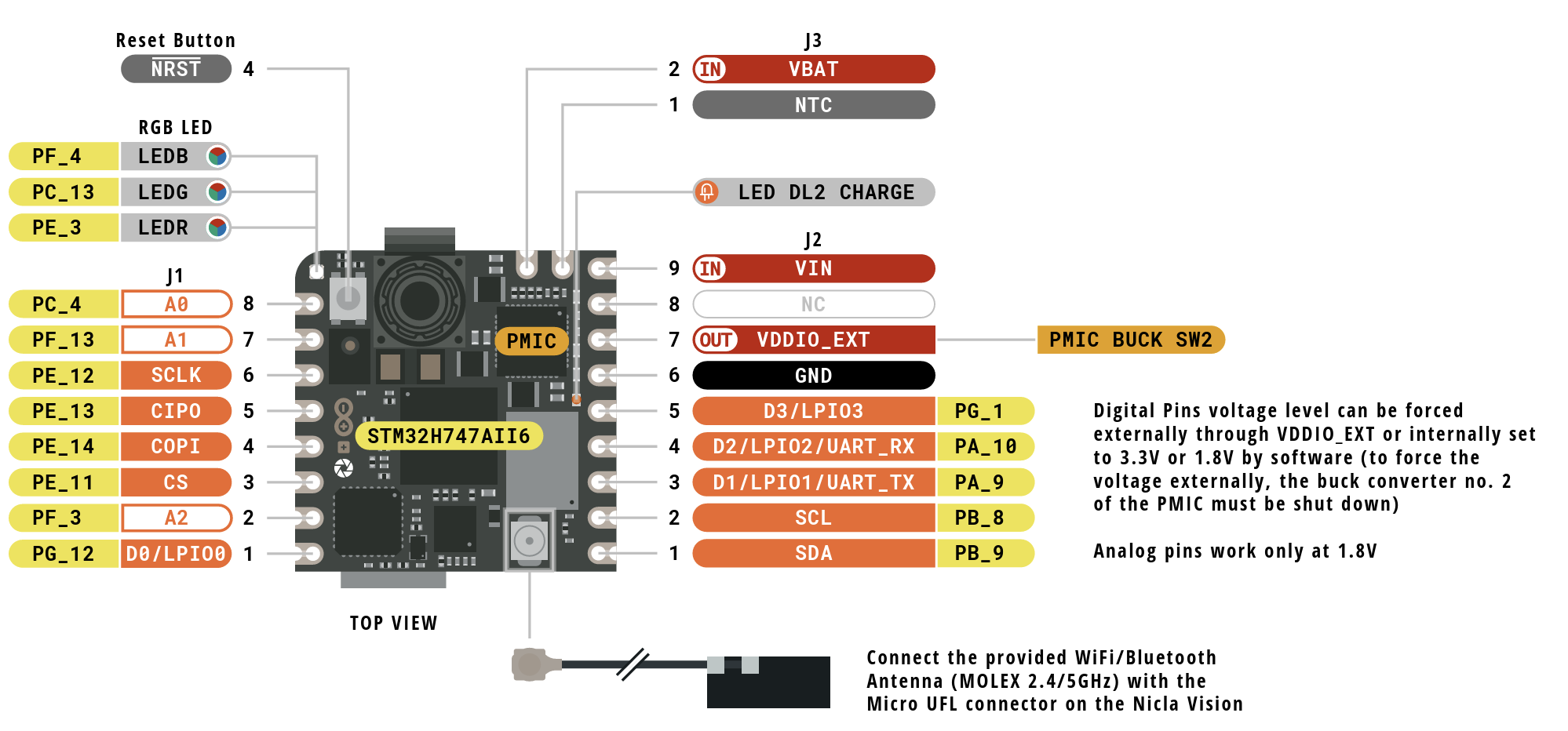

Note that all 17 Nicla Vision pins will be connected to the Shield Groves, but some Grove connections remain disconnected.

This shield is MKR compatible and can be used with the Nicla Vision and Portenta.

For example, suppose that on a TinyML project, you want to send inference results using a LoRaWAN device and add information about local luminosity. Often, with offline operations, a local low-power display such as an OLED is advised. This setup can be seen here:

The Grove Light Sensor would be connected to one of the single Analog pins (A0/PC4), the LoRaWAN device to the UART, and the OLED to the I2C connector.

The Nicla Pins 3 (Tx) and 4 (Rx) are connected with the Serial Shield connector. The UART communication is used with the LoRaWan device. Here is a simple code to use the UART:

# UART Test - By: marcelo_rovai - Sat Sep 23 2023

import time
from pyb import UART
from pyb import LED

redLED = LED(1) # built-in red LED

# Init UART object.
# Nicla Vision's UART (TX/RX pins) is on "LP1"
uart = UART("LP1", 9600)

while(True):
    uart.write("Hello World!\r\n")
    redLED.toggle()
    time.sleep_ms(1000)

To verify that the UART is working, you should, for example, connect another device as the Arduino UNO, displaying “Hello Word” on the Serial Monitor. Here is the code.

Below is the Hello World code to be used with the I2C OLED. The MicroPython SSD1306 OLED driver (ssd1306.py), created by Adafruit, should also be uploaded to the Nicla (the ssd1306.py script can be found in GitHub).

# Nicla_OLED_Hello_World - By: marcelo_rovai - Sat Sep 30 2023

#Save on device: MicroPython SSD1306 OLED driver, I2C and SPI interfaces created by Adafruit
import ssd1306

from machine import I2C
i2c = I2C(1)

oled_width = 128
oled_height = 64
oled = ssd1306.SSD1306_I2C(oled_width, oled_height, i2c)

oled.text('Hello, World', 10, 10)
oled.show()

Finally, here is a simple script to read the ADC value on pin “PC4” (Nicla pin A0):


# Light Sensor (A0) - By: marcelo_rovai - Wed Oct 4 2023

import pyb
from time import sleep

adc = pyb.ADC(pyb.Pin("PC4"))     # create an analog object from a pin
val = adc.read()                  # read an analog value

while (True):

    val = adc.read()
    print ("Light={}".format (val))
    sleep (1)

The ADC can be used for other sensor variables, such as Temperature.

Note that the above scripts (downloaded from Github) introduce only how to connect external devices with the Nicla Vision board using MicroPython.

Conclusion

The Arduino Nicla Vision is an excellent tiny device for industrial and professional uses! However, it is powerful, trustworthy, low power, and has suitable sensors for the most common embedded machine learning applications such as vision, movement, sensor fusion, and sound.

On the GitHub repository, you will find the last version of all the codeused or commented on in this hands-on exercise.
